RJAINNO-A21GSM/GPRS 850/1800/1900 MHz Mobile Phone

Innostream Inc.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Aug 25, 2005
Application Purpose: Original Equipment
Date of Application: Aug 25, 2005
Equipment Note: GSM/GPRS 850/1800/1900 MHz Mobile Phone
Frequency Range: 824.20000000 - 848.80000000
Company: Innostream Inc.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

INNO-A21 User’s Guide INNOSTREAM Confidential PAGE : 1 of 130 INNO-A21 User manual GPRS MEGA PIXEL CAMERA & MUSIC PHONE SERIES COMPACT SIZE INTENNA TWIST CLAMSHELL TYPE TFT 262,000 MAIN SCREEN 2.0 MEGA PIXEL DIGITAL CAMERA MP3 MUSIC PLAYER MPEG4 PLAYER WAP 2.0 / JAVA / MMS VIS / MSF INNO-A21 User’s Guide INNOSTREAM Confidential PAGE : 2 of 130 Contents 1.BEFORE YOU START 1.1 PHONE LAYOUT AND ICONS................................................................................... 1.2 QUICK SILENCE MODE........................................................................................ 1.3 USING THE NAVIGATION KEYS................................................................................. 1.4 USING THE EARPHONE........................................................................................ 1.5 DISPLAY IN THE IDLE SCREEN................................................................................. 2.GETTING STARTED............................................................................................. 2.1 HOW TO ATTACH THE BATTERY............................................................................... 2.2 HOW TO REMOVE THE BATTERY............................................................................... 2.3 HOW TO CHARGE THE BATTERY.............................................................................. 2.4 HOW TO PLACE THE SIM CARD................................................................................ 2.5 HOW TO REMOVE THE SIM CARD.............................................................................. 2.6 HOW TO PLACE THE MEMORY CARD.................................................................. 2.7 HOW TO REMOVE THE MEMORY CARD ............................................................... 2.8 HOW TO SWITCH YOUR PHONE ON AND OFF.................................................................. 2.9 HOW TO USING MASS STORAGET ...................................................................... 3. SECURITY CODES............................................................................................. 3.1 PIN ........................................................................................................... 3.2 PUK........................................................................................................... 3.3 PIN2 .......................................................................................................... 3.4 PUK2 ......................................................................................................... 3.5 SIM LOCK CODE............................................................................................... 3.6 LOCK CODE................................................................................................... 3.7 PASSWORD................................................................................................... 4. MAKING AND RECEIVING A CALL........................................................................... 4.1 MAKING A CALL............................................................................................... 4.2 ANSWERING A CALL........................................................................................... 4.3 MAKING THE EMERGENCY CALL............................................................................... 4.4 MAKING AN INTERNATIONAL CALL............................................................................. 4.5 ENTERING A "PAUSE" CHARACTER IN A DIAL STRING......................................................... 4.6 NOTIFICATION OF MISSED CALL............................................................................... 5. IN-CALL OPTIONS............................................................................................. 5.1 PUTTING A CALL ON HOLD/UNHOLD.......................................................................... 5.2 MAKING A SECOND CALL...................................................................................... 5.3 SWAPPING BETWEEN ACTIVE CALLS AND HELD CALLS........................................................ 5.4 ANSWERING A SECOND INCOMING CALL...................................................................... 5.5 ADJUSTING THE EARPIECE VOLUME........................................................................... 5.6 MUTING THE MICROPHONE.................................................................................... 5.7 SENDING DTMF................................................................................................ 5.8 STORING A NUMBER ON THE SCRATCHPAD................................................................... 5.9 USING THE SMS FUNCTION.................................................................................... 5.10 USING THE LOUDSPEAKER.................................................................................. 5.11 MAKING A CONFERENCE CALL ....................................................................... 5.12 RECORD SPEECH........................................................................................ 6. PHONEBOOK................................................................................................... INNO-A21 User’s Guide INNOSTREAM Confidential PAGE : 3 of 130 6.1 STORING A PHONE NUMBER WITH A NAME.................................................................... 6.2 QUICK SEARCHING FOR A NUMBER IN THE PHONEBOOK...................................................... 6.3 STORING A NUMBER OF THE RECENT CALLS TO THE PHONEBOOK........................................... 6.4 SPEED DIALS................................................................................................ 6.5 USING THE PHONEBOOK OPTIONS............................................................................ 7. MULTIMEDIA MENU & CAMERA MENU .............................................................................. 8. TEXT EDITING........................................................................................…

Text truncated - open the document above for the full version.

Attestation Statements

Innostream Inc. 9F, Allianz. Bldg, 267-3 , Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyongki-do, Korea Date: August 5, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: RJAINNO-A21 Company: Innostream Inc. EUT Type: Dual Mode GSM Phone (GSM850 / GSM1900) Part 22/ 24 Certification To whom it may concern: We, the undersigned. hereby authorized HYUNDAI Calibration & Certification Technologies Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by HYUNDAI Calibration & Certification Technologies Co., Ltd. on our behalf shall have the same effect as acts of our own. This authorization is valid until Dec. 31, 2005. Sincerely Yours, --------------------------------- Mr. - Project Manager Innostream Inc. Innostream Inc. 9F, Allianz. Bldg, 267-3 , Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyongki-do, Korea Date: August 5, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Request for Confidentiality FCC ID: RJAINNO-A21 Company: Innostream Inc. EUT Type: Dual Mode GSM Phone (GSM850 / GSM1900) Part 22/ 24 Certification Gentlemen: In accordance with 0.459 of CFR 47, : Innostream Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment, Operational Description attachment, and Part List/Tune-Up Procedure attachment for the above-referenced Certification application. These documents contain detailed system and equipment description and related information about the product which : Innostream Inc.considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, : Innostream Inc. feels this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely Yours, --------------------------------- Mr. - Project Manager Innostream Inc. Innostream Inc. 9F, Allianz. Bldg, 267-3 , Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyongki-do, Korea Date: August 5, 2005 We hereby certify that the Dual-mode phone (FCC ID: RJAINNO-A21) is so designed that it complies with all the requirements for ESN protection specified in Section 24.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely Yours, --------------------------------- Mr. - Project Manager Innostream Inc. Innostream Inc. 9F, Allianz. Bldg, 267-3 , Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyongki-do, Korea Date: August 5, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: User's Manual RF Exposure Warning Statement FCC ID: RJAINNO-A21 Company: Innostream Inc. EUT Type: Dual Mode GSM Phone (GSM850 / GSM1900) Part 22/ 24 Certification Gentlemen: Innostream Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the user's manual. Should you have any questions or comments concerning the above, please do not hesitate contact me. Sincerely Yours, --------------------------------- Mr. - Project Manager Innostream Inc.

Cover Letter(s)

SAN 136-1,AMI-RI,BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701,KOREA APPLICANT: Innostream Inc. FCC ID: RJAINNO-A21 FCC Rule Part(s): Part 22 / 24 / 2 Certification Gentlemen: Submitted herewith, on behalf of Innostream Inc., is an application for Part 24, 2 Certification of the following Dual- Mode GSM Phone: Trade Name/Model(s): Innostream / INNO-A21 EUT Type: Dual- Mode GSM Phone (GSM850/GSM1900) – Prototype GPRS class 8 and GPRS mode class B(GPRS and GSM, but not simultaneously) Tx Frequency: 824.20 — 848.80 MHz (GSM850) 1850.20 — 1909.80 MHz (GSM1900) Rx Frequency: 869.20 — 893.80 MHz (GSM850) 1930.20 — 1989.80 MHz (GSM1900) Max. RF Output Power: 0.818 W ERP GSM850 (29.13 dBm) / 0.798 W EIRP GSM1900 (29.02 dBm) Maximum SAR: 1.02W/kg GSM850 Head SAR; 0.562W/kg GSM850 Body SAR; 1.27W/kg GSM1900 Head SAR; 0.245W/kg GSM1900 Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Report prepared by : Ki-Soo Kim Manager of Product Compliance Team cc: Mr. CHO SUNG HWAN - Project Manager [Innostream Inc.] August 20, 2005 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 TEL : +82 31 639 8518 FAX : +82 31 639 8525 http://www.hct.co.kr

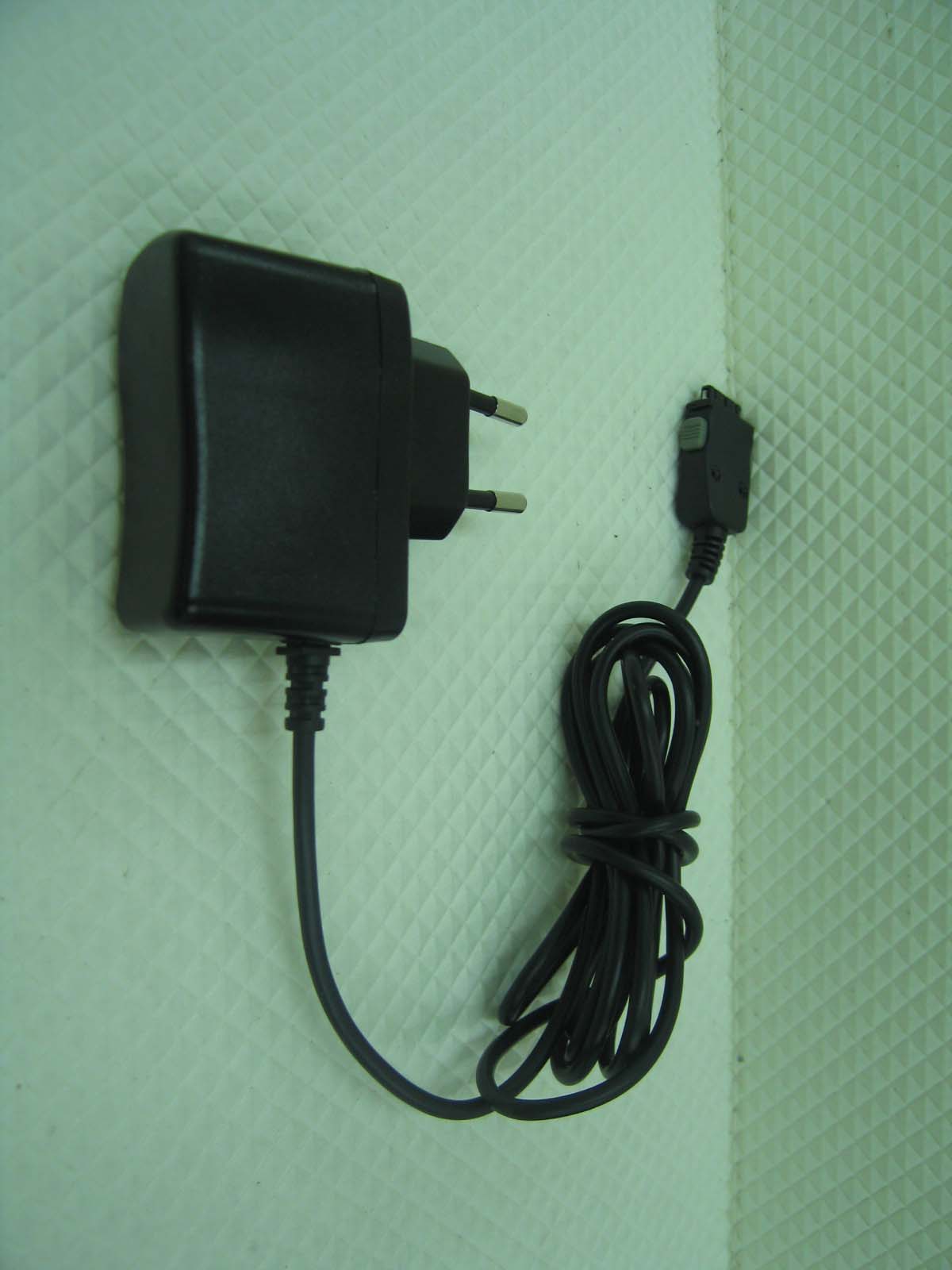

External Photos

ID Label/Location Info

Internal Photos

Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr １ of 17 ATTACHMENT H – INTERNAL PHOTOGRAPHS Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ２ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ３ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ４ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ５ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ６ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ７ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ８ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ９ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr １０ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr １１ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr １２ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr １３ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr １４ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr １５ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr １６ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr １７ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr １８ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr １９ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ２０ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ２１ of 17 ■ INTERNAL PHOTO Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECH…

Text truncated - open the document above for the full version.

RF Exposure Info

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8518 FAX: +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: Dual- Mode GSM Phone (GSM850/GSM1900) – Prototype GPRS class 8 and GPRS mode class B(GPRS and GSM, but not simultaneously) Tx Frequency: 824.20 — 848.80 MHz (GSM850) 1850.20 — 1909.80 MHz (GSM1900) Rx Frequency: 869.20 — 893.80 MHz (GSM850) 1930.20 — 1989.80 MHz (GSM1900) Max. RF Output Power: 0.818 W ERP GSM850 (29.13 dBm) / 0.798 W EIRP GSM1900 (29.02 dBm) Trade Name/Model(s): Innostream / INNO-A21 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] Maximum SAR: 1.02W/kg GSM850 Head SAR; 0.562W/kg GSM850 Body SAR; 1.27W/kg GSM1900 Head SAR; 0.245W/kg GSM1900 Body SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCC ID : APPLICANT : RJAINNO-A21 Innostream Inc. Date of Issue: August 20, 2005 Test Report No.: HCT-SAR05-0815 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 Innostream Inc. 9F, Allianz. Bldg, 267-3 , Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyongki-do, Korea FRN: 0009349481 Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 EUT ARRANGEMENT ------------------------------------------------------------------------------------- 6.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 7.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 8.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 9.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 10.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 11.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 12.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 13.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 14.1 CONCLUSION ------------------------------------------------------------------------------------------------ 15.1 REFERENCES -------------------------------------------------------------------------------------------- 3 4 5 6 7-8 9-10 11 12 13 14 15 16-18 19 20 21 Report No.: HCT-SAR05-0815 FCC ID : RJAINNO-A21 DATE: August 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant • EUT Type: Dual- Mode GSM Phone(GSM850/GSM1900)- Prototype GPRS class 8 and GPRS mode class B(GPRS and GSM, but not simultaneously) • Trade Name: Innostream • Model(s): INNO-A21 • FCC ID: RJAINNO-A21 • Serial Number(s): RJAA21-20050800001 • Tx Frequency: 824.20 – 848.80 MHz (GSM850) 1850.20 – 1909.80 MHz (GSM1900) • Rx Frequency: 869.20 – 893.80 MHz (GSM850) 1930.20 – 1989.80 MHz (GSM1900) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] • Modulation(s): GSM • Αntenna Type: Fixed • Date(s) of Tests: August 18, 19, 2005 • Place of Tests: Hyundai C-Tech. EMC Lab. Icheon, Kyounki-Do, KOREA • Report Serial No.: HCT-SAR05-0815 Figure 1. SAR System 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Company Name: Innostream Inc. Address: 9F, Allianz. Bldg, 267-3 , Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyongki-do, Korea Attention: Byong-yol Lee - Project Manager Tel. …

Text truncated - open the document above for the full version.

RF Exposure Info

Text truncated - open the document above for the full version.

Contact Information

Applicant

Si�Chul Kim

[email protected]82317073860Fax: 82317062122

Technical Contact

HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CKi-Soo Kim

[email protected]+82-31-639-8518

SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI · ICHEON-SI,KYOUNKI-DO · South Korea

Non-Technical Contact

HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CMoon-Jin Jeoung

[email protected]+82-31-639-8518

Test Firm

HCT Co., LTDSang Lee

[email protected]82-31-645-6420Fax: 82-31-645-6401

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	22H	824.2 MHz - 848.8 MHz	818.00 mW	300KGXW	0.07411 ppm

Confidentiality

Long Term

Grant Notes

Power listed is ERP for part 22 and EIRP for part 24. This device contains 1800 MHz GSM functions that are not operational in U.S. Territories. This filing is only applicable for GSM 850/1900 operations. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic and a minimum distance of 15 mm to the body. End-users must be provided with the appropriate information for satisfying RF exposure compliance. Highest reported SAR values are: Part 24 - Head: 1.27 W/kg, Body: 0.245 W/kg; Part 22 - Head: 1.02 W/kg, Body: 0.562 W/kg
