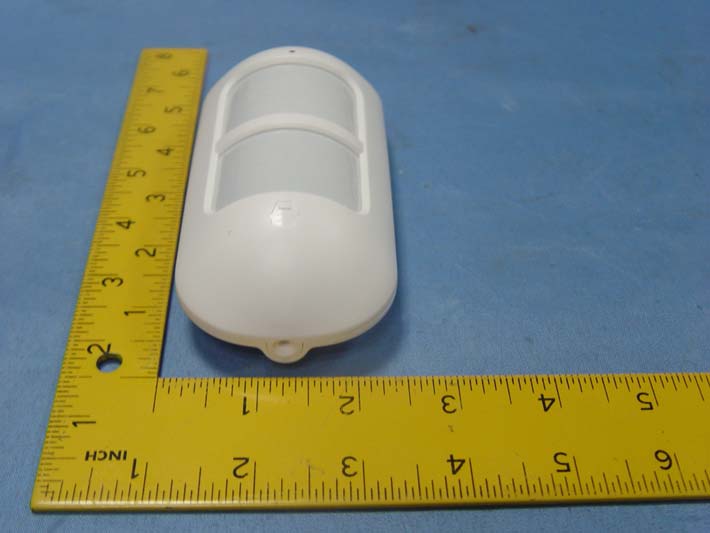

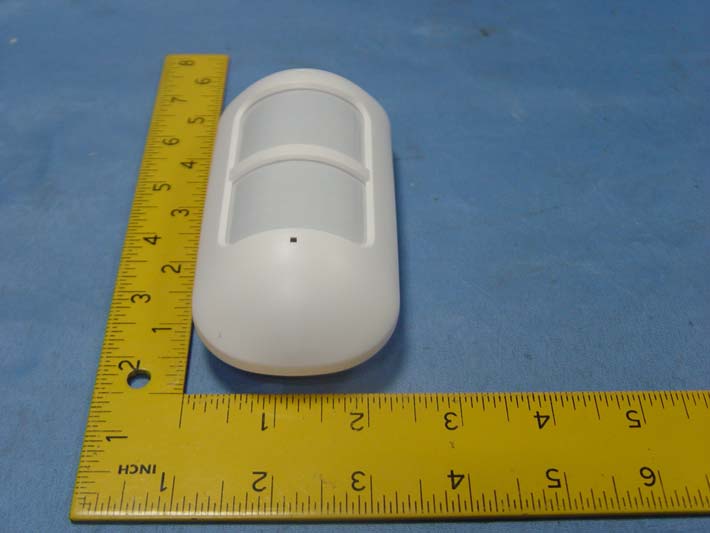

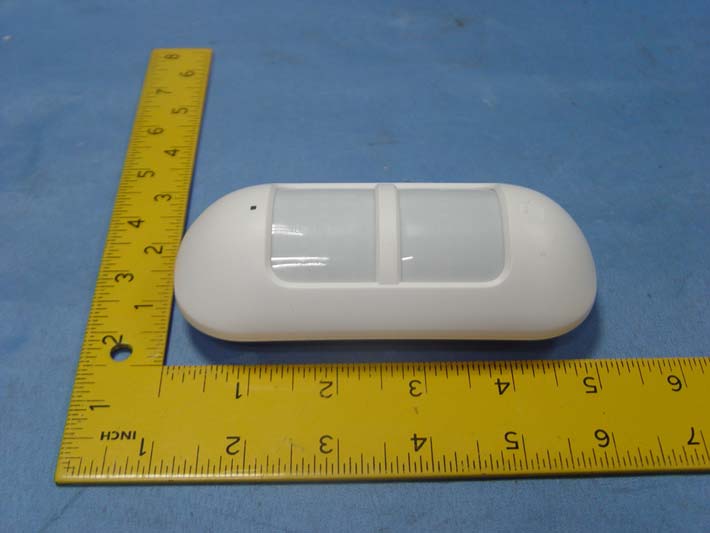

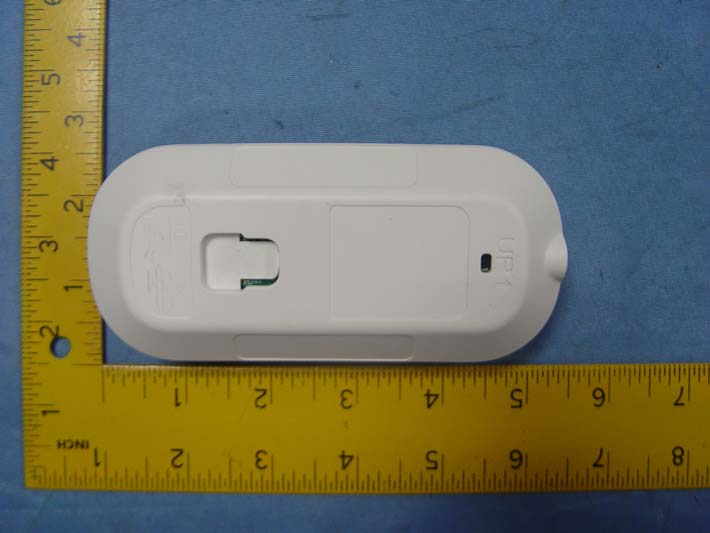

RJY-MD9100Pet-Immune PIR Motion Detector

Pet-Immune Function Illustration MD9100 User Manual Introduction MD9100 motion detector adopts unique design with dual infrared sensors and intelligent analysis algorithm which effectively identify interference signal from body movement signals. It can reduce false alarm rate caused by pets under 20kgs or other interfering objects. The detector is suitable for lobby, hallway detection with a detective range of 0-9 m at front. With low power feedback function, the users will get SMS alert or push message for low battery if the detector has been connected to a GSM or Wi-Fi alarm system. Product Overview 1. Detection window 2. Status indicator 3. Test button 4. Double-sided tape stick place 5. Bracket slot Detection Range 1 2 Infrared sensor: It detects the infrared rays released by human body motion, please don’t touch the surface and always keep it clean. Tamper switch: Once the case is opened in working mode, the tamper switch is triggered and then generates an alarm signal. Infrared sensor A A 1 . 5 V L R 6 A A 1 . 5 V L R 6 Status indicator Pet-Immune PIR Motion Detector Tamper switch Blinks twice Blinks once every 3 seconds Testing mode is finished, the detector enters power-saving mode Low battery, please replace the battery as soon as possible Status Indication Display Meaning Blinks continuously Blinks once Self testing Intrusion detected Working Mode Testing Mode Press the test button, the detector enters testing mode and detects once every 10 seconds. After 3 minutes, the status indicator blinks twice, and the detector switches to power saving mode. 2m 1m 9m Side view IMPORTANT: If you keep a pet at home, make sure the detector is installed at the upright position to achieve pet-immune function. 2m 2m 3m6m9m Top view Power Saving Mode If the PIR motion detector detects movements twice in 3 minutes, it automatically goes into a sleep state. If there is no movement detected in next 3 minutes, it will switch from sleep state to arm. During the 3 minutes, the detector won’t be active and send any signals to the control panel. As long as there is a movement detected within 3 minutes, the duration of power saving mode will be extended. Sleep after detecting human movement twice. Case 2: Press the test button and then arm. 3 minutes later No human movement within 3 minutes Switch from sleep to arm. Case 1: Initial start and then arm. Installation Important: Avoid installing the motion detector directly toward windows or near heat sources, such as heat extraction units, air- condition, micro-wave oven, refrigerator etc. Also try to avoid placing two motion detectors in the opposite of each other and don’t place them in each other’s detection range. Specifications Power Supply DC 3V (AA 1.5V LR6 battery x 2 pcs) Static Current <50 uA Alarm Current <9.5 mA Detection Scope 9m/110° Pet Immunity <20
kgs Transmitting Distance <80 m (open area/ no interference) Radio Frequency 868 MHz or 915 MHZ (±75KHz) Housing Material ABS plastic Operating Condition Temperature: -10°C ~+ 55°C Relative Humidity: <80% (non-condensing) Detector Dimensions (L x W x H) 108 x 52 x 36.8 mm Bracket Dimensions (L x W x H) 52 x 30 x 26.5 mm Arm the system Make sure the alarm system is in armed state. Trigger an alarm Press the test button until an alarm is triggered. The detector is proved to be connected successfully and ready for installation. Test It is to check whether the PIR motion detector can work properly or not. Pairing to Control Panel Control panel enters pairing state Make the control panel in pairing state. Press the test button Press the test button on the back of the detector twice, the control panel beeps once to indicate a successful pairing. Note: If the control panel beeps twice when the above operation is done, it means the detector has been paired already. Step 1: The ideal mounting height of the motion detector is 2 meters from the floor. It is suggested to mount it at the corner of the wall or just stick it to the wall by using the supplied 3M sticker. 2 m ON Ground Note: This PIR motion detector can also be mounted at special location by using the supplied bracket and screw kits. Step 2: After mounting the detector, please walk from left to right in the room for a test; The status indicator will blink once when motion is detected. Ver: MD9100-UM-EN-V1.0 2015 SMANOS HOLDING LTD. All Rights Reserved. FCC STATEMENT 1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Chuango Security Technology Corporation 2015-04-16 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Chuango Security Technology Corporation hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product Description: Pet-Immune PIR Motion Detector Model name: MD9100 FCC ID: RJY-MD9100 Sincerely, Client’s signature ： Client’s name / title：Ken Li/ CEO Contact information / address ：6-17, Overseas Students Pioneer Park, No. 108, Jia Economic & Technological Development Zone, Fuzhou 350015, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Chuango Security Technology Corporation 2015-04-16 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: RJY-MD9100 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature ： Client’s name / title：Ken Li/ CEO Contact information / address ：6-17, Overseas Students Pioneer Park, No. 108, Jia Economic & Technological Development Zone, Fuzhou 350015, China

Antenna

Report No.: ATE20150622 Page 1 of 24 FCC ID: RJY-MD9100 ACCURATE TECHNOLOGY CO., LTD APPLICATION CERTIFICATION On Behalf of Chuango Security Technology Corporation Pet-Immune PIR Motion Detector Model No.: MD9100 FCC ID: RJY-MD9100 Prepared for : Chuango Security Technology Corporation. Address : 6-17, Overseas Students Pioneer Park, No. 108, Jia Economic & Technological Development Zone,Fuzhou 350015,China Prepared by : Accurate Technology Co., Ltd. Address : F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District Shenzhen 518057, P.R. China Tel: +86-755-26503290 Fax: +86-755-26503396 Report No. : ATE20150622 Date of Test : Apr 01-13,2015 Date of Report : Apr 13,2015 Report No.: ATE20150622 Page 2 of 24 FCC ID: RJY-MD9100 ACCURATE TECHNOLOGY CO., LTD TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility ......................................................................................................................5 1.3. Measurement Uncertainty.........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 6 3. SUMMARY OF TEST RESULTS................................................................................................... 7 4. THE FIELD STRENGTH OF RADIATION EMISSION ............................................................ 8 4.1. Block Diagram of Test Setup....................................................................................................................8 4.2. The Field Strength of Radiation Emission Measurement Limits..............................................................9 4.3. Configuration of EUT on Measurement ...................................................................................................9 4.4. Operating Condition of EUT ....................................................................................................................9 4.5. Test Procedure ........................................................................................................................................10 4.6. The Field Strength of Radiation Emission Measurement Results ..........................................................11 5. 20DB BANDWIDTH....................................................................................................................... 16 5.1. Block Diagram of Test Setup..................................................................................................................16 5.2. The Limit of 20dB Bandwidth................................................................................................................16 5.3. EUT Configuration on Measurement .....................................................................................................16 5.4. Operating Condition of EUT ..................................................................................................................16 5.5. Test Procedure(20dB Bandwidth) ..........................................................................................................16 5.6. Measurement Result ...............................................................................................................................17 6. TRANSMISSION TIME MEASUREMENT ............................................................................... 18 6.1. Block Diagram of Test Setup..................................................................................................................18 6.2. Release Time Measurement ....................................................................................................................18 6.3. secondsEUT Configuration on Measurement .........................................................................................18 6.4. Operating Condition of EUT ..................................................................................................................18 6.5. Test Procedure ........................................................................................................................................18 6.6. Measurement Result ...............................................................................................................................19 7. AVERAGE FACTOR MEASUREMENT .................................................................................... 20 7.1. Block Diagram of Test Setup..................................................................................................................20 7.2. Average factor Measurement procedure according to ANSI C63.10-2013 ............................................20 7.3. EUT Configuration on Measurement .....................................................................................................20 7.4. Operating Condition of EUT ..................................................................................................................21 7.5. Test Procedure ........................................................................................................................................21 7.6. Measurement Result ...............................................................................................................................21 8. ANTENNA REQUIREMENT........................................................................................................ 24 8.1. The Requirement ....................................................................................................................................24 8.2. Antenna Construction .....…
