RK7177-00On board vehicle Wireless Charging Unit

RK7177-00 / 4774A-17700 Information to the User FCC/INDUSTRY CANADA NOTICE This device complies with part 15 of the FCC rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: RK7177-00 IC 4774A-17700 Any changes or modifications not expressly approved by Novero could void the user's authority to operate this equipment.

Copyright  2015 Novero GmbH RK7177-00 / 4774A-17700 Information to the Installer (car manufacturer) FCC/INDUSTRY CANADA NOTICE This device complies with RF exposure guidelines of the FCC rules and with Industry Canada license-exempt RSS standard(s) at a distance of 3.5cm under normal use case conditions. Thus the installation by the car manufacturer must take place at greater than 3.5cm to human body in order to ensure compliance. FCC ID: RK7177-00 IC 4774A-17700

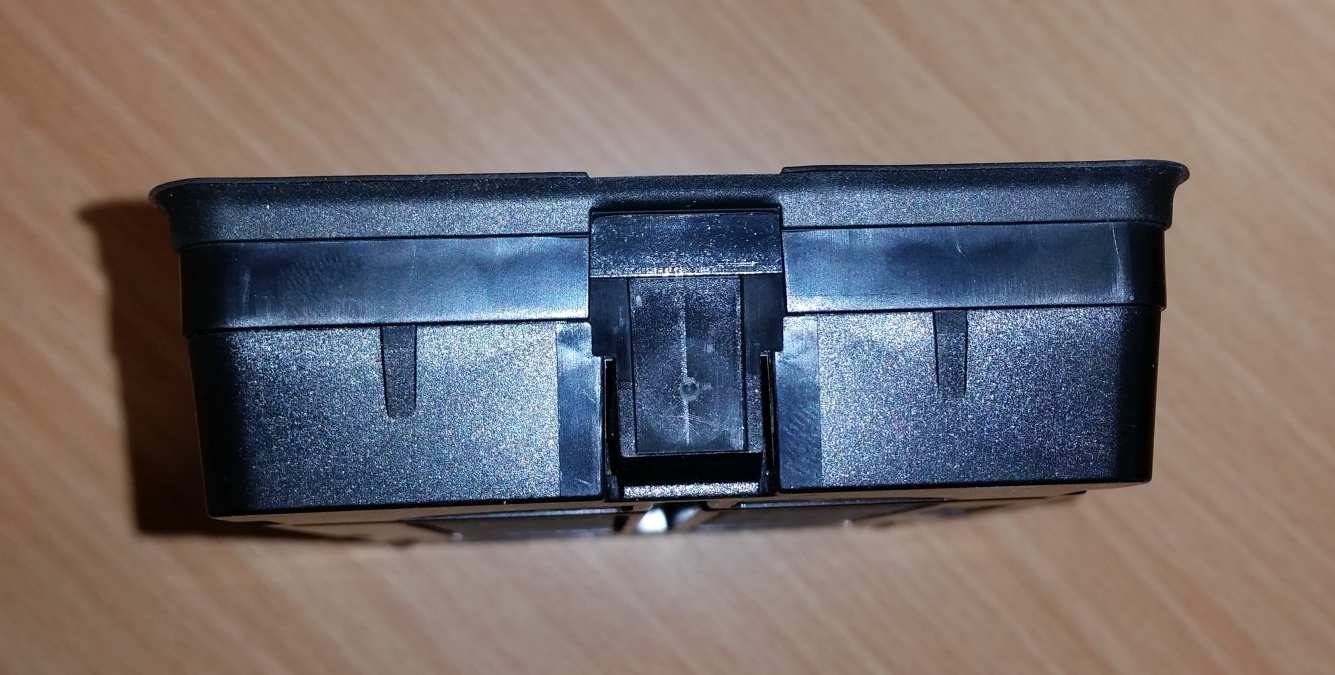

Company Confidential Copyright  2015 Novero GmbH 1(3) FCC: RK7177-00 IC 4774A-17700 External Photographs Top view with charging placement area Bottom view with cooling element Company Confidential Copyright  2015 Novero GmbH 2(3) Side view with type label Side view Company Confidential Copyright  2015 Novero GmbH 3(3) Side view with system connector and external antenna connector for antenna coupler

Copyright  2015 Novero GmbH 1(1) FCC ID: RK7177-00 IC 4774A-17700 Type Label and Type Label Location

Company Confidential Copyright  2015 Novero GmbH 1(5) FCC: RK7177-00 IC 4774A-17700 Internal Photographs Inside view with cooling element Company Confidential Copyright  2015 Novero GmbH 2(5) Inside view with cooling element and ferrite plate Top view coil board with antenna connector Company Confidential Copyright  2015 Novero GmbH 3(5) Bottom view coil board Top view main PCB with shielding Company Confidential Copyright  2015 Novero GmbH 4(5) Top view main PCB without shielding Bottom view main PCB with shielding Company Confidential Copyright  2015 Novero GmbH 5(5) Bottom view main PCB without shielding

Test Center Bochum Project support engineer: Robert Müller FCC Test Report (RK7WCH-177) Date of issue: 29-May-2015 Template version 0.1 Report No.: EMC_BO_001966(v2.0) Copyright  2015 novero. All rights reserved. 1 (9) FCC Test Report (Part 1) RF Exposure (EMF) Test Report no.: EMC_BO_001966(v2.0) Date of Report: 29-May-2015 Number of pages: 9 Project support engineer: Robert Müller Test period: 30-Apr-2015 Applicant: Novero Dabendorf GmbH, Märkische Straße 72, 15806 Zossen, Mr. Bodo Nickel Manufacturer: Novero Dabendorf GmbH, Märkische Straße 72, 15806 Zossen, Germany EUT ident.: Novero, WCH-177 FCC ID: RK7177-00 IC ID: 4774A-17700 Referred documents: CFR 47, FCC rules Part 1, KDB 680106 D01 RF Exposure Wireless Charging Apps v02, IC standards 216 Issue 1. Deviations or clarifications to these standards are noted in the related test result under “test method and limit”. Testing Laboratory: novero Test Center, Meesmannstr.103, 44807 Bochum, Germany Tel.: +49 234/51668-0 e-mail: [email protected] FCC listing no.: 881111 IC recognition no.: 7847A-1 Laboratory manager: Jürgen Mitterer Test result The EUT complies with the requirements made in the referred test documents. Approver: Ines Baufeld Author: Robert Müller Title: Laboratory Quality Manager Title: Product Certification Manager Signature: Signature: This test report may not be reproduced, except in full, without written permission of testing laboratory. The test results in this test report relates only to the tested sample, which is mentioned in this test report. Novero GmbH cannot be made responsible for any generalisations or conclusions drawn from this test report. Modification of the tested sample is prohibited and leads to invalidity of this test report. Test Center Bochum Project support engineer: Robert Müller FCC Test Report (RK7WCH-177) Date of issue: 29-May-2015 Template version 0.1 Report No.: EMC_BO_001966(v2.0) Copyright  2015 novero. All rights reserved. 2 (9) 1. Summary for FCC Part 1 EMF Test Report Date of receipt 30-Apr-2015 Testing completed 30-Apr-2015 The customer's contact person Bodo Nickel Notes none 1.1. EUT and Accessory Information The EUT is an inductive wireless charger device operating at 125kHz. Tests were done with a self designed and shielded receiver simulator which requests and consumes always 5W (with 5Ω at 5V). Product Type SN HW MV SW DUT Wireless charger unit WCH-177 000002682805 0007 -- 1468 DAB15077E Artificial load -- -- -- -- -- DAB15004E Power cable -- -- -- -- -- DAB14030 1.2. Summary of Test Results Section Section in CFR 47 Section in RSS-GEN or RSS-216 Name of the test Result 3 1.307(b), 1.1310 Code 6 RF Exposure PASS PASS: The EUT complies with the essential requirements in the standard. FAIL: The EUT does not comply with the essential requirements in the standard. NP: The test was not performed. NA: The test was not applicable. Test Center Bochum Project support engineer: Robert Müller FCC Test Report (RK7WCH-177) Date of issue: 29-May-2015 Template version 0.1 Report No.: EMC_BO_001966(v2.0) Copyright  2015 novero. All rights reserved. 3 (9) CONTENTS 1. SUMMARY FOR FCC PART 1 EMF TEST REPORT .............................................................................. 2 1.1. EUT AND ACCESSORY INFORMATION ........................................................................................................ 2 1.2. SUMMARY OF TEST RESULTS .................................................................................................................... 2 2. EMF TEST SETUP .......................................................................................................................... 4 3. H-FIELD STRENGTH (FCC §1.307(B), §1.1310) ................................................................................. 5 3.1. T EST METHOD AND LIMIT ........................................................................................................................ 5 3.2. EMF TEST RESULTS ................................................................................................................................ 7 4. TEST EQUIPMENT ........................................................................................................................ 9 Test Center Bochum Project support engineer: Robert Müller FCC Test Report (RK7WCH-177) Date of issue: 29-May-2015 Template version 0.1 Report No.: EMC_BO_001966(v2.0) Copyright  2015 novero. All rights reserved. 4 (9) 2. EMF Test setup DUT Field Probe Distance D Test Center Bochum Project support engineer: Robert Müller FCC Test Report (RK7WCH-177) Date of issue: 29-May-2015 Template version 0.1 Report No.: EMC_BO_001966(v2.0) Copyright  2015 novero. All rights reserved. 5 (9) 3. E and H-field strength (FCC §1.307(b), §1.1310) EUT with DUT number DAB15077E Accessories with DUT numbers DAB15004E (Receiver Simulator), DAB14030 (Power Cable) Operation Voltage [V] / [Hz] 12 / DC Result PASS Remarks OP1 (5Ω/5W load, Primary Coil 1) Temp [ ° C] / Humidity [%RH] 23.4 / 40.5 Date of measurements 30-Apr-2015 Measured by Robert Müller 3.1. Test method and limit Measurement was made from all sides of the DUT in 10, 9, 8, 7, 6, 5, 4, 3.5 cm distance (DUT edge to the center of probe) Different probes were used to measure E and H-field separately The highest emission level was recorded EUT was cooled during measurements to avoid overheating and therefore power shut down Limits for maximum permissible exposure Frequency range [MHz] Electric Field Strength Limit [V/m] Magnetic Field Strength Limit [A/m] Power Density [mW/cm 2 ] Average Time [minutes] (A) Limits for Occupational/Control Exposures 0.3 – 3.0 614 1.63 *(100) 6 3.0 – 30 1842/f(MHz) 4.89/f(MHz) *(900/f(MHz) 2 ) 6 30 – 300 61.4 0.163 1.0 6 300 – 1500 f(MHz)/300 6 1500 - 100000 5 6 (B) Limits for General Population/Uncontrol Exposures 0.3 – 1.34 614 1.63 *(100) 30 1.34 – 30 824/f(MHz) 2.19/f(MHz) *(180/f(MHz) 2 ) 30 30 – 300 27.5 0.073 0.2 30 300 – 1500 F(MHz)/1500 30 …

Text truncated - open the document above for the full version.

Test Center Bochum Project support engineer: Robert Müller FCC Test Report (RK7177‐00) Date of issue: 29‐May‐2015 Template version 0.1 Report No.: EMC_BO_001976(v1.0) Copyright  2015 novero. All rights reserved. 1 (10) FCC Test Report (Part 15C) WPT Test Report no.: EMC_BO_001976(v1.0) Date of Report: 29‐May‐2015 Number of pages: 11 Project support engineer: Robert Müller Test period: 10‐Apr‐2015 Applicant: Novero Dabendorf GmbH, Märkische Straße 72, 15806 Zossen, Mr. Bodo Nickel Manufacturer: Novero Dabendorf GmbH, Märkische Straße 72, 15806 Zossen, Germany EUT ident.: Novero, WCH‐177 FCC ID: RK7177‐00 IC ID: ‐‐ Referred documents: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2009). Deviations or clarifications to these standards are noted in the related test result under “test method and limit”. Testing Laboratory: novero Test Center, Meesmannstr.103, 44807 Bochum, Germany Tel.: +49 234/51668‐ 0 e‐mail: product‐[email protected] FCC listing no.: 881111 IC recognition no.: 7847A‐1 Laboratory manager: Jürgen Mitterer Test result The EUT complies with the requirements made in the referred test documents. Approver: Ines Baufeld Author: Robert Müller Title: Laboratory Quality Manager Title: Product Certification Manager Signature: Signature: This test report may not be reproduced, except in full, without written permission of testing laboratory. The test results in this test report relates only to the tested sample, which is mentioned in this test report. Novero GmbH cannot be made responsible for any generalisations or conclusions drawn from this test report. Modification of the tested sample is prohibited and leads to invalidity of this test report. Test Center Bochum Project support engineer: Robert Müller FCC Test Report (RK7177‐00) Date of issue: 29‐May‐2015 Template version 0.1 Report No.: EMC_BO_001976(v1.0) Copyright  2015 novero. All rights reserved. 2 (10) 1. Summary for FCC Part 15C Test Report Date of receipt 30‐Apr‐2015 Testing completed 28‐May‐2015 The customer's contact person Bodo Nickel Notes none 1.1. EUT and Accessory Information The EUT is an inductive wireless charger device operating at 125kHz. Tests were done with a self designed and shielded receiver simulator which requests and consumes always 5W (with 5Ω at 5V). Product Type SN HW MV SW DUT Wireless charger unit WCH‐177 000002682805 0007 ‐‐ 1468 DAB15077E Artificial load ‐‐ ‐‐ ‐‐ ‐‐ ‐‐ DAB15004E Power cable ‐‐ ‐‐ ‐‐ ‐‐ ‐‐ DAB14030 RF cable ‐‐ ‐‐ ‐‐ ‐‐ ‐‐ DAB14035 1.2. Summary of Test Results Section Section in CFR 47 Name of the testResult 3&4 15.209 Spurious radiated emissions PASS ‐ 15.207 AC powerline conducted emissions NA PASS: The EUT complies with the essential requirements in the standard. FAIL: The EUT does not comply with the essential requirements in the standard. NP: The test was not performed. NA: The test was not applicable. Test Center Bochum Project support engineer: Robert Müller FCC Test Report (RK7177‐00) Date of issue: 29‐May‐2015 Template version 0.1 Report No.: EMC_BO_001976(v1.0) Copyright  2015 novero. All rights reserved. 3 (10) CONTENTS 1. SUMMARY FOR FCC PART 15C TEST REPORT ................................................................................... 2 1.1. EUT AND ACCESSORY INFORMATION ........................................................................................................ 2 1.2. S UMMARY OF TEST RESULTS .................................................................................................................... 2 2. TEST SETUPS ................................................................................................................................. 4 2.1. C ONDUCTED RF TEST SETUP ..................................................................................................................... 4 2.2. AC POWER LINE CONDUCTED EMISSIONS TEST SETUP ................................................................................... 4 2.3. R ADIATED EMISSIONS TEST SETUP ............................................................................................................. 4 3. RADIATED EMISSIONS BELOW 30MHZ (FCC §15.209) ....................................................................... 5 3.1. T EST METHOD AND LIMIT ........................................................................................................................ 5 3.2. T EST RESULTS ........................................................................................................................................ 6 4. RADIATED EMISSIONS ABOVE 30MHZ (FCC §15.209) ....................................................................... 7 4.1. T EST METHOD AND LIMIT ........................................................................................................................ 7 4.2. T EST RESULTS ........................................................................................................................................ 8 5. TEST EQUIPMENT .......................................................................................................................... 9 5.1. C ONDUCTED MEASUREMENTS .................................................................................................................. 9 5.2. R ADIATED MEASUREMENTS ....................................................................................................................10 Test Center Bochum Project support engineer: Robert Müller FCC Test Report (RK7177‐00) Date of issue: 29‐May‐2015 Template version 0.1 Report No.: EMC_BO_001976(v1.0) Copyright  2015 novero. All rights reserved. 4 (10) 2. Test setups 2.1. Conducted RF test setup Radio simulator Directional Coupler EUT Spectrum analyser 10dB attenuator 2.2. AC power line conducted emissions test setup Receiver Attenuator LISN EUT 2.3. Radiated emissions test setup Mast & turn table controller Communication Tester Test Receiver EUT Test Center Bochum Project support engineer: Robert Müller FCC Test Report (RK7177…

Text truncated - open the document above for the full version.

Test Center Bochum RK7177-00 / 4774A-17700 Copyright  2015 novero. All rights reserved. EMC Test Setup Photos FCC Part 15C Radiated Emissions Test Setup 0.009-30MHz FCC Part 15C Radiated Emissions Test Setup 30-1000MHz
