RKIC51-A06001-XXBluetooth Headset

www.tuv.com Test Report No.: 14013762 001 Appendix 4 page 14 of 36 1.6 User Manual (Cover) i.Tech Arrow Lite User Guide Version 1 20-Jun-2006 Project No. : C51-A06001-XX www.tuv.com Test Report No.: 14013762 001 Appendix 4 page 15 of 36 [Inside Cover] i.Tech Arrow Lite Bluetooth Headset gives you more freedom when moving around. With your Bluetooth-enabled mobile phone, the headset makes it easy for you to carry on with your tasks while making a call. i.Tech Arrow Lite Bluetooth Headset is compliant with Bluetooth Version 1.2 Class 2 specifications, and is compatible with mobile phone supporting Bluetooth Headset or Handsfree Profiles. www.tuv.com Test Report No.: 14013762 001 Appendix 4 page 16 of 36 (Page 0) Contents Title Page i.Tech Arrow Lite Bluetooth Headset Overview 2 Getting Started 2 Charging Your Headset Normal Charging Time Talk and Standby Time Battery Low Indication 3-4 4 4 4 Turning Your Headset On and Off 5 Pairing Your Headset 6-7 Using Your Headset Answering a Call Rejecting a Call Ending a Call Muting a Built-in Microphone Dialling from Your Mobile Phone Voice Dialling from Your Headset Last Number Redialling from Your Headset Rejecting a Call (Handsfree Profile ONLY) Transferring a Call (Handsfree Profile ONLY) 8-9 8 8 8 8 9 9 9 9 9 Adjusting the Volume 10 Resetting or Removing Pairing 10 Care and Maintenance Headset Built-in Battery Charger 11-12 11 12 12 Safety Information 13 Troubleshooting 14 Declaration of Conformity (DoC) 15 Product Specifications 16 www.tuv.com Test Report No.: 14013762 001 Appendix 4 page 17 of 36 (Page 1) Jawbone Bluetooth Headset Overview - Figure 1 1 Ear Hook 2 Status Indicator 3 Multi-function Button (MFB) 4 Earphone 5 Volume Button 6 Charging Socket 7 Built-in Microphone 8 Built-in Rechargeable Battery 1 2 3 4 5 6 7 8 www.tuv.com Test Report No.: 14013762 001 Appendix 4 page 18 of 36 Getting Started (Page 2) To use your i.Tech Arrow Lite Bluetooth Headset (“the headset”), please start with the following steps below: 1. Charge your headset, and 2. Pair your headset with a Bluetooth-enabled mobile phone. Figure 2 www.tuv.com Test Report No.: 14013762 001 Appendix 4 page 19 of 36 (Page 3) Charging Your Headset Figure 3 The headset comes with a built-in rechargeable battery. Prior to using the headset for the first time, it is recommended to fully charge the battery first. www.tuv.com Test Report No.: 14013762 001 Appendix 4 page 20 of 36 (Page 4) Insert the charger plug into the headset’s charging socket (refer to Figure 3) and plug the charger to an AC wall outlet. The status indicator will stay red during charging. IMPORTANT: Charging indication will be delayed for a few seconds if the headset has not been used for a long time or the battery is drained. Normal Charging Time It takes about three hours to fully charge the battery. When the battery is fully charged, the status indicator will turn blue and remain on. Unplug the charger from the AC wall outlet and the charger plug from the headset. Press and hold the MFB (refer to Figure 1) for two seconds to turn on the headset. Please refer to “Turning Your Headset On and Off” on the next page for details. Talk and Standby Time The fully charged battery can offer up to 10 hours of talk time and up to 200 hours of standby time. When there are no calls the headset should remain turned on in standby mode. Battery Low Indication When the battery has become low when the headset is on, the status indicator will flash red and the headset will emit a beep* every minute. Please follow the instructions describe above to recharge the battery. *If you are setting up the headset and your mobile phone in a noisy environment, we advise you to put on the earphone first so that the beep will be more audible. www.tuv.com Test Report No.: 14013762 001 Appendix 4 page 21 of 36 (Page 5) Turning Your Headset On and Off Turning On the Headset Press and hold the MFB for two seconds until you hear a short beep. The status indicator will then flash blue. IMPORTANT: Press the MFB again each time when you want to turn on the headset to re-activate pairing so as to resume the connection between the headset and the mobile phone. For pairing, please refer to “Pairing Your Headset” section. Turning Off the Headset Press and hold the MFB for three seconds until you hear a long beep. The status indicator will stop flashing. IMPORTANT: To disconnect the Bluetooth connection, press the MFB firmly to turn off your headset. If you will not be using the headset for a while, you should consider turning off the Bluetooth function on your mobile phone as well. www.tuv.com Test Report No.: 14013762 001 Appendix 4 page 22 of 36 (Page 6) Pairing Your Headset Figure 4 The headset works with Bluetooth-enabled mobile phones only. Prior to using and pairing your headset for the first time, please check if your mobile phone is Bluetooth-enabled. The pairing instructions for a typical Bluetooth-enabled mobile phone is explained on the next page. The headset pairing procedure may vary depending on the model of your mobile phone. Please contact the manufacturer of your mobile phone or its agent for further information. www.tuv.com Test Report No.: 14013762 001 Appendix 4 page 23 of 36 (Page 7) Pairing Your Headset 1. Place the headset and the mobile phone where they are no more than one metre apart. 2. Ensure the headset is off. (The status indicator does not flash.) 3. Press and hold the MFB until the headset’s status indicator flashes blue and red alternately. 4. Activate your mobile phone’s Bluetooth function. Please refer to your mobile phone user guide for details. 5. Set the mobile phone to search for Bluetooth devices within the one metre range, as instructed in the mobile phone user guide, and select “i.Tech Arrow Lite” from the list. 6. Enter the pre-programmed passkey “0000” and press “OK” to pair your headset and mobile phone. When the pairing is completed, the headset’s status indicator will flash blue rapidly for five times followe…

Text truncated - open the document above for the full version.

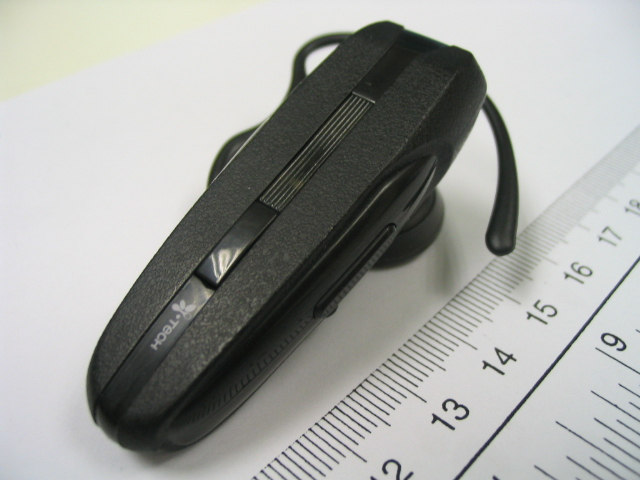

www.tuv.com Test Report No.: 14013762 001 Appendix 3 page 1 of 6 Appendix 3 Construction Photos www.tuv.com Test Report No.: 14013762 001 Appendix 3 page 2 of 6 1.1 External view 1.1.1 Front view 1.1.2 Rear view www.tuv.com Test Report No.: 14013762 001 Appendix 3 page 3 of 6 1.1.3 Side View 1.1.4 Side View

www.tuv.com Test Report No.: 14013762 001 Appendix 4 page 1 of 33 Appendix 4 Technical Documents www.tuv.com Test Report No.: 14013762 001 Appendix 4 page 2 of 33 1.1 FCCID Label Artwork The yellow oval shows the location of the Rating Label.

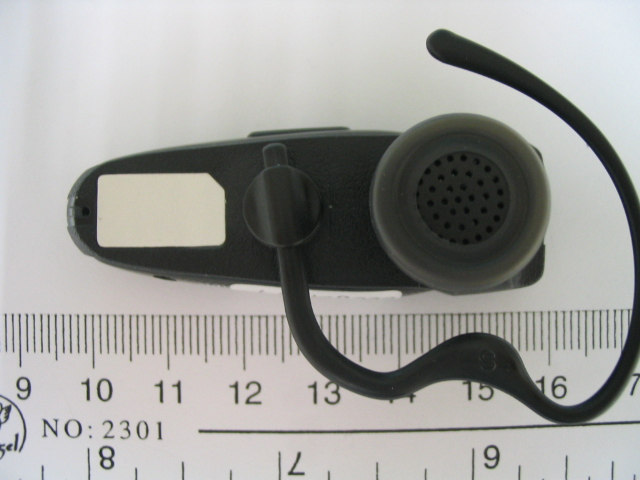

www.tuv.com Test Report No.: 14013762 001 Appendix 3 page 4 of 6 Internal view 1.1.5 Front side 1 1.1.6 Rear side www.tuv.com Test Report No.: 14013762 001 Appendix 3 page 5 of 6 1.1.7 Rear Side 2 1.1.6 Rear Side 3 www.tuv.com Test Report No.: 14013762 001 Appendix 3 page 6 of 6 1.1.7 Rear Side 4

www.tuv.com Test Report No.: 14013762 001 Date: 01.08.2006 page 2 of 12 Table of Content Page Cover Page .................................................................................1 Table of Content ..........................................................................2 Product information.......................................................................................................3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents................................................................................................................................. 3 List of Test and Measurement Instruments.................................................................4 Result FCC Part 15 – Subpart C ...................................................................................5 Subclause 15.203 – Antenna Information ....................................................................... Pass................. 5 Subclause 15.204 – Antenna Information ....................................................................... Pass................. 5 Subclause 15.207 – Disturbance Voltage on AC Mains.................................................. N.A.................. 5 Subclause 15.247 (a) – Carrier Frequency Separation .................................................. Pass................. 5 Subclause 15.247 (a) – Time of Occupancy (Dwell Time) ............................................. Pass................. 6 Subclause 15.247 (a) – 20 dB Bandwidth........................................................................ Pass................. 7 Subclause 15.247 (a) – Hopping Sequence .................................................................... Pass................. 7 Subclause 15.247 (a) – Equal Hopping Frequency Use................................................. Pass................. 8 Subclause 15.247 (a) – Receiver Input Bandwidth......................................................... Pass................. 9 Subclause 15.247 (a) – Receiver Hopping Capability .................................................... Pass................. 9 Subclause 15.247 (b) – Peak Output Power.................................................................... Pass................. 9 Subclause 15.247 (b) – Band edge compliance ............................................................. Pass............... 10 Subclause 15.247 (c) – Spurious Conducted Emissions .............................................. Pass............... 10 Subclause 15.247 (c) – Spurious Radiated Emissions .................................................. Pass............... 11 Appendix 1 – Test protocols 15 pages Appendix 2 – Test setup 2 pages Appendix 3 – Photo documentation 6 pages Appendix 4 – Product documentation 33 pages www.tuv.com Test Report No.: 14013762 001 Date: 01.08.2006 page 3 of 12 Product information Manufacturers declarations Transceiver Operating frequency range 2402 - 2480 MHz Type of modulation FHSS modulation Number of channels 79 Channel separation 1 MHz Type of antenna Integral Antenna Antenna gain (dBi) 1.2 Power level fix Type of equipment stand alone Connection to public utility power line Yes Nominal voltage V nor : 3.7 V Independent Operation Modes Page scan Inquiry scan Connection state - ACL Link Connection state - SCO Link Product function and intended use The test item is a Bluetooth Headset based on the Bluetooth technology. Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, 79 RF channels spaced 1 MHz apart are defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length of 625 μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. The symbol rate on the channel is 1 Ms/s. Submitted documents Circuit Diagram Block Diagram Bill of material User manual www.tuv.com Test Report No.: 14013762 001 Date: 01.08.2006 page 4 of 12 List of Test and Measurement Instruments Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESH-3 890173/033 L/I/S/N Rohde & Schwarz ESH 3-Z5 849876/026 Oscilloscope HP 54713B US34510455 Test Receiver Rohde & Schwarz ESVP 882402/033 Absorbing Clamp Rohde & Schwarz MDS-21 979 3/4 Test Receiver Rohde & Schwarz ESVS30 842807/009 Biconical Antenna Rohde & Schwarz HK116 841489/015 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/017 Universal Power Analyzer Voltech PM3000A 9915 Reference Impedance Network Voltech IEC 555 Standard 9946 AC Power Source California Instr. 4500L HK51895 Trip-Loop Antenna Chase LLA6142 1019 Double Ridge Horn Antenna EMCO 3115 9002-3351 Double Ridge Horn Antenna EMCO 3115 9002-3347 RF Comms Test Set HP 8920B US36492628 Spectrum Analyser + Tracking G. HP 8596E 3639A00758 Signal Generator Rohde & Schwarz SMY 01 844146/024 Signal Generator Rohde & Schwarz SMY 01 844146/023 BiLog Antenna EMCO 3143 9607-1287 Isotropic Field Probe Holladay HI-4422 90956 Power Amplifier Kalmus 757-LC 7620-1 Power Amplifier Kalmus 122-FC 7620-2 Coupling Clamp Schaffner CDN 126 312 Couple Device Network Fischer CDN-M2 9604 Spectrum Analyzer Rohde & Schwarz FSP30 1093.4495K30 Temperature Chamber Binder MK 240 9020-0028 EFT,ESD,SURGE, DIPS tester Schaffner Best 96 IN3796-011 Surge Generator Schaffner NSG650 280 Active Loop Antenna EMCO 6502 9107-2651 www.tuv.com Test Report No.: 14013762 001 Date: 01.08.2006 page 5 of 12 Result FCC Part 15 – Subpart C Subclause 15.203 – Antenna Information Pass Requirement: No antenna other than that fur…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14013762 001 Appendix 1 page 1 of 15 Appendix 1 Test results www.tuv.com Test Report No.: 14013762 001 Appendix 1 page 2 of 15 Carrier Frequency Separation Reference frequency (MHz) Channel Separation (MHz) 2441.000 0.990 A 2.441 GHz Ref 20 dBm 2.441 GHz Att 30 dB 2.441 GHz * 2.441 GHz 1 PK 2.441 GHz MAXH 2.441 GHz Center 2.441 GHz 2.441 GHz Span 3 MHz 2.441 GHz 300 kHz/ 2.441 GHz * 2.441 GHz RBW 100 kHz 2.441 GHzVBW 300 kHz 2.441 GHz SWT 2.5 ms 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.441 GHz 1 Marker 1 [T1 ] -4.96 dBm 2.441000000 GHz 2 Delta 2 [T1 ] -0.50 dB 1.002000000 MHz 3 Delta 3 [T1 ] -0.47 dB -990.000000000 kHz MARKER 1 2.441 GHz Date: 24.JUL.2006 19:49:15 www.tuv.com Test Report No.: 14013762 001 Appendix 1 page 3 of 15 Dwell Time Burst Duration (ms) Number of hopping Time of occupancy (s) Result 2.928 64 0.002928 x 64 = 0.1874 Pass Ref 20 dBm 2.928 ms Att 30 dB 2.928 ms * 2.928 ms A 2.928 ms CLRWR 2.928 ms TRG 2.928 ms RBW 1 MHz 2.928 ms * 2.928 msVBW 3 MHz 2.928 ms Center 2.441 GHz 2.928 ms 400 μs/ 2.928 ms SWT 4 ms 2.928 ms * 2.928 ms 1 PK 2.928 ms 2.928 ms 2.928 ms 2.928 ms 2.928 ms 2.928 ms 2.928 ms 2.928 ms 2.928 ms 2.928 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.928 ms 1 Marker 1 [T1 ] -4.99 dBm -4.000000 μs 2 Delta 2 [T1 ] 0.08 dB 2.928000 ms TRG -6.3 dBm DELTA MARKER 2 2.928 ms Date: 24.JUL.2006 19:51:48 www.tuv.com Test Report No.: 14013762 001 Appendix 1 page 4 of 15 Ref 20 dBmAtt 30 dB * A CLRWR RBW 1 MHz * VBW 3 MHz SGL Center 2.441 GHz3.16 s/ SWT 31.6 s *1 PK -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 Date: 24.JUL.2006 19:53:09 www.tuv.com Test Report No.: 14013762 001 Appendix 1 page 5 of 15 20dB Bandwidth Tx frequency (MHz)
fL (MHz)
fH (MHz) |
fH|+|
fL| (MHz) Results 2402 0.460 0.468 0.928 Pass 2441 0.460 0.464 0.924 Pass 2480 0.460 0.476 0.936 Pass Tx frequency: 2402MHz Ref 20 dBm 2.402004 GHz Att 30 dB 2.402004 GHz * 2.402004 GHz A 2.402004 GHz Center 2.402 GHz 2.402004 GHz Span 2 MHz 2.402004 GHz 200 kHz/ 2.402004 GHz 1 PK 2.402004 GHz MAXH 2.402004 GHz * 2.402004 GHz RBW 30 kHz 2.402004 GHz SWT 2.5 ms 2.402004 GHz * 2.402004 GHzVBW 100 kHz 2.402004 GHz 2.402004 GHz 2.402004 GHz 2.402004 GHz 2.402004 GHz 2.402004 GHz 2.402004 GHz 2.402004 GHz 2.402004 GHz 2.402004 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.402004 GHz 1 Marker 1 [T1 ] -4.01 dBm 2.402004000 GHz 2 Delta 2 [T1 ] -20.03 dB -460.000000000 kHz 3 Delta 3 [T1 ] -20.28 dB 468.000000000 kHz TH -24.01 dBm F1 F2 MARKER 1 2.402004 GHz Date: 24.JUL.2006 19:55:36 www.tuv.com Test Report No.: 14013762 001 Appendix 1 page 6 of 15 Tx frequency: 2441MHz Ref 20 dBm 2.441472 GHz Att 30 dB 2.441472 GHz * 2.441472 GHz A 2.441472 GHz MAXH 2.441472 GHz Center 2.441 GHz 2.441472 GHz Span 2 MHz 2.441472 GHz 200 kHz/ 2.441472 GHz * 2.441472 GHz * 2.441472 GHz RBW 30 kHz 2.441472 GHzVBW 100 kHz 2.441472 GHz SWT 2.5 ms 2.441472 GHz 1 PK 2.441472 GHz 2.441472 GHz 2.441472 GHz 2.441472 GHz 2.441472 GHz 2.441472 GHz 2.441472 GHz 2.441472 GHz 2.441472 GHz 2.441472 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.441472 GHz 1 Marker 1 [T1 ] -3.51 dBm 2.441004000 GHz 2 Delta 2 [T1 ] -20.21 dB -460.000000000 kHz 3 Delta 3 [T1 ] -20.28 dB 464.000000000 kHz TH -23.56 dBm F1 F2 FREQUENCY LINE 2 2.441472 GHz Date: 24.JUL.2006 19:57:27 Tx frequency: 2480MHz Ref 20 dBm 2.48048 GHz Att 30 dB 2.48048 GHz * 2.48048 GHz A 2.48048 GHz MAXH 2.48048 GHz Center 2.48 GHz 2.48048 GHz Span 2 MHz 2.48048 GHz 200 kHz/ 2.48048 GHz * 2.48048 GHz * 2.48048 GHz RBW 30 kHz 2.48048 GHzVBW 100 kHz 2.48048 GHz SWT 2.5 ms 2.48048 GHz 1 PK 2.48048 GHz 2.48048 GHz 2.48048 GHz 2.48048 GHz 2.48048 GHz 2.48048 GHz 2.48048 GHz 2.48048 GHz 2.48048 GHz 2.48048 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.48048 GHz 1 Marker 1 [T1 ] -3.18 dBm 2.480004000 GHz 2 Delta 2 [T1 ] -20.76 dB -460.000000000 kHz 3 Delta 3 [T1 ] -20.26 dB 476.000000000 kHz TH -23.24 dBm F1 F2 FREQUENCY LINE 2 2.48048 GHz Date: 24.JUL.2006 19:59:12 www.tuv.com Test Report No.: 14013762 001 Appendix 1 page 7 of 15 Peak Output Power Tx Frequency (MHz) Power P PK (dBm) Cable Attenuation (dB) Actual Peak Power (dBm) Results 2402 -4.88 3.52 -1.36 Pass 2441 -4.38 3.65 -0.73 Pass 2480 -3.53 3.60 0.07 Pass Tx frequency: 2402MHz Ref 20 dBm 2.40181 GHz Att 30 dB 2.40181 GHz * 2.40181 GHz A 2.40181 GHz MAXH 2.40181 GHz Center 2.402 GHz 2.40181 GHz Span 5 MHz 2.40181 GHz 500 kHz/ 2.40181 GHz * 2.40181 GHz RBW 1 MHz 2.40181 GHz SWT 2.5 ms 2.40181 GHz * 2.40181 GHzVBW 3 MHz 2.40181 GHz 1 PK 2.40181 GHz 2.40181 GHz 2.40181 GHz 2.40181 GHz 2.40181 GHz 2.40181 GHz 2.40181 GHz 2.40181 GHz 2.40181 GHz 2.40181 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.40181 GHz 1 Marker 1 [T1 ] -4.88 dB m 2.401810000 GHz MARKER 1 2.40181 GHz Date: 24.JUL.2006 20:00:11 www.tuv.com Test Report No.: 14013762 001 Appendix 1 page 8 of 15 Tx frequency: 2441MHz Ref 20 dBm 2.44087 GHz Att 30 dB 2.44087 GHz * 2.44087 GHz A 2.44087 GHz MAXH 2.44087 GHz 1 PK 2.44087 GHz 2.44087 GHz 2.44087 GHz 2.44087 GHz 2.44087 GHz 2.44087 GHz 2.44087 GHz 2.44087 GHz 2.44087 GHz 2.44087 GHz Center 2.441 GHz 2.44087 GHz Span 5 MHz 2.44087 GHz 500 kHz/ 2.44087 GHz * 2.44087 GHz * 2.44087 GHz RBW 1 MHz 2.44087 GHzVBW 3 MHz 2.44087 GHz SWT 2.5 ms 2.44087 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.44087 GHz 1 Marker 1 [T1 ] -4.38 dB m 2.440870000 GHz MARKER 1 2.44087 GHz Date: 24.JUL.2006 20:00:48 Tx frequency: 2480MHz Ref 20 dBm 2.47982 GHz Att 30 dB 2.47982 GHz * 2.47982 GHz A 2.47982 GHz MAXH 2.47982 GHz 1 PK 2.47982 GHz 2.47982 GHz 2.47982 GHz 2.47982 GHz 2.47982 GHz 2.47982 GHz 2.47982 GHz 2.47982 GHz 2.47982 GHz 2.47982 GHz Center 2.48 GHz 2.47982 GHz Span 5 MHz 2.47982 GHz 500 kHz/ 2.47982 GHz * 2.47982 GHz * 2.47982 GHz RBW 1 MHz 2.47982 GHzVBW 3 MHz 2.47982 GHz SWT 2.5 ms 2.47982 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.47982 GHz 1 Marker 1 [T1 ] -3.53 dBm 2.479820000 GHz MARKER 1 2.47982 GHz Date: 24.JUL.2006 2…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14013762 001 Appendix 2 page 1 of 2 Appendix 2 Test Setup Photos www.tuv.com Test Report No.: 14013762 001 Appendix 2 page 2 of 2 Set-up for Radiation Emission (Transceiver) – Loop Antenna
