RKRAX2900Wireless Keyboard

!"# Model #: AX2900 User Manual Wireless keyboard and mouse combo 3 PACKAGE CONTENTS: Your new wireless keyboard will ship with the following items. - Wireless Keyboard - USB nano receiver - 2 AAA Batteries - User Manual - Warranty Information SYSTEM REQUIREMENTS: Please be sure that you meet all of the system requirements below to avoid difficulties during installation. Compatible with PCs, Mac ® computers, and Chromebook™ notebook computers Works with: - Windows ® XP, Windows ® Vista, Windows ® 7, and Windows ® 8 operating systems - Mac OS X ® 10.3 and above - An available USB port SYSTEM SPECIFICATIONS: Your new wireless keyboard & mouse complies with the following specifications. - USB Interface - 2.4 GHz Wireless Technology FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation 4 INSTALLING BATTERIES FOR KEYBOARD: 1. 2. 5 3. CONNECTING TO A COMPUTER: 1 Turn on your computer. 2 Make sure batteries for your keyboard have been properly installed, refer to the Installing the batteries section in this manual if necessary. 3 Insert the receiver stowed at the bottom of your keyboard into an available USB port on your computer. 4 Your computer will detect and install the necessary drivers automatically 5 Your wireless keyboard and mouse are now ready to be used. 6 KEYBOARD SPECIAL FUNCTION KEYS: Opens Internet Explorer. Opens My Computer. Turn your computer to sleep mode. Opens Outlook Express or your default e-mail program. Opens calculator. Search. Refresh webpage. Play/Pause of currently playing multimedia file. Forward/Next song. Backward/Previous song. Stop. Silent mode. Turn the volume up. Turn the volume down. Backward. Forward. Favorites. Opens music player. Wake up. Turn off.

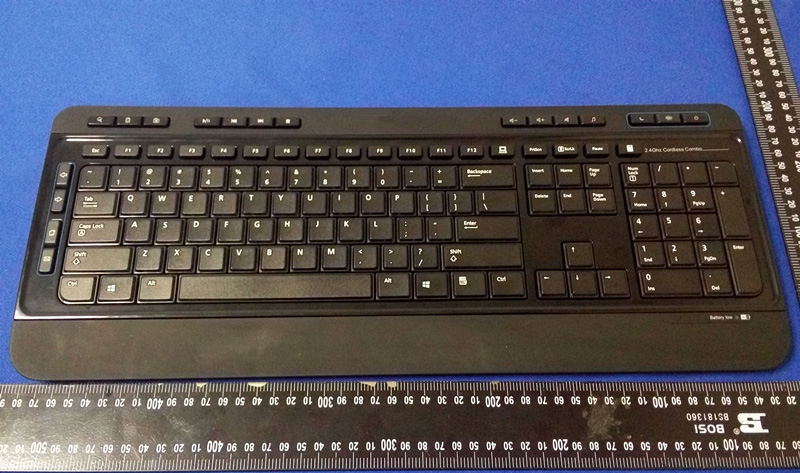

Page 1 of 2 Appendix B: Photographs of EUT Model: AX2900 External Photos Page 2 of 2

LABEL ARTWORK AND LOCATION Product: Wireless keyboard and mouse combo Model: AX2900 Label size: L*W=50*30mm Model: AX2900 Wireless keyboard and mouse combo FCC ID: RKRAX2900 Made in China This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Label location

Page 1 of 3 Model: AX2900 Internal Photos Page 2 of 3 Page 3 of 3

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: RKRAX2900 Product: Wireless keyboard and mouse combo Model No.: AX2900 Additional Model: KB5875W, KB5975W, KB5165W, BX9900, BX9930, BX9310, BX7800, BX7900, BX8200, BX9000, BX7000, AX250, AX2930, AX2920, AXA3300, AX3310, AX3380, AX8500, AX7900, AX6900, AX8000 Trade Mark: N/A Report No.: TCT150805E002 Issued Date: Aug. 25, 2015 Issued for: ATEK(CHINA) ELECTRONICS COMPANY LIMITED A2 building, Lianhe Industrial Park, Fengtang Road,Fuyong Town, Baoan district, Shenzhen city, Guangdong province，China Issued By: Shenzhen Tongce Testing Lab. 1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT150805E002 Page 2 of 20 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. Genera Information................................................................................... 6 4.1. Test Environment and Mode................................................................................. 6 4.2. Description of Support Units................................................................................ 6 5. Facilities and Accreditations ................................................................... 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty..................................................................................... 7 6. Test Results and Measurement Data ...................................................... 8 6.1. Antenna Requirement ........................................................................................... 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Radiated Emission Measurement ...................................................................... 10 6.4. 20dB Occupied Bandwidth ................................................................................. 18 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT150805E002 Page 3 of 20 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Wireless keyboard and mouse combo Model No.: AX2900 Additional Model: KB5875W, KB5975W, KB5165W, BX9900, BX9930, BX9310, BX7800, BX7900, BX8200, BX9000, BX7000, AX250, AX2930, AX2920, AXA3300, AX3310, AX3380, AX8500, AX7900, AX6900, AX8000 Applicant: ATEK(CHINA) ELECTRONICS COMPANY LIMITED Address: A2 building, Lianhe Industrial Park, Fengtang Road,Fuyong Town, Baoan district, Shenzhen city, Guangdong province，China. Manufacturer: ATEK(CHINA) ELECTRONICS COMPANY LIMITED Address: A2 building, Lianhe Industrial Park, Fengtang Road,Fuyong Town, Baoan district, Shenzhen city, Guangdong province，China. Date of Test: Aug. 01- Aug 20, 2015 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date:Aug. 10, 2015 SKY Reviewed By: Date:Aug. 25, 2015 Joe Zhou Approved By: Date:Aug. 25, 2015 Tomsin Report No.: TCT150805E002 Page 4 of 20 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203 PASS AC Power Line Conducted Emission §15.207 N/A Field Strength of Fundamental §15.249 (a) PASS Spurious Emissions §15.249 (a) (d)/ §15.209 PASS Band Edge §15.249 (d)/ §15.205 PASS 20dB Occupied Bandwidth §15.215 (c) PASS Note: 1. Pass: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT150805E002 Page 5 of 20 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product Name: Wireless keyboard and mouse combo Model : AX2900 Additional Model: KB5875W, KB5975W, KB5165W, BX9900, BX9930, BX9310, BX7800, BX7900, BX8200, BX9000, BX7000, AX250, AX2930, AX2920, AXA3300, AX3310, AX3380, AX8500, AX7900, AX6900, AX8000 Trade Mark: N/A Operation Frequency: 2402-2480MHz Number of Channel: 16 Modulation Technology: GFSK Antenna Type: PCB Antenna Antenna Gain: -2.0dBi Power Supply: DC 3.0V(AAA Battery * 2) Remark: All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Operation Frequency Each of Channel Channel FrequencyChannel FrequencyChannelFrequencyChannel Frequency 1 2402 MHz 5 2422 MHz9 2441 MHz13 2463 MHz 2 2407 MHz 6 2426 MHz10 2445 MHz14 2466 MHz 3 2414 MHz 7 2436 MHz11 2453 MHz15 2…

Text truncated - open the document above for the full version.

Page 1 of 1 Appendix A: Photographs of Test Setup Model:AX2900 Radiated Emission
