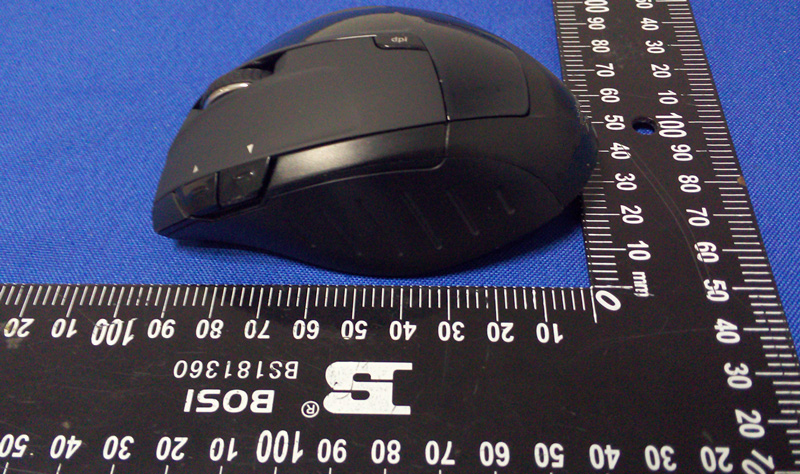

Page 1 of 3 Appendix B: Photographs of EUT Model: MX8600 External Photos Page 2 of 3 Page 3 of 3

LABEL ARTWORK AND LOCATION Product: Wireless keyboard and mouse combo Model: MX8600 Label location Label size: L*W=30*15mm Wireless keyboard and mouse combo FCC ID: RKRMX8600 Made in China

Page 1 of 2 Model: MX8600 Internal Photos Page 2 of 2

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: RKRMX8600 Product: Wireless keyboard and mouse combo Model No.: MX8600 Additional Model: KB5875W, KB5975W, KB5165W, BX9900, BX9930, BX9310, BX7800, BX7900, BX8200, BX9000, BX7000, MX207, MX6600, MX6800, MX6900, MX8800, MX12, MX21, MX22, MX23, MX24, MX25, MX26, MX27, MX28, MX29, MX30, MX31, MX32, MX33, MX34, MX35, MX36, MX3500, MX3600, MX800, MX202, MX262, MX7700 Trade Mark: N/A Report No.: TCT150805E001 Issued Date: Aug. 25, 2015 Issued for: ATEK(CHINA) ELECTRONICS COMPANY LIMITED A2 building, Lianhe Industrial Park, Fengtang Road,Fuyong Town, Baoan district, Shenzhen city, Guangdong province，China Issued By: Shenzhen Tongce Testing Lab. 1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT150805E001 Page 2 of 20 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. Genera Information................................................................................... 6 4.1. Test Environment and Mode................................................................................. 6 4.2. Description of Support Units................................................................................ 6 5. Facilities and Accreditations ................................................................... 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty..................................................................................... 7 6. Test Results and Measurement Data ...................................................... 8 6.1. Antenna Requirement ........................................................................................... 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Radiated Emission Measurement ...................................................................... 10 6.4. 20dB Occupied Bandwidth ................................................................................. 18 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT150805E001 Page 3 of 20 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Wireless keyboard and mouse combo Model No.: MX8600 Additional Model: KB5875W, KB5975W, KB5165W, BX9900, BX9930, BX9310, BX7800, BX7900, BX8200, BX9000, BX7000, MX207, MX6600, MX6800, MX6900, MX8800, MX12, MX21, MX22, MX23, MX24, MX25, MX26, MX27, MX28, MX29, MX30, MX31, MX32, MX33, MX34, MX35, MX36, MX3500, MX3600, MX800, MX202, MX262, MX7700 Applicant: ATEK(CHINA) ELECTRONICS COMPANY LIMITED Address: A2 building, Lianhe Industrial Park, Fengtang Road,Fuyong Town, Baoan district, Shenzhen city, Guangdong province，China. Manufacturer: ATEK(CHINA) ELECTRONICS COMPANY LIMITED Address: A2 building, Lianhe Industrial Park, Fengtang Road,Fuyong Town, Baoan district, Shenzhen city, Guangdong province，China. Date of Test: Aug. 01- Aug 11, 2015 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date:Aug. 10, 2015 SKY Reviewed By: Date:Aug. 25, 2015 Joe Zhou Approved By: Date:Aug. 25, 2015 Tomsin Report No.: TCT150805E001 Page 4 of 20 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203 PASS AC Power Line Conducted Emission §15.207 N/A Field Strength of Fundamental §15.249 (a) PASS Spurious Emissions §15.249 (a) (d)/ §15.209 PASS Band Edge §15.249 (d)/ §15.205 PASS 20dB Occupied Bandwidth §15.215 (c) PASS Note: 1. Pass: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT150805E001 Page 5 of 20 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product Name: Wireless keyboard and mouse combo Model : MX8600 Additional Model: KB5875W, KB5975W, KB5165W, BX9900, BX9930, BX9310, BX7800, BX7900, BX8200, BX9000, BX7000, MX207, MX6600, MX6800, MX6900, MX8800, MX12, MX21, MX22, MX23, MX24, MX25, MX26, MX27, MX28, MX29, MX30, MX31, MX32, MX33, MX34, MX35, MX36, MX3500, MX3600, MX800, MX202, MX262, MX7700 Trade Mark: N/A Operation Frequency: 2402-2480MHz Number of Channel: 16 Modulation Technology: GFSK Antenna Type: PCB Antenna Antenna Gain: -2.0dBi Power Supply: DC 3.0V(AAA Battery * 2) Remark: All models above are identical in interior structure, electrical …
