RL4MR100MP3 MUSIC PLAYER DIGITAL SOUND

() 1 Muro Inc. holds the copyright of the manual; Copying and distribution, in whole or in part, is strictly prohibited. Muro is the trademark of Muro Inc. WMA is the registered trademark of Microsoft Inc. Copyright to the upgradeable firmware software program belongs to Muro Inc., and copying without any prior written consent from MURO CO., LTD., or commercial distribution of its contents is prohibited by copyright laws. - MR-100 is a portable digital audio product that saves and plays Microsoft’s WMA (Windows Media Audio) files as well as MP3 files. - MR-100 features MP3 encoding that enables voice recording, and creates and plays MP3 files connected by the Line-in jack directly from CDP and other audio players, without using PC connections. - MR-100 supports FM transmission function, and saves FM stations in MP3 format files. - MR-100 features FM Broadcasting. 2 () MP3/WMA Music Playing-back This product saves and plays Microsoft’s WMA files as well as MP3 files. FM Receiving And Recording This product has a built-in FM receiver and creates MP3 files when the FM station is recorded. Back-light/Graphic LCD Display Supporting Multi Languages The Multi Language LCD Display supports Korean and Multi Language ID3 Tag, and its 2 color LED Backlight enables the user to check the product’s functions in darkness. High Quality Voice-recording The product provides high quality voice recording, which can be saved for playback. Line-in Digital Recorder Without using a PC, MR-100 creates digital files from analog inputs of all audio equipment. VAD (Voice Activity Detection) Recording The built-in VAD function provides efficient use of storage space and recording time. Speed Control The Replay speed can be adjusted, and can be set to on/off. Resume The music that last played begins when resumed. Firmware Upgradeability The product’s features can be easily upgraded using Firmware download. FM Broadcasting The product broadcasts the playing files using FM frequencies. 3 - Copyright notice – 1 - Special features - Table of contents - Package contents - Name of each part - LCD screen - Using battery - USB connection - Troubleshooting checklist z Power cannot be turned on z In case of no Sound z Download failure - Basic functions z To turn on the power z To turn off the power z To set Hold On z To release the Hold z Vo l u m e a d j u s t m e n t z Setting the mode - Music mode z To p lay z To select z Stop/pause z Setting Menu z Record z Memory z Memory information z Memory format z Initial memory information z Display z System z Line In Rec. z Voice Rec. (VAD) z To record a sound source z To pause Voice Recording z To finish Voice Recording z To play from the voice folder z Play z Speed z Erasing files z Erasing a single file z Erasing a single folder - FM mode z Setting channels z FM recording z FM mode setting - Convenient function mode z Repeat section z Selecting and using folders z Speed control z Broadcasting function z FM Tr. Function - Menu Set - Notice z Cautions when using the unit z Safety warnings - Product Specification - Warranty 4 In the Package MR-100 (Main Unit) Carrying Case Ear-phone Line in jack User Manual Rechargeable Battery (Ni-MH) USB Cable Recharging Adaptor Necklace 5 6 7 Warning!: Check if + and – poles of the battery are positioned correctly when using the battery. Battery Specification - This product is manufactured to be used with a Ni-MH battery. Ni-MH battery is recommended. - When Ni-Cd battery is used with the product, the battery information mentioned in this manual can be different, and the remaining battery level on the screen can be displayed inaccurately. USB Connection - When USB is connected, make it sure that the right end of the cable is inserted. Power cannot be turned on - Check if the battery is properly aligned to the correct polarity. - Check if the battery is fully charged. In case of no sounds - Check if there are any files that can be played in the memory. - Check if the volume is set to ‘0.’ - Check if the connection of the earphone has failed. - Check if FM Broadcast is set to ‘ON.’ Download failure - Check if “PC Connect” is displayed on the screen. - Check if USB cable connection is done properly. - Install USB driver again. 8 To turn on the power Move the slide switch on the backside of the unit to the mode you want. (Music/FM) To turn off the power Move the slide switch on the back of the unit to ‘Power Off.’ Tip Power Off cannot be made while USB is connected with PC. When no input is made in Stop and Pause, the power is automatically set to AUTO POWER SAVE MODE. When the slide switch isn’t set at an appropriate mode, “Invalid Mode Key!!!” is displayed. HOLD function Using HOLD function can prevent malfunction of the unit by accidentally pressing a wrong button. The feature, when enabled, can conserve the battery. To set HOLD ON Move the HOLD switch on the back of the unit to HOLD. (Lock icon) on the LCD panel is displayed for the setting. * Setting to HOLD in a playing mode displays a lock icon on the panel and no other buttons will work. 9 To release the HOLD (HOLD OFF), move the switch to HOLD OFF. (the lock icon) on the display disappears. Volume adjustment Volume can be adjusted from 0 to 20. *To increase the volume Turn the jog button(Vol.) on the right to + direction. Holding down the jog button(Vol.) to the right increases the volume rapidly. *To decrease the volume Turn the jog button(Vol.) on the right to – direction. Holding down the button(Vol.) to the left decreases the volume rapidly. Setting the mode MR-100 has two modes of Music and FM. To set Music mode Move the slide switch to Music on the back of the unit to use MP3/WMA audio files. 10 To set Music Mode Select ‘Music’ from the switches. To play Music Press PLAY button (icon) to play MP3 or WMA audio files. Tip Because of the Resume function, the music that last played begins when resumed. To select from the list of music Move the jog button on the right briefly to FF (icon) o…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A Processer TCC730Y KEY Input LCD Display CODEC FM TUNERPLL Controler DC To DC Convertor DATA Flash Memory PROGRAM Memory SST39VF400 K9F1G08 TPS61010 UDA1380HN DA104 SM5170 OSC 1.2V --> 2.8V AMP <Doc> 1 MR-100 A4 11 Saturday, October 04, 2003 TitleSize Document Number Rev Date: Sheet of Ni-MH

Antenna Li ne

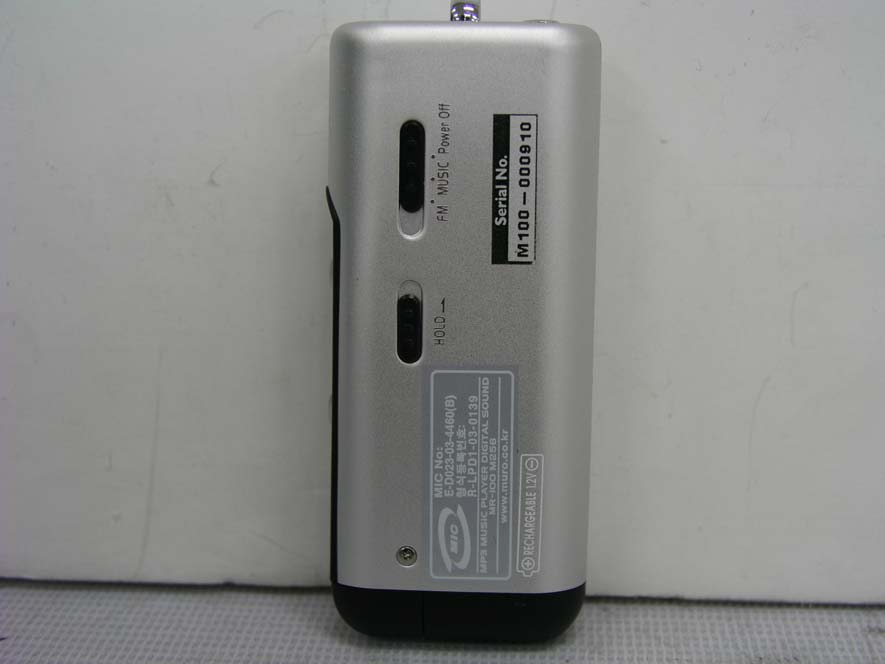

MR-100 M256 External photos EUT

ID Label Format

ID Label Location

MR-100 M256 Internal photos Inside view Main board Sub board

55 44 33 22 11 D D C C B B A A ( Pattern Short ) <Doc> 3b <Title> A3 11 Tuesday, October 21, 2003 TitleSize Document Number Rev Date: Sheet of FM_RFM_L FM_LFM_R /HOLD /HOLD TX_LETX_DATATX_CLKROUTLOUTIIC_CKTUNE_OKIIC_DA TUNE_OK /FM_TX TX_CLK ROUT TX_DATA LOUT TX_LE /P_OFF IIC_CK /P_OFF /FM /FM_TX /MUSIC/REC /MUSIC /FM /REC IIC_DA ANT ANT ANT VB VCC VCC 2VCC VCC VB TX_PWR TX_VCO VCC TX_PWR TX_VCO TX_PWR TX_VCO 2VCC VB VCC VCC VCC VCC VCC VCC TX_PWR TX_VCO VCC TX_PWR L301 22uH,6028 R527 68K R522OPEN R518 22K R31110K R50110R R515OPEN U501 SM5170AV 13542678 9 10111213141516 XIN VDD2 DO DB XOUT VSS FIN VDD1 NCLDCLKDATALEOPRNCTEST U502NJM2035 1 3 5 4 2 6 78 9 10 11 12 13 14 LIN ACBYPASS ACBYPASS GND NC TOXTAL TOCAPPILOTOUT MPXOUT VCC TRIMMING TRIMMING NC RIN R6100K C303103 + CT503 10uF/7V C401 104 R510100K C1 OPEN L503180nH R4022R2 C501223 C403 104 R526 22K C520152 SW302TMLH163-BAB,(220gf) R514330R R52910K R513 OPEN C524104 C51933P R519OPEN C2OPEN L4OPEN C503 104 SW3011290P C50610P R525 220R C51127P C51015P R3021MF R509 10R R310K + CT50510uF/7V C515 103 R50610K R401 10K R50322K C522 102 + CT301220uF/4V R52033K BAT301Ni-MH + CT50122uF/7V C504 100P R523 22K R410K R301100K R511 3K3 + CT3022u2F/7V R5161K R508 100K R1 10K C512 33P R524 68K R517 22K R2 10K C521104 R521100R C304 33P C526 100P Q501 DTA114YUA R303220KF TP501 TX_LOCK R510K TP502TX_VT C513 100P C517100P C402 104 L302 10uH,7032 C502104 C525103 + CT304 47uF/7V C4 104 L502100nH U401 DA-104 1412101113 897 654321 ANTGNDMPX-OGNDVCCOUT-LOUT-RGND X-TAL_IN I2CCKI2CDA ENABLE SW1 GND C527 10P C301 104 R528 10K R5072K2 C508224 VD501 KDV1472-C D301 KDR731S C514 OPEN R50510K C30210P C50947P Q504 UMT3904 + CT50410uF/7V C518224 C523 102 L2 4u7, 2012 Q503KTC4081Y Q502KTC4082Y SW3031300P C51633P TP401MPX-O 1 U301 TPS61010 13542 6789 10 EN FB VOUT GND COMP VBATSWADENLBILBO X502 38K L501 56nH R50410K R304 47K C505 270P R50247R L3OPEN X50112M CON301 BMBP08-D30G-3.0 123456789 101112131415 161718192021222324252627282930 123456789101112131415 16 1718192021222324252627282930 + CT303 FP-010CS330M-B2R C507 103 L1 100nH C6100P

82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0107 Page : 1 of 20 EMI TEST REPORT Test report No. : EMC- FCC- 0107 Type of equipment : MP3 MUSIC PLAYER DIGITAL SOUND Model No. : MR-100 M256 FCC ID. : RL4MR100 Applicant : MURO Co., Ltd. Test standards : FCC part 15 subpart B, Class B FCC part 15 subpart C, Class B Test result : Complied The above equipment was tested by EMC compliance Testing Laboratory for compliance with the requirements of FCC Rules and Regulations. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of test: 2003.11.11~11.17 Issued date: 2003 . 11.17 Tested by : Approved by: Kim, Jung-Soo Chung, Min-Seok 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0107 Page : 2 of 20 Contents 1. Client information 2. Laboratory information 3. Test system configuration 3.1 Operation environment 3.2 Measurement Uncertainty 3.3 Sample calculation 4. Descriptions of EUT 4.1 Product description 4.2 Peripherals 4.3 Used cables 4.4 Operating conditions 4.6 EUT test configuration 5. Summary of test results 5.1 Modification to the EUT 5.2 Standards & results 6. Test results 6.1 Conducted Emission 6.1.1 Measurement procedure 6.1.2 Used equipments 6.1.3 Measurement uncertainty 6.1.4 Test data 6.2 Radiated Electric Field Emission 6.2.1 Measurement procedure 6.2.2 Used equipments 6.2.3 Measurement uncertainty 6.2.4 Test data 6.3 Intentional radiator 200 kHz Bandwidth 6.3.1 Measurement procedure 6.3.2 Used equipments 6.3.3 Instrument settings 6.3.4 Test data 6.4 Intentional radiator field strength of radiation 6.4.1 Measurement procedure 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0107 Page : 3 of 20 6.4.2 Used equipments 6.4.3 Measurement uncertainty 6.4.4 Test data 6.5 Intentional radiator field strength of spurious 6.5.1 Measurement procedure 6.5.2 Used equipments 6.5.3 Measurement uncertainty 6.5.4 Test data 1. Client information Applicant: MURO Co., Ltd. Address: Hongha B/d 201, 878 Shinkil 7-Dong, Youngdungpo-Ku, Seoul, Korea 157-057 Telephone number: 82-2-842-8052 Facsimile number: 82-2-843-8051 Contact person: Manufacture: MURO Co., Ltd. Address: Hongha B/d 201, 878 Shinkil 7-Dong, Youngdungpo-Ku, Seoul, Korea 157-057 Telephone number: 82-2-842-8052 Facsimile number: 82-2-843-8051 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0107 Page : 4 of 20 2. Laboratory information Address EMC compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone Number : 82 31 336 9919 Facsimile Number : 82 31 336 4767 FCC Filing No. : 793334 SITE MAP EMC compliance Yongin city 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0107 Page : 5 of 20 3. TEST SYSTEM CONFIGURATION 3.1 Operation Environment Temperature Humidity Pressure OATS : 15°C 46 % 1011 hPa Shield room : 24°C 39 % 1011 hPa Test site These testing were performed following locations; OATS (3m) : Radiated emission Shield room : Conducted emission 3.2 Measurement Uncertainty All measurements involve certain levels of uncertainties, especially in field of EMI. The factors contributing to uncertainties are test receiver, Cable Loss, antenna factor calibration, Antenna directivity, antenna factor Variation with height, antenna phase center variation, antenna Frequency interpolation, measurement distance variation, Site imperfection, mismatching, and system repeatability. Based on NIS 80, 81, the measurement uncertainty level with a 95% confidence level was applied. 3.3 Sample calculation Conducted emission The field strength is calculated by adding the LISN factor, cable loss to the measured reading. The sample calculation is as follows : FS = MR + LF + CL MR = Meter Reading LF = LISN Factor 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0107 Page : 6 of 20 CL = Cable Loss If MR is 30dB, LISN Factor 1dB, CL 1dB The result (FS) is 30 + 1 + 1 = 32dBuV Radiated emission The field strength is calculated adding the antenna Factor, cable loss and, Antenna pad adding, subtracting the amplifier gain from the measured reading. The sample calculation is as follows : FS = MR + AF + CL + AT –AG MR = Meter Reading AF = Antenna Factor CL = Cable Loss AP = Antenna Pad AG=Amplifier Gain If MR is 30dB, AF 12dB, CL 5dB, AP 10dB, AG 35dB The result (MR) is 30 + 12 + 5 + 10 –35 = 22dBuV/m 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0107 Page : 7 of 20 4. Description of EUT 4.1 Product Description Manufactured by: MURO Co., Ltd. Address: Hongha B/D 201, 878 Shinkil 7-Dong, Seoul, Korea 157-057 Type of equipment: MP3+FM TRNASMITTER Model: MR-100 Serial number: M1400-000910 Power source: DC 1.2V (Ni-Mh rechargeable bettery) 4.2 Peripherals Description Model / Part # Serial Number Manufacture P C D I M E N S I O N 4 6 0 0 MY-0452RV-M0145-364-5258 D E L L Monitor PN17LT P225HVCT…

Text truncated - open the document above for the full version.

MR-100 M256 Test setup photos Conducted emission (Line in REC.) Conducted emission (USB) Radiated emission (Audio & Voice REC, FM tuner, FM Transmitter) Radiated emission (USB) Radiated emission (Line in recording)
