RLGVMD300030 inch LCD Display Monitor

Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 Appendix 5. Block Diagram Phyls FNC Co., Ltd. VMD 3000

Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 Appendix 3. External Photographs of EUT Front of EUT Rear of EUT Phyls FNC Co., Ltd. VMD 3000

Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : VMD3000 FCC ID : RLGVMD3000 Phyls FNC Co., Ltd.. Made in Korea Phyls FNC Co., Ltd. VMD 3000

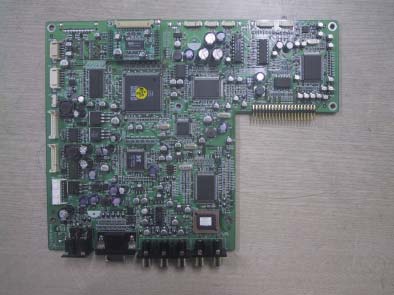

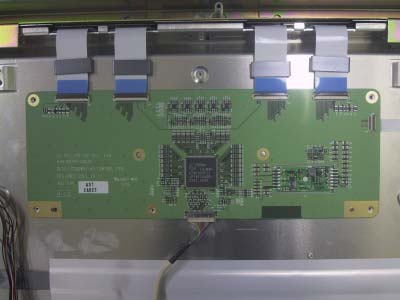

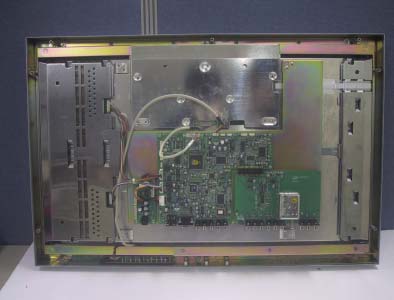

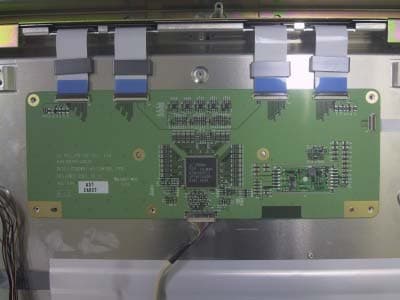

Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 Appendix 4. Internal Photographs of EUT Phyls FNC Co., Ltd. VMD 3000 Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 Phyls FNC Co., Ltd. VMD 3000 Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 Phyls FNC Co., Ltd. VMD 3000

Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 BWS TECH Inc. 5 of 16 3. Product Information 3.1 Equipment Description The Equipment Under Test(EUT) is the Phyls FNC Co., Ltd. 30 inch LCD Display Monitor Model : VMD 3000. (FCC ID : RLGVMD3000). This 30 inch LCD Display Monitor is used to power adaptor of DC 24V. 3.2 General Specification Horizontal : 30~61KHz PC Sync. Vertical : 56~75Hz Display Color : 16,770,000 Colors Max. Resolution : 1280 x 768 (WXGA) TV Color System : NTSC VIDEO System : CVBS, S-VHS, RGB DTV Y/Pb/Pr : Component : 480i/p, 576i,720p,1080i Power Source : Adaptor (AC 110-240V 50/60Hz, DC 24V/6A) Power Consumption : Total 99.16W(TYP) Power Saving : 5W Dimension(W x D x H) : 743mm x 518.5mm x 200mm(with stand) 3.3 Variations covered by this report Model Difference : N/A Technical Deviation :N/A. 3.4 Additional Information Related to Testing N/A 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea PRO-SMTEK Co., Ltd. USB P DISK VMD 3000 Phyls FNC Co., Ltd.

Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 Electromagnetic Emission FCC MEASUREMENT REPORT VERIFICATION OF COMPLIANCE FCC PART15 CERTIFICATION PRODUCT : 30 inch LCD Display Monitor MODEL/TYPE NO : VMD3000 FCC ID : RLGVMD3000 TRADE NAME : NA APPLICANT : Phyls FNC Co., Ltd. RN.301 Seoul Bld. 1536-14, Seocho3-Dong, Seocho-Gu, Seoul, 137-073, Korea. Attn. : Yoon, Byung Joon / Manager Tel No. : 82-2-588-4901 Fax No. : 82-2-588-4904 FCC CLASSIFICATION : JBP : Part 15 Class B Computing Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification DATES OF TEST : October 27, 2003 DATES OF ISSUE : October 27, 2003 TEST REPORT No. : BWS-03-EF-0047 TEST LAB. BWS Tech., Inc. (Registration No. : 553281) This 30 inch LCD Display Monitor has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tae Hyun Nam President of BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 BWS TECH Inc. This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 BWS TECH Inc. 2 of 16 TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea PRO-SMTEK Co., Ltd. USB P DISK VMD 3000 Phyls FNC Co., Ltd. Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 BWS TECH Inc. 3 of 16 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Manufacturer Company Name : Phyls FNC Co., Ltd. Company Address : RN.301 Seoul Bld. 1536-14, Seocho3-Dong, Seocho-Gu, Seoul, 137-073, Korea. Phone/Fax : Tel No. : 82-2-588-4901 Fax No. : 82-2-588-4904 Company Name : Phyls FNC Co., Ltd. Company Address : 11 Yeocheon-Li, Ohchang Myun, Cheongwon-Gun, Chungcheongbuk-Do, Korea. Phone/Fax : Tel No. : 82-43-215-4901 Fax No. : 82-43-215-4904 z EUT Type : 30 inch LCD Display Monitor z Model Number : VMD3000 z FCC Identifier : RLGVMD3000 z S/N : Prototype z FCC Rule Part(s) : CFR Title 47 Part 15 Subpart B z Test Procedure : ANSI C63.4-2000 z FCC Classification : JBP : Part 15 Class B Computing Device Peripheral z Dates of Tests : Oct 27, 2003 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 z Test Report No. : BWS-03-EF-0047 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea PRO-SMTEK Co., Ltd. USB P DISK VMD 3000 Phyls FNC Co., Ltd. Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 BWS TECH Inc. 4 of 16 2. Description of Test Facility The measurement test for radiated and conducted emission test were conducted at the open area test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated and conducted emissions from the Phyls FNC Co., Ltd. 30 inch LCD Display Monitor Model : VDM3000. 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea PRO-SMTEK Co., Ltd. USB P DISK VMD 3000 Phyls FNC Co., Ltd. Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 BWS TECH Inc. 5 of 16 3. Product Information 3.1 Equipment Description The Equipment Under Test(EUT) is the Phyls FNC Co., Ltd. 30 inch LCD Display Monitor Model : VMD 3000. (FCC ID : RLGVMD3000). This 30 inch LCD Display Monitor is used to power adaptor of DC 24V. 3.2 General Specification Horizontal : 30~61KHz PC Sync. Vertical : 56~75Hz Display Color : 16,770,000 Colors Max. Resolution : 1280 x 768 (WXGA) TV Color System : NTSC VIDEO System : CVBS, S-VHS, RGB DTV Y/Pb/Pr : Component : 480i/p, 576i,720p,1080i Power Source : Adaptor (AC 110-240V 50/60Hz, DC 24V/6A) Power Consumption : Total 99.16W(TYP) Power Saving : 5W Dimension(W x D x H) : 743mm x 518.5mm x 200mm(with sta…

Text truncated - open the document above for the full version.

Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 Appendix 1. Test Setup Photographs Radiated Emission Test Setup Phyls FNC Co., Ltd. VMD 3000 Report No : BWS-03-EF-0047 FCC ID : RLGVMD3000 Date of Test : Oct 27, 2003 Conducted Emission Test Setup Phyls FNC Co., Ltd. VMD 3000
