RMJPRR0001Low Power Direct Sequence Spread Spectrum Tx.

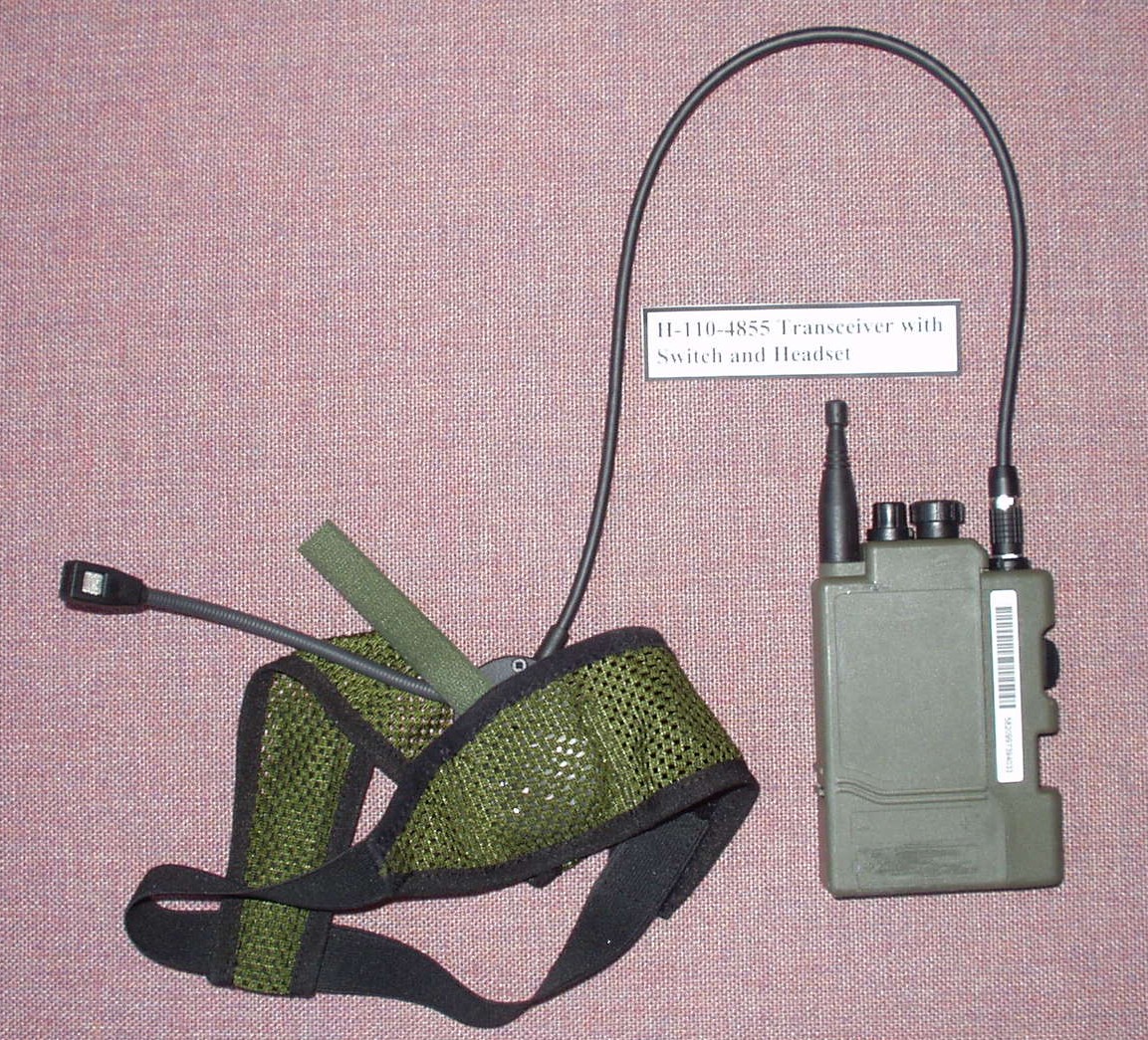

739-0004/09.01 CHANNEL SELECTOR VOLUME ON/OFF PTT (PRR) REMOTE WIRELESS PTT WIRELESS PTT (PRR) WIRELESS PTT (WITH SWITCH FACING OUT, ALIGN END LABELLED ‘PROGRAM’ WITH RAISED FEATURE BELOW PRR PTT SWITCH) PERSONAL ROLE RADIO H4855 OPERATOR’S GUIDE This guide describes the operation of the Personal Role Radio (PRR). CONTROLS Volume ON/OFF Switches on/off the radio and adjusts the volume. Channel Selector 1-15 position selector. PTT (PRR) Press-To-Talk for the PRR. Wireless PTT (PRR) Remote Press-To-Talk for the PRR. SETTING UP 1 Check PRR is switched off. 2 Connect headset. 3 Insert Batteries. 4 Check Channel Selector is correctly set. 5 Switch PRR on. AFFILIATING TO THE WIRELESS PTT 1 Switch PRR OFF. Position Wireless PTT as shown. 2 Switch PRR ON. Ascending tones heard. 3 Press and Hold Wireless PTT, until ascending tones heard again. 4 Release PTT. 5 Descending tones heard if unsuccessful - repeat steps 1 to 4. 739-0004/09.01 DE-AFFILIATING FROM THE WIRELESS PTT 1 Switch PRR OFF. Position Wireless PTT as for affiliation. 2 Switch PRR ON. Ascending tones heard. 3 DO NOT PRESS WIRELESS PTT. Remove Wireless PTT and return 5 times in succession within 5s of switching on radio until ascending tones heard again. 4 Descending tones heard if unsuccessful - repeat steps 1 to 3. TONES Power ON [Three short tones]. Power Off [Five medium tones]. Battery Low [Four alternating tones] Wireless PTT Affiliation/De-affiliation taking place. Repeated if successful. [Eight ascending tones]. Indicates failure of Wireless PTT Affiliation/De-affiliation. [Eight descending tones] Volume and Channel setting changes are confirmed by a single bleep in the headset, one bleep per division/setting. TO DISABLE TONES To disable the tones switch off the radio then switch on again with the PTT switch pressed. When tones have been disabled indications are recognised by interruptions in the received audio or, in the absence of traffic, as interruptions in the background noise (hiss) in short bursts equivalent in length to the related tones. OPERATION 1 Check for channel activity by listening: no audio will be heard if the channel is clear. Do not transmit if someone else is talking on the channel. 2 Press the PTT (PRR) and speak normally. 3 To receive messages, release the PTT (PRR). WARNINGS & CAUTIONS The PRR radio is an RF transmitter. Refer to separate Warnings and Cautions sheet.

Registered in England No. 964533 Registered Office: Marconi House, New Street, Chelmsford, Essex, CM1 1PL, England A Finmeccanica Company 27 May 2004 Dear Sirs Subject : Certification Application FCC ID: RMJPRR0001 It is requested that the following information is to be held confidential on behalf of Marconi Selenia Communications Ltd. FCC Rules Part 0.459 refers. Exhibit 3 Internal photograghs Dig pcb 2 files 1page/file RF pcb 4 files 1page/file Transceiver 3 files 1 page/file Exhibit 5 Operational Description 1 file 3pages/file Exhibit 7 Block diagram 1 file 1page/file Exhibit 8 Schematics RF pcb-schematic 6 files 1page/file RF pcb BOM 1 file 8pages/file Dig pcb-schematic 4 files 1page/file Dig pcb BOM 1 file 5pages/file Transceiver BOM 1 file 1page /file Interconnect-pcb 2 files 1page / file All information relating to the Personal Role Radio (PRR) and marked as Confidential Information shall not be disclosed by the FCC to any other party at any time for the following reasons:- The (PRR) is a proprietary product of Marconi Selenia Communications Limited (MSCL) who wholly own the Intellectual Property Rights in the PRR. Disclosure may therefore harm the competitive position of MSCL. The PRR is designed for Military purposes and is in current use by UK, US and Allied Forces in Iraq, Afghanistan and many other Countries and is used extensively in the war against terrorism. The disclosure of any Confidential Information may jeopardise the security of these forces. Export of the PRR and related Confidential Information is strictly controlled by the UK Export Authorities and is only permissible following the granting of an export licence Yours faithfully MARCONI SELENIA COMMUNICATIONS LTD D.Gauld (Technical Manager) Marconi Selenia Communications Limited Marconi House, New Street Chelmsford, CM1 1PL United Kingdom Telephone: +44 (0) 1245 353221 Facsimile: +44 (0) 1245 287125 Telecommunication Certification Body Radio Frequency Investigation Ltd Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test of: Marconi Selenia Communications Ltd. Personal Role Radio - H4855 (Body Measurements Only) To: OET Bulletin 65 Supplement C: (2001-01) Measurements were performed on the DASY4 System Test Report Serial No: RFI/SARB1/RP45620JD08A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Joe Lomako Tested By: Richelieu Quoi Release Version No: PDF001 Issue Date: 23 April 2004 Test Dates: 02 April 2004 It should be noted that the standard, OET Bulletin 65 Supplement C: (2001-01) is not listed on RFI’s current UKAS schedule and is therefore “not UKAS accredited”. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB1/RP45620JD08A Page 2 of 46 Issue Date: 23 April 2004 Test Of: Marconi Selenia Communications Ltd. Personal Role Radio - H4855 To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB1/RP45620JD08A Page 3 of 46 Issue Date: 23 April 2004 Test Of: Marconi Selenia Communications Ltd. Personal Role Radio - H4855 To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Client Information ............................................................................................................. 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods And Procedures................................................................ 8 4. Deviations From The Test Specification......................................................................... 9 5. Operation Of The EUT During Testing .......................................................................... 10 6. Summary Of Test Results .............................................................................................. 11 7. SAR Measurement System ............................................................................................ 14 8. SAR Safety Limits ...........................................................................................................15 9. Details of SAR Evaluation .............................................................................................. 16 10. Evaluation Procedures ................................................................................................. 17 11. System Validation ......................................................................................................... 18 12. Simulated Tissues ........................................................................................................ 19 13. Tissue Parameters ........................................................................................................ 20 14. DASY4 Systems Specifications................................................................................... 21 15. Validation results ..........................................................................................................22 16. Measurement Uncertainty ............................................................................................ 23 Appendix 1. Test Equipment Used .................................................................................... 25 Appendix 2. SAR Distribution Scans ................................................................................ 26 Appendix 3. Test Configuration Photographs ................................................................. 27 Appendix 4. Calibration Data ............................................................................................. 29 Appendix 5 Photographs of EUT ....................................................................................... 31 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB1/RP45620JD08A Page 4 of 46 Issue Date: 23 April 2004 Test Of: Marconi Selenia Communications Ltd. Personal Role Radio - H4855 To: OET Bulletin 65 Supplement C: (2001-01) 1. Client Information 1.1. Client Details Company Name: Marconi Selenia Communications Ltd. Address: Marconi House New Street Chelmsford Essex CM1 1PL UK Contact Name: Mr Keith Starkey 1.2. Test Laboratory Company Name: Radio Frequency Investigation Ltd. Address: Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ Contact Name: Mr J Lomako RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB1/RP45620JD08A Page 5 of 46 Issue Date: 23 April 2004 Test Of: Marconi Selenia Communications Ltd. Personal Role Radio - H4855 To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Marconi Selenia Communications Model Name or Number: H4855 Unique type Identification: H110485501 FCC Identification: RMJPRR0001 Serial Number: FCC 01 Country Of Manufacture: United Kingdom Date of Receipt: 02 April 2004 2.2. Accessories for Equipment Under Test (EUT) Description: Lightweight Headset Brand Name: Davies Industrial Communications Model Name or Number: None Stated Unique type Identification: None Stated Serial Number: 018749 Country of Manufacturer: None Stated …

Text truncated - open the document above for the full version.

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Marconi Selenia Communications Ltd. H4588 Personal Role Radio To: FCC Part 15.247 Test Report Serial No: RFI/MPTB1/RP45620JD06A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tony Henriques Tested By: Elin Danielsen PP by Steven Wong Release Version No: PDF01 Issue Date: 26 April 2004 Test Dates: 22 March 2004 to 30 March 2004 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/MPTB1/RP45620JD06A Page 2 of 58 Issue Date: 26 April 2004 Test Of: Marconi Selenia Communications Ltd. H4588 Personal Role Radio To: FCC Part 15.247 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/MPTB1/RP45620JD06A Page 3 of 58 Issue Date: 26 April 2004 Test Of: Marconi Selenia Communications Ltd. H4588 Personal Role Radio To: FCC Part 15.247 Table of Contents 1. Customer Information...................................................................................................4 2. Equipment Under Test (EUT) .......................................................................................5 3. Test Specification, Methods And Procedures ............................................................7 4. Deviations From The Test Specification .....................................................................9 5. Operation Of The EUT During Testing ......................................................................10 6. Summary Of Test Results...........................................................................................11 7. Measurements, Examinations And Derived Results................................................12 8. Measurement Methods ...............................................................................................30 9. Measurement Uncertainty ..........................................................................................38 Appendix 1. Test Equipment Used ................................................................................39 Appendix 2. Test Configuration Drawings....................................................................40 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/MPTB1/RP45620JD06A Page 4 of 58 Issue Date: 26 April 2004 Test Of: Marconi Selenia Communications Ltd. H4588 Personal Role Radio To: FCC Part 15.247 1. Customer Information Company Name: Marconi Selenia Communications Ltd. Address: Marconi House New Street Chelmsford Essex CM1 1PL UK Contact Name: Keith Starkey RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/MPTB1/RP45620JD06A Page 5 of 58 Issue Date: 26 April 2004 Test Of: Marconi Selenia Communications Ltd. H4588 Personal Role Radio To: FCC Part 15.247 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the customer: 2.1. Identification Of Equipment Under Test (EUT) Model Name: Personal Role Radio Model Number: H4588 Unique Type Identification: H-110-4855 Serial Number: FCC01 FCC ID Number: RMJPRR0001 Country of Manufacture: UK Date of Receipt: 22 March 2004 2.2. Ancillary Equipment The following ancillary equipment was connected to the EUT: Description: Switch-pack Model Number: H-200-4856 Serial Number: S11919001 Country of Manufacture: UK Description: Headset Model Number: H-302-4856 Serial Number: None stated Country of Manufacture: UK 2.3. Description Of EUT The equipment under test is a low power, digitally modulated, simplex transceiver that operates in the 2.4 GHz frequency band. It uses proprietary Direct Sequence Spread Spectrum (DSSS) on-air waveform, giving a low probability of intercept and good resistance against interfering signals. The radio has an integral short antenna that is permanently fixed to the case. 2.4. Modifications Incorporated In EUT During the course of testing the EUT was not modified. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/MPTB1/RP45620JD06A Page 6 of 58 Issue Date: 26 April 2004 Test Of: Marconi Selenia Communications Ltd. H4588 Personal Role Radio To: FCC Part 15.247 2.5. Additional Information Related To Testing Power Supply Requirement: Internal battery supply of 3V (2 x 1.5V AA) Intended Operating Environment: Commercial, light-industrial Equipment Category: Portable Type of Unit: Transceiver Interface Ports: None Transmit Frequency Range 2.4065 MHz to 2474.0 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom N/A 2406.5 Middle N/A 2439.0 Transmit Channels Tested Top N/A 2474.0 Receive Frequency Range 2405.6 MHz to 2474.0 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom N/A 2406.5 Middle N/A 2439.0 Receive Channels Tested Top N/A 2474.0 Occupied (20 dB) Bandwidth 3.2 MHz Highest Unintentionally Generated Frequency 2124 MHz Maximum Power Output (EIRP) 19.2 dBm 2.6. Support Equipment No support equipment was used to exercise the EUT during testing: RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/MPTB1/RP45620JD06A Page 7 of 58 Issue Date: 26 April 2004 Test Of: Marconi Selenia Communications Ltd. H4588 Personal Role Radio To: FCC Part 15.247 3. Test Specification, Methods And Procedures 3.1. Test Specification Reference: FCC Part 15 Subpart C: 2003 (Section 15.247) Title: C…

Text truncated - open the document above for the full version.
