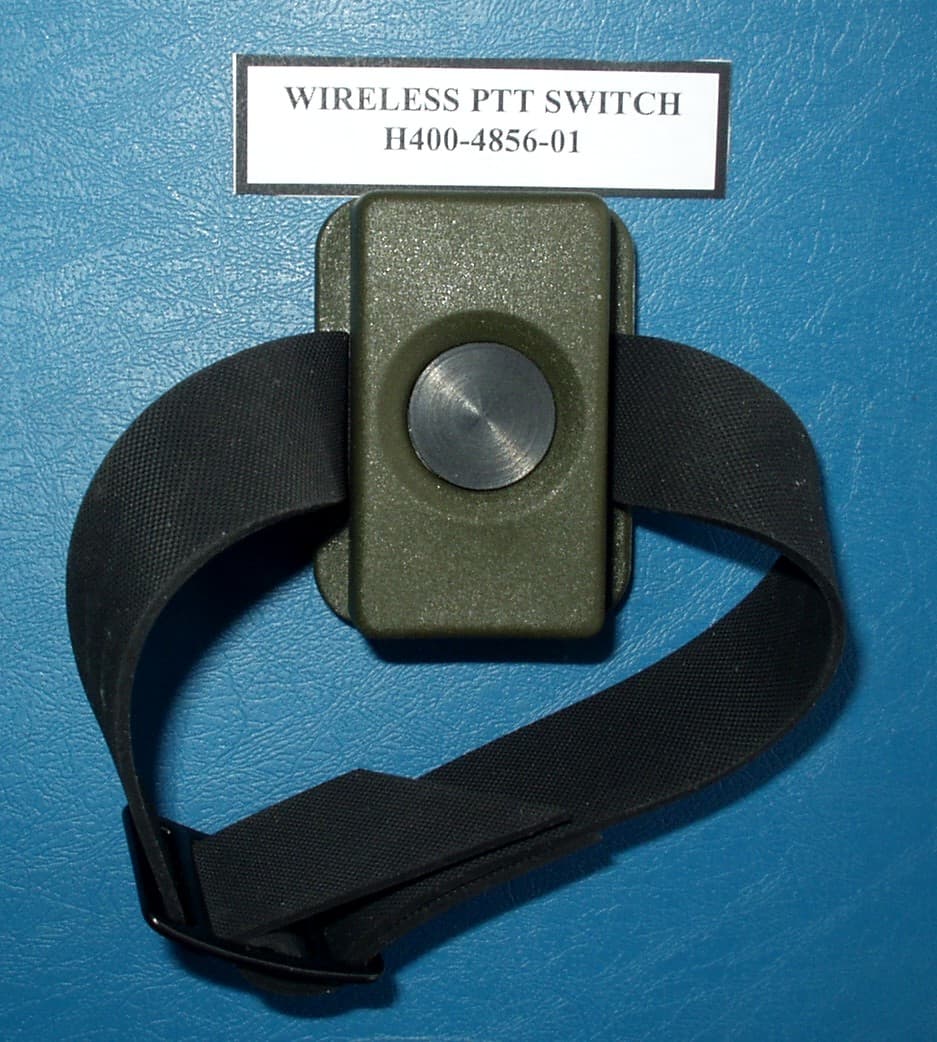

RMJPRR0002Wireless PTT

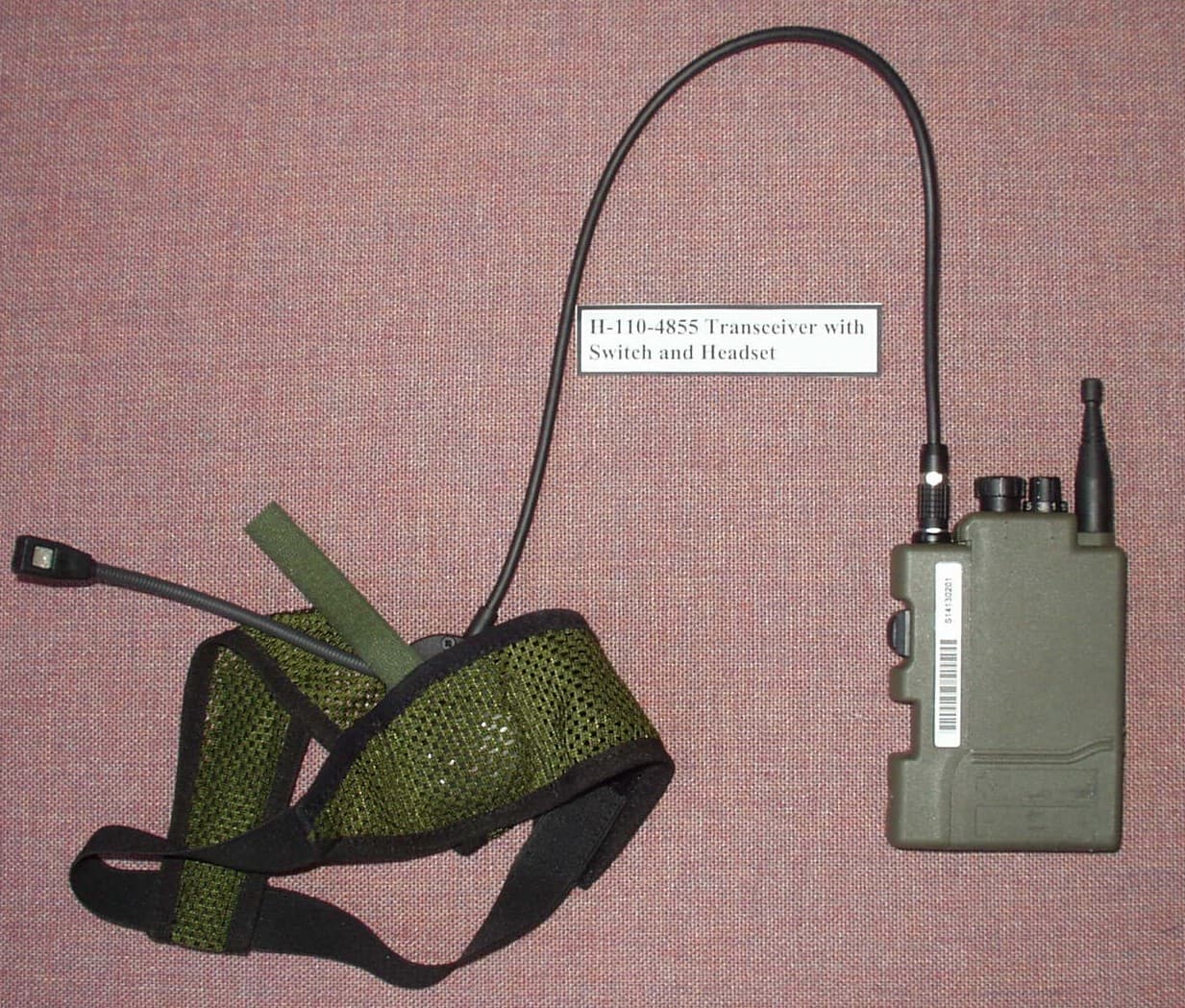

739-0004/09.01 CHANNEL SELECTOR VOLUME ON/OFF PTT (PRR) REMOTE WIRELESS PTT WIRELESS PTT (PRR) WIRELESS PTT (WITH SWITCH FACING OUT, ALIGN END LABELLED ‘PROGRAM’ WITH RAISED FEATURE BELOW PRR PTT SWITCH) PERSONAL ROLE RADIO H4855 OPERATOR’S GUIDE This guide describes the operation of the Personal Role Radio (PRR). CONTROLS Volume ON/OFF Switches on/off the radio and adjusts the volume. Channel Selector 1-15 position selector. PTT (PRR) Press-To-Talk for the PRR. Wireless PTT (PRR) Remote Press-To-Talk for the PRR. SETTING UP 1 Check PRR is switched off. 2 Connect headset. 3 Insert Batteries. 4 Check Channel Selector is correctly set. 5 Switch PRR on. AFFILIATING TO THE WIRELESS PTT 1 Switch PRR OFF. Position Wireless PTT as shown. 2 Switch PRR ON. Ascending tones heard. 3 Press and Hold Wireless PTT, until ascending tones heard again. 4 Release PTT. 5 Descending tones heard if unsuccessful - repeat steps 1 to 4. 739-0004/09.01 DE-AFFILIATING FROM THE WIRELESS PTT 1 Switch PRR OFF. Position Wireless PTT as for affiliation. 2 Switch PRR ON. Ascending tones heard. 3 DO NOT PRESS WIRELESS PTT. Remove Wireless PTT and return 5 times in succession within 5s of switching on radio until ascending tones heard again. 4 Descending tones heard if unsuccessful - repeat steps 1 to 3. TONES Power ON [Three short tones]. Power Off [Five medium tones]. Battery Low [Four alternating tones] Wireless PTT Affiliation/De-affiliation taking place. Repeated if successful. [Eight ascending tones]. Indicates failure of Wireless PTT Affiliation/De-affiliation. [Eight descending tones] Volume and Channel setting changes are confirmed by a single bleep in the headset, one bleep per division/setting. TO DISABLE TONES To disable the tones switch off the radio then switch on again with the PTT switch pressed. When tones have been disabled indications are recognised by interruptions in the received audio or, in the absence of traffic, as interruptions in the background noise (hiss) in short bursts equivalent in length to the related tones. OPERATION 1 Check for channel activity by listening: no audio will be heard if the channel is clear. Do not transmit if someone else is talking on the channel. 2 Press the PTT (PRR) and speak normally. 3 To receive messages, release the PTT (PRR). WARNINGS & CAUTIONS The PRR radio is an RF transmitter. Refer to separate Warnings and Cautions sheet.

26 th April 2004 Telecommunication Certification Body Radio Frequency Investigation Ltd Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject : Certification Application FCC ID: RMJPRR0002 It is requested that the following information is to be held confidential on behalf of Marconi Selenia Communications Ltd. FCC Rules Part 0.459 refers. Exhibit 3 Internal photograghs 2 files 1page/file Exhibit 5 Operational Description 1 file 1page/file Exhibit 7 Block diagram 1 file 1page/file Exhibit 8 Schematics 4 files BOM 1pages/file H-39-6870_BOM 1 page/file Schematic 1 page/file Layout 1page/file The wireless PTT is an optional part of the Personal Role Radio System. All information relating to the Personal Role Radio (PRR) and marked as Confidential Information shall not be disclosed by the FCC to any other party at any time for the following reasons:- The (PRR) is a proprietary product of Marconi Selenia Communications Limited (MSCL) who wholly own the Intellectual Property Rights in the PRR. Disclosure may therefore harm the competitive position of MSCL. The PRR is designed for Military purposes and is in current use by UK, US and Allied Forces in Iraq, Afghanistan and many other Countries and is used extensively in the war against terrorism. The disclosure of any Confidential Information may jeopardise the security of these forces. Export of the PRR and related Confidential Information is strictly controlled by the UK Export Authorities and is only permissible following the granting of an export licence Yours sincerely D.Gauld (Technical Manager)

22.0 12.0 FCC ID : RMJPRR002 NOTE: - BACKGROUND COLOUR GSM 306 TEXT - BLACKFONT STYLE - ARIAL ,10pt TEXT POSITIONED CENTRALLY AS SHOWNLABEL - SELF ADHESIVE POLYESTER TOWITHSTAND TEMPERATURES OF-40 DEGREES TO120 DEGREES C. D C B A DAVIES INDUSTRIAL COMMUNICATIONS LTD SCALES 2:1 & 1:1 SIZE CAD FILE: PART NAME A4 SHEET 1 OF DATE APPROVALS DRAWN CHECKED APPROVED UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MM GENERAL TOLERANCES : MATERIAL FINISH DO NOT SCALE DRAWING USED ON 8 7 6 5 4 3 2 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF DAVIES INDUSTRIAL COMMUNICATIONS LTD ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF DAVIES INDUSTRIAL COMMUNICATIONS LTD IS PROHIBITED. D C B A 8 7 6 5 4 3 2 1 PRODUCT N0 UP TO 200 0.25 200 TO 500 REQD QTY ISSUE DCN No DESCRIPTION DRAWN IN ACCORDANCE WITH BS308 DATE B.O.M NO. 1 PRODUCTION ISSUE DWG. NO. CC00-120099 29/04/04 K.A 29/04/04 SEE NOTE ABOVESEE NOTE ABOVE FCC ID LABEL 1 2 6 7 3 9 15 PROGRAM P0812000 S E R # 0 0 0 0 0 0 1 0 1 5 8 2 0 9 9 3 4 2 4 0 9 7 VIEW SHOWING ORIENTATIONOF STRAP 14 13 12 Lithium Batteries 10 11 8 4 5 D C B A DAVIES INDUSTRIAL COMMUNICATIONS LTD SCALE SIZE CAD FILE: PART NAME A4 SHEET 1 OF DATE APPROVALS DRAWN CHECKED APPROVED UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MM GENERAL TOLERANCES : MATERIAL FINISH DO NOT SCALE DRAWING USED ON 8 7 6 5 4 3 2 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF DAVIES INDUSTRIAL COMMUNICATIONS LTD ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF DAVIES INDUSTRIAL COMMUNICATIONS LTD IS PROHIBITED. D C B A 8 7 6 5 4 3 2 1 PRODUCT N0 UP TO 200 0.1 200 TO 500 REQD QTY ISSUE DCN No DESCRIPTION DRAWN IN ACCORDANCE WITH BS308 DATE B.O.M NO. K. A 1 PRODUCTION ISSUE DWG. NO. 05/05/04 P08120400 BM08-12-04-800 DD08-12-04-101 FCC WIRELESS PTT ASSEMBLY 05/05/04 STRAP LENGTH = 360mmRANGE OF ADJUSTMENT = 120mm D C B A DAVIES INDUSTRIAL COMMUNICATIONS LTD SCALE SIZE CAD FILE: PART NAME A4 SHEET 1 OF DATE APPROVALS DRAWN CHECKED APPROVED UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MM GENERAL TOLERANCES : MATERIAL FINISH DO NOT SCALE DRAWING USED ON 8 7 6 5 4 3 2 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF DAVIES INDUSTRIAL COMMUNICATIONS LTD ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF DAVIES INDUSTRIAL COMMUNICATIONS LTD IS PROHIBITED. D C B A 8 7 6 5 4 3 2 1 PRODUCT N0 UP TO 200 0.1 200 TO 500 REQD QTY ISSUE DCN No DESCRIPTION DRAWN IN ACCORDANCE WITH BS308 DATE B.O.M NO. K. A 1 PRODUCTION ISSUE DWG. NO. 05/05/04 05/05/04 P08120400 BM08-12-04-800 DD08-12-04-100 FCC WIRELESS PTT G.A

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Marconi Selencia Communications Ltd. H-400-4856 Wireless PTT Switch To: FCC Part 15.231 Test Report Serial No: RFI/MPTB1/RP45620JD07A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tony Henriques Tested By: Elin Danielsen Release Version No: PDF01 Issue Date: 29 April 2004 Test Dates: 22 March 2004 to 30 March 2004 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45620JD07A Page 2 of 28 Issue Date: 29 April 2004 Test Of: Marconi Selencia Communications Ltd. H-400-4856 Wireless PTT Switch To: FCC Part 15.231 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45620JD07A Page 3 of 28 Issue Date: 29 April 2004 Test Of: Marconi Selencia Communications Ltd. H-400-4856 Wireless PTT Switch To: FCC Part 15.231 Table of Contents 1. Customer Information .................................................................................................. 4 2. Equipment Under Test (EUT) ....................................................................................... 5 3. Test Specification, Methods And Procedures............................................................ 7 4. Deviations From The Test Specification..................................................................... 8 5. Operation Of The EUT During Testing ........................................................................ 9 6. Summary Of Test Results .......................................................................................... 10 7. Measurements, Examinations And Derived Results ............................................... 11 8. Measurement Methods ............................................................................................... 20 9. Measurement Uncertainty .......................................................................................... 24 Appendix 1. Test Equipment Used ................................................................................ 25 Appendix 2. Test Configuration Drawings ................................................................... 26 RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45620JD07A Page 4 of 28 Issue Date: 29 April 2004 Test Of: Marconi Selencia Communications Ltd. H-400-4856 Wireless PTT Switch To: FCC Part 15.231 1. Customer Information Company Name: Marconi Selenia Communications Ltd. Address: Marconi House New Street Chelmsford Essex CM1 1PL UK Contact Name: Keith Starkey RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45620JD07A Page 5 of 28 Issue Date: 29 April 2004 Test Of: Marconi Selencia Communications Ltd. H-400-4856 Wireless PTT Switch To: FCC Part 15.231 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the customer: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Wireless PTT Switch Model Name or Number: H-400-4856 Unique Type Identification: H400485601 Serial Number: 000528901 FCC ID Number: RMJPRR0002 Country of Manufacture: UK Date of Receipt: 22 March 2004 2.2. Description Of EUT The equipment under test is a wireless PTT switch operating at 433.92 MHz that forms part of a Personal Radio System which includes a separate 2.4 GHz transceiver and switch pack. Although the switch pack (which is attached to the 2.4 GHz transceiver) has a PTT switch, this is not easily accessible when the transceiver is worn in a pouch. The wireless PTT switch, which is normally strapped to the user’s weapon, allows remote operation of the 2.4 GHz transceiver (without the user having to remove his hands from the weapon). 2.3. Modifications Incorporated In EUT During the course of testing the EUT was not modified. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45620JD07A Page 6 of 28 Issue Date: 29 April 2004 Test Of: Marconi Selencia Communications Ltd. H-400-4856 Wireless PTT Switch To: FCC Part 15.231 2.4. Additional Information Related To Testing Power Supply Requirement: Internal Battery Supply of 3.6V (nominal) Intended Operating Environment: Commercial, light-industrial Equipment Category: Portable Type of Unit: Transmitter Interface Ports: None Transmit Frequency Range N/A single frequency operation Channel ID Channel Number Channel Frequency (MHz) Transmit Channels Tested N/A N/A 433.92 Occupied Bandwidth 40 kHz Maximum Average Fieldstrength @ 3 metres 66.4 dBμV/m 2.5. Support Equipment No support equipment was used to exercise the EUT during testing. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45620JD07A Page 7 of 28 Issue Date: 29 April 2004 Test Of: Marconi Selencia Communications Ltd. H-400-4856 Wireless PTT Switch To: FCC Part 15.231 3. Test Specification, Methods And Procedures 3.1. Test Specification Reference: FCC Part 15 Subpart C: 2003 (Section 15.231) Title: Code of Federal Regulations, Part 15 (47CFR15) Radio Frequency Devices Comments: A description of the test facility used for this test is on file with, and has been accepted by, the Federal Communications Commission as required by Section 2.948 of Federal Rules. Purpose of Test: To determine whether the equipment complied with the re…
