RN489896162JK01K series Remote Control Device

Example of Agents letter (for TCB – TCB approval): SHUN HU TECHNOLOGY CO., LTD Date (28/05/2013) BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, ( SHUN HU TECHNOLOGY CO., LTD), hereby authorize (Compliance Certification Service/ David Wang) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (29/10/2013). Sincerely, Company Officer: SHUN HU TECHNOLOGY CO., LTD Contact Person: Hsin-hui Yu Telephone Number: Tele : (+886)4 881 9595 Email: [email protected]

SHUN HU TECHNOLOGY CO., LTD Date (28/05/2013) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: RN489896162JK01 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, SHUN HU TECHNOLOGY CO., LTD hereby requests permanent confidential treatment of information accompanying this application as outlined below: Block Diagram Circuit Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Signature:___________________________ Name/Tit le: Hsin-hui Yu / general manager Company Name: SHUN HU TECHNOLOGY CO., LTD Address: No.21,Zhonggong Rd.,Xihu Township,Changhua County 514,Taiwan Email : [email protected] Tele : (+886)4 881 9595 Fax. : (+886)4 882 2001

SHUN HU TECHNOLOGY CO., LTD BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Model Difference To whom it may concern, Due to the business consideration, we hereby declare that our product of K series Remote Control Device Model: K808 Series have as following difference Model Description: No Model Number Model Difference 1 K1200/K1202/K1204/K1206/K1208/K1210/K1212 Size:230x57x51mm control number:： 12 2 K1000/K1002/K1004/K1006/K1008/K1010 Size:230*57*51mm; control number: 10 3 K800/K802/K804/K806/K808 Size: 193x57x51mm; control number: 8 4 K600/K602/K604/K606 Size:193x57x51mm; control number: 6 5 K400/K402/K404 Size:193x57x51mm; control number: 4 6 K200/K202 Size:193x57x51mm; control number: 2 Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely yours, Sincerely, Contact person / title : Hsin -hui Yu/ general manager Company: SHUN HU TECHNOLOGY CO., LTD Address : No.21,Zhonggong Rd.,Xihu Township,Changhua County 514,Taiwan email : [email protected] Tele : ( +886)4 881 9595

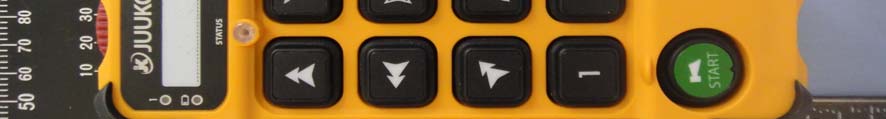

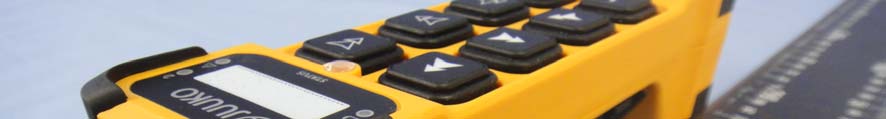

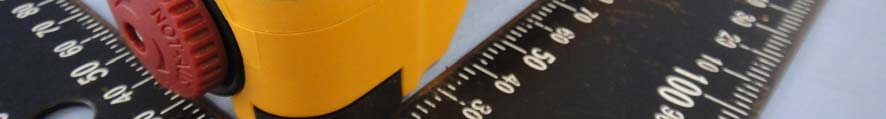

Compliance Certification Services Inc. Report No.: T121109W02 Date of Issue: May 06, 2013 A1 - 1 / 6 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT TX Compliance Certification Services Inc. Report No.: T121109W02 Date of Issue: May 06, 2013 A1 - 2 Rev. 00

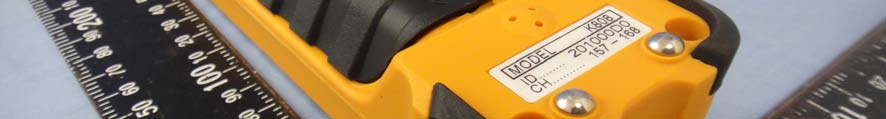

Label Location

Compliance Certification Services Inc. Report No.: T121109W02 Date of Issue: May 06, 2013 A1 - 1 / 6 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT TX Compliance Certification Services Inc. Report No.: T121109W02 Date of Issue: May 06, 2013 A1 - 2 Rev. 00

Compliance Certification Services Inc. Report No.: T121109W02 Date of Issue: May 06, 2013 A1 - 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT TX Compliance Certification Services Inc. Report No.: T121109W02 Date of Issue: May 06, 2013 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T121109W02 Date of Issue: May 06, 2013 A1 - 5 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T121109W02 Date of Issue: May 06, 2013 A1 - 6 Rev. 00 Module

Compliance Certification Services Inc. FCC ID: RN489896162JK01 Report No.: T121109W02-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 31 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For K series Remote Control Device Model: K808 Series, K1200, K1202, K1204, K1206, K1208, K1210, K1212, K1000, K1002, K1004, K1006, K1008, K1010, K800, K802, K804, K806, K808, K600, K602, K604, K606, K400, K402, K404, K200, K202 Trade Name: JUUKO Issued to SHUN HU TECHNOLOGY CO., LTD No.21,Zhonggong Rd.,Xihu Township, Changhua County 514,Taiwan Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: May 13, 2013 Compliance Certification Services Inc. FCC ID: RN489896162JK01 Report No.: T121109W02-RP1 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 13, 2013 Initial Issue ALL Rachel Wu Compliance Certification Services Inc. FCC ID: RN489896162JK01 Report No.: T121109W02-RP1 Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................. 4 2. EUT DESCRIPTION....................................................................................................................... 5 3. TEST METHODOLOGY................................................................................................................6 3.1 EUT CONFIGURATION.............................................................................................................. 6 3.2 EUT EXERCISE......................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES.................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 7 3.5 DESCRIPTION OF TEST MODES................................................................................................. 7 4. INSTRUMENT CALIBRATION.................................................................................................... 8 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 8 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 8 5. FACILITIES AND ACCREDITATIONS ....................................................................................... 9 5.1 FACILITIES............................................................................................................................ 10 5.2 EQUIPMENT........................................................................................................................... 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................... 11 6. SETUP OF EQUIPMENT UNDER TEST.................................................................................... 12 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 12 6.2 SUPPORT EQUIPMENT............................................................................................................ 12 7. FCC PART 15.231 REQUIREMENTS ......................................................................................... 13 7.1 20DB BANDWIDTH ........................................................................................................... 13 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 16 7.3 DUTY CYCLE CORRECTION FACTOR .......................................................................... 18 7.4 RADIATED EMISSIONS........................................................................................................... 20 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 29 APPENDIX I PHOTOGRAPHS OF TEST SETUP........................................................................... 30 Compliance Certification Services Inc. FCC ID: RN489896162JK01 Report No.: T121109W02-RP1 Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: SHUN HU TECHNOLOGY CO., LTD No.21,Zhonggong Rd.,Xihu Township, Changhua County 514,Taiwan Equipment Under Test: K series Remote Control Device Tr a d e N a m e : JUUKO Model: K808 Series, K1200, K1202, K1204, K1206, K1208, K1210, K1212, K1000, K1002, K1004, K1006, K1008, K1010, K800, K802, K804, K806, K808, K600, K602, K604, K606, K400, K402, K404, K200, K202 Date of Test: April 17 ~ 22, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Miller Lee Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: RN489896162JK01 Report No.: T121109W02-RP1 Page 5 Rev.00 2. EUT DESCRIPTION Product K series Remote Control Device Trade Name JUUKO Model Number K808 Series, …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: RN489896162JK01 Report No.: T121109W02-RP1 Page 30 Rev.00 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SET UP PHOTO Compliance Certification Services Inc. FCC ID: RN489896162JK01 Report No.: T121109W02-RP1 Page 31 Rev.00 RADIATED EMISSION SET UP PHOTOS
