HuneTec SPECIFICATION ** Confidential *** Confidential *** Confidential ** HuneTec ReFlex TM Radio PT100 Feb, 1, 2007 HuneTec Co., Ltd HuneTec SPECIFICATION ** Confidential *** Confidential *** Confidential ** < Table of contents > 1. OVERVIEW 2. B RIEF DESCRIPTION 3. M AIN FEATURES HuneTec SPECIFICATION ** Confidential *** Confidential *** Confidential ** 1. OVERVIEW The purpose of this project is to invent a new generation of a mobile tracking device for pets. A H/W structure of the new device will be similar to a typical pet collar so that pets can wear it comfortably. More importantly, the new pet collar device provides a location-based service over the ReFLEX network and also run more than 6 months without recharging a battery. 2. BRIEF DESCRIPTION There are two key points for a new device that can be differentiated from existing pet collar devices. Unlike other competitors’ products, a new device will consist of several modules that fit into a customized pet collar. Another competitive advantage is to maximize its battery lifetime and to reduce airtime fees by using a ReFLEX protocol. 3. M AIN FEATURES o ReFlex 2.7.4Full Support o SiRF 3 GPS Module o AA battery o Weight: estimate 120 g o Size: 7.171 inch * 0.905 inch * 0.095 inch HuneTec SPECIFICATION ** Confidential *** Confidential *** Confidential ** RF Specifications: 1. Receiver Item Specification Frequency 929~932MHz, 935~942MHz Channel Spacing 12.5KHz / 10KHz Bit Rate 1600~6400bps Signaling Modulation 2 or 4 Level FSK Frequency Deviation 800Hz and 2400Hz Receiver Sensitivity 20uV/M with 80 char(TBD) Frequency Accuracy 1ppm Adjacent Channel Rejection > 50dB from Sensitivity to -80dBm > 40dB at -70dB Signal Level > 30dB at -60dB Signal Level Co-Channel Rejection < 15dB at -105dBm < 10dB at -102dBm < 6dB at -95dBm Spurious Response Rejection > 55dB at -105dBm Image Rejection > 55dB at -105dBm Inter-Modulation Distortion Rejection > 50dB from Sensitivity to -80dBm > 40dB at -70dB Signal Level > 30dB at -60dB Signal Level Simulcast Delay Spread Tolerance > 1/4 symbol width at -105dBm and 15dB C/I > 1/4 Symbol width at -102dBm and 10dB C/I > 1/4 Symbol width at -55dBm and 6dB C/I 2. Transmitter Item Specification Frequency Range 896~902MHz Channel Spacing 12.5KHz/10KHz Bit Rate 800~9600bps Signaling Modulation 4Level FSK Frequency Deviation 800Hz and 2400Hz Frequency Accuracy -2.5ppm < X < 2.5ppm Frequency Stability -1.0ppm < X < 1.0ppm Output Power 0.75W into Antenna ERP 0.2W minimum over 8 positions Spurious Emission In-Band/Out-Band < -50dB Occupied Bandwidth 8.5KHz Hunetec Co., Ltd. #612, StarWood Plaza, 5439-1 Sangdaewon-dong, Jungwon-gu, Sungnam-si, Kyungki-do, 462-120, Korea. Tel: +82-31-737-0850, Fax: +82-31-737-0851 Sean Hwang ([email protected] , [email protected])

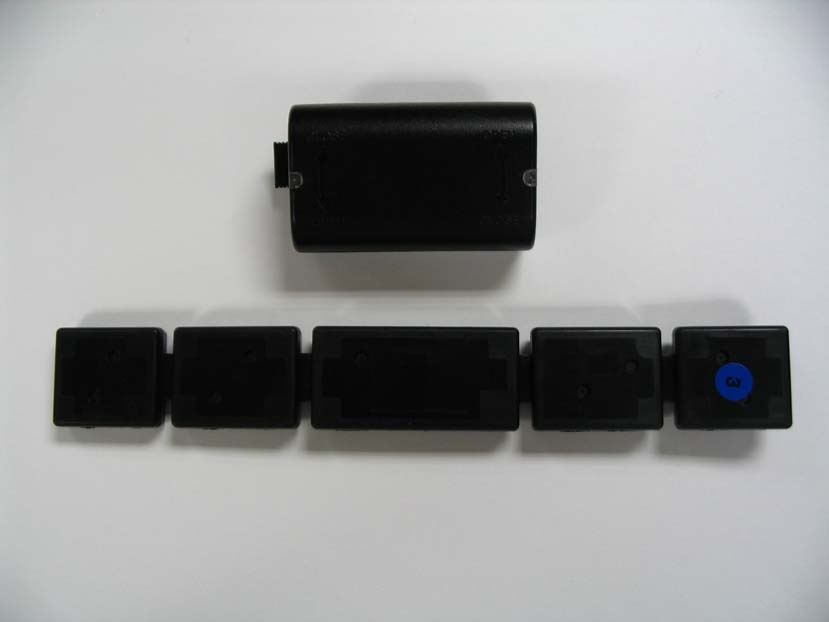

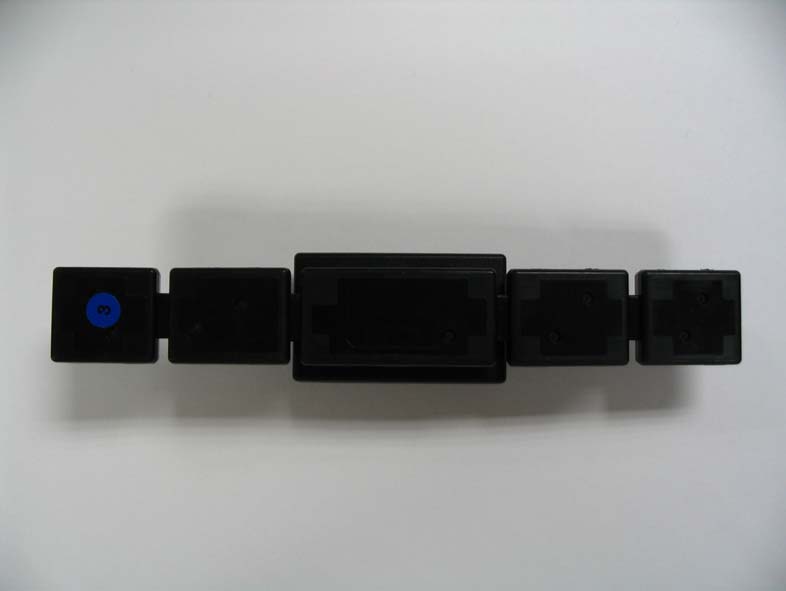

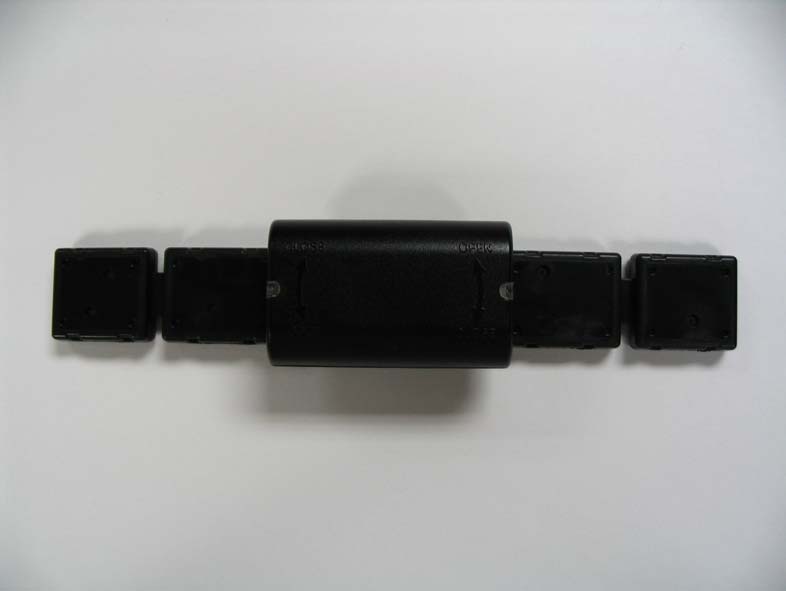

HuneTec Co., Ltd. PT100 FCC test report Hunetec Co., Ltd. Appendix 3. External Photos Front Back HuneTec Co., Ltd. PT100 FCC test report Hunetec Co., Ltd. Front Back

HuneTec Co., Ltd. PT100 FCC test report Hunetec Co., Ltd. Appendix 2. FCC ID Label & Location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The following FCC Warning statement will be described in the user manual. FCC Warning Label Location The label shown above shall be permanently affixed at a conspicuous location(cabinet out side) on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Hunetec Co., Ltd. ReFlex Telemetry Device Model : PT100 FCC ID : RNGPT100R X FCC ID LABEL & Caution Caution Device must be restricted to occupation use to safety FCC RF exposure. See Instruction manual for s pecific operating requirement.

HuneTec Co., Ltd. PT100 FCC test report Hunetec Co., Ltd. Appendix 4. Internal Photos Front Back

Report No: BWS-07-EF-0035 Page Number : BWS TECH Inc. FCC Test Report Data of Issue : July 9, 2007 1 of 28 FCC test report Hunetec Co., Ltd. RF MEASUREMENT REPORT CERIFICATION OF COMPLIANCE PRODUCT : ReFlex Telemetry Device MODEL/TYPE NO : PT100 FCC ID : RNGPT100RX TRADE NAME : APPLICANT NAME : Hunetec Co., Ltd. RM 612, Starwood Plaza, 5439-1 Sangdaewon-Dong, Jungwon- Gu, Sungnam-City, Kyunggi-Do, Korea(ZIP CODE : 462- 120) Attn. : David Kim PCB Part 24D PCS Licensed Transmitter FCC CLASSIFICATION : LMS Part 90 Location & Monitoring Transmitter FCC RULE PART(S) : FCC Part 24D & 90 FCC PROCEDURE : Certification DATES OF TEST : June 25, 2007 ~ July 3, 2007 DATES OF ISSUE : July 9, 2007 TEST REPORT No. : BWS-07-EF-0035 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This Digital Transmission System has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part 24D & 90. I attest to the accuracy of data. All measurement herein was performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. TABLE OF CONTENTS TABLE OF CONTENTS Pages (Date) Reviewed by TaeHyun, Nam (Date) Tested by ChangYoung, Choi BWS TECH Inc. www.bws.co.kr #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 Report No: BWS-07-EF-0035 Page Number : BWS TECH Inc. FCC Test Report Data of Issue : July 9, 2007 2 of 28 FCC test report Hunetec Co., Ltd. TABLE OF CONTENTS 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6 5. Test Condition 8 6. Test Results 9 7. Test Equipment List 28 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Operational Description Appendix 8. Part list Appendix 9. User Manual Appendix 10. Statement request Report No: BWS-07-EF-0035 Page Number : BWS TECH Inc. FCC Test Report Data of Issue : July 9, 2007 3 of 28 FCC test report Hunetec Co., Ltd. FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Manufacturer z EUT Type : ReFlex Telemetry Device z Model Number : PT100 z FCC Identifier : RNGPT100RX z S/N : Prototype z Freq. Range : 24D / 901.0 MHz ~ 902.0 MHz 90 / 896.0 MHz ~ 901.0 MHz z Modulation Method : 4level FSK z FCC Rule Part(s) : Part 24D PCS Licensed Transmitter Part 90 Location & Monitoring Transmitter z Test Procedure : ANSI C63.4-2003 z Dates of Tests : June 25, 2007 ~ July 3, 2007 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 z Test Report No. : BWS-07-EF-0035 Company Name : Hunetec Co., Ltd. Company Address : RM 612, Starwood Plaza, 5439-1 Sangdaewon-Dong, Jungwon-Gu, Sungnam-City, Kyunggi-Do, Korea Phone/Fax : +82-31-737-0850 / +82-31-737-0851 Company Name : Hunetec Co., Ltd. Company Address : RM 612, Starwood Plaza, 5439-1 Sangdaewon-Dong, Jungwon-Gu, Sungnam-City, Kyunggi-Do, Korea Phone/Fax : +82-31-737-0850 / +82-31-737-0851 Report No: BWS-07-EF-0035 Page Number : BWS TECH Inc. FCC Test Report Data of Issue : July 9, 2007 4 of 28 FCC test report Hunetec Co., Ltd. 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10-meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1993 and registered to the Federal Communications Commission (Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2003) was used in determining radiated emissions from the Hunetec Co., Ltd. Model :PT100. Report No: BWS-07-EF-0035 Page Number : BWS TECH Inc. FCC Test Report Data of Issue : July 9, 2007 5 of 28 FCC test report Hunetec Co., Ltd. 3. Product Information 3.1 Equipment Description The Equipment Under Test (EUT) is RF transmitter by the Hunetec Co., Ltd. Model :PT100. (FCC ID : RNGPT100RX). The purpose of this project is to invent a new generation of a mobile tracking device for pets. A H/W structure of the new device will be similar to a typical pet collar so that pets can wear it comfortably. More importantly, the new pet collar device provides a location-based service over the ReFLEX network and also run more than 6 months without recharging a battery. 3.2 General Specification Item Specification Transmitter Frequency Range 896~902MHz Channel Spacing 12.5KHz…
