ROW-CDWU96600A00Wi-Fi Module

CDW-U96600A-00 DATASHEET Software： 客 户 Customer 客户承认 Approve（请盖印章） 日 期 Date 深圳市中龙通电子科技有限公司 CHINA DRAGON TECHNOLOGY LIMITED 工厂地址：深圳市宝安区沙井街道南浦路林坡坑蚝三第一工业园B4栋 电话：(86 755) 81449957 传真：(86 755) 81449967 E-mail: [email protected] Http://www.cdtech.cn 拟制 Design 审核 Check 批准 Approve 版本 Version 日期 Date V1.0 2023.07.13 产 品 承 认 书 SPECIFCATION 深圳市中龙通电子科技有限公司 Page 1 Wi-Fi Module CDW-U96600A-00 更改记录： Reversion History： 版本 Version 日期 Date 更改内容 Modification 1.0 2023.07.13 First release(Draft) 深圳市中龙通电子科技有限公司 Page 2 Wi-Fi Module CDW-U96600A-00 list 1. Overview ........................................................................................................................................ ............ 3 2. Features ....................................................................................................................................................... 4 3. General Specification .................................................................................................................................5 4. Pin Description and PCB size ..................................................................................................................... 6 5. Electrical characteristics ............................................................................................................................. 8 6. Recommended Reflow Profile .................................................................................................................... 9 7. Package.......................................................................................................................................................10 深圳市中龙通电子科技有限公司 Page 3 Wi-Fi Module CDW-U96600A-00 1. Overview The CDW-U96600A-00 designed by Cdtech basing on the ECR6600A is a Wi-Fi+BLE module. ECR6600A Is a SoC chip for smart home IoT terminal devices, support Wi-Fi 802.11b/g/n/ax and BLE 5.0 protocol, built-in power management module, power amplifier, low-noise amplifier and transceiver switch. ECR6600A Using RISC processor architecture, with sufficient storage space, rich peripheral interface, more secure encryption mechanism, in addition, this series of chips support wider operating temperature, can maintain excellent performance in some high-temperature application scenarios. 深圳市中龙通电子科技有限公司 Page 4 Wi-Fi Module CDW-U96600A-00 2. Features 2.1 Wi-Fi Features ■Support for IEEE 802.11 b / g / n / ax ■Support for the Full MAC, including the LMAC and the UMAC ■Support for SoftAP, STA, and Wi-Fi direct connection mode ■Support for WMM QoS ■Support for 0.8/1.6/3.2 us security protection interval ■Supports 802.11 ax MCS0 MCS 7 ■The maximum bit rate is 150 Mbps ■MU-OFDMA (STA support) ■STA supports beamforming (STA as Beamformee) ■Support for Mid-amber ■Supports 20 M and 40 M bandwidth.802.11ax Only supports 20M bandwidth ■Support for dual-carrier modulation (Dual Carrier Modulation, DCM) 2.2 BLE characteristic ■Support for the BLE 5.0 protocol ■Support for BLE single-device connection ■Supports simulcasting and scanning ■Support for enhanced power consumption control ■Support for adaptive frequency hopping (AFH) ■Supports asynchronous data sending and reception ■Support for connection parameter updates ■Support for scalable packet length ■Support for link-layer encryption ■Support for LE ping 2.3 MCU Features ■MCU up to 240MHz ■Support for in-chip operation (eXecute In Place) ■RAM direct mapping to data ■RAM space Multiplexing program download and JTAG interface ■50 MHz SDIO interface ■SPI interface ■One I 2C interface is supported ■Support two high-speed UART interfaces, support flow control ■Six 32-bit timers and one always on timer ■Six 32-bit PWM with either high-speed clock or low power clock ■True random number generation is supported ■Support for 26 MHz and 40 MHz Crystal 深圳市中龙通电子科技有限公司Page 5 Wi-Fi Module CDW-U96600A-00 3.General specification Model CDW-U96600A-00 wlan standard IEEE 802.11b/g/n/ax Wi-Fi6 and BLE 5.0 Major Chipset ECR6600-ATS2L Modulation 802.11b(DSSS):CCK(11,5.5Mbps),DQPSK(2Mbps),DBPSK(1Mbps) 802.11g(OFDM):BPSK(9,6Mbps),QPSK(18,12Mbps),16QAM(36,24M bps),64QAM(54,48Mbps) 802.11n(OFDM):BPSK,QPSK,16QAM,64QAM(65Mbps) 802.11ax(OFDMA )/1024-QAM BLE(GFSK) Channel Bandwidth WIFI:20MHz/40MHz BLE:2MHz Basic Transmitting Rate WIFI 802.11b:11,5.5,2,1 Mbps WIFI 802.11g:54,48,36,24,18,12,9,6 Mbps WIFI 802.11n:up to 75Mbps(20MHZ);up to 150Mbps(40MHZ) WIFI 802.11ax :up to 143Mbps(20MHZ) BLE:1Mbps, 2Mbps Frequency Band WiFi:2400~2483.5MHZ BT: 2402~2480MHZ Receiver Sensitivity 11b CCK11(PER<8%)< -83dBm;11g OFDM54(PER<10%) < -72dBm; 11n HT20 MCS7(PER<10%) < -71dBm 11n HT40 MCS7(PER<10%) < -67dBm 11ax HT20 MCS7(PER<10%) < -70dBm BLE Receiving Sensitivity@1Mbit/s < -90dBm Interface UART Encryption WEP/WPA-PSK/WPA2-PSK SPI flash 2M Byte default Embedded Power supply current Min: 500 mA Operating Temperature -40~ +85°C ambient temperature Storage Temperature -40 ~ 125°C ambient temperature Humidity 5 to 90 % maximum (non-condensing) Dimension 19 x 13.2 x 2.4 mm (LxWxH) ±0.2mm 深圳市中龙通电子科技有限公司 Page 6 Wi-Fi Module CDW-U96600A-00 4. Pin Description and PCB size Top view Side view Bottom view Unit：mm 深圳市中龙通电子科技有限公司 Page 7 Wi-Fi Module CDW-U96600A-00 NO NAME DESCRIPTION 1 GND Grounding 2 GND Grounding 3 VCC Module power supply (+3.3V) 4 GPIO23 General GPIO 5 GPIO22 General GPIO 6 GPIO21 General GPIO 7 GPIO25 General GPIO 8 EN CHIP_EN(PULL-UP) 9 GPIO24 General GPIO 10 GPIO16 General GPIO 11 NC - 12 GPIO17 General GPIO,UART1_RX 13 GPIO13 General GPIO,UART1_TX 14 VDD_0P8 Digital power supply 15 VDD_EFUSE eFuse program power, the power is 1.8V 16 GPIO0 General GPIO,SDIO_CLK 17 GPIO3 General GPIO,SDIO_D2 18 GPIO2 General GPIO,SDIO_D3 19 GPIO1 General GPIO,SDIO_CMD 20 GPIO20 General GPIO,SDIO_D0 21 RESET_B TEST MODE 22 GPIO15 General GPIO,SDIO_D1 23-26 NC - 27 GND Grounding 28-32 NC - 33 GPIO4 General GPIO 34 GPIO14 General GPIO 35 GPIO5 General GPIO,UART0_RX(DEBUG) 36 GPIO6 General GPIO,UART0_TX(DEBUG) 37 NC - 38-54 GND Grounding 深圳市中龙通电子科技有…

Text truncated - open the document above for the full version.

CHINA DRAGON TECHNOLOGY LIMITED U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (Baihetian Innovative Solutions) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: September 13, 2023 Signed by (Printed Name/Title): Kenneth Young/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: CHINA DRAGON TECHNOLOGY LIMITED Grantee Code: ROW FCC ID: ROW-CDWU96600A00 Contact Name: Wu Ningning Address: B4 Bidg.haosan No.1 lndustry Park, Shajing street, B, Shenzhen, China Telephone No: 13729543265 Email: [email protected] Applicant Signature: Date: 2023-09-13 Signed by (Printed Name/Title): Wu Ningning / Manager

CHINA DRAGON TECHNOLOGY LIMITED 2023.09.14 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: ROW-CDWU96600A00 [CHINA DRAGON TECHNOLOGY LIMITED] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Wu Ningning CHINA DRAGON TECHNOLOGY LIMITED 2023.09.14 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: ROW- CDWU96600A00 [CHINA DRAGON TECHNOLOGY LIMITED] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Wu Ningning

CHINA DRAGON TECHNOLOGY LIMITED 2023.09.14 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Wi-Fi Module Trademark: N/A MODEL : CDW-U96600A-00 FCC ID : ROW-CDWU96600A00 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Wu Ningning / Manager Contact information / address: B4 Bidg. haosan No.1 lndustry Park, Shajing street, B, Shenzhen, China

CHINA DRAGON TECHNOLOGY LIMITED 2023.09.14 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Wu Ningning / Manager Contact information / address: B4 Bidg. haosan No.1 lndustry Park, Shajing street, B, Shenzhen, China

CHINA DRAGON TECHNOLOGY LIMITED FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023/09/14 Subject; Modular Transmitter Application Company name: CHINA DRAGON TECHNOLOGY LIMITED FCC ID: ROW-CDWU96600A00 Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID ROW-CDWU96600A00 has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, It has a shield The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes, This module have buffered modulation/data inputs . The module must contain power supply regulation on the module. Yes, The module have power supply regulation, The supply voltage is DC 3.3V. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Yes, This module has a permanently attached antenna The module must demonstrate compliance in a stand-alone configuration. Yes, This module is a stand-alone configuration. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). Yes, The host system have label in a visible area indicated the following texts: " Contains WIFI Module (Single Module) FCC ID: ROW-CDWU96600A00 The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes, This module meets the requirements of FCC part 15C(15.247).it specifically establish the 6dB Bandwidth,, Peak Output Power, Radiated Spurious Emission, Power Spectral Density, Restricted Band of Operation and Band Edge (Out of Band Emissions) CHINA DRAGON TECHNOLOGY LIMITED FCC Modular Approval Request Rev 3.0 &Measurement The module must comply with RF exposure requirements Yes, This module complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body." This module is designed to comply with the FCC statement, FCC ID is: ROW-CDWU96600A00 Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements. Name: Wu Ningning Date: 2023/09/14 Title: manager Signature of applicant

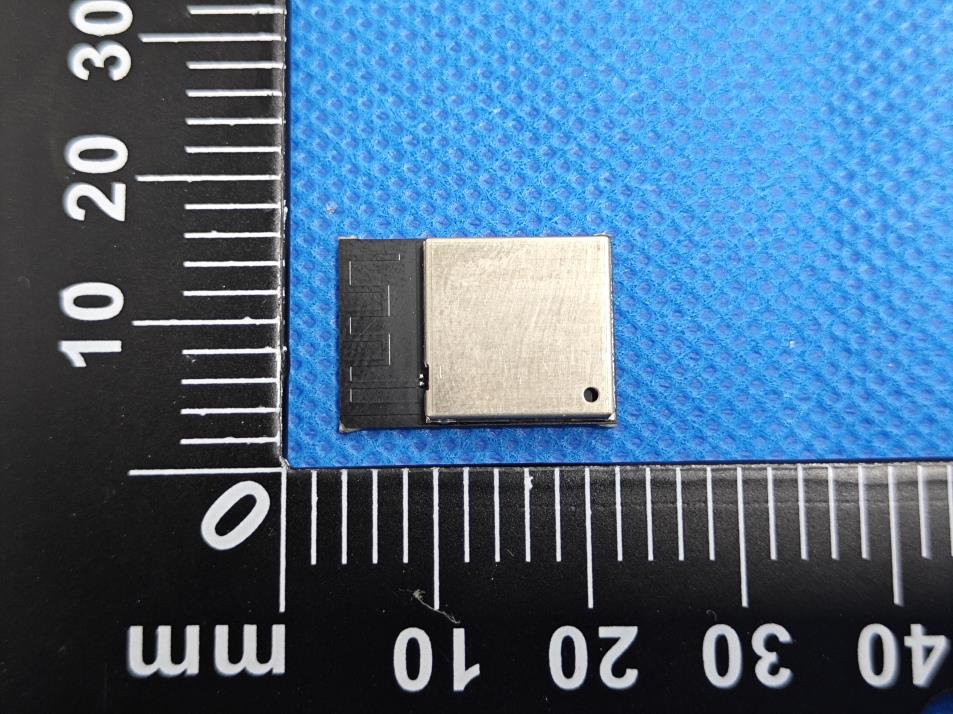

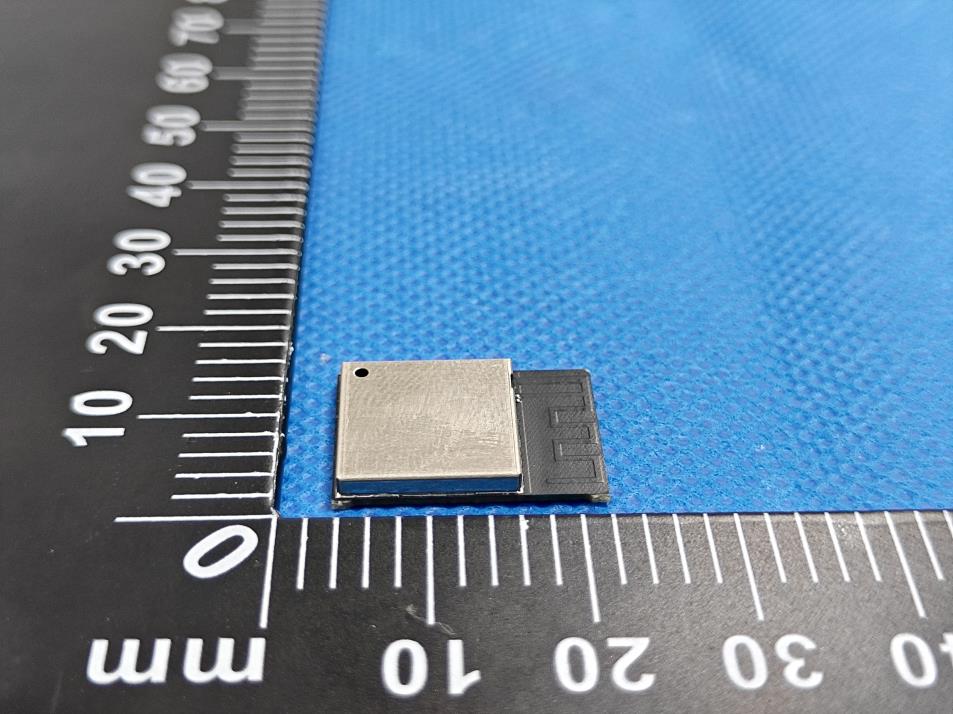

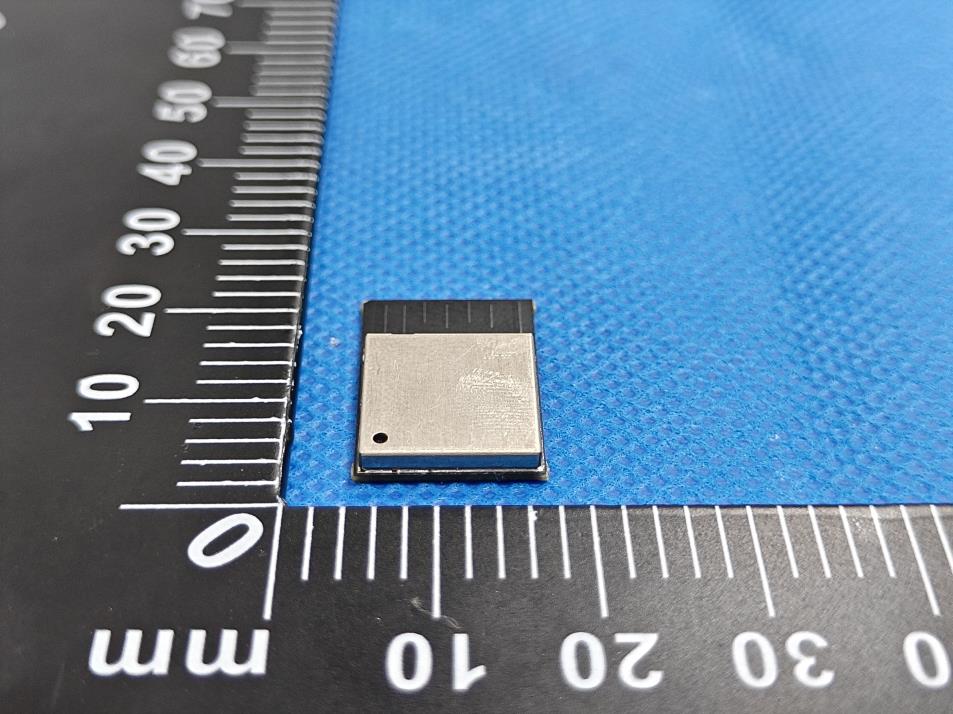

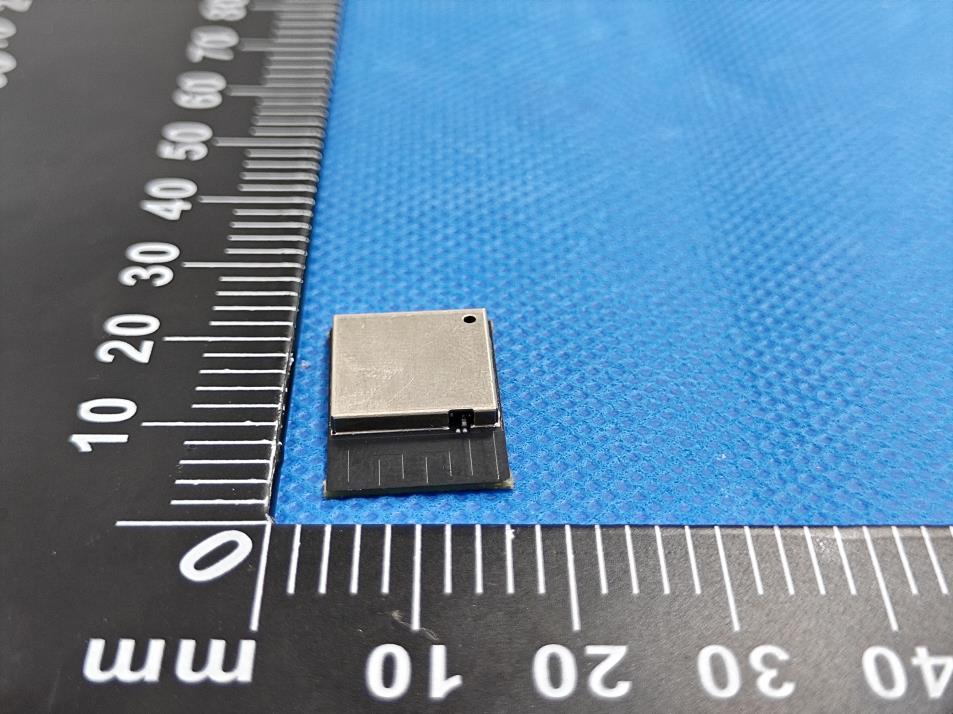

Appendix-Photographs FCC ID: ROW-CDWU96600A00 External Photos

Size:10*10mm Wi-Fi Module FCC ID: ROW-CDWU96600A00 Label location

Internal Photos S Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: ROW-CDWU96600A00 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Conclusion: For the max result: 0.00858≤ 1.0, compliance with FCC's RF Exposure The Product unsupported at the same time to Transmitting. Tune up Produce power Maximu m peak output power (dBm) Output power to antenn a (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result WIFI 16±1 17 50.12 0.86 (-0.66dBi) 0.00858 1 Pass BLE 4±1 5 3.16 0.86 (-0.66dBi) 0.00054 1 Pass

深圳 市 鑫尔盛 科 技有限公司 市 科 Shenzhen xinersheng Technology Co., Ltd Product name: Wi-Fi&BLE ANTMaterial:PCBMaterial:PCBFrequency ： 2.4G Color: blackColor: black 3rd Floor No 96 Lingxia Road Fenghuang Co m munity Fuyong Street Bao ' an District SZ CN DateDate: 2023:2023-0 202-2211 3rd Floor , No . 96 , Lingxia Road , Fenghuang Co m munity , Fuyong Street , Bao an District ， SZ ， CN 1 Antenna picture 2. Antenna size 3. Return loss 4. Gain Frequency (MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 250 0.0 Gain ( dBi ) 06 6 08 1 09 1 09 3 08 7 08 2 08 8 11 9 07 8 09 1 10 4 Gain ( dBi ) - 0 . 6 6 - 0 . 8 1 - 0 . 9 1 - 0 . 9 3 - 0 . 8 7 - 0 . 8 2 - 0 . 8 8 - 1 . 1 9 - 0 . 7 8 - 0 . 9 1 - 1 . 0 4 Efficiency (%) 24.27 24.34 24.63 24.63 24.44 24.07 23.61 22.64 21.82 21.92 21.96 5.Antenna Radiation Pattern

No.：BCTC/RF-EMC-007 Page: 1 of 55 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2308314345-1E Applicant: CHINA DRAGON TECHNOLOGY LIMITED Product Name: Wi-Fi Module Model/Type Reference: CDW-U96600A-00 Tested Date: 2023-08-28 to 2023-09-20 Issued Date: 2023-09-20 Report No.: BCTC2308314345-1E No.：BCTC/RF-EMC-007 Page: 2 of 55 Edition：B.0 FCC ID: ROW-CDWU96600A00 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Wi-Fi Module Trademark: N/A Model/Type Reference: CDW-U96600A-00 Prepared For: CHINA DRAGON TECHNOLOGY LIMITED Address: B4 Bidg. haosan No.1 lndustry Park, Shajing street, B, Shenzhen, China Manufacturer: CHINA DRAGON TECHNOLOGY LIMITED Address: B4 Bidg. haosan No.1 lndustry Park, Shajing street, B, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-08-28 Sample tested Date: 2023-08-28 to 2023-09-20 Issue Date: 2023-09-20 Report No.: BCTC2308314345-1E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2308314345-1E No.：BCTC/RF-EMC-007 Page: 3 of 55 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table of parameters of text software setting ....................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test Procedure ................................................................................................... 26 8.4 EUT Operating Conditions .................................................................................. 27 8.5 Test Result .......................................................................................................... 27 9. Power Spectral Density Test ............................................................................... 28 9.1 Block Diagram Of Test Setup .............................................................................. 28 9.2 Limit .................................................................................................................... 28 9.3 Test procedure .................................................................................................... 28 9.4 EUT Operating Conditions .................................................................................. 29 9.5 Test Result ...........…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page: 1 of 91 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2308314345-2E Applicant: CHINA DRAGON TECHNOLOGY LIMITED Product Name: Wi-Fi Module Model/Type Reference: CDW-U96600A-00 Tested Date: 2023-08-28 to 2023-09-20 Issued Date: 2023-09-20 Report No.: BCTC2308314345-2E No.：BCTC/RF-EMC-005 Page: 2 of 91 Edition：B.0 FCC ID: ROW-CDWU96600A00 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Wi-Fi Module Trademark: N/A Model/Type Reference: CDW-U96600A-00 Prepared For: CHINA DRAGON TECHNOLOGY LIMITED Address: B4 Bidg. haosan No.1 lndustry Park, Shajing street, B, Shenzhen, China Manufacturer: CHINA DRAGON TECHNOLOGY LIMITED Address: B4 Bidg. haosan No.1 lndustry Park, Shajing street, B, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-08-28 Sample tested Date: 2023-08-28 to 2023-09-20 Issue Date: 2023-09-20 Report No.: BCTC2308314345-2E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2308314345-2E No.：BCTC/RF-EMC-005 Page: 3 of 91 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 11 5. Test Facility And Test Instrument Used ............................................................... 12 5.1 Test Facility ......................................................................................................... 12 5.2 Test Instrument Used .......................................................................................... 12 6. Conducted Emissions .......................................................................................... 14 6.1 Block Diagram Of Test Setup .............................................................................. 14 6.2 Limit .................................................................................................................... 14 6.3 Test procedure .................................................................................................... 14 6.4 EUT operating Conditions ................................................................................... 14 6.5 Test Result .......................................................................................................... 15 7. Radiated Emissions ............................................................................................. 17 7.1 Block Diagram Of Test Setup .............................................................................. 17 7.2 Limit .................................................................................................................... 18 7.3 Test procedure .................................................................................................... 19 7.4 EUT Operating Conditions .................................................................................. 20 7.5 Test Result .......................................................................................................... 21 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test procedure .................................................................................................... 26 8.4 EUT Operating Conditions .................................................................................. 26 8.5 Test Result .......................................................................................................... 27 9. Power Spectral Density Test ............................................................................... 29 9.1 Block Diagram Of Test Setup .............................................................................. 29 9.2 Limit .................................................................................................................... 29 9.3 Test procedure .................................................................................................... 29 9.4 EUT Operating Conditions .................................................................................. 29 9.5 Test Result ...........…

Text truncated - open the document above for the full version.

Report No.: BCTC2308314345-2E No.：BCTC/RF-EMC-005 Page: 61 of 91 Edition：B.0 Band Edge NVNT ax20 2462MHz Ref Band Edge NVNT ax20 2462MHz Emission Report No.: BCTC2308314345-2E No.：BCTC/RF-EMC-005 Page: 62 of 91 Edition：B.0 Test Graphs Tx. Spurious NVNT b 2412MHz Ref Tx. Spurious NVNT b 2412MHz Emission Report No.: BCTC2308314345-2E No.：BCTC/RF-EMC-005 Page: 63 of 91 Edition：B.0 Tx. Spurious NVNT b 2437MHz Ref Tx. Spurious NVNT b 2437MHz Emission Report No.: BCTC2308314345-2E No.：BCTC/RF-EMC-005 Page: 64 of 91 Edition：B.0 Tx. Spurious NVNT b 2462MHz Ref Tx. Spurious NVNT b 2462MHz Emission Report No.: BCTC2308314345-2E No.：BCTC/RF-EMC-005 Page: 65 of 91 Edition：B.0 Tx. Spurious NVNT g 2412MHz Ref Tx. Spurious NVNT g 2412MHz Emission Report No.: BCTC2308314345-2E No.：BCTC/RF-EMC-005 Page: 66 of 91 Edition：B.0 Tx. Spurious NVNT g 2437MHz Ref Tx. Spurious NVNT g 2437MHz Emission Report No.: BCTC2308314345-2E No.：BCTC/RF-EMC-005 Page: 67 of 91 Edition：B.0 Tx. Spurious NVNT g 2462MHz Ref Tx. Spurious NVNT…

Text truncated - open the document above for the full version.
