ROWR260G Radar module

深圳市中龙 通电子科技有限公司 CHINA DRAGON TECHNOLOGY LIMITED Material Category Mat erial Model R601T3R03 Version 1. 0 Page 1 /17 Technical Specification Material Category: General RF Module H isense Part No.: R601T3R03 S upplier Model: CDO.SYR60A0-08(HX) Material Code: 1421353 深圳市中龙 通电子科技有限公司 CHINA DRAGON TECHNOLOGY LIMITED Material Category Mat erial Model R601T3R03 Version 1. 0 Page 2 /17 vision History Version No. Revision ContentReviser Revision Date 1.0New Version Compilation 深圳市中龙通电子科技有限公司 CHINAD RAGON TECHNOLOGY LIMITED Material Category Material Model R601T3R 03 Version 1.0 Page 3 /17 1. Appearance, Design Drawings and Process Requirements 1.1. Appearance and Dimensions (1) The dimensional tolerance above is ±0.2mm. (2) The device appearance shall be smooth, clean, free of oil stains, scratches and cracks; the device pins shall be free of deformation and the surface shall be free ofoxidation; the front of the device shall be marked with clear and durable logos or information. (3) Model Marking: Composed of letters and numbers, the model marking shallbeeasyto identify and distinguish; in case of any change, the manufacturer is obliged to provide a reasonable explanation and notify officially in a timely manner. (4) Structural dimensions shall be described by structural drawings withclear external dimensions. For the transition content of lengthwidthheight and overall dimensions (or other obvious differences), the typical values and tolerances (or maximum and minimum values) Remarks: 深圳市中龙通电子科技有限公司 CHINAD RAGON TECHNOLOGY LIMITED Material Category Material Model R601T3R 03 Version 1.0 Page 4 /17 shall be marked. Enlarged drawings shall be provided for key parts that cannot be reflected in the drawings. 1.2. Key Structure, Material and Process 1.2.1.Board Material and PCB •Board Material: FR-4 • Surface Finishing: Immersion Gold • Lamination: 4-layer through hole + blind hole • Comparative Tracking Index: 250V PCB design and manufacturing process shall avoid CAF (Conductive Anodic Filament) failure. For example, "PCB must use CAF-resistant board material, and the via pitchshall be ≥0.4mm". Note: CAF (Conductive Anodic Filament) refers to the migration of conductive cations, which is specifically manifested as the reduction of PCB insulation performance caused by copper ion migration between conductors, leading to circuit short-circuit failurein severe cases. 1.2.2.Connector Specification The connector is intended to be F05078-30P-T SMD ver tical t ype. 深圳市中龙通电子科技有限公司 CHINA DRAGON TECHNOLOGY LIMITED Material Category Material Model R601T3R03 Version 1.0 Page 5 /17 2. Material List Serial No. Material Name SpecificationUnit Consu mption Supplier 1Capacitor 0201, 10nf, ±20%, 16Vpc1.00EYANG/VIIYONG/FENGHUA/Samsung/CCTC 2Capacitor 0201, 470nf, ±20%, 10Vpc1.00EYANG/VIIYONG/FENGHUA/Samsung/CCTC 3Capacitor 0201, 100nf, ±20%, 16Vpc14.00EYANG/VIIYONG/FENGHUA/Samsung/CCTC 4Capacitor 0201, 1uf, ±20%, ≥6.3Vpc14.00EYANG/VIIYONG/FENGHUA/Samsung/CCTC 5Capacitor 0402, 10uf, ±20%, ≥6.3Vpc9.00EYANG/VIIYONG/FENGHUA/Samsung/CCTC 6Capacitor 0201, 1nf, ±20%, 16Vpc1.00EYANG/VIIYONG/FENGHUA/Samsung/CCTC 7Capacitor 0201, 100pf, ±20%, 10Vpc1.00EYANG/VIIYONG/FENGHUA/Samsung/CCTC 8Capacitor 0201, 4.7uf, ±20%, ≥6.3V pc5.00EYANG/VIIYONG/FENGHUA/Samsung/CCTC 深圳市中龙通电子科技有限公司 CHINA DRAGON TECHNOLOGY LIMITED Material Category Material Model R601T3R03 Version 1.0 Page 6 /17 9Resistor0402, 0 ohm, ±5%, 1/16W pc1.00FENGHUA/FOSAN/uni-ohm 10Resistor0201, 10K ohm, ±5%, 1/16W pc6.00FENGHUA/FOSAN/uni-ohm 11Resistor0201, 4.7K ohm, ±5%, 1/16W pc1.00FENGHUA/FOSAN/uni-ohm 12Resistor0201, 150 ohm, ±5%, 1/16W pc1.00FENGHUA/FOSAN/uni-ohm 13Resistor0201, 1K ohm, ±5%, 1/16W pc4.00FENGHUA/FOSAN/uni-ohm 14Resistor0201, 0 ohm, ±5%, 1/16W pc4.00FENGHUA/FOSAN/uni-ohm 15Resistor0201, 100 ohm, ±5%, 1/16W pc3.00FENGHUA/FOSAN/uni-ohm 16Resistor0201, 2.2K ohm, ±5%, 1/16W pc2.00FENGHUA/FOSAN/uni-ohm 17Resistor0201, 100K ohm, ±5%, 1/16W pc1.00FENGHUA/FOSAN/uni-ohm 18Resistor0201, 499 ohm, ±5%, 1/16W pc1.00FENGHUA/FOSAN/uni-ohm 19Resistor0201, 51 ohm, ±5%, 1/16W pc2.00FENGHUA/FOSAN/uni-ohm 20Bead0402, 600 ohm, 100Mhz, ±25%, 200mA, TDK, MMZ1005B601CT000 pc5.00TDK 21Bead0402, 120 ohm, 100Mhz, ±25%, 500mA, TDK, MMZ1005S121CT000 pc1.00TDK 22NMOS2N7002K \ SOT23pc1.00CJ 23LEDModel: 16-213/T3D- KP1Q2QY/3T<br/>Supplier: EVERLIGHT<br/>Character istic: White pc1.00EVERLIGHT 24Tact Switch KAN4567-0501C0101-Apc1.00KangJia 25Toggle Switch MSS22C07-TG2-MB1pc1.00KangJia 26InfraredSDR6438-TTpc1.00HEG (Haige Technology) 深圳市中龙通电子科技有限公司 CHINA DRAGON TECHNOLOGY LIMITED Material Category Material Model R601T3R03 Version 1.0 Page 7 /17 27MICMIC-MSM371DDB024pc2.00MX Microsystems 28Ambient Light Sensor STK2736pc1.00sensortek 29RGB Light RGB-LT3735RGBCT-IC4- S21 pc1.00PARA Light 30AND Gate SN74AHC1G08DBVRpc1.00TI 31FPCF05078-30P-T SMD vertical type pc1.00ChangTong 32TVS Diode PESDNC2FD5VB-ESpc2.00Corelead 33TVS Diode PESDNC2FD3V3Bpc17.00Corelead 34Power LDO SOT23-5, RS3236-3.3YF5 pc3.00SongYuan 35Power LDO SOT23-5, RS3236-1.8YF5 pc1.00SongYuan 36Crystal Oscillator 2016, 80Mhz, Active, 1.8V, ±3ppm, YXC, YSO690PR pc1.00SongYuan 37Integrated Circuit QFN3*3-20L, RUNSIC, RS0208 pc1.00SongYuan 38Integrated Circuit QFN48, Artery, AT32F403ACGU7 (Small) pc1.00SongYuan 39Integrated Circuit BGA, IFX, BGT60TR13C pc1.00SongYuan 40Printed Circuit Board Black Solder Mask with White Silkscreen pc1.00SongYuan 41SealMIC Sealing Adhesive Sticker pc2.00Liuchun Intelligence 3. Technical Specifications, Performance Parameters and Test Methods 深圳市中龙通电子科技有限公司 CHINA DRAGONT ECHNOLOGY LIMITED Material Category Material Model R601T3R03 Version 1.0 Page 8/17 3.1. Basic Characteristics A.Radar Electrical Performance Parameters 1)Operating Frequency Band: 58.0-61.0GHz 2)Radar Bandwidth: 2878.54MHz 3)Transmit Power: ≤11.97dBm 4)Detection Range: ≤±50° 5)Radar Transmit Channel: 1 6)Radar Receive Channel: 3 B.Functional Requirements a)Moving human detection b)S tationary human detection C.Performance Parameter Requirem…

Text truncated - open the document above for the full version.

CHINA DRAGON TECHNOLOGY LIMITED Add: B4 Bldg.haosan No.1 Industry Park, Shajing Street, B, Shenzhen, China Tel: 13510082761 Fax: 0755-81449967 Email: [email protected] Attestation Letter Date: 2026-2- 12 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: Our product 60G Radar module, model: R601T3R03, FCC ID: ROWR2, for marketing purpose, this product only supports SRD ( 58.0-61.0GHz).The other functions, bands and modes was disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely, Printed Name: Songxiaoyue Title: Manager

CHINA DRAGON TECHNOLOGY LIMITED Add:B4 Bldg.haosan No.1 Industry Park, Shajing Street, B, Shenzhen, China Tel: 13510082761 Fax: 0755-81449967 Email: [email protected] CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter Attestation Letter Date: 2026-2-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID: ROWR2 CHINA DRAGON TECHNOLOGY LIMITED (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. CHINA DRAGON TECHNOLOGY LIMITED (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. CHINA DRAGON TECHNOLOGY LIMITED certifies that the equipment does not use Kaspersky's software information. Sincerely, Signature: Contact Person: Songxiaoyue Title: Manager

QA-FR-170-B CHINA DRAGON TECHNOLOGY LIMITED Add:B4 Bldg.haosan No.1 Industry Park, Shajing Street, B, Shenzhen, China Tel: 13510082761 Fax: 0755-81449967 Email: [email protected] FCC Authorization Date: 2026-2-12 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We,CHINA DRAGON TECHNOLOGY LIMITED, hereby authorizes World Alliance Testing & Certification (Shenzhen) Co., Ltd to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by World Alliance Testing & Certification (Shenzhen) Co., Ltd on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Songxiaoyue Title: Manager

QA-FR-171-A CHINA DRAGON TECHNOLOGY LIMITED Add:B4 Bldg.haosan No.1 Industry Park, Shajing Street, B, Shenzhen, China Tel: 13510082761 Fax: 0755-81449967 Email: [email protected] FCC Confidential Authorization Date: 2026-2-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: ROWR2 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, CHINA DRAGON TECHNOLOGY LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below: xBlock Diagram xSchematics xOperation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Songxiaoyue Title: Manager

CHINA DRAGON TECHNOLOGY LIMITED Add: B4 Bldg.haosan No.1 Industry Park, Shajing Street, B, Shenzhen, China Tel: 13510082761 Fax: 0755-81449967 Email: [email protected] Modular Approval Letter Date: 2026-2-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, CHINA DRAGON TECHNOLOGY LIMITED, hereby request Modular Approval for Product: 60G Radar module (Model number: R601T3R03, FCC ID: ROWR2).The requirement of FCC 15.212 as below: Item § 15.212 Requirement Y/N Comments (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes The modular has RF shielding, the radar chip with built in shielding, please refer attached document from the chip manufacturer, and in internal photo last page has note it on the photo, please check and refer to the EUT photo. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Yes The modular transmitter has buffered modulation/data inputs, Buffered data inputs stage has been integrated in chip (Model: AT32F403ACGU7). (iii) The modular transmitter must have its own power supply regulation. Yes The modular transmitter has its own power supply regulation. Please refer to the Block Diagram. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Yes Comply with the antenna requirements of Section 15.203 and 15.204(c), the modular have a PCB antenna permanently attached to the module, the maximum gain is 5dBi. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must Yes The EUT was tested in a stand-alone configuration, please refer to setup not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see § 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see § 15.31(i)). photos exhibit for details. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Yes The module labeled with its own FCC ID. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The necessary explanation to be complied with this requirement is contained in the user manual, and please refers to the User Manual. (viii) Radio frequency devices operating under the provisions of this part are subject to the radio frequency radiation exposure requirements specified in §§ 1.1307(b), 1.1310, 2.1091, and 2.1093 of this chapter. Yes It meets RF exposure requirements with distances greater than or equal to 20cm in final configuration. Sincerely, Signature: Title: Manager

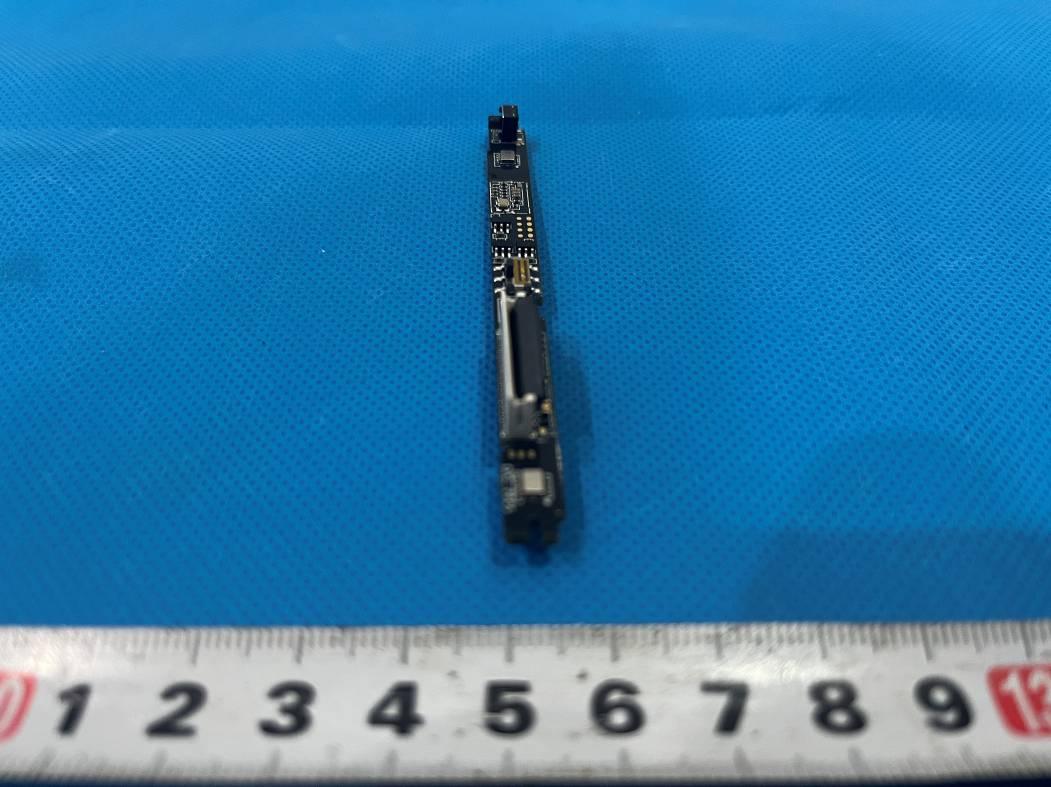

Report No.: 2605P02622E Page 1 of 3 EUT EXTERNAL PHOTOGRAPHS Report No.: 2605P02622E Page 2 of 3 Report No.: 2605P02622E Page 3 of 3

Label location Sise:13*6mm HVIN：R601T3R03 Sise:10*5mm FCC ID:ROWR2 IC:23734-R2

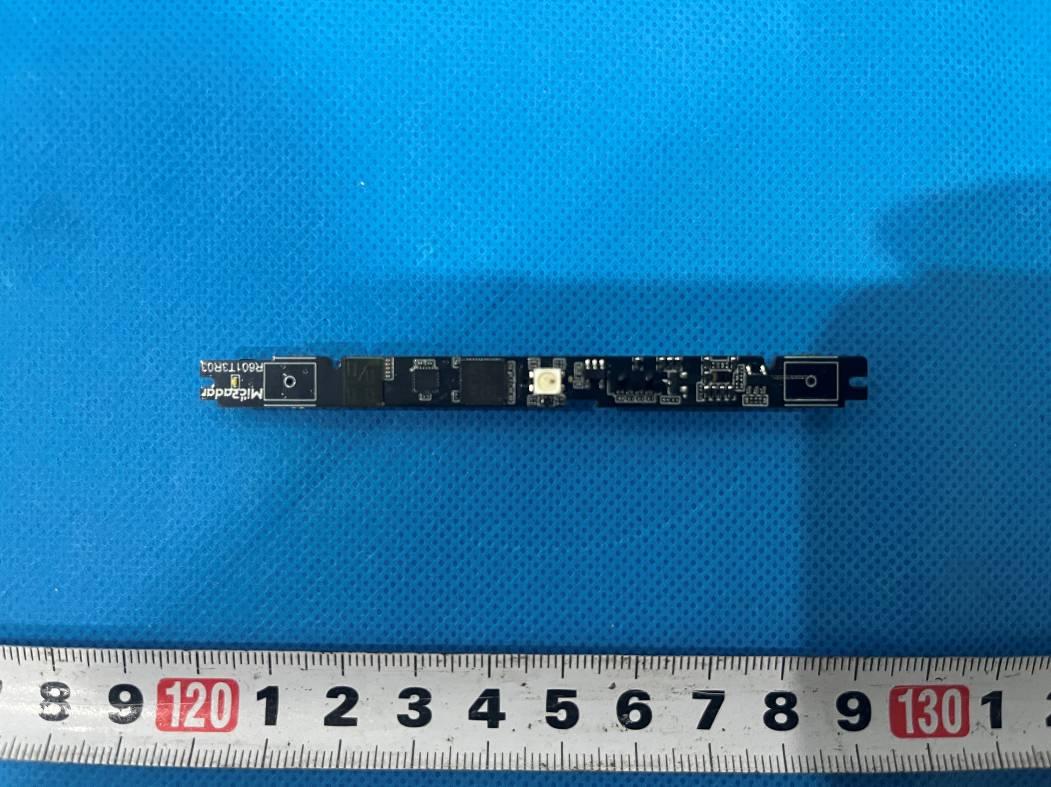

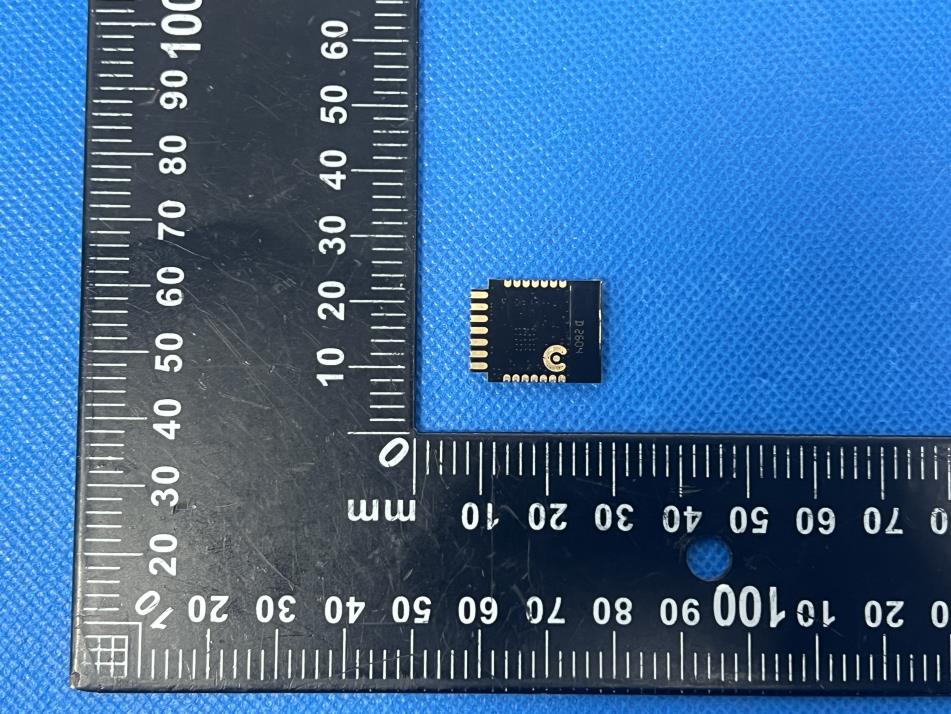

Report No.: 2605P02622E Page 1 of 2 EUT INTERNAL PHOTOGRAPHS Report No.: 2605P02622E Page 2 of 2 Antenna TX 3RX RF chip (package design with built-in shield)

Report No.: 2605P02622EB Report Template: TR-4-E-011/V1.2 Page 1 of 7 RF Exposure Evaluation Report Report No.: 2605P02622EB Applicant: CHINA DRAGON TECHNOLOGY LIMITED Address: B4 Bldg, Haosan No.1 Industry Park, Shajing Street, Bao’an District, Shenzhen 518104 China Product Name: 60G Radar module Product Model: R601T3R03 Multiple Models: N/A Trade Mark: N/A FCC ID: ROWR2 Standards: 47 CFR §1.1307 KDB 447498 D04 Interim General RF Exposure Guidance v01 Test Result: Complied Report Date: 2026-04-10 Reviewed by: Approved by: James Fu Project Engineer Jacob Kong Manager Prepared by: World Alliance Testing & Certification (Shenzhen) Co., Ltd No. 1002, East Block, Laobing Building, Xingye Road 3012, Xixiang street, Bao'an District, Shenzhen, Guangdong, People’s Republic of China This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” Report No.: 2605P02622EB Report Template: TR-4-E-011/V1.2 Page 2 of 7 Announcement 1. This test report shall not be reproduced except in full, without the written approval of World Alliance Testing & Certification (Shenzhen) Co., Ltd 2. The results in this report apply only to the sample tested. 3. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. 4. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. Revision History Version No. Issued Date Description 00 2026-04-10 Original Report No.: 2605P02622EB Report Template: TR-4-E-011/V1.2 Page 3 of 7 Contents 1 General Information ............................................................................................................................ 4 1.1 Client Information ...................................................................................................................... 4 1.2 Product Description of EUT ....................................................................................................... 4 1.3 Laboratory Location ................................................................................................................... 4 2 RF Exposure Evaluation ..................................................................................................................... 5 2.1 Standard .................................................................................................................................... 5 2.2 Result......................................................................................................................................... 7 Report No.: 2605P02622EB Report Template: TR-4-E-011/V1.2 Page 4 of 7 1 General Information 1.1 Client Information Applicant: CHINA DRAGON TECHNOLOGY LIMITED Address: B4 Bldg, Haosan No.1 Industry Park, Shajing Street, Bao’an District, Shenzhen 518104 China Manufacturer: CHINA DRAGON TECHNOLOGY LIMITED Address: B4 Bldg, Haosan No.1 Industry Park, Shajing Street, Bao’an District, Shenzhen 518104 China 1.2 Product Description of EUT The EUT is 60G Radar module that contains 60GHz Radar radio. Sample Serial Number 3GFY-1 (assigned by WATC) Sample Received Date 2026-01-22 Sample Status Good Condition Frequency Range 58-61.0GHz Peak EIRP 11.97dBm Modulation Technology FMCW Antenna Gain # 5.0dBi Spatial Streams 1TX3RX Power Supply DC 4.5-5.5V(Typical DC 5.0V) Adapter Information N/A Modification Sample No Modification by the test lab 1.3 Laboratory Location World Alliance Testing & Certification (Shenzhen) Co., Ltd No. 1002, East Block, Laobing Building, Xingye Road 3012, Xixiang street, Bao'an District, Shenzhen, Guangdong, People’s Republic of China Tel: +86-755-29691511, Email: [email protected] The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 463912, the FCC Designation No. : CN5040. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0160. Report No.: 2605P02622EB Report Template: TR-4-E-011/V1.2 Page 5 of 7 2 RF Exposure Evaluation 2.1 Standard According to §1.1307(b)(3)(i), For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Report No.: 2605P02622EB Report Template: TR-4-E-011…

Text truncated - open the document above for the full version.

Report No.: 2605P02622EA Report Template: TR-4-E-058/V1.0 Page 1 of 36 FCC Test Report Report No.: 2605P02622EA Applicant: CHINA DRAGON TECHNOLOGY LIMITED Address: B4 Bldg, Haosan No.1 Industry Park, Shajing Street, Bao’an District, Shenzhen 518104 China Product Name: 60G Radar module Product Model: R601T3R03 Multiple Models: N/A Trade Mark: N/A FCC ID: ROWR2 Standards: 47 CFR Part 15, Subpart C(15.255) Test Date: 2026-01-27 to 2026-04-08 Test Result: Complied Report Date: 2026-04-10 Reviewed by: Approved by: James Fu Project Engineer Jacob Kong Manager Prepared by: World Alliance Testing & Certification (Shenzhen) Co., Ltd No. 1002, East Block, Laobing Building, Xingye Road 3012, Xixiang street, Bao'an District, Shenzhen, Guangdong, People’s Republic of China This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” Report No.: 2605P02622EA Report Template: TR-4-E-058/V1.0 Page 2 of 36 Announcement 1. This test report shall not be reproduced except in full, without the written approval of World Alliance Testing & Certification (Shenzhen) Co., Ltd 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. 5. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. Revision History Version No. Issued Date Description 00 2026-04-10 Original Report No.: 2605P02622EA Report Template: TR-4-E-058/V1.0 Page 3 of 36 Contents 1 General Information ............................................................................................................................ 4 1.1 Client Information ...................................................................................................................... 4 1.2 Product Description of EUT ....................................................................................................... 4 1.3 Antenna information .................................................................................................................. 4 1.4 Related Submittal(s)/Grant(s) .................................................................................................... 5 1.5 Measurement Uncertainty ......................................................................................................... 5 1.6 Laboratory Location ................................................................................................................... 5 1.7 Test Methodology ...................................................................................................................... 5 2 Description of Measurement .............................................................................................................. 6 2.1 Test Configuration ...................................................................................................................... 6 2.2 Test Auxiliary Equipment ........................................................................................................... 6 2.3 Interconnecting Cables .............................................................................................................. 6 2.4 Block Diagram of Connection between EUT and AE ................................................................ 6 2.5 Test Setup .................................................................................................................................. 7 2.6 Test Procedure ........................................................................................................................ 10 2.7 Measurement Method.............................................................................................................. 12 2.8 Measurement Equipment ........................................................................................................ 13 3 Test Results ....................................................................................................................................... 15 3.1 Test Summary .......................................................................................................................... 15 3.2 Limit ......................................................................................................................................... 16 3.3 AC Line Conducted Emissions Test Data ................................................................................ 17 3.4 Radiated emission Test Data ................................................................................................... 19 3.5 Peak EIRP and Transmitter Off-times ..................................................................................... 30 3.6 Emission Bandwidth ................................................................................................................ 32 3.7 Frequency Stability .................................................................................................................. 33 3.8 Group Installtion ...................................................................................................................... 34 4 Test Setup Photo ............................................................................................................................... 35 5 E.U.T Photo ........................................................................................................................................ 36 Report No.: 2605P02622EA Report Template: TR-4-E-058/V1.0 Page 4 of 36 1 General Information 1.1 Client Information Applicant: CHINA DRAGON TECHNOLOGY LIMITED Address: B4 Bldg, Haosan No.1 Industry Park, Shajing Street…

Text truncated - open the document above for the full version.

Radar chip BGT60TR13C antenna specification: Manufacturer: Infineon Technologies (China) Co., Ltd. Address: 2-4 Floor, No. 4, Lane 55, Chuanhe Road, China (Shanghai) Pilot Free Trade Zone Antenna: 6.1mmH*4mmW*0.5mmH

Report No.: 2605P02622E Page 1 of 6 TEST SETUP PHOTOGRAPHS AC Line Conducted Emission Report No.: 2605P02622E Page 2 of 6 Radiated Emission Below 30MHz 30MHz~1GHz Report No.: 2605P02622E Page 3 of 6 1~18GHz 18~26.5GHz Report No.: 2605P02622E Page 4 of 6 26.5~40GHz 40~60GHz Report No.: 2605P02622E Page 5 of 6 60~90GHz 90~140GHz Report No.: 2605P02622E Page 6 of 6 140~200GHz
