Bluetooth ® Pendant type Handsfree Kit STARTREC Model No : SFK509 User Manual In the Package STARTREC User Manual Charging Adapter (TA ) Necklace Type Earphone Part Description * Front 1. Charging(RED) &State LED(Blue) 2. Call/Power Button 3. Volume Up/down 4. Mic 5. Power Connector & Earphone Outlet 6. Speaker 7. Reset * Rear 1. Lapel Clip 1 1 2 3 45 6 7 1. How to Use a. Charging - Open the Power Connector Outlet cover. - Connect the supplied charger to the Power Connector Outlet. Î When the Charger is plugged in, the LED light of the SFK509 will be Red. When fully charged, which may take up to 3 hours, the Red LED light will be turned off. Tip) - Low battery status will be indicated with a beep every 10 seconds. It is recommended that the device should be charged immediately. b. Power On - Press and hold the Call/Power Button for 2 ~ 3 seconds. Î An ascending tone indicates the device is switched on. c. Power Off - Press and hold the Call/Power button for 3 ~ 4 seconds. Î A descending tone indicates the device is switched off. d. Bluetooth Pairing - After turning the SFK509 on, press and hold the Volume Up & Down button for more than 3 seconds. Î You will hear a melody and the blue LED light will blink every second. - To search and register the SFK509 to your Bluetooth enabled handset. Î Please refer to the user manual of the handset. Î When asked for the Pass/PIN code during the pairing procedure, please enter “0000” (4 Zeros). Î Once pairing has completed successfully, you will hear a beep and the blue LED light will blink every 4 ~ 5 seconds. If the LED light still blinks every second, please repeat the pairing procedure from the beginning. e. Adding Mutiple Handsets - The SFK509 can store up to 3 different handsets in its memory. However it can only connect up to one Bluetooth device at a time. - In the case of adding a 4 th handset, the first unused registered handset will automatically be removed. - If you want to permanently keep the first registered handset onto your SFK509, manually connect the handset to the SFK509 before adding a 4th device. Tip) - Once the handset is registered to SFK509, it will stay in a paired mode until it is deleted. f. Answering a call - When the handset receives an incoming call, the SFK509 will ring and the blue LED light will blink rapidly 4 times. - Press the Call/Power Button while the handset is ringing. - To answer an incoming call while listening a song, press the Call/Power Button and get back to the current song automatically after ending a call g. Last Number Redial / Voice Dialing - For last number redial, press the Call/Power Button once until a short beep is heard. Î With certain types of Bluetooth handsets, the user may need to press the Call/Power Button twice. - To activate Voice dialing, press and hold the Call/Power Button until it beeps twice. Î Please note that some handsets don’t support this function h. Ending a call - To end the call, press the Call/Power Button. i. Call Waiting - To answer an incoming call while on the phone, press and hold the Call/Power Button for more than 2 seconds. - To get back to the first call, press and hold the Call/Power Button again. j. Speaker Volume Control - Press the Volume (+) Button to increase the speaker sound, and the Volume (-) Button to lower the sound. Î The volume level can be adjusted from 1 to 8. k. Transferring Audio a) Handset to SFK509 - To switch from the handset to the SFK509 while on a call, press the Call/Power Button. Î The call will be transferred to the SFK509. b) SFK509 to Handset - Switching from the SFK509 to the handset can be operated from the handset menu options. This functionality may vary based on the type of handset. Î Refer to the user manual of your handset to use this function. l. Listening Music - After pairing the SFK509 with Handset, play the memorized song on your handset. - Press and hold Volume(+) Button to play next song - Press and hold Volume(-) Button to play the previous song - To stop playback the current song, press the Call/Power Button on the SFK509 or stop playback on your handset m. Using the Earphone - Flip over the earphone outlet cover. Î Do Not use sharp materials or nail to flip over the cover as this could cause damage to the SFK509 as well as to yourself. - Plug in the supplied earphone into the earphone outlet of the SFK509. Î No additional key presses are needed to initiate or continue a conversation when the earphone is plugged in. Î When using the earphone, the speaker will automatically be muted. 2. LED Indication Function Startrec Status LED Status Power off LED off Booting LED On until initialization Idle On(0.5 sec) Off(10 sec. repeatedly) Discoverable On(1 sec) – Off(1 sec) repeatedly until discovered Connecting Blinks until connection is established Operating (BLUE LED) Ringing Blinks (3 times) & Off (2 sec) when answered. No Charging RED LED Off Charging RED LED On Charging (RED LED) Full Charging RED LED Off 3. Summary of Button functions Function Startrec How to use button Power On Off Press and hold the Call/Power Button for more than 2 seconds. Power off On Press and hold the Call/Power Button for more than 3 seconds. Speaker Volume + - Press the Volume (+) Button. Speaker Volume - - Press the Volume (-) Button. Transferring Audio (Handset Î SFK509) - Press the Call/Power Button. Paring Mode On Press and hold the Volume (+) and (-) Button simultaneously for more than 3 seconds. Answering a Call Ringing Press the Call/Power Button. Ending a call Talking Press the Call/Power Button. Last Number Redial Ready Press the Call/Power Button once (a short beep is heard). Voice Dialing (This feature is available only in certain handsets) Ready Press and hold the Call/Power Button until you hear two consecutive beeps. Reset - Press the Reset Button 4. Specifications Item Description Bluetooth Specification Ver 1.2 Supported Profile Handsfree, Headset, A2DP,AVRCP,GAVDP Rx.Sensitivity Typ. 72dBm Battery 3.7V, 200mAh Li-ion Speaker 8 Ω …

Text truncated - open the document above for the full version.

SEECODE CO.,LTD 2,3,4F, Amin Bldg.,110-1,Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Phone : +82-2-573-2620, Fax : +82-2-573-2503 Chief, Equipment Approval Services Federal Communications Commission PO Box 358315 Pittsburg, PA 15251-5315 Seoul, January 10, 2006 Authorization Letter Dear Sir or Madam: We, SEECODE Co., Ltd., hereby authorize TÜV Rheinland Korea Ltd. 2F., Sehwa Bldg. 157-16 Samsung-dong, Gwangnam-Gu, Seoul 135-090, R.O.K. To act as our agent and to process and sign on our behalf for equipment authorization under FCC Part 15, Subpart C. This authorization is applicable for the product: Bluetooth Pendant Type Handsfree kit (SFK509 ) with FCC ID: RPRSFK509. Sincerely, Signature : Printed Name: Sung-Ho,Sim Title : Senior Engineer Company Stamp:

SEECODE CO.,LTD 2,3,4F, Amin Bldg.,110-1,Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Phone : +82-2-573-2620, Fax : +82-2-573-2503 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Seoul, January 10, 2006 REQUEST FOR CONFIDENTIALITY, FCC ID: RPRSFK509 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: • Schematic drawing • Bill of Materials • Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature : Printed Name: Sung-Ho,Sim Title : Senior Engineer Company Stamp:

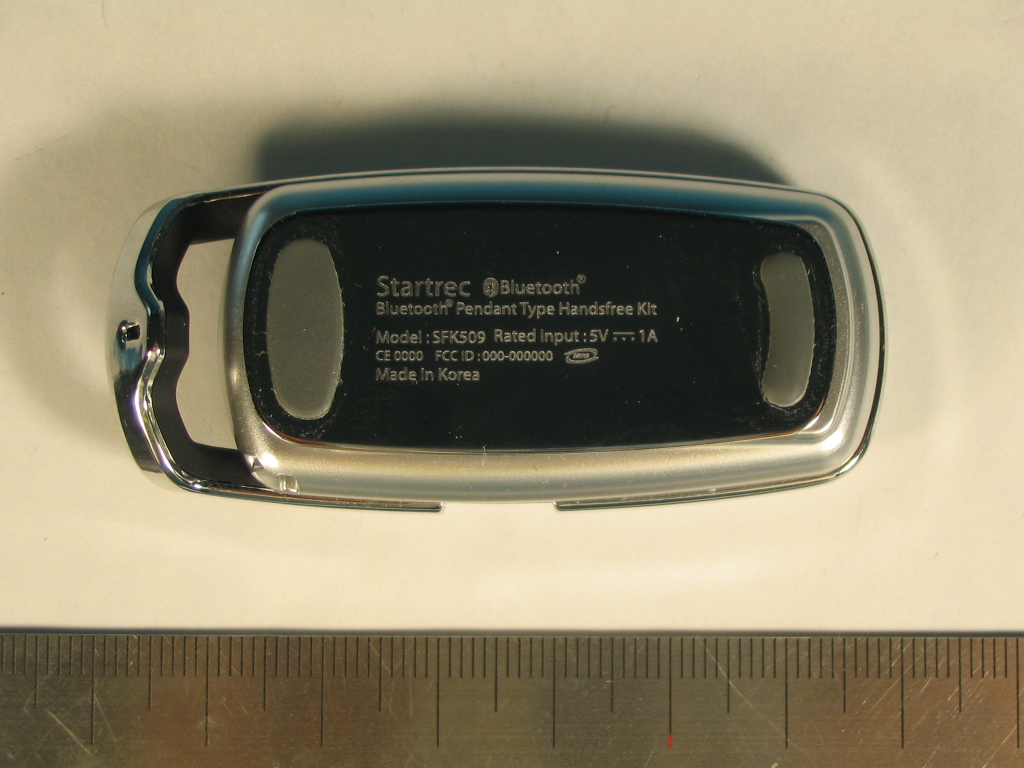

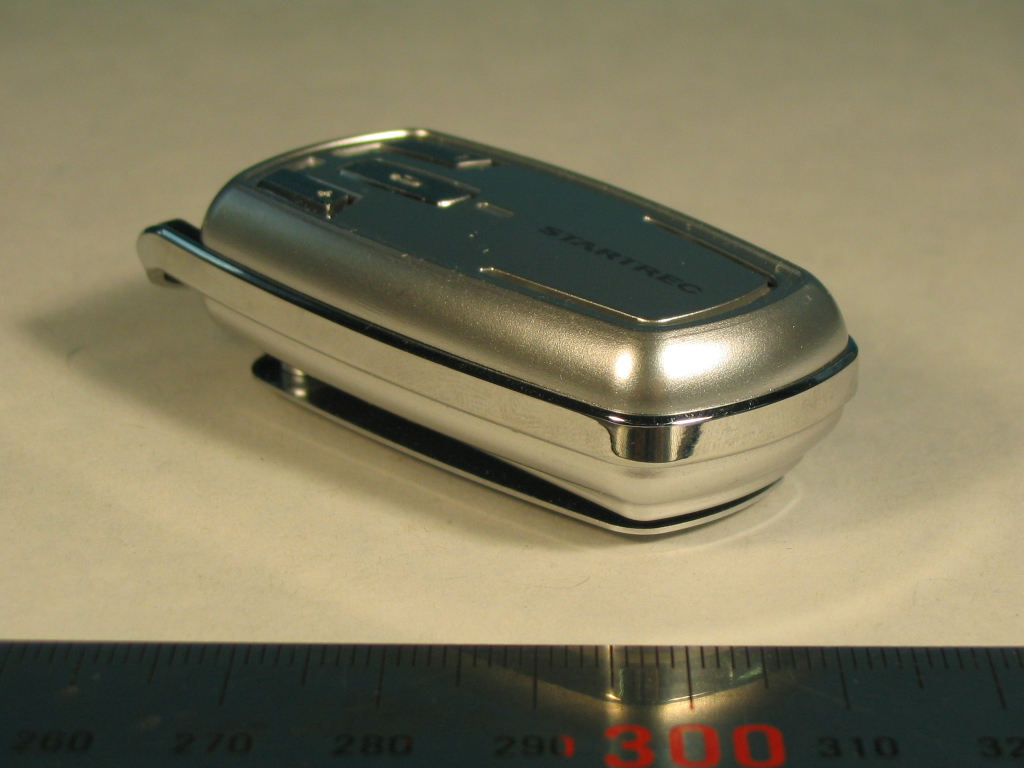

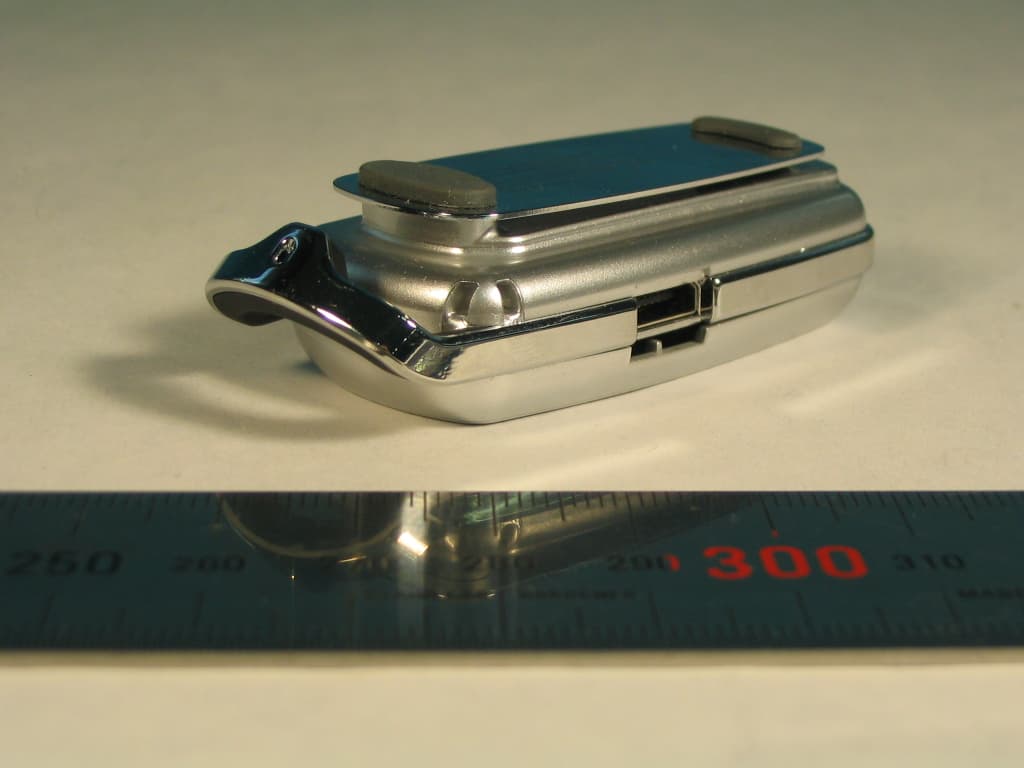

TÜV Rheinland Product Safety GmbH External Photos 13005526 Revision No : 1.0 Page: 1 of 2 * External view 1. Front side 2. Right side view TÜV Rheinland Product Safety GmbH External Photos 13005526 Revision No : 1.0 Page: 2 of 2 3. Rear side 4. Left side view

TÜV Rheinland Product Safety GmbH FCC Label and Location Revision No : 1.0 Page: 1 of 1 23 10 * FCC Label and Location Label Position : Laser Printing * Label

TÜV Rheinland Product Safety GmbH Internal Photos 13005526 Revision No : 1.0 Page: 1 of 3 * Internal view 1. Internal TÜV Rheinland Product Safety GmbH Internal Photos 13005526 Revision No : 1.0 Page: 2 of 3 2. PCP Top View 3. PCP Bottom View TÜV Rheinland Product Safety GmbH Internal Photos 13005526 Revision No : 1.0 Page: 3 of 3 4. Top Side for Battery PCB 5. Bottom Side for Battery PCB

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln EUT operational and EUT description Seite 1 von 2 Page 1 of 2 This Product is a Bluetooth Pendant Type Handsfree kit featuring a state of the art Bluetooth Wireless technology. It has excellent echo cancel and noise reduction ability, and surely is in its class by itself. Using this speaker phone, users can make or answer a call without touching their cell phones. This device also features well-defined Man Machine interface with 4 buttons and 2 LEDs which are : „ Buttons : 3 pcs [Power/Call/End, Volume Up, Volume Down] „ Switchs : 1 pcs [Reset] „ LEDs : 2 pcs [Charging(RED), Status(BLUE)] And it is also fully compliant with Bluetooth 1.2 specification. * General specifications Item Description Bluetooth Specification V1.2 Supported Profile Headset profile Rx. Sensitivity Typ. -72 dBm Battery 3.7V, 200mAh Li-ion Speaker 8Ω / 0.5W (normal) MIC -44dB / Omnidirectional Low Power Current (Sniff Mode) ≤ 3 mA (Avg.) Talking Current 70±5 mA (Avg.) Standby Time (Sniff Mode) ≥ 150 Hr Talking Time ≥ 3 Hr Full Charging Time ≤ 2 Hr Operating Temperature -20°C ~ 60°C Operating Humidity 5% ~ 85% RH Storage Temperature -20°C ~ 60°C Storage Humidity 85% RH TÜV Rheinland Product Safety GmbH Prüfbericht - Nr.: Test Report No.: Seite 2 von 2 Page 2 of 2 * General EUT Information Type Transmitter Receiver FCC Classification FHSS Sequence Spread Spectrum ( FHSS) FHSS Sequence Spread Spectrum ( FHSS) Operating frequency range 2402 – 2480 MHz 2402 – 2480 MHz Bands of operation 2.400 – 2.4835 GHz 2.400 – 2.4835 GHz Number of Channels 79 79 Channel Separation 1MHz 1MHz Type of Antenna Chip Antenna Chip Antenna Power Supply DC 3.7 V Lithum Ion Battery DC 3.7 V Lithum Ion Battery

TÜV Rheinland Product Safety GmbH REPROT NO : 13005526 Revision No : 1.1 Page: 1 of 47 FCC Part 15 TEST REPORT January 24, 2006 TUV Rheinland Korea Ltd. TÜV Rheinland Product Safety GmbH REPROT NO : 13005526 Revision No : 1.1 Page: 2 of 47 TEST REPROT CERTIFICATION Applicant : SEECODE Co., Ltd. Adderss : 3rd Floor, Amin Bldg., 110-1 Yangjae-dong, Seocho-gu, Seoul, Korea EUT Name : Bluetooth Pendant Type Handsfree kit Model No. : SFK509 Serial No. : Engineering Sample FCCID : RPRSFK509 Testing location : Nex1 Future Co., Ltd. 133, Kongdan-Dong, Gumi-City, Kyeongsangbuk-Do, 730-030, R.O.K Applied specification : FCC Part 15 Test result : The above mentioned test item passed. Tested by : Gye-Woog Lee Date Signature Reviewed by : Uon-Chae Song Date Signature I HEREBY CERTIFY THAT the data shown in this report were made in accordance with the procedures given in the applied specification and I assume full responsibility for accuracy and completeness of these data. Note : This test report relates to the a. m. test item. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. January 24, 2006 January 24, 2006 TÜV Rheinland Product Safety GmbH REPROT NO : 13005526 Revision No : 1.1 Page: 3 of 47 Contents 1. GENERAL INFORMATION................................................................................................. 5 1.1 PRODUCT DESCRIPTION............................................................................................... 5 1.2 PROJECT DATA............................................................................................................ 5 1.3 APPLICANT................................................................................................................. 5 1.4 MANUFACTURER......................................................................................................... 5 2. EUT INFORMATION........................................................................................................ 6 2.1 GENERAL EUT INFORMATION....................................................................................... 6 2.2 CENTER FREQUENCY OF TESTED CHANNEL................................................................... 6 2.3 T EST ENVIRONMENT.................................................................................................... 6 2.4 ACCESSORIES AND ANCILLARY EQUIPMENT.................................................................. 6 3. TESTING FACILITIES....................................................................................................... 7 4. EUT DESCRIPTION AND OPERATIONAL DESCRIPTION....................................................... 7 5. TEST SET-UP................................................................................................................. 8 5.1 PRINCIPLE OF CONFIGURATION..................................................................................... 8 5.2 OPERATIONAL MODES................................................................................................. 8 5.3 A PPLIED SPECIFICATION.............................................................................................. 8 6. TEST REPORT SUMMARY............................................................................................... 9 7. TEST RESULTS............................................................................................................ 10 7.1 A NTENNA CONNECTOR REQUIREMENTS...................................................................... 10 7.2 AC C ONNECTED EMISSION........................................................................................ 11 7.3 CARRIER FREQUENCY SEPARATION............................................................................ 12 7.4 TIME OF OCCUPANCY(DWELL TIME) ............................................................................ 14 7.5 20 DB BANDWIDTH..................................................................................................... 16 7.6 NUMBER OF HOPPING FREQUENCIES REQUIREMENTS.................................................. 20 7.7 PSEUDORANDOM FHS AND EQUAL HOPPING FREQUENCY USE REQUIREMENTS............. 22 7.8 RECEIVER INPUT BANDWIDTH REQUIREMENTS............................................................. 23 TÜV Rheinland Product Safety GmbH REPROT NO : 13005526 Revision No : 1.1 Page: 4 of 47 7.9 PEAK OUTPUT POWER............................................................................................... 24 7.10 BAND-EDGE COMPLIANCE........................................................................................ 28 7.11 SPURIOUS CONDUCTED EMISSIONS........................................................................... 32 7.12 SPURIOUS RADIATED EMISSIONS.............................................................................. 43 8. LIST OF TEST AND MEASUREMENT INSTRUMENTS.......................................................... 46 9. NOTES........................................................................................................................ 47 TÜV Rheinland Product Safety GmbH REPROT NO : 13005526 Revision No : 1.1 Page: 5 of 47 1. General Information 1.1 Product Description Product Name : Bluetooth Pendant Type Handsfree kit Product ID : SFK509 Serial No. : Prototype FCC ID : RPRSFK509 1.2 Project data Receipt of EUT : January 19, 2006 Date of Test : January 24, 2006 Data of report : January 24, 2006 1.3 Applicant Company Name : SEECODE Co., Ltd. Address : 3rd Floor, Amin Building, 110-1, Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Contact Person : Mr. Sung-Ho,Sim 1.4 Manufacturer Company Name : SEECODE Co., Ltd. Address : 3rd Floor, Amin Building, 110-1, Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Contact Person : Mr. Sung-Ho,Sim TÜV Rheinland Product Safety GmbH REPROT NO : 13005526 Revision No : 1.1 Page: 6 of 47 2. EUT Information 2.1 General E…

Text truncated - open the document above for the full version.

TÜV Rheinland Product Safety GmbH Test setup photos 13005526 Revision No : 1.0 Page: 1 of 5 * Test set-up 1. Radiated Set up TÜV Rheinland Product Safety GmbH Test setup photos 13005526 Revision No : 1.0 Page: 2 of 5 2 Spurious Radiated Emissions 2.1 Radiated test ( 30 MHz ~ 1GHz ) TÜV Rheinland Product Safety GmbH Test setup photos 13005526 Revision No : 1.0 Page: 3 of 5 2.2 Radiated test ( 1 GHz ~ 13GHz ) TÜV Rheinland Product Safety GmbH Test setup photos 13005526 Revision No : 1.0 Page: 4 of 5 2.3 Radiated test ( 13 GHz ~ 18GHz ) TÜV Rheinland Product Safety GmbH Test setup photos 13005526 Revision No : 1.0 Page: 5 of 5 2.4 Radiated test ( 18 GHz ~ 25GHz )
