RPRVSH511Bluetooth Headset

Slim Headset BLA DE Model No : VSH-511 User's Manual Introduction Introduction The VSH-511 Bluetooth Headset is a lightweight wireless Headset utilizing Bluetooth technology. This product can be used as an audio accessory for devices supporting either the Headset or Handsfree Bluetooth Profiles. Bluetooth ® is a trademark owned by Bluetooth SIG, Inc. and is used by the manufacturer under its license term. All brand names are the property of their respective owners. In the Package VSH-511 User's manual Charging Adapter Part Description Ear Hook Power/Talk Button Ear Speaker State & Charging LED MIC Volume Button DC Jack Outlet 1. How to Use Wearing the Headset You can put on the VSH-511 either on your left or right ear. To change ear, pull the ear hook down to the other side and turn it over the ear speaker. And, extend the ear hook then slip it over the top of your ear, manoeuvre the speaker gently into your ear, make fit the headset until it is held securely on your ear. Charging Before using your VSH-511, you need to charge it fully by plugging the charger into the DC jack outlet. Charge the Headset for approximately 2 hours until the indicator lights go out. Tip) Low Battery Warning Recharge the headset when you hear a short beep at 7 second intervals. You have 5 to 7 minutes of talk time remaining once this warning indicators start. Power On Press and hold the Power/Talk button for more than 1 second. Power Off Press and hold the Power/Talk button for more than 4 seconds. Bluetooth Pairing 1. Turn the VSH-511 on, then press and hold the Power/Talk button for at least 5 seconds until you hear a series of beeps followed by a connection signal. The blue LED indicator light begins to flash once every second. 2. Follow the instruction guide for your phone. This usually involves going to a “setup”, “connect”, or “Bluetooth” menu on your handset and then selecting the option to “discover” or “add” a Bluetooth device. 3. When requested the passkey or PIN⁴, press “0000” (4 zeros). You will receive confirmation when pairing is complete. If pairing is unsuccessful, repeat these steps. If pairing is successful, the blue LED indicator light will flash in standby mode every 5 seconds. If pairing fails, this will flash once every second. Please repeat the above steps. NOTE) z Pairing can be done with up to 3 Handsets maximum, if you add a 4th Handset, the VSH-511 will automatically remove the registration information of the least used z VSH-511 can be only in pairing mode when the headset turned off. Answering a call Press the Power/Talk button. Ending a call Press the Power/Talk button. Rejecting a call Press and hold the Power/Talk button for more than 2 seconds when ringing. Making a call If you make a call from the Handset, the call will (subject to phone settings) be automatically transferred to the Headset. If not automatically transferred, you can transfer the call manually by pressing the Power/Talk button. Last number redialing Press and hold the Power/Talk button for more than 2 seconds. (This will initiate voice dialing on some Handsets.) Voice dialing Press the Power/Talk button. (It’s available only when your Handset supports the voice dialing function. Please consult your Handset’s user manual.) Volume Control Press the Volume Up or Down button to increase or decrease the speaker volume. Transferring a call To transfer a call from the Handset to the VSH-511, press the Power/Talk button while answering. To transfer a call back to the Handset, just press the Power/Talk button again. Call Waiting (Answering a second call without hanging up the first call) Answer a second call by pressing the Power/Talk button while answering. Press again to return to the first call. Press and hold the Power/Talk button for at least 2 seconds to hang up both calls at once. Holding Key function To place a call on hold, press the Power/Talk button and the Volume Up & Down button simultaneously for at least 1 second. To turn Hold off, press these buttons again. 2. LED Indication Function VSH-511 status LED Status Power off Blue LED light remains on until the Talk button is released. Booting Blue LED light remains on until initialization completes. Idle Blue LED light flashes on once every 7 seconds. Operating (Blue LED) Discoverable Blue LED light flashes on and off every 0.5 second. Ringing Blue LED light flashes on and off 3 times every 3 seconds until answered. SCO Connection (Synchronous Connection Oriented) Blue LED light flashes off every 7 seconds. Low Battery Blue LED light flashes rapidly 5 times at 7 second intervals. Charging Blue LED light remains on. Charging (Blue LED) Charging Completed Blue LED light remains off. 3. Summary of Button Functions Function Current statusAction Power On Power off Press the Power/Talk button for at least 1 second. Power Off Power on Press the Power/Talk button for at least 4 seconds. Speaker Volume Up Power on Press the Volume Up button. Speaker Volume Down Power on Press the Volume Down button. Transferring a call (Handset -> Headset) Talking Press the Power/Talk button. Transferring a call (Headset -> Handset) Talking Press the Power/Talk button. Pairing Mode Power off Press the Power/Talk button for at least 5 seconds when powered off. Answering a call Ringing Press the Power/Talk button. Ending a call Talking Press the Power/Talk button. Rejecting a call Ringing Press the Power/Talk button for more than 2 seconds. Call Waiting Mode (Answering a second call) Talking & Ringing Press the Power/Talk button. Call Waiting Mode (Return to original Call) Talking Press the Power/Talk button. Call Waiting Mode (Hang up both calls at once) Talking Press the Power/Talk button for at least 2 seconds. Last Number Redial Ready Press and hold the Power/Talk button for more than 2 seconds. Voice dialing (Mobile phone should support) Ready Press the Power/Talk button. Hold On Hold off Press the Power/Talk, Volume Up, and Down buttons simultaneously. Hold Off Hold on Press the Po…

Text truncated - open the document above for the full version.

SEECODE CO.,LTD 2,3,4F, Amin Bldg.,110-1,Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Phone : +82-2-573-2620, Fax : +82-2-573-2503 Chief, Equipment Approval Services Federal Communications Commission PO Box 358315 Pittsburg, PA 15251-5315 Seoul, February 6, 2006 Authorization Letter Dear Sir or Madam: We, SEECODE CO.,LTD., hereby authorize O.N.R Tech Inc. 463-49, Sillim-dong, Gwanak-gu, Seoul,151-010, Republic of Korea. To act as our agent and to process and sign on our behalf for equipment authorization under FCC Part 15, Subpart C. This authorization is applicable for the product: Slim Headset (VSH511 ) with FCC ID: RPRVSH511 Sincerely, Signature : Printed Name: Kang Chi-jung Title : Manager Company Stamp:

SEECODE CO.,LTD 2,3,4F, Amin Bldg.,110-1,Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Phone : +82-2-573-2620, Fax : +82-2-573-2503 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Seoul, February 6, 2006 REQUEST FOR CONFIDENTIALITY, FCC ID: RPRVSH511 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: • Schematic drawing • Bill of Materials • Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature : Printed Name: Kang Chi-jung Title : Manager Company Stamp:

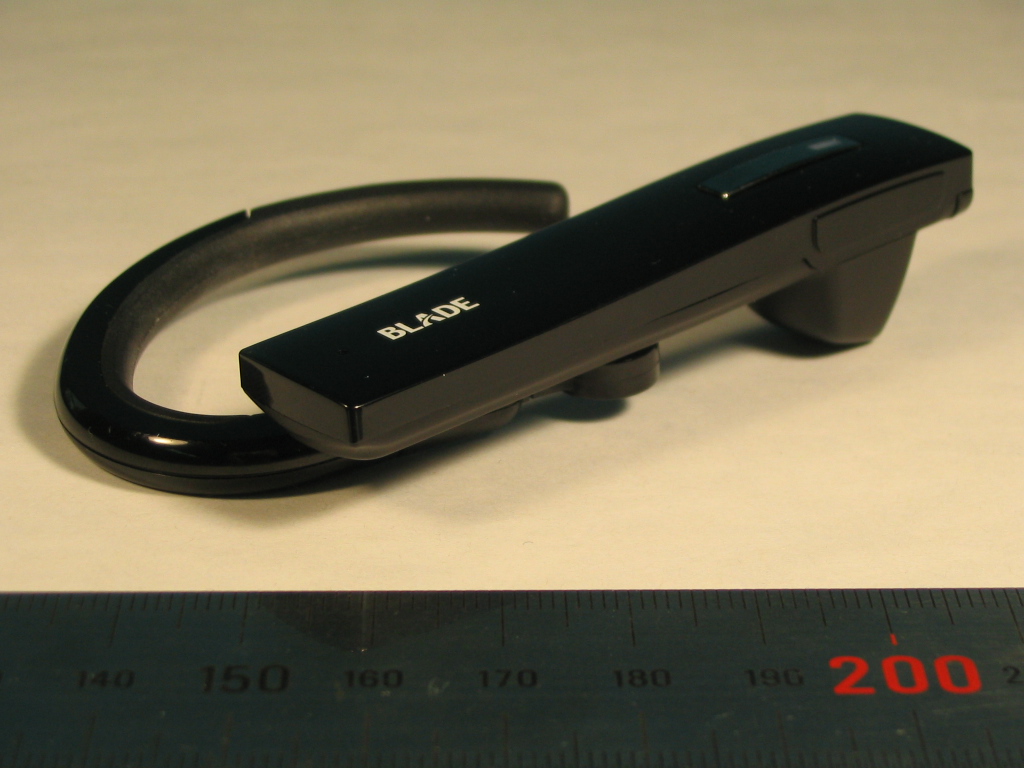

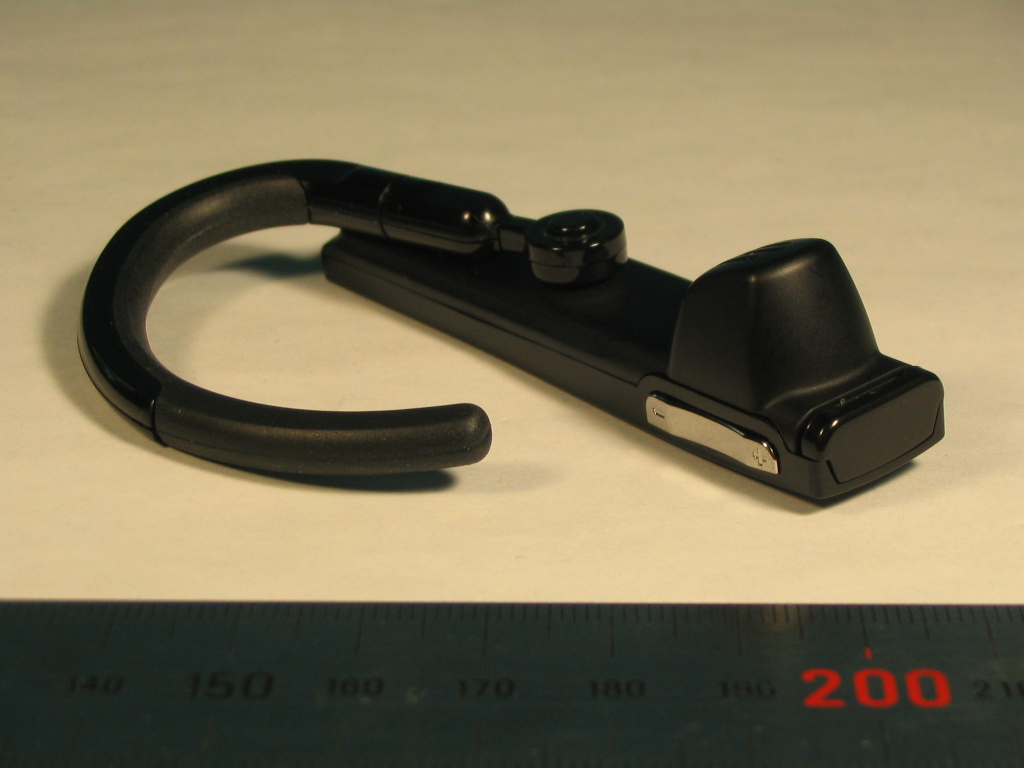

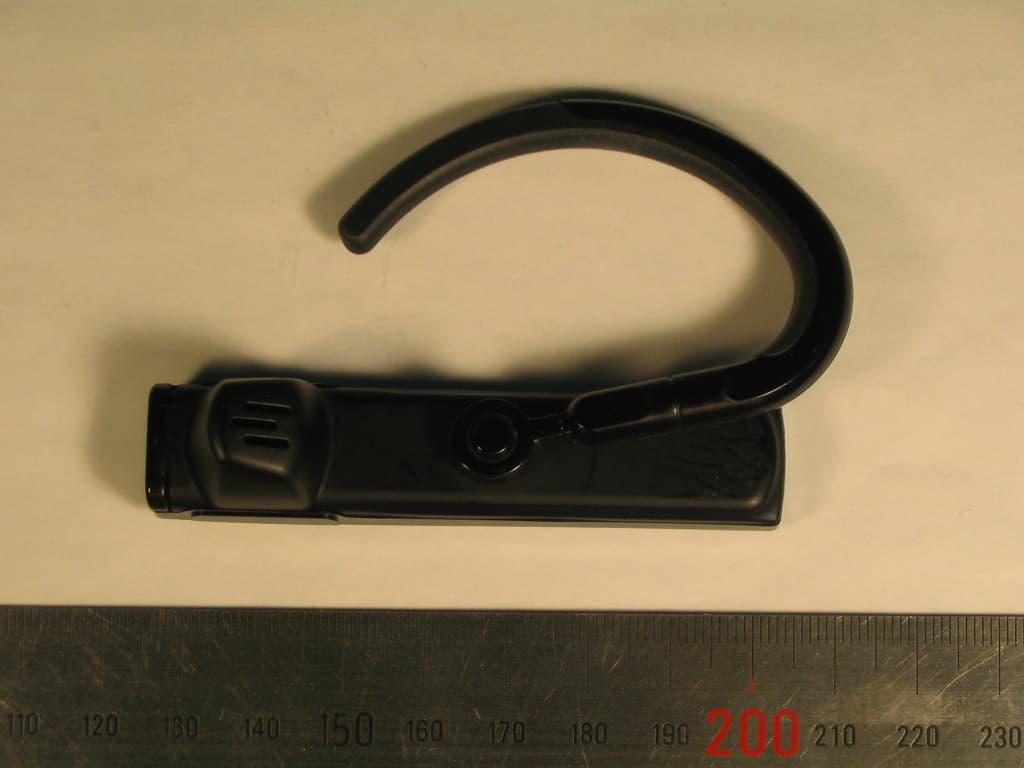

External Photos Seecode Co., Ltd. Revision No : 1.0 Page: 1 of 2 * External view 1. Front side 2. Right side view External Photos Seecode Co., Ltd. Revision No : 1.0 Page: 2 of 2 3. Rear side 4. Left side view

Label and Location Seecode Co., Ltd. Revision No : 1.1 Page: 1 of 1 * Label location * Label Label Location 10mm 15mm

Internal Photos Seecode Co., Ltd. Revision No : 1.0 Page: 1 of 3 * Internal view 1. Internal Internal Photos Seecode Co., Ltd. Revision No : 1.0 Page: 2 of 3 2. PCP Top View 3. PCP Bottom View Bluetooth Chipset Bluetooth Antenna Bluetooth X-tal 2 Bluetooth X-tal 1 Internal Photos Seecode Co., Ltd. Revision No : 1.0 Page: 3 of 3 4. Top Side for Battery PCB 5. Bottom Side for Battery PCB

EUT operational and EUT description Seecode Co., Ltd. Ver 1.0 1/1 VSH511 is a mobile phone headset with Bluetooth Wireless Technology. It has excellent operating time which is over 5 hours talking, and startling 12 hours in waiting mode. It also features very good looking design so that if a customer ever lays his/her eyes on it a single moment, he/she would not be able to drop the thoughts of buying it. This product has following specification : 1. General Specification Item Description Bluetooth Specification V1.2 Supported Profile Headset profile Rx. Sensitivity Typ. -70 dBm Battery 3.7V, 125mAh Li-ion Polymer Speaker 32Ω / 11Ø MIC -44dB / Omnidirectional Low Power Current (Sniff Mode) ≤ 1 mA (Avg.) Talking Current 23±3 mA (Avg.) Standby Time (Sniff Mode) ≥ 120 Hr Talking Time ≥ 5 Hr Full Charging Time ≤ 2 Hr Operating Temperature -10°C ~ 60°C Operating Humidity 5% ~ 85% RH Storage Temperature -20°C ~ 60°C Storage Humidity 85% RH 2. EUT Information Type Transmitter Receiver FCC Classification FHSS Sequence Spread Spectrum ( FHSS) FHSS Sequence Spread Spectrum ( FHSS) Operating frequency range 2402 – 2480 MHz 2402 – 2480 MHz Bands of operation 2.400 – 2.4835 GHz 2.400 – 2.4835 GHz Number of Channels 79 79 Channel Separation 1MHz 1MHz Type of Antenna Dielectric Chip Antenna Dielectric Chip Antenna

REPORT NO : NF-TA-R060005 NEX1 Future Co., Ltd. Revision No : 1.0 Page: 1 of 47 FCC TEST REPORT February 24, 2006 NEX 1 Future Co., Ltd. REPORT NO : NF-TA-R060005 NEX1 Future Co., Ltd. Revision No : 1.0 Page: 2 of 47 TEST REPORT CERTIFICATION Applicant : SEECODE Co., Ltd. Adderss : 3rd Floor, Amin Bldg., 110-1 Yangjae-dong, Seocho-gu, Seoul, Korea EUT Name : Slim Headset Model No. : VSH-511 Serial No. : Engineering Sample FCCID : RPRVSH511 Testing location : Nex1 Future Co., Ltd. 133, Kongdan-Dong, Gumi-City, Kyeongsangbuk-Do, 730-030, R.O.K Applied specification : FCC Part 15 Test result : The above mentioned test item passed. Test Date February 24, 2006 Review Date February 24, 2006 Tested by Hyo-Jeung, Cho Reviewed by Jeong-Hi, Jin Title Engineer Title EMC Manager Signature Signature I HEREBY CERTIFY THAT the data shown in this report were made in accordance with the procedures given in the applied specification and I assume full responsibility for accuracy and completeness of these data. Note : This test report relates to the a. m. test item. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. REPORT NO : NF-TA-R060005 NEX1 Future Co., Ltd. Revision No : 1.0 Page: 3 of 47 Contents 1. GENERAL INFORMATION................................................................................................. 5 1.1 PRODUCT DESCRIPTION............................................................................................... 5 1.2 PROJECT DATA............................................................................................................ 5 1.3 APPLICANT................................................................................................................. 5 1.4 MANUFACTURER......................................................................................................... 5 2. EUT INFORMATION........................................................................................................ 6 2.1 GENERAL EUT INFORMATION....................................................................................... 6 2.2 CENTER FREQUENCY OF TESTED CHANNEL................................................................... 6 2.3 TEST ENVIRONMENT.................................................................................................... 6 2.4 ACCESSORIES AND ANCILLARY EQUIPMENT.................................................................. 6 3. TESTING FACILITIES....................................................................................................... 7 4. EUT DESCRIPTION AND OPERATIONAL DESCRIPTION....................................................... 7 5. TEST SET-UP................................................................................................................. 8 5.1 PRINCIPLE OF CONFIGURATION..................................................................................... 8 5.2 OPERATIONAL MODES................................................................................................. 8 5.3 APPLIED SPECIFICATION.............................................................................................. 8 6. TEST REPORT SUMMARY............................................................................................... 9 7. TEST RESULTS............................................................................................................ 10 7.1 ANTENNA CONNECTOR REQUIREMENTS...................................................................... 10 7.2 AC CONNECTED EMISSION........................................................................................ 11 7.3 CARRIER FREQUENCY SEPARATION............................................................................ 12 7.4 TIME OF OCCUPANCY(DWELL TIME) ............................................................................ 14 7.5 20DB BANDWIDTH..................................................................................................... 16 7.6 NUMBER OF HOPPING FREQUENCIES REQUIREMENTS.................................................. 20 7.7 PSEUDORANDOM FHS AND EQUAL HOPPING FREQUENCY USE REQUIREMENTS............. 22 7.8 RECEIVER INPUT BANDWIDTH REQUIREMENTS............................................................. 23 REPORT NO : NF-TA-R060005 NEX1 Future Co., Ltd. Revision No : 1.0 Page: 4 of 47 7.9 PEAK OUTPUT POWER............................................................................................... 24 7.10 BAND-EDGE COMPLIANCE........................................................................................ 28 7.11 SPURIOUS CONDUCTED EMISSIONS........................................................................... 32 7.12 SPURIOUS RADIATED EMISSIONS.............................................................................. 43 8. LIST OF TEST AND MEASUREMENT INSTRUMENTS.......................................................... 46 REPORT NO : NF-TA-R060005 NEX1 Future Co., Ltd. Revision No : 1.0 Page: 5 of 47 1. General Information 1.1 Product Description Product Name : Slim Headset Product ID : VSH-511 Serial No. : Prototype FCC ID : RPRVSH511 1.2 Project data Receipt of EUT : February 17, 2006 Date of Test : February 24, 2006 Data of report : February 24, 2006 1.3 Applicant Company Name : SEECODE Co., Ltd. Address : 3rd Floor, Amin Building, 110-1, Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Contact Person : Mr. Knag Chi-jung 1.4 Manufacturer Company Name : SEECODE Co., Ltd. Address : 3rd Floor, Amin Building, 110-1, Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Contact Person : Mr. Knag Chi-jung REPORT NO : NF-TA-R060005 NEX1 Future Co., Ltd. Revision No : 1.0 Page: 6 of 47 2. EUT Information 2.1 General EUT Information Type Transmitter Receiver FCC Classification FHSS Sequence Spread Spectrum ( FHSS) FHSS Sequence Spread Spectrum ( FHSS) Operating frequency range 2402 – 2480 MHz 2402…

Text truncated - open the document above for the full version.

Test setup photos Seecode Co., Ltd. Revision No : 1.0 Page: 1 of 1 * Test set-up 1. Radiated Set up Test setup photos Seecode Co., Ltd. Revision No : 1.0 Page: 2 of 2 2 Spurious Radiated Emissions 2.1 Radiated test ( 30 MHz ~ 1GHz ) Test setup photos Seecode Co., Ltd. Revision No : 1.0 Page: 3 of 3 2.2 Radiated test ( 1 GHz ~ 13GHz ) Test setup photos Seecode Co., Ltd. Revision No : 1.0 Page: 4 of 4 2.3 Radiated test ( 13 GHz ~ 18GHz ) Test setup photos Seecode Co., Ltd. Revision No : 1.0 Page: 5 of 5 2.4 Radiated test ( 18 GHz ~ 25GHz )
