RPV-SW2001-WGN1Wireless Serial Server

Atop ABLELink® Wireless Serial Server SW2001 User Manual Version 1.0 Updated on 2006/06/06 Tel: 886-3-5508137 Fax: 886-3-5508131 User manual Version 1.0 ABLELink Wireless Serial Server SW2001 Copyright © 2006 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 1 / 51 www.atop.com.tw User manual Version 1.0 ABLELink Wireless Serial Server SW2001 Copyright © 2006 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 2 / 51 IMPORTANT ANNOUNCEMENT The information contained in this document is the property of Atop Technologies, Inc. and is supplied for the sole purpose of the operation and maintenance of products of Atop Technologies, Inc. No part of this publication is to be used for any other purposes, and it is not to be reproduced, copied, disclosed, transmitted, stored in a retrieval system, or translated into any human or computer language, in any form, by any means, in whole or in part, without the prior express written consent of Atop Technologies, Inc. Published by Atop Technologies, Inc. 2F, No. 146, Sec. 1, Tung-Hsing Rd. Jubei City, Hsinchu 302 Taiwan, R.O.C. Tel: 886-3-5508137 Fax: 886-3-5508131 www.atop.com.tw Copyright © 2006 Atop Technologies, Inc. All rights reserved. All other product names referenced herein are registered trademarks of their respective companies. User manual Version 1.0 ABLELink Wireless Serial Server SW2001 Copyright © 2006 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 3 / 51 FCC WARNING Class B for Wireless Serial Server (Model: SW2001) This SW2001 has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: l Reorient or relocate the receiving antenna. l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. l Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This SW2001 complies with FCC radiation exposure limits set forth for an uncontrolled environment. This SW2001 should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b/g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. User manual Version 1.0 ABLELink Wireless Serial Server SW2001 Copyright © 2006 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 4 / 51 CONTENTS 1. INTRODUCTION..............................................................................5 1.1 PACKAGING.........................................................................................................................5 1. 2 APPLICATION CONNECTIVITY...............................................................................................6 2. NOMENCLATURE AND SETTINGS................................................8 2.1 NOMENCLATURE OF SW2001 COMPONENTS........................................................................8 2.2 MODE SWITCH...................................................................................................................8 3. HARDWARE INSTALLATION..........................................................9 3.1 CONFIGURATION.................................................................................................................9 3.2 ASSIGNING A NEW IP ADDRESS BY ARP COMMAND................................................................9 3.3 AUTO IP............................................................................................................................10 3.4 TCP/IP PORT NUMBER......................................................................................................11 4. SOFTWARE CONFIGURATION.....................................................11 4.1 CONFIGURATION SET BY MONITOR.EXE UTILITY....................................................................11 4.2 CONFIGURATION SET BY TELNET UTILITY.............................................................................11 4.4 CONFIGURATION SET BY WEB BROWSER.............................................................................30 4.5 VIRTUAL COM MODE........................................................................................................37 4.5.1 Setup of a Virtual COM driver.................................................................................37 4.5.2 Virtual COM communication...................................................................................38 5. SNMP SETUP................................................................................41 5.1 SNMP NETWORK MANAGEMENT PLATFORM.......................................................................41 APPENDIX A: SW2001 WIRELESS SERIAL SERVER SPECIFICATIONS............…

Text truncated - open the document above for the full version.

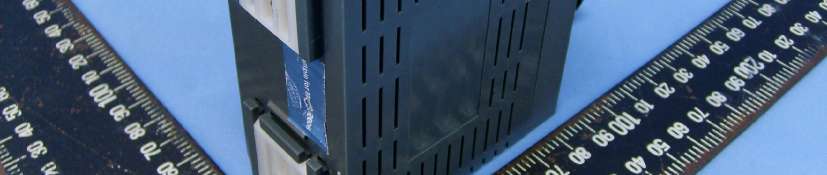

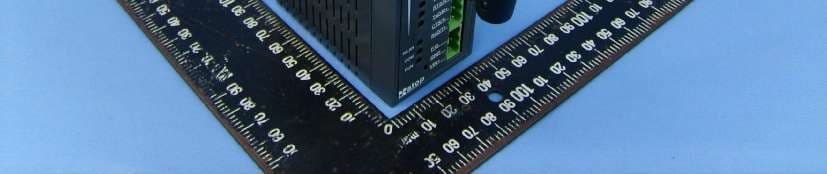

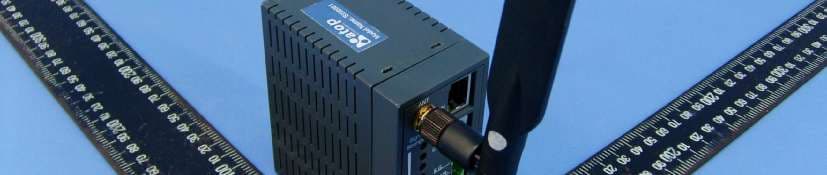

Page 1 CONSTRUCTION PHOTOS OF EUT Model : SW2001-WgN1 Page 2

FCC ID：RPV-SW2001-WgN1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

SW2001-WgN1 FCC Label.jpg

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: RPV-SW2001-WgN1 Report No. RF950508H06 Operational Description This device is a Wireless Serial Server, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless Serial Server) is powered by Adapter. The antenna used in this product is as following: Antenna TypeGain (dBi)Connector Type Dipole Antenna4 dBiReverse SMA The other instruction, please have a look at the users manual.

Report No.: SA950508H06 1 RF EXPOSURE REPORT REPORT NO.: SA950508H06 MODEL NO.: SW1001-WgN1, SW2001-WgN1, SW5001-WgN1 FCC ID: RPV-SW2001-WgN1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ATOP TECHNOLOGIES, INC. ADDRESS: 2F, No.146, Sec 1, Tung-Hsing Rd., Jubei City, Hsinchu 302, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950508H06 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950508H06 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950508H06 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 4dBi or 2.511886 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.8110.0201.0 6243738.0190.0191.0 11246241.6870.0211.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412107.1520.0541.0 62437177.8280.0891.0 112462112.2020.0561.0

Report No.: RF950508H061Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.:RF950508H06 MODEL NO.:SW1001-WgN1, SW2001-WgN1, SW5001-WgN1 RECEIVED:May 09, 2006 TESTED:May 26 to 30, 2006 ISSUED: June 05, 2006 APPLICANT:ATOP TECHNOLOGIES, INC. ADDRESS:2F, No.146, Sec 1, Tung-Hsing Rd., Jubei City, Hsinchu 302, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 72 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950508H062Report Format Version 2.0.4 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: ................ 8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS ............................. 10 3.5DESCRIPTION OF SUPPORT UNITS.........................................................11 3.6CONFIGURATION OF SYSTEM UNDER TEST ......................................... 12 4TEST TYPES AND RESULTS..................................................................... 14 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 14 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 14 4.1.2TEST INSTRUMENTS ................................................................................ 14 4.1.3TEST PROCEDURES................................................................................. 15 4.1.4TEST SETUP .............................................................................................. 15 4.1.5EUT OPERATING CONDITIONS................................................................ 16 4.1.6TEST RESULTS.......................................................................................... 17 4.2RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 19 4.2.2TEST INSTRUMENTS ................................................................................ 20 4.2.3TEST PROCEDURES................................................................................. 21 4.2.4TEST SETUP .............................................................................................. 22 4.2.5EUT OPERATING CONDITIONS................................................................ 22 4.2.6TEST RESULTS.......................................................................................... 23 4.2.7TEST RESULTS - DSSS............................................................................. 26 4.2.8TEST RESULTS - OFDM ............................................................................ 33 4.36dB BANDWIDTH MEASUREMENT .......................................................... 40 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 40 4.3.2TEST INSTRUMENTS ................................................................................ 40 4.3.3TEST PROCEDURE ................................................................................... 41 4.3.4TEST SETUP .............................................................................................. 41 4.3.5EUT OPERATING CONDITIONS................................................................ 41 4.3.6TEST RESULTS –DSSS ............................................................................. 42 4.3.7TEST RESULTS-OFDM .............................................................................. 45 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 48 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 48 4.4.2TEST INSTRUMENTS ................................................................................ 48 4.4.3TEST PROCEDURES................................................................................. 49 4.4.4TEST SETUP .............................................................................................. 49 Report No.: RF950508H063Report Format Version 2.0.4 4.4.5EUT OPERATING CONDITIONS................................................................ 49 4.4.6TEST RESULTS – DSSS ............................................................................ 50 4.4.7TEST RESULTS –OFDM ............................................................................ 51 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 52 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 52 4.5.2TEST INSTRUMENTS ................................................................................ 52 4.5.3TEST PROCEDURE ................................................................................... 53 4.5.4TEST SETUP .............................................................................................. 53 4.5.5EUT OPERATING CONDITIONS................................................................ 53 4.5.6TEST RESULTS –DSSS ............................................................................. 54 4.5.7TEST RESULTS –OFDM ............................................................................ 57 4.6CONDU…

Text truncated - open the document above for the full version.

Report No.: RF950508H0661Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST (Model : SW1001-WgN1) Report No.: RF950508H0662Report Format Version 2.0.4 RADIATED EMISSION TEST (Model : SW2001-WgN1) Report No.: RF950508H0663Report Format Version 2.0.4 RADIATED EMISSION TEST (Model : SW5001-WgN1) 950508H06 950508H06
