RQRAG301Bluetooth Audio Gateway

Collex Communication Corp. Proprietary and Confidential 2004/6/17 1 Collex Bluetooth Dongle AG-301 is an audio gateway that can be used with any application requesting personal audio, such as mobile phone, PC and home line. AG-301 can be used to direct connection from any kinds of none Bluetooth mobile phone to Bluetooth earphones. It provides a talking time up to 3.5 hours and the stand-by time is up to 80 hours. AG-301 user interface includes ON/OFF switch for the Dongle, issuing connection management requests and battery can be recharged with DC jack. Unless otherwise configured, AG-301 will accept connections from any device that is trying to establish connection. The pairing procedure is initiated from the connecting device. When paired to a specific device, AG-301 will only accept incoming connections from that device. In this configuration, AG-301 will also establish an outgoing connection to the device that AG-301 is paired with. y Package Bluetooth Dongle AG-301 Charger User manual y AG-301 Overview Charger connector Earpiece connector Indicator light On/ Off / Pairing button Collex Communication Corp. Proprietary and Confidential 2004/6/17 2 y Getting Started ™ Turn On Pressing and holding the button until the indicator light starts to flash green light. ™ Turn Off When AG-301 is on, turning off AG-301 is to press and hold the button until the indicator light begins to flash red light. ™ Pairing When pairing, you need to switch the headset to pairing mode firstly (Please refer to your headset user manual). With AG-301 turned off, press and hold button for up to 10 seconds until the indicator light on AG-301 flashes green and red. AG-301 will start to search the devices which are within the range and can be paired. When they search the available device, AG-301 will pair it without inputting any PIN code. When AG-301 indicator light flashes green and headset flashes the light which means pairing procedure is success, pairing has been completed. ™ Indicator light In standby mode, it flashes green light at intervals of approximately 20 seconds. If you are using AG-301, the indicator light flashes green at intervals of approximately 2 seconds. Collex Communication Corp. Proprietary and Confidential 2004/6/17 3 Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

REPORT NO: EF/2004/50013 ID: RQRAG301 DATE: Jun. 28, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA APPENDIX 2 EXTERNAL OF EUT REPORT NO: EF/2004/50013 ID: RQRAG301 DATE: Jun. 28, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA All of EUT Front View of EUT REPORT NO: EF/2004/50013 ID: RQRAG301 DATE: Jun. 28, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Back View of EUT Top View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Collex Communication Corp. FCC ID: RQRAG301 FCC ID: RQRAG301 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

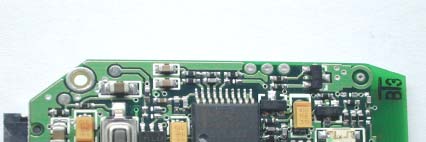

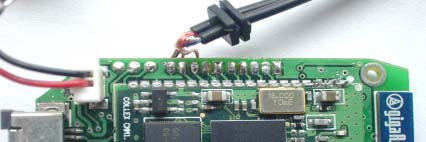

REPORT NO: EF/2004/50013 ID: RQRAG301 DATE: Jun. 28, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA APPENDIX 3 INTERNAL OF EUT REPORT NO: EF/2004/50013 ID: RQRAG301 DATE: Jun. 28, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Open View of EUT Internal of EUT REPORT NO: EF/2004/50013 ID: RQRAG301 DATE: Jun. 28, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Internal of EUT

REPORT NO: EF/2004/50013 ID: RQRAG301 DATE: Jun. 28, 2004 Page: 1 of 56 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Bluetooth Audio Gateway Brand Name: Collex Model Name: AG-301 FCC ID: RQRAG301 Report No.: EF/2004/50013 Issue Date: Jun. 25, 2004 FCC Rule Part: 15.247 Prepared for: Collex Communication Corp. 8F-1, No.237, Sec.1, Wuchiuan W. Rd., West District, Taichung City 403, Taiwan, R.O.C. Prepared by: SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. REPORT NO: EF/2004/50013 ID: RQRAG301 DATE: Jun. 28, 2004 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA VERIFICATION OF COMPLIANCE Applicant: Collex Communication Corp. 8F-1, No.237, Sec.1, Wuchiuan W. Rd., West District, Taichung City 403, Taiwan, R.O.C. Equipment Under Test: Bluetooth Audio Gateway Brand Name: Collex FCC ID Number: RQRAG301 Model No.: AG-301 Model Difference: N/A File Number: EF/2004/50013 Date of test: Jun. 15, 2004 ~ Jun. 28, 2004 Date of EUT Received: Jun. 14, 2004 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2001) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Jun. 28, 2004 Willis Chen Approved By Date Jun. 28, 2004 Vincent Su REPORT NO: EF/2004/50013 ID: RQRAG301 DATE: Jun. 28, 2004 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Table of Contents 1. GENERAL INFORMATION .........................................................................................................6 1.1. Product Description ............................................................................................................................6 1.2. Related Submittal(s) / Grant (s) ..........................................................................................................6 1.3. Test Methodology ...............................................................................................................................6 1.4. Test Facility.........................................................................................................................................6 1.5. Special Accessories .............................................................................................................................6 1.6. Equipment Modifications....................................................................................................................6 2. SYSTEM TEST CONFIGURATION ............................................................................................7 2.1. EUT Configuration .............................................................................................................................7 2.2. EUT Exercise ......................................................................................................................................7 2.3. Test Procedure.....................................................................................................................................7 2.4. Configuration of Tested System..........................................................................................................8 3. SUMMARY OF TEST RESULTS .................................................................................................9 4. DESCRIPTION OF TEST MODES ..............................................................................................9 5. CONDUCTED EMISSION TEST................................................................................................10 5.1. Standard Applicable ..........................................................................................................................10 5.2. EUT Setup.........................................................................................................................................10 5.3. Measurement Procedure....................................................................................................................10 5.4. Measurement Equipment Used: ........................................................................................................11 5.5. Measurement Result..........................................................................................................................11 6. PEAK OUTPUT POWER MEASUREMENT............................................................................14 6.1. …
