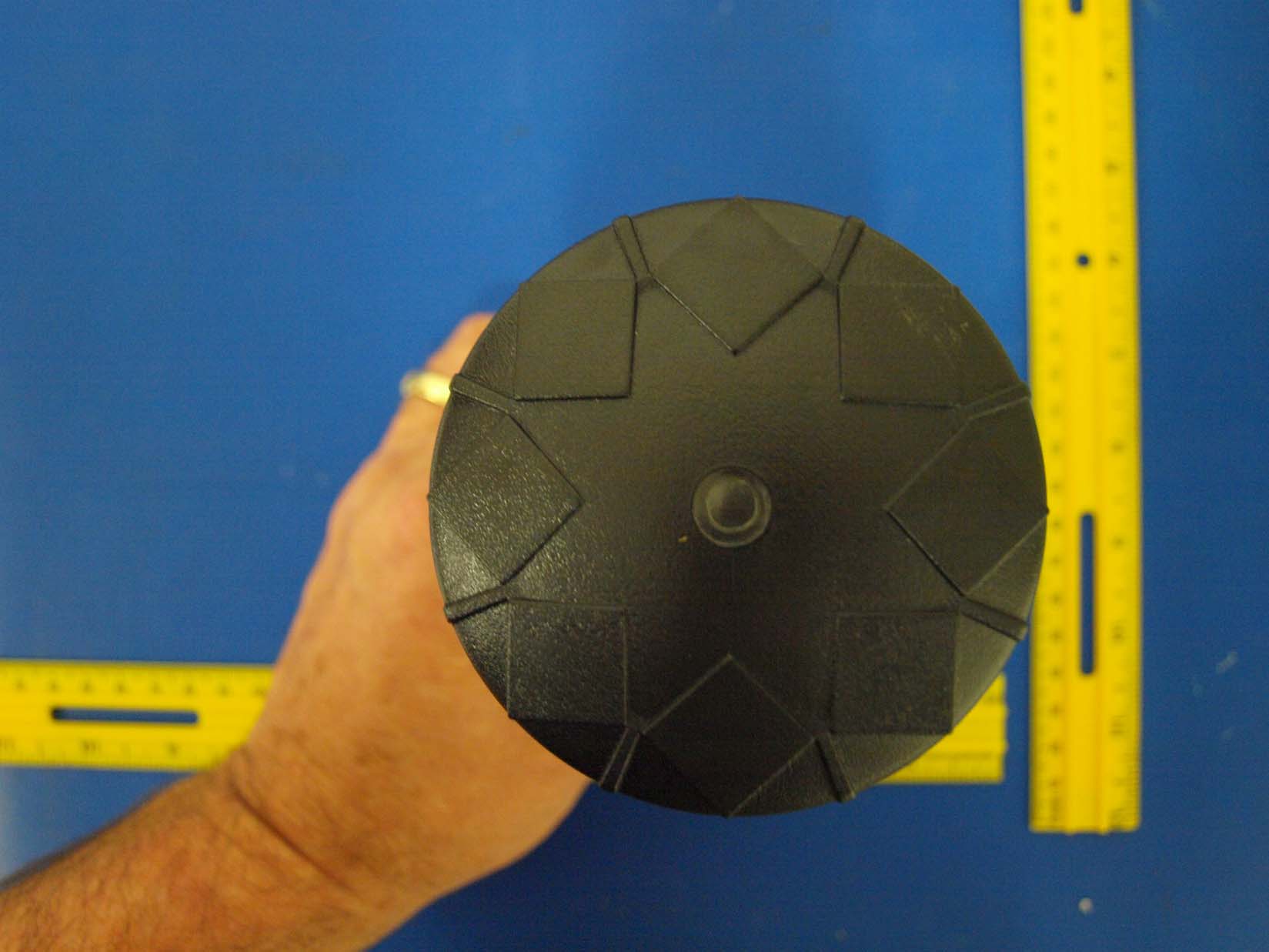

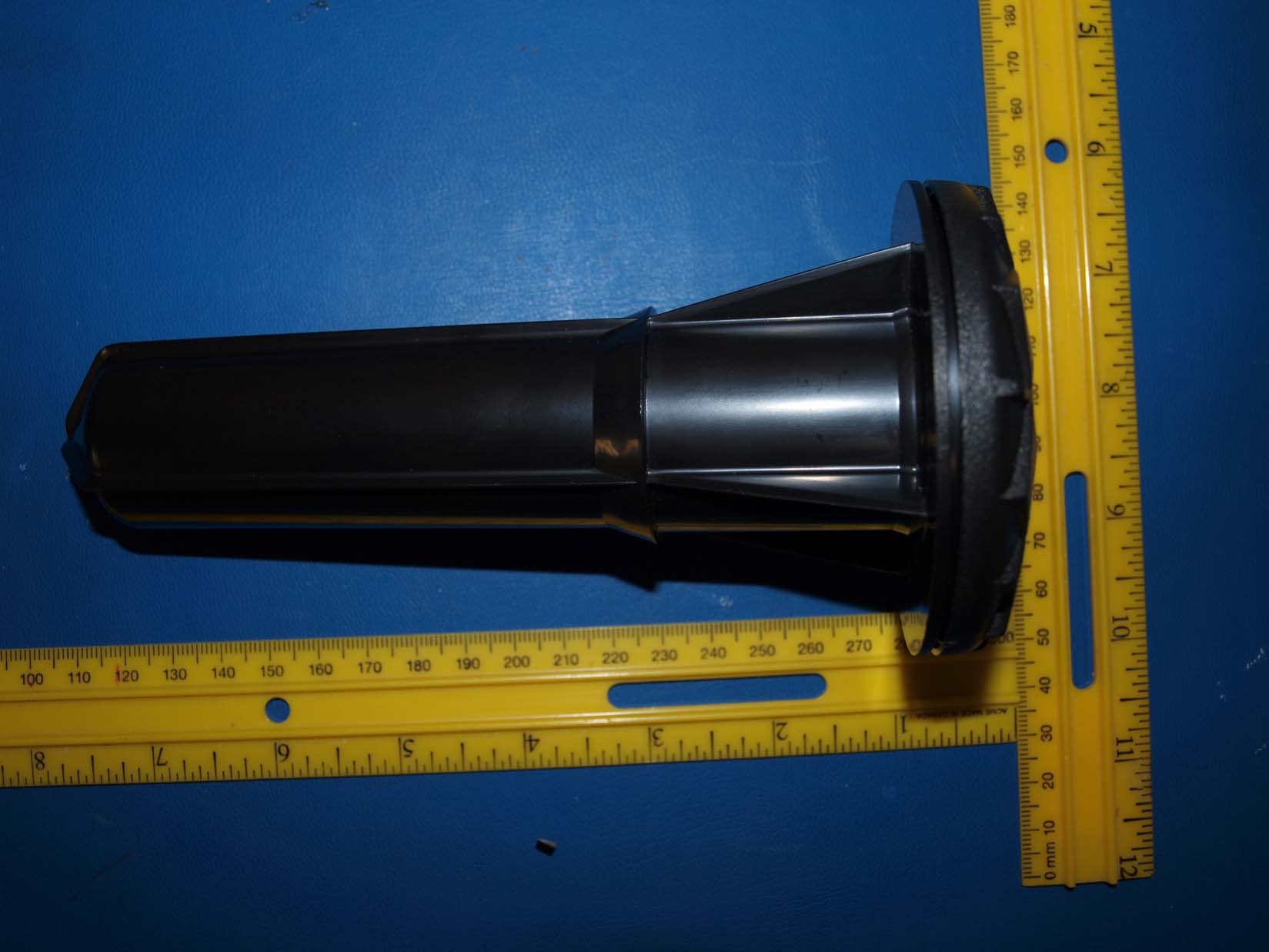

RQT-SS10SASensor Probe

Parts of the S.Sense Network . Your Irrigation Controller The S.Sense System is designed to work with your existing Irrigation Controller. Most controllers, no matter the brand, tend to work in much the same way. In order to get the best results out of the system, your irrigation controller will need to be configured properly for cooperation with the S.Sense Receiver. The good news is, it will be a very simple configuration. Probably the same or close to the default setup of your controller. We will cover this a little later. . Sensors The S.Sense Sensor is a computer that you stick in the ground! It contains a sophisticated micro-controller, a radio transceiver, and sensors that monitor battery charge, soil temperature, and soil moisture levels. The purpose of a Sensor is to tell the Receiver what the conditions are at that location in your lawn and garden. It does this by periodically sending radio messages to the Receiver. Because we are running off a set of batteries for a year, the radio transceiver runs at a very low power level. Which is fine for the short distances involved if you are careful to install the Sensor is a location that “sees” the Receiver. We will cover this is detail in the section on “Planting Your Sensor.” The Receiver The Receiver is the “hub” of the S.Sense Network. It monitors the health and status of Sensors in its network, gathers data reported by its Sensors, monitors the watering cycles of the Controller, and analizes all these factors to decide when, and if, to irrigate. It also has the User Interface on its front that allows you to customize and adjust the settings for your particular garden and its plants. Installation Designing Your Yard Network This is all about placement. Putting the Receiver and Sensors in the right place will determine just how well, or if, your S.Sense System works. The critical items in Receiver placement are: . Controller Wires – Ideally the Receiver will be mounted next to the controller, but sometimes that location will not work. So you many need to extend the wires of the Receiver so they reach the controller from where the Receiver needs to be mounted. 0. Line of sight to the Sensor – This means the from the location you intend to mount the Receiver's Antenna, you should be able to see the area when you plan to put the Sensor. 0. Protection – The Receiver is not water-proof so the mounting location should be protected. Most home irrigation controllers are not waterproof, so it is already in a safe location that you can also use for the Receiver. If you must install the S.Sense Receiver outside, then put it inside a plastic controller box (available at the irrigation section of hardware stores) . . Access – The Front Panel Interface should be in a comfortable location when you use it. If your yard's soil or drainage vary a lot, you might be better served if you add additional sensors, putting one in each distinctive area. S.Sense will use the data from all the Sensors to determine how to water. One other note on your Yard Design – Write it down. After your Sensor has been in the ground for a year, it can be much harder to find that you expect. Your memory will not be enough and in any case grass and shrubs may have grown over the Sensor. Carefully measure the location from stable landmarks, such as a tree or irrigation standpipe, then write it down on the flyleaf of this manual. A year from now, when it's time to replace the Sensor's battery, you will be glad you did. Keep the manual in a safe place you will remember later. . Setting up your Controller Remember, the S.Sense System controls if a watering will occur, but it cannot turn the water on. The times, dates and duration of a watering cycle is still the responsibility of your controller. If your municipality has any watering date restrictions, then be sure to continue setting the Controller to not violate “no water” times. Currently, you probably adjust your controller's settings regularly, compensating for seasonal variations or rainfall. Or if you are like me, you set it up once being generous on the watering so nothing dies in the hottest part of the summer, then just leave it on that setting for all the year. For lazy people like me, there is good news – You are probably already setup perfectly for S.Sense cooperation! We want the Controller to try to water as often and as much as would be needed on the hottest, driest summer day. The Receiver will keep the Controller from over-watering. When the S.Sense data and analysis indicate that the lawn and garden have sufficient moisture to last to at least the next scheduled water cycle, it blocks the current water cycle from starting. So while the Controller will try to irrigate often, the end result is the watering only happens when it is needed. If you have carefully programmed your controller to do just the correct amount of watering, then you need to relax the settings a little. Change the Controller back to its hot summer watering schedule. . Installing the Receiver [ILLISTRATION - Receiver Bottom goes here – arrows point to: Power and Sense wire bundle with 4 wires separated and labeled as . Black - GROUND, . Red - POWER, . Green - COMMON and White - COMMON ] We begin with mounting the Receiver to the location you have selected. Attach the mounting plate to the wall or other surface. The Receiver slips down into the bracket and will lock in place. The Antenna is connected to the Receiver by a six foot long coaxial cable. Mount the Antenna as high as practical to give the best line of sight to the Sensors. Aluminum siding, stucco siding and metal downspouts tend to interfere with the radio transmissions from the antenna, so it is important to keeps metal items out of the path between the Receiver's antenna and the sensors. Next, connect one of the Common Wires to the Common on your Irrigation Controller's wiring strip. [ILLISTRATION – Arrow to Common on Controllers] There should already be a wire attached to the Comm…
