RQU-TT-933BPCBluetooth 3-Speed Stereo Turntable

Goldsound Electronic Limited

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Jun 28, 2015
Application Purpose: Original Equipment
Date of Application: Jun 28, 2015
Equipment Note: Bluetooth 3-Speed Stereo Turntable
Frequency Range: 2402.00000000 - 2480.00000000
Company: Goldsound Electronic Limited
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

BLUETOOTH 3-SPEED STEREO TURNTABLE WITH METAL TONE ARM USER MANUAL TT-933BPC PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. E-1 The Caution Marking is located at the bottom enclosure of the apparatus. The Rating plate is located at the back enclosure of the apparatus IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that product heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for a long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. This appliance shall not be exposed to dripping or splashing water and that no object filled with liquids such as vases shall be placed on the apparatus. 16. Do not overload wall outlet. Use only power source as indicated. 17. Use replacement part as specified by the manufacturer. 18. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks. 19. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your E-2 home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instruction. 20. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 21. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e) If the product has been dropped or damaged in any way, and f ) When the product exhibits a distinct change in performance - this indicates a need for service. 22. Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely. 23. Battery shall not be exposed to excessive heat such as sunshine, fire or the like. 24. Excessive sound pressure from earphones and headphone can cause hearing loss. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF AC PLUG TO WIDE SLOT. FULLY INSERT. SAVE THESE INSTRUCTIONS E-3 COMPLIANCE WITH FCC REGULATIONS FCC ID: RQU-TT-933BPC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separatio…

Text truncated - open the document above for the full version.

Block Diagram

&U\VW 2402-2480MHz U1 X1 U2 Bluetooth Module IS1684S BM84 Preliminary Datasheet IS1684S Version: 0.90 - 5 - 6/6/2012 3. Functional Diagram BT EDR Transceiver CPU Audio Engine Audio DAC IO RAM ROM Clock PMU Key EEPROM UART Adaptor LED S peaker System Power Li-ion Battery 16MHz 2402MHz - 2480MHz

Cover Letter(s)

GOLDSOUND ELECTRONIC. LTD. Flat 13, 3/F., Tel. : (852) 2191 2681 Hewlett Centre ., Fax.: (852) 2191 3781 54 Hoi Yuen Road., Kwun Tong e-mail : [email protected] Hong Kong "I, an officer of Goldsound Electronic. LTD. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this day of 2015-Ju n-10 By Signature : Printed Name : Raymond Tse Title : Engineer Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base

External Photos

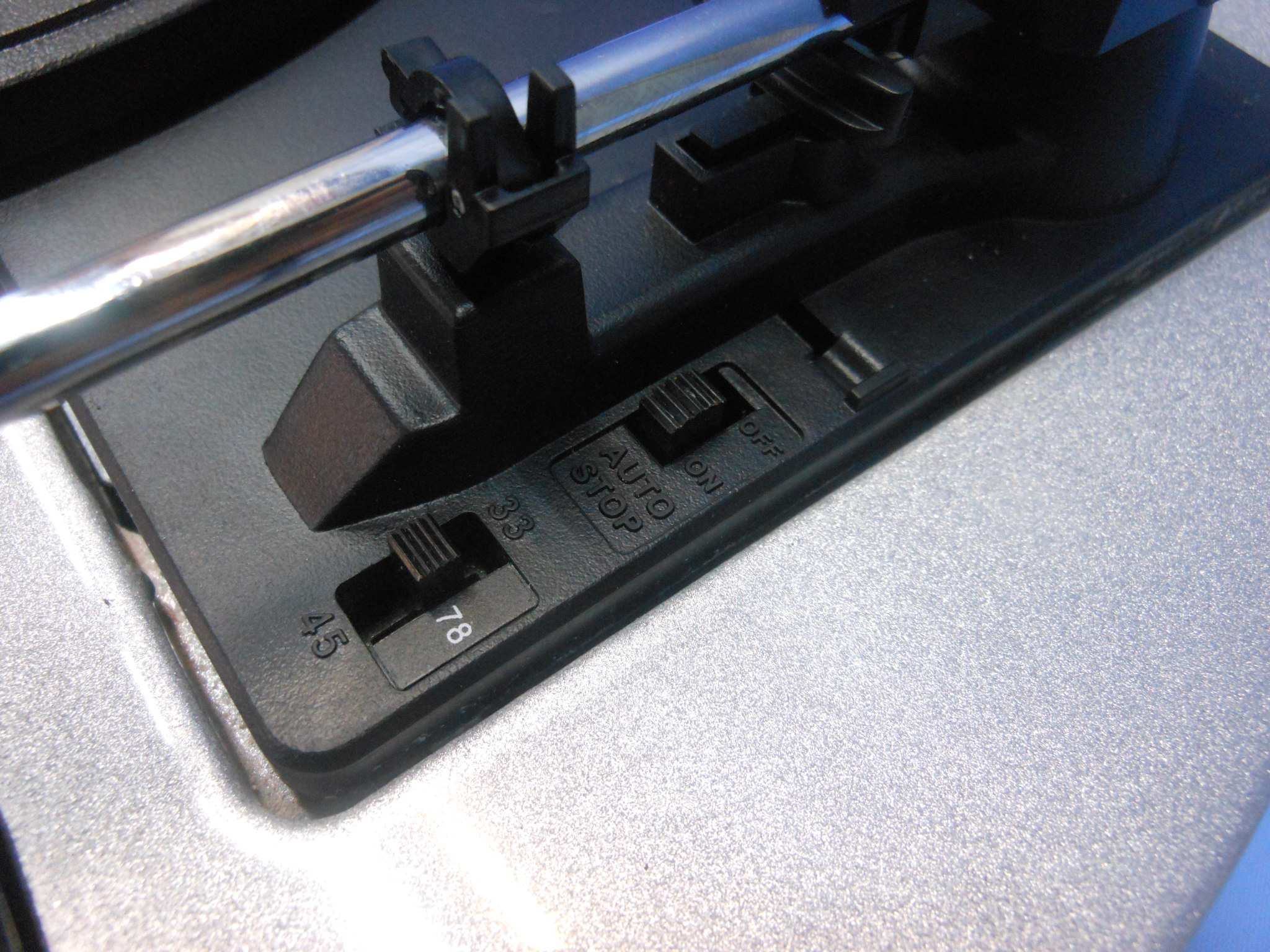

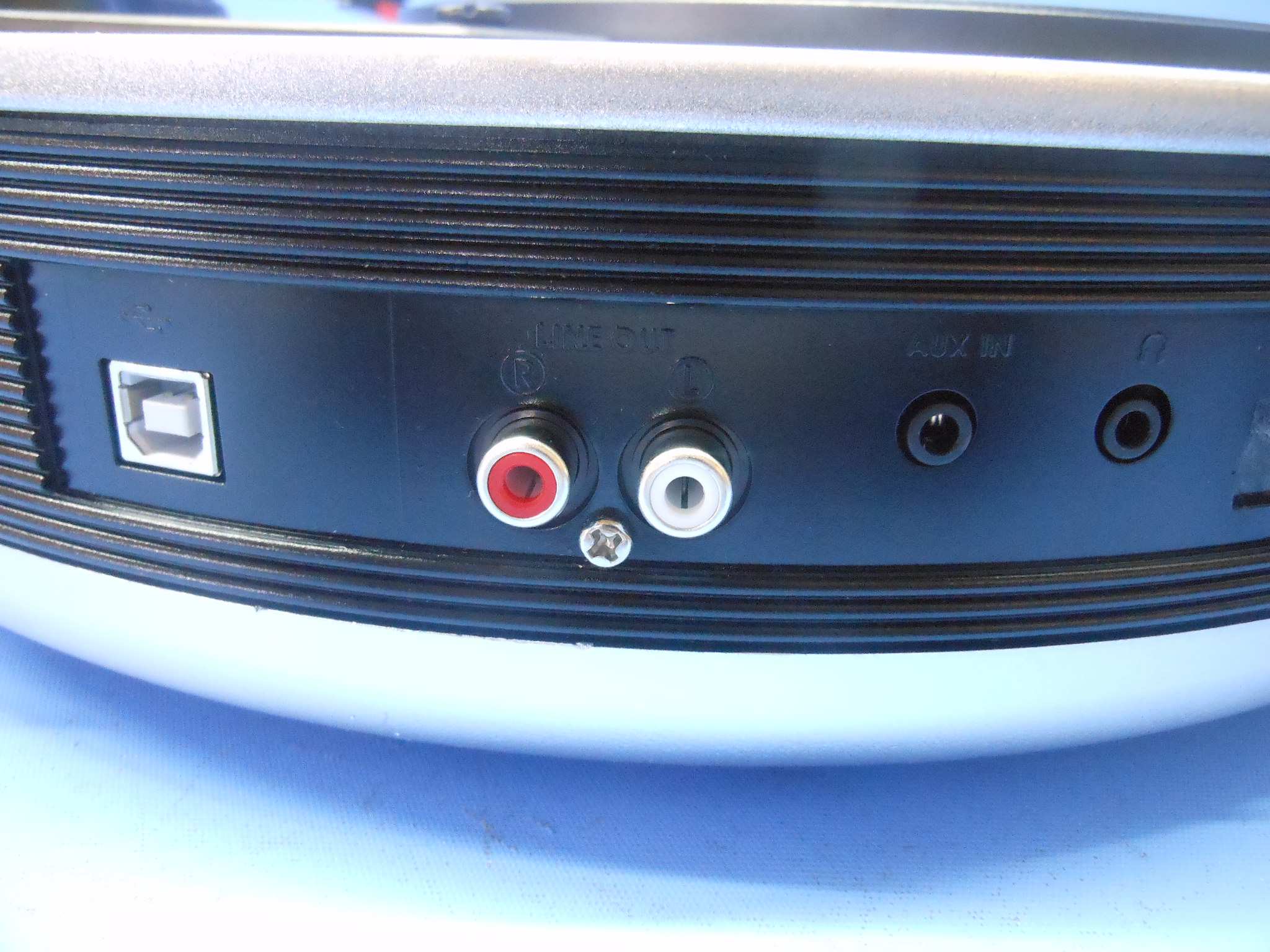

INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (External) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (External) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (External) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (External) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (External) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (External)

ID Label/Location Info

Bluetooth 3-Speed Stereo Turntable with Metal Tone Arm Power requirement : AC 120V ~ 60Hz, 12W FCC ID: RQU-TT-933BPC MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model: JTA-455 Distributed by: Spectra Merchandising Int’l, Inc. Chicago Industry Tech Park, 4230 North Normandy Avenue, Chicago IL60634, U.S.A. For Customer Service, please call 1-800-777-5331 RISK OF ELECTRIC SHOCK DO NOT OPEN J150335 Jensen JTA-455 (TT-933B PC) Rating label Size: W70 x 59.5mm Scale 1/1 Colour: Black background with white text Date: 8 June 2015

Internal Photos

INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (Internal) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (Internal) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (Internal) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (Internal) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (Internal) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (Internal) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (Internal) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (Internal) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (Internal) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (Internal) INTERTEK TESTING SERVICE Report No.: 15060062HKG-001 FCC ID: RQU-TT-933BPC Equipment Photographs Model: JTA-455 (Internal)

Internal Photos

Operational Description

Technical Description The Equipment Under Test (EUT) is a Bluetooth 3-Speed Stereo Turntable with Metal Tone Arm. It can accept input sources such as analog Aux-in (3.5mm phone jack), Phono (Long-Play Record) and wireless Bluetooth device. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The audio signal is amplified and fed to the built-in stereo loudspeakers. The EUT has an analog line-out (RCA) and headphone output (3.5mm phone jack). The EUT also equipped audio recording feature via USB port. The EUT is powered by 120VAC only. 2.4GHz Bluetooth Module: Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Nominal field strength is 90.8B V/m @ 3m Production Tolerance of field strength is +/- 3dB Antenna gain is 0dBi The functions of main ICs are mentioned below. 1. BlueTooth module BM8 4 (IC201): 1) U1 (IS1684S) acts as the 2.4GHz radio core of Bluetooth module IC201 (BM84), which is integrating with audio CODEC. 2) 16MHz crystal (X1) provides clock for Bluetooth RF IC IS1684S (U1). 3) U2 (24C32) is serial EEPROM for parameter backup of U1 (IS1684S). 4) IC202 (UTC4558) acts as analog audio output buffer amplifier. 2. USB Audio Recording Portion: 1) U500 (LW829A) acts as USB audio recorder. 3. Phono Small Signal Analog audio Portion: 1) IC502 (UTC4580) acts as RIAA equalizer of the stereo phono pick-up. 4. Audio Output portion: 1) IC504 (KA8227) is stereo power amplifier for loudspeakers and headphone. 2) IC503 (UTC4558) is Line-Out buffering amplifier. Channel Frequency Table of Bluetooth Module Preliminary Datasheet Version:0.92 Bluetooth 3.0+EDR Wireless Speaker Module BM84BM84BM84 BM84 2012.08.15 Preliminary Datasheet Version: 0.92 - 2 - Product Description module,designedforhighdatarate,short%rangewirelesscommunicationin the2.4GHzISMband.WithISSCBluetoothstackandprofile,theISSC solutionforwirelessvoice/audioapplications. Features Bluetooth3.0+EDRcompliant Typical+2dBmClass2outputpower Receiver Sensitivity: GFSK typical %91dBm, π/4 PSK typical %92dBm, 8DPSKtypical%84dBm PiconetandScatternetsupport HCIUARTinterface SBCdecodeforBluetoothaudiostreaming Build%inHighperformancestereoaudiocodec Cap%less/singleendheadphonedriver AudioDAC:94dBSNR BuildinMax.350mAHLi%ionbatterycharger 3Voperatingvoltage ROMversion:32KbEEPROM Size:15mmx29mm Build%inPCBAntenna RoHScompliant BM84 2012.08.15 The ISSC BM84 is a highly integrated Bluetooth 3.0+EDR stereo BM84 provides a low power and ultra-low cost Bluetooth 3.0+EDR Main Chip: ISSC IS1684S A2DP,AVRCP Profile support 36 pins for SMT module(with additional 35th pin antenna port for external antenna option) Preliminary Datasheet Version: 0.92 - 3 - Device Pinout Diagram P02 27 AIL 13 P27 28 11 SPKR 5 P30 1 P00 3 8 P20 2 SYS_PWR 19 9 GND 21 VDD_IO 15 P24 25 RST 14 P01 33 P16 32 P22 26 P05 29 HCI_TXD 30 P04 4 HCI_RXD 31 MFB 22 SPKL 6 BT_RF 35 VDDA 7 GND 34 BAT_IN 17 10 LED1 23 ADAP_IN 16 AIR 12 18 LED2 24 BK_OUT 20 BM84 2012.08.15 AOHPM GND NC NC NC P35 36 Preliminary Datasheet Version: 0.92 - 4 - Pin Definition Pin No. I/O Name Description 2 GPIO,defaultpull%highinput Line%indetection,1:noline%indetected;0:line%in detected 3P20 GPIO,defaultpull%highinput SystemConfiguration,H:ApplicationL: Baseband(IBDKMode) 4P00 GPIO,defaultpull%lowinput. SlideSwitchDetector 5P04 GPIO,defaultpull%highinput AudioAMPEnable 6SPKR R%channelanalogheadphoneoutput,single% ended applicationonly 7SPKL L%channelanalogheadphoneoutput,single%ended applicationonly VDDA Reserve for external cap to fine tune audio frequencyresponse AGND Audioground AIR Stereoanaloglinein,R%channel 13 AI AIL Stereoanaloglinein,L%channel RST_N SystemResetPin VDDIOpin,forcalibrationonly Donotaddexternalpowertothispin BM84 2012.08.15 1 AO AOHPM SPK-(Onle for Capless out put) P P30 I/O I/O I/O AO AO 8 AP 9AP 10 11 12 NC NC NC 14 AI 14 AI 15 I/O 16 P VDDIO 17 P adap_in Power adaptor input 18 P bat_in battery input 19 I/O P35 GPIO P35 20 P SYS_PW System power output 21 P bk_out buck feedback sense pin 22 P GND Ground Preliminary Datasheet Version: 0.92 - 5 - Multi%FunctionPushButtonkey CombinedPlay/PausekeywhenA2DPenabled. P24 GPIO,defaultpull%highinput SystemConfiguration,H:BootMode P22 GPIO,defaultpull%lowinput. ExternalLDOenable P02 GPIO,defaultpull%highinput PLAY/PAUSEbutton P27 GPIO,defaultpull%highinput Fowardbutton P05 GPIO,defaultpull%highinput REWbutton HCI_TXD HCITXdata P16 GPIO,defaultpull%highinput Volumndownbutton P01 GPIO,defaultpull%highinput Volumnupbutton BT_RF NCforonboardPCBantenna Antennamatchingifanexternalantennaisused BM84 2012.08.15 36 AIO 35 P GND Ground 34 I/O 33 I/O 32 I HCI_RXD HCI RX DATA 31 O 30 I/O 29 I/O 28 I/O 27 I/O 26 I/O 25 P LED2 LED Driver 2 24 P LED1 LED Driver 1 23 P MFB Preliminary Datasheet IS1684S Bluetooth 3.0(EDR) Multimedia SOC 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu city 30078, Taiwan, R.O.C Version:0.9 Phone: 886-3-577-8385 6/16/2012 Fax: 886-3-577-8501 1. General Description ISSC IS1684S is a compact, high integration, ultra-low cost, CMOS single-chip RF + baseband IC for Bluetooth v3.0(EDR) (Enhanced Data Rate) 2.4GHz applications. This chip is fully compliant with Bluetooth specification and completely backward-compatible with Bluetooth 1.1, 1.2, 2.0 or 2.1 systems. It incorpora…

Text truncated - open the document above for the full version.

RF Exposure Info

Analysis Report FCC ID: RQU-TT-933BPC 15060062HKG-001 The Equipment Under Test (EUT) is a Bluetooth 3-Speed Stereo Turntable with Metal Tone Arm. It can accept input sources such as analog Aux-in (3.5mm phone jack), Phono (Long-Play Record) and wireless Bluetooth device. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The audio signal is amplified and fed to the built-in stereo loudspeakers. The EUT has an analog line-out (RCA) and headphone output (3.5mm phone jack). The EUT also equipped audio recording feature via USB port. The EUT is powered by 120VAC only. Bluetooth 3.0: 2402MHz – 2480MHz, 79 channels, 1MHz spacing Antenna Type: Internal integral antenna Antenna Gain: 0dBi Operating mode Nominal Production Modulation Radiated Tolerance Type Field Strength Bluetooth 3.0 90.8 dBμV/m at 3m +3/-3dB GFSK According to the KDB 447498: For Bluetooth: Based on the Maximum allowed field strength of production tolerance was 93.8dBμV/m at 3m in frequency 2.480GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.72mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.72mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Schematics

RIAA & Headphone out Bluetooth2402MHz to 2480MHz X116MHz BM84 ' ' & & % % $ $ 33 0,&B%,$6 0)% 3 333+&,B5;'+&,B7;' 63./ 0,&B30,&B1567B1 3/('/(' ($1 3 %7B5) $,5$,/ 3 33 36. 63.5 3 3 63.53333567B10,&B%,$60,&B1$,5$,/0,&B363./ 3 %7B5) 0)%/('3 +&,B5;'+&,B7;' 3/('3333 6.3 6.3 3 3 333363.563./0,&B30,&B10,&B%,$6$,5$,/567B133+&,B5;'+&,B7;'33333/('/('0)%6.3 9''B,2 9''B,2 9 6<6B3:5 9 %$7B,1 $'$3B,1 9 %.B287 9 %.B287 6<6B3:5 &2'(&B92 9''B,2 9''B,2 9''B,2 &2'(&B92 &2'(&B9,1 &2'(&B9,1 9''B,2 6<6B3:5 $'$3B,1 %$7B,1 %.B287 &2'(&B9,19''B,2$'$3B,1%$7B,1 %.B2876<6B3:5 %RDUG1DPH 6L]H 7LWOH 5HY 'DWH 6KHHW RI 31 6&+B%063.1%B9B %063.1%%063.1% ,66&7HFKQRORJLHV&RUS $'')1R'XVLQJ5G+VLQFKX6FLHQFH3DUN +VLQFKX&LW\7DLZDQ 7(/ % 0RQGD\1RYHPEHU %RDUG1DPH 6L]H 7LWOH 5HY 'DWH 6KHHW RI 31 6&+B%063.1%B9B %063.1%%063.1% ,66&7HFKQRORJLHV&RUS $'')1R'XVLQJ5G+VLQFKX6FLHQFH3DUN +VLQFKX&LW\7DLZDQ 7(/ % 0RQGD\1RYHPEHU %RDUG1DPH 6L]H 7LWOH 5HY 'DWH 6KHHW RI 31 6&+B%063.1%B9B %063.1%%063.1% ,66&7HFKQRORJLHV&RUS $'')1R'XVLQJ5G+VLQFKX6FLHQFH3DUN +VLQFKX&LW\7DLZDQ 7(/ % 0RQGD\1RYHPEHU ((3520& 3,1'(),1$7,21 *3,2'HVFULSWLRQ 33333333 6OLGH6ZLWFK'HWHFW7;B,1' 5(9$XGLR$03(QDEOH):'3OD\3DXVH6\VWHP&RQILJXUDWLRQ6\VWHP&RQILJXUDWLRQ.HHSDOLYHIRUH[WHUQDO/'2 9 33 9ROXPHXS9ROXPHGRZQ 33 5;B,1'/LQHLQGHWHFW %20B%063.1%B9B%20B%063.1%B9B 5 5 %201$0( 2+0 13 2+0 13 6&+B%063.1%B9B 3LQ 6.3LQ 3 127( & X9 & X9 ,6 1 8,61 ,6 4 1 8,61 9''$2 $2+30 966$2 $2+3/ 9''$ 966$ 9&20 0,&3 0,&1 0,&B%,$6 9''B,2 567B1 3B 3B &2'(&B92 9B,1 $'$3B,1 %$7B,1 6$5B9'' 6<6B3:5 %.B9'' %.B/; ;2B1 ;2B3 9''B,2 +&,B5;' +&,B7;' 9 3B 3B 3B /(' /(' 0)% %.B287 $2+35 9 ($1 9''B,2 3B 3B 3B 3B 3B 57; 9&&B5) 3B 3B 9B2 *1' $,5 $,/ 6. 3B 5;B&/6 3B 3B $17$1703$17$1703 & X9 & X9 &X9&X9 55 &X9&X9 &S9&S9 73 5)73 73 5)73 55 &X9&X9 513513 / Q+/ Q+ & X9 & X9 &X9&X9 & 13 & 13 & X9 & X9 5.5. &X9&X9 )% )% )% )% 5.5. &S9&S9 513513 5555 & S9 & S9 & S9 & S9 -3-3;-3-3; & X9 & X9 5555 & S9 & S9 )3%063.1%)3%063.1% 3 3 +&,B7;' 63.5 63./ $*1' 9''$ 6<6B3:5 %$7B,1 *1' /(' 3 /(' 3 3 3 3 +&,B5;' 0,&B%,$6 0)% 3 %7B5) 3 *1' 0,&B3 0,&B1 9''B,2 $'$3B,1 567 %.B287 3 $,5 $,/ 3 6.3 &S9&S9 &X9&X9 -3-3;-3-3; 8$&(&8$&(& $ $ $ *1' 6'$ 6&/ :3 9&& / 13 / 13 & X9 & X9 //X+//X+ ;;30+=;;30+= 5.5. Bluetooth2402MHz to 2480MHz

Test Report

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15060062HKG-001 i FCC ID: RQU-TT-933BPC Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Goldsound Electronic Limited Grantee Address: Rm 13, 3/F, Hewlett Centre, 54 Hoi Yuen Road, Kwun Tong, Hong Kong. Contact Person: Raymond Tse Tel: (852) 2191-2681 Fax: (852) 2191-3781 e-mail: [email protected] Manufacturer: Goldsound Electronic Ltd. Manufacturer Address: Block C, Tanghuanling Industrial Park, Chashan Town, Dongguan, China. Brand Name: JENSEN / Goldsound Model: JTA-455 / TT-933BPC Type of EUT: Transceiver Description of EUT: Bluetooth 3-Speed Stereo Turntable Serial Number: N/A FCC ID: RQU-TT-933BPC Date of Sample Submitted: June 01, 2015 Date of Test: June 01, 2015 to June 09, 2015 Report No.: 15060062HKG-001 Report Date: June 16, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15060062HKG-001 ii FCC ID: RQU-TT-933BPC Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 Pass Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15060062HKG-001 iii FCC ID: RQU-TT-933BPC Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 2 1.4 Test Facility .................................................................................................. 2 2.0 System Test Configuration ............................................................................ 3 2.1 Justification................................................................................................... 3 2.2 EUT Exercising Software .............................................................................. 3 2.3 Special Accessories...................................................................................... 3 2.4 Measurement Uncertainty ............................................................................. 4 2.5 Support Equipment List and Description........................................................ 4 3.0 Emission Results ........................................................................................... 5 3.1 Field Strength Calculation ............................................................................. 5 3.2 Radiated Emission Configuration Photograph ............................................... 6 3.3 Radiated Emission Data ............................................................................... 6 3.4 Conducted Emission Configuration Photograph ............................................ 6 3.5 Conducted Emission Data............................................................................. 6 4.0 Equipment Photographs .............................................................................. 12 5.0 Product Labelling......................................................................................... 12 6.0 Technical Specifications.............................................................................. 12 7.0 Instruction Manual ....................................................................................... 12 8.0 Miscellaneous Information.......................................................................... 13 8.1 Radiated Emission on the Bandedge .......................................................... 13 8.2 Discussion of Pulse Desensitization ............................................................ 16 8.3 Calculation of Average Factor ..................................................................... 16 8.4 Emissions Test Procedures ........................................................................ 17 9.0 Equipment List ......................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

INTERTEK TESTING SERVICE Report No: 15060062HKG-001 FCC ID: RQU-TT-933BPC Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: JTA-455 INTERTEK TESTING SERVICE Report No: 15060062HKG-001 FCC ID: RQU-TT-933BPC Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: JTA-455

Test Setup Photos

INTERTEK TESTING SERVICE Report No: 15060062HKG-001 FCC ID: RQU-TT-933BPC i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: JTA-455 INTERTEK TESTING SERVICE Report No: 15060062HKG-001 FCC ID: RQU-TT-933BPC ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: JTA-455 INTERTEK TESTING SERVICE Report No: 15060062HKG-001 FCC ID: RQU-TT-933BPC iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: JTA-455
