RQU-VP-168BPortable System with Bluetooth Connect

Portable System With Bluetooth Connection VP-168B INSTRUCTION MANUAL WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. IMPORTANT SAFETYINSTRUCTIONS 1. Read these instructions 2. Keep these instructions 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with these instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments / accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. This appliance shall not be exposed to dripping or splashing water and that no object filled with liquids such as vases shall be placed on the apparatus. 16. Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely. 17. Battery shall not be exposed to excessive heat such as sunshine, fire or the like. 18. Do not overload wall outlet. Use only power source as indicated. 19. Do not attempt to dismantle, open or repair this product yourself. If a fault occurs, seek advice from your local qualified service technician or contact the distributor via the telephone number at the back of this instruction manual. 20. Caution marking and nameplate are located on back of product FCC Statement : This device complies with Part of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. WARNING : MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNAL IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW. Location of controls 1) Skip up button 2) Power LED indicator 3) Bluetooth indicator 4) FM stereo LED indicator 5) BT Disconnect button 6) Play/pause button 7) Tuning knob 8) Handle 9) Level meter 10) Dial scale 11) Treble knob 12) Skip down button 13) Bass knob 14) 3.5 mm headphone jack 15) Aux in jack 16) Off/functions selector 17) Band switch 18) Volume button 19) FM wire antenna 20) Battery Compartment 21) AC socket Caution: Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This unit should not be adjusted or repaired by anyone except qualified service personnel. Precautions for use Installation  Unpack all parts and remove protective material.  Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.  Do not cover any vents and make sure that there is a space of several centimeters around the unit for ventilation. AC Connection 1. Connect the one end of the detachable power cord to the AC socket (21) and the other end to the AC outlet. 2. When you first plug the unit into the mains, the unit was ready to play music. 3. Turn on the unit by Off/function selector (16), the POWER LED indicator (2) will light up. Battery installation 1. Open the battery door at the rear side of the unit to install the battery. 2. Follow the engraved marking in the compartment to install 8pcs “D” size / UM1 battery with the correct direction to the battery compartment (20). Then cover the battery door. 3. Disconnect the AC cord fro…

Text truncated - open the document above for the full version.

BASS—SPK Earphone Treble/Bass Volume control IC TC9153 Pre-Amp IC SC1308 Sub- woofer pre-Amp TUNER Channel IC TC 4052P SI 4730 L/R_SPK Power Amp IC TDA7377 AUX/BLUETOOTHLevel LED driver IC BKS-138-185 VP-168B block diagram BT EDR The emitter ClockPMU CPU RAMROMAudioEngine IO AudioDAC System Power LED Speaker EEPROM UART TO PC BKS TECHNOLOGY LTD2013-03-12BM84/BM81 The receiver

GOLDSOUND ELECTRONIC. LTD. Flat 13, 3/F., Tel. : (852) 2191 2681 Hewlett Centre., Fax.: (852) 2191 3781 54 Hoi Yuen Road., Kwun Tong e-mail : [email protected] Hong Kong "I, an officer of Goldsound Electroncis do hereby authorize Intertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this day of 2013-July-30 By Signature : Printed Name : Raymond Tse Title : Engineer Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base

INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (External) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (External) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (External)

FM ANT OPENOPEN RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING:SHOCK HAZARD-DO NOT OPEN AVIS:RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR DO NOT ALLOW THIS PRODUCT TO BE EXPOSED TO RAIN OR MOISTURE AC serial nr. PRODUCT COMPLIES WITH DHHS RULES 21 CFR - SUBCHAPTER J - APPLICATION DATE OF MANUFACTURE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The label shall read as follows: WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW. DHHS Label Dim:43 x 9 mm Black Text on White background FCC Label Dim:95 x 14 mm Black Text on White background Rating Label Dim: 70 x 35mm White text on Black background Serial No. Label Black Text on White background Model: BT168GB Distributed by Electro Brand Inc. Westchester, IL 60154 MADE IN CHINA FCC ID:RQU-VP-168B CONFORMS TO ANSI/UL STD. 60065 Portable system with Bluetooth connect FM 88 - 108 MHZ AM 540 - 1700 KHZ AC 120V 60Hz, 53 W DC 8 x 1.5V / ’D’ Size / R20 / UM-1 Model: BT168GB Distributed by Electro Brand Inc. Westchester, IL 60154 MADE IN CHINA FCC ID:RQU-VP-168B CONFORMS TO ANSI/UL STD. 60065 Portable system with Bluetooth connect FM 88 - 108 MHZ AM 540 - 1700 KHZ AC 120V 60Hz, 53 W DC 8 x 1.5V / ’D’ Size / R20 / UM-1

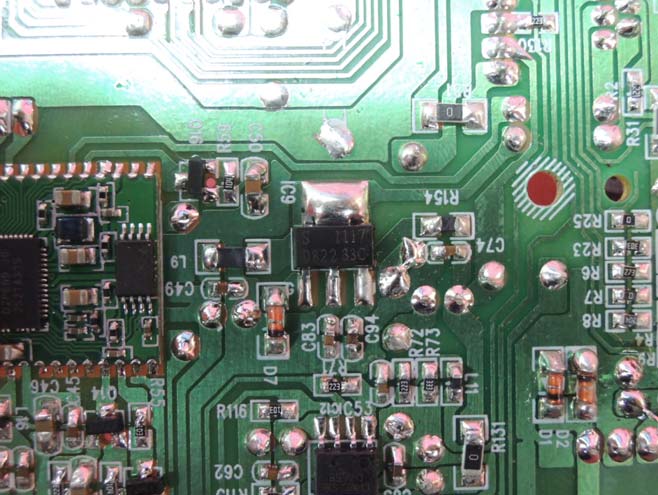

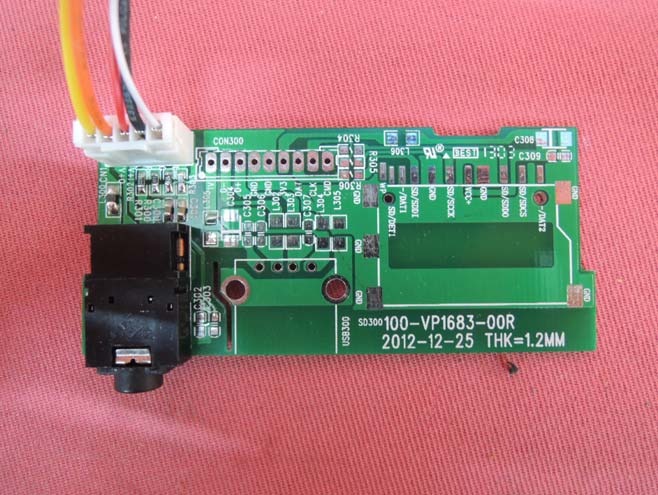

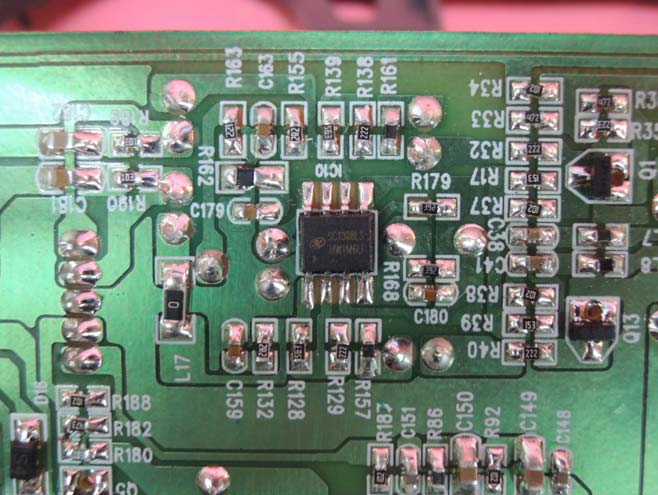

INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal) INTERTEK TESTING SERVICE Report No.: 13061472HKG-001 FCC ID: RQU-VP-168B Equipment Photographs Model : VP-168B (Internal)

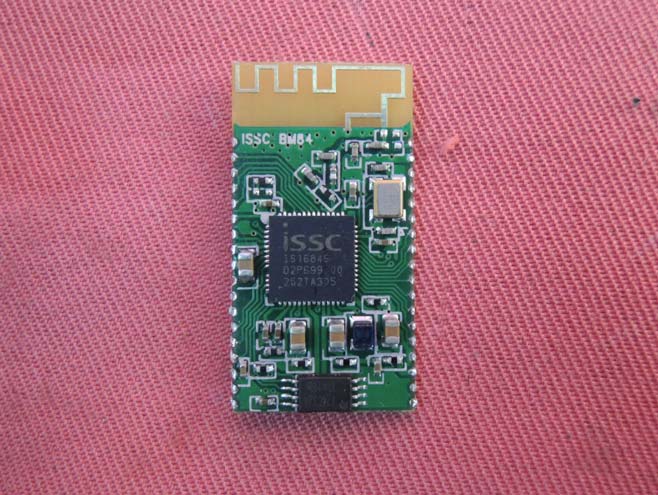

Technical Description The Equipment Under Test (EUT) is a Portable System with Bluetooth connection. It can accept both analog input sources (FM radio play and 3.5mm headphone-jack in), and wireless Bluetooth device. The Bluetooth module is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 120VAC. 2.4GHz Bluetooth Module: Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Nominal field strength is 93.8dB ȝV/m @ 3m Production Tolerance of field strength is +/- 3dB Antenna gain is 0dBi The functions of main ICs are mentioned below. 1. BlueTooth module BM81SPK01 (U507): 1) U1 (IS1684S) acts as the 2.4GHz radio core of Bluetooth module (U2) (BM81SPK01NB2), which is integrating with audio CODEC. 2) 16MHz crystal (X1) provides clock for Bluetooth RF IC IS1681S (U1). 3) U2 (24C32) is serial EEPROM for parameter backup of U1 (IS1681S). 2. Power Supply portion: 1) Regulator for RF module: ICYT81117T3.3V 3. Control MCU: 1) IC1 SC9671B 4. Linear Integrated Circuit 1) IC505 TC9153 5. Dual Operational Amplifier 1) IC506. IC508 UTC4558 6. Power Amplifier 1) IC503 TDA7377 7. Multiplexer 1) IC509 TC4052P 8. Broadcast FM radio Tuner 1) U500 SI4831-B Channel Frequency Table of Bluetooth Module Preliminary Datasheet BM81SPK01 Version:0.92 9/20/2011 1 BM81SPK01 Bluetooth 3.0+EDR Wireless Speaker Module Version: 0.92 - 2 - 9/20/2011 Product Description The ISSC BM81SPK01 is a highly integrated Bluetooth 3.0+EDR stereo module, designed for high data rate, short-range wireless communication in the 2.4 GHz ISM band. With ISSC Bluetooth stack and profile, the ISSC BM81SPK01 provides a low power and ultra-low cost Bluetooth 3.0+EDR solution for wireless voice/audio applicati ons. Features
Main Chip: ISSC IS1684S
Bluetooth 3.0+EDR compliant
Typical +2dBm Class 2 output power
Receiver Sensitivity: GFSK typical -91dBm, π/4 PSK typical -92dBm, 8DPSK typical -84dBm
Piconet and Scatter net support
HCI UART interface
CVSD , A-law, μ-law CODEC algorithms for voice applications
SBC decode for Bluetooth audio streaming
Build-in High performance stereo audio codec
Cap-less/single end headphone driver
Audio DAC: 94dB SNR
Build in Max. 350mAH Li-ion battery charger
HSP, HFP, A2DP, AVRCP profile support
3V operating voltage
ROM version: 32Kb EEPROM
34 pins for DIP module, 35pins for SMT module (with additional 35th pin antenna port for external antenna option)
Size: 15mm x29mm
Build-in PCB Antenna
RoHS compliant Preliminary Datasheet BM81SPK01 Version: 0.92 - 3 - 9/20/2011 Device Pinout Diagram P02 27 AIL 13 P27 28 MIC_BIAS 11 SPKR 5 P30 1 P00 3 AGND 8 P20 2 SYS_PWR 19 MIC1_P 9 GND 21 VDD_IO 15 P24 25 RST 14 P01 33 P16 32 P22 26 P05 29 HCI_TXD 30 P04 4 HCI_RXD 31 MFB 22 SPKL 6 BT_RF 35 VDDA 7 GND 34 BAT_IN 17 MIC1_N 10 LED1 23 ADAP_IN 16 AIR 12 SK1/P03 18 LED2 24 BK_OUT 20 Preliminary Datasheet BM81SPK01 Version: 0.92 - 4 - 9/20/2011 Pin Definition Pin No. I/O Name Description 1 P P30 GPIO, default pull-high input Line-in detection, 1: no line-in detected; 0: line-in detected 2 I/O P20 GPIO, default pull-high input System Configuration, H: Application L: Baseband(IBDK Mode) 3 I/O P00 GPIO, default pull-low input. Slide Switch Detector 4 I/O P04 GPIO, default pull-high input Audio AMP Enable 5 AOSPKR R-channel analog headphone output, single-ended application only 6 AOSPKL L-channel analog headphone output, single-ended application only 7 AP VDDA Reserve for external cap to fine tune audio frequency response 8 AP AGND Audio ground 9 AI MIC1_P Mic 1 mono differential analog positive input 10 AI MIC1_N Mic 1 mono differential analog negative input 11 AP MIC_BIASMicrophone biasing voltage 12 AI AIR Stereo analog line in, R-channel 13 AI AIL Stereo analog line in, L-channel 14 I/O RST_N System Reset Pin 15 P VDDIO VDDIO pin, for calibration only Do not add external power to this pin 16 P ADAP_IN Power adaptor input 17 P BAT_IN Battery input 18 I/O SK1/P03 Default SAR input for battery detection This pin can be re-defined as GPIO P03 19 P SYS_PW System Power Output 20 P BK_OUT Buck feedback sense pin 21 P GND Digital ground Preliminary Datasheet BM81SPK01 Version: 0.92 - 5 - 9/20/2011 22 P MFB Multi-Function Push Button key Combined Play/Pause key when A2DP enabled. 23 P LED1 LED Driver 1 24 P LED2 LED Driver 2 25 I/O P24 GPIO, default pull-high input System Configuration, H: Boot Mode 26 I/O P22 GPIO, default pull-low input. External LDO enable 27 I/O P02 GPIO, default pull-high input PLAY/PAUSE button 28 I/O P27 GPIO, default pull-high input Foward button 29 I/O P05 GPIO, default pull-high input REW button 30 OHCI_TXD HCI TX data 31 I HXI_RXD HCI RX data 32 I/O P16 GPIO, default pull-high input Volumn down button 33 I/O P01 GPIO, default pull-high input Volumn up button 34 P GND Digital ground 35 AIOBT_RF NC for on board PCB antenna Antenna matching if an external antenna is used Preliminary Datasheet BM81SPK01 Version: 0.92 - 6 - 9/20/2011 Outline Dimension (Module Foot print) Preliminary Datasheet BM81SPK01

Analysis Report Report No.: 13061472HKG-001 The Equipment Under Test (EUT) is a Portable System with Bluetooth connection. It can accept both analog input sources (FM radio play and 3.5mm headphone-jack in), and wireless Bluetooth device. The Bluetooth module is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 120VAC. Antenna Type: Internal integral (PCB Trace) Antenna Gain: 0dBi Nominal rated field strength: 93.8dBμV/m at 3m Maximum allowed field strength of production tolerance: -/+3 dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 96.8dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.436mW Conducted power = Radiated Power (EIRP) - Antenna Gain So; Conducted Power = 1.436mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mWm Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061472HKG-001 i FCC ID: RQU-VP-168B Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Goldsound Electronic Limited BRAND NAME: Goldsound, MODEL: VP-168B BRAND NAME: iTrak by Encore Technology, MODEL: BT168GB FCC ID: RQU-VP-168B Grantee: Goldsound Electronic Limited Grantee Address: Rm13, 3F, Hewlett Centre, 54 Hoi Yuen Road, Kwun Tong, Hong Kong. Contact Person: Raymond Tse Tel: (852) 2191 2681 Fax: (852) 2191 3781 e-mail: [email protected] Manufacturer: Goldsound Electronic Ltd. Manufacturer Address: Block C, Tanghuanling Industrial Park, Chashan Town, Dongguan, China. Brand Name: Goldsound / iTrak by Encore Technology Model: VP-168B Additional Model: BT168GB Type of EUT: Transceiver Description of EUT: Portable System with Bluetooth Connect Serial Number: N/A FCC ID: RQU-VP-168B Date of Sample Submitted: June 28, 2013 Date of Test: July 25, 2013 Report No.: 13061472HKG-001 Report Date: August 22, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061472HKG-001 ii FCC ID: RQU-VP-168B Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT GoldSound Electronic Limited BRAND NAME: Goldsound, MODEL: VP-168B BRAND NAME: iTrak by Encore Technology, MODEL: BT168GB FCC ID: RQU-VP-168B TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.249 Pass Digital Device Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061472HKG-001 iii FCC ID: RQU-VP-168B Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 3.4 Conducted Emission Configuration Photograph ............................................ 5 3.5 Conducted Emission Data............................................................................. 5 4.0 Equipment Photographs .............................................................................. 10 5.0 Product Labelling..........................................................…
