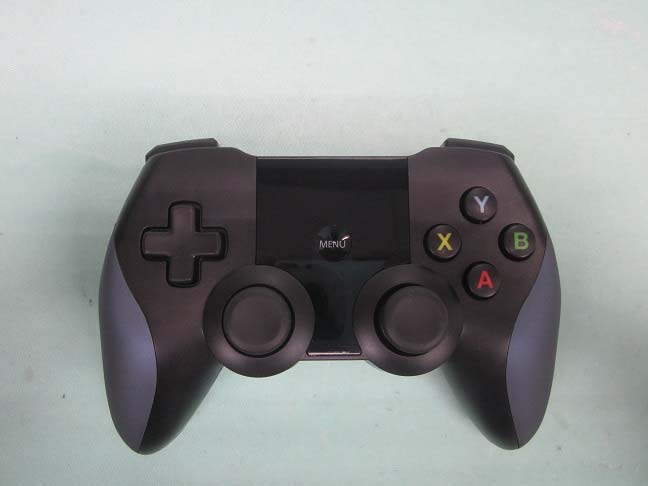

1 External Photo FCC ID: RQZHIP-1850 Front View of The Product Rear View of The Product 2 Top View of The Product Bottom View of The Product 3 Left View of The Product Right View of The Product

1 Internal Photo FCC ID: RQZHIP-1850 Inside View of The Product Inner Circuit Top View 2 Inner Circuit Bottom View Inner Circuit Top View 3 Inner Circuit Bottom View Inner Circuit Top View 4 Inner Circuit Bottom View

ReportNo.:BL-SZ1580204-901 2 / 13 RevisionHistory VersionIssueDateRevisions Rev.01Sep.30,2015InitialIssue TABLEOFCONTENTS 1GENERALINFORMATION.........................................................................................................................................3 1.1IdentificationoftheTestingLaboratory..............................................................................................................3 1.2IdentificationoftheResponsibleTestingLocation...........................................................................................3 1.3Announce................................................................................................................................................................3 2PRODUCTINFORMATION ........................................................................................................................................ 4 2.1Applicant ................................................................................................................................................................. 4 2.2Manufacturer .......................................................................................................................................................... 4 2.3GeneralDescriptionforEquipmentunderTest(EUT)....................................................................................4 2.4TechnicalInformation............................................................................................................................................4 3SUMMARYOFTESTRESULTS ............................................................................................................................... 5 3.1TestStandards.......................................................................................................................................................5 3.2TestVerdict ............................................................................................................................................................. 5 3.3TestUncertainty ..................................................................................................................................................... 5 4GENERALTESTCONFIGURATIONS.....................................................................................................................6 4.1TestCondition........................................................................................................................................................6 4.2TestEquipmentList..............................................................................................................................................6 4.3TestSetup..............................................................................................................................................................6 ANNEXATESTRESULTS ............................................................................................................................................ 7 A.1GainandEfficiency..............................................................................................................................................7 ANNEXBRADIATIONPATTERN.................................................................................................................................8 ANNEXCTESTSETUPPHOT..................................................................................................................................12 ANNEXDEUTPHOTO................................................................................................................................................13 ReportNo.:BL-SZ1580204-901 3 / 13 1GENERALINFORMATION 1.1IdentificationoftheTestingLaboratory CompanyNameHatchInternationalLimited [email protected] PhoneNumber0755-83689256 FaxNumber0755-83689256 1.2IdentificationoftheResponsibleTestingLocation TestLocation1ShenzhenBALUNTechnologyCo.,Ltd. Address BlockB,1stFL,BaishaScienceandTechnologyPark,ShaheXiRoad, NanshanDistrict,Shenzhen,GuangdongProvince,P.R.China AccreditationCertificate ThelaboratoryhasmettherequirementsoftheIASAccreditation CriteriaforTestingLaboratories(AC89),hasdemonstrated compliancewithISO/IECStandard17025:2005.Theaccreditation certificatenumberisTL-588. ThelaboratoryisatestingorganizationaccreditedbyChinaNational AccreditationServiceforConformityAssessment(CNAS)accordingto ISO/IEC17025.TheaccreditationcertificatenumberisL6791. Description Allmeasurementfacilitiesusedtocollectthemeasurementdataare locatedatBlockB,FL1,BaishaScienceandTechnologyPark,Shahe XiRoad,NanshanDistrict,Shenzhen,GuangdongProvince,P.R. China518055 1.3Announce (1)Thetestreportisinvalidifnotmarkedwiththesignaturesofthepersonsresponsibleforpreparingand approvingthetestreport. (2)Thetestreportisinvalidifthereisanyevidenceand/orfalsification. (3)Theresultsdocumentedinthisreportapplyonlytothetestedsample,undertheconditionsandmodesof operationasdescribedherein. (4)ThisdocumentmaynotbealteredorrevisedinanywayunlessdonesobyBALUNandallrevisionsare dulynotedintherevisionssection. (5)Contentofthetestreport,inpartorinfull,cannotbeusedforpublicityand/orpromotionalpurposeswithout priorwrittenapprovalfromthelaboratory. ReportNo.:BL-SZ1580204-901 4 / 13 2PRODUCTINFORMATION 2.1Applicant ApplicantHORICo.,Ltd. Address 640Saedo-Cho,Tsuzuki-ku,Yokohama-shi,Kanagawa-ken224-0054, Japan 2.2Manufacturer ManufacturerDongguanCityFuzeElectronicCO.,LTD. Address No.2,DongyihengRoad,HuanshidongRoad,TangxiaTown, DongguanCity,GuangdongProvince,China 2.3GeneralDescriptionforEquipmentunderTest(EUT) EUTTypeHORIPADULTIMATE ModelNameHIP-047(U/E) AntennaTypePCBAntenna HardwareVersionN/A SerialNumberN/A Dimensions20mm×3mm 2.4TechnicalInformation FrequencyRange2402MHz~2480MHz TestFrequencies2402MHz,2441MHz,2480MHz ReportNo.:BL-SZ1580204-901 5 / 13 3SUMMARYOFTESTRESULTS 3.1TestStandards No.IdentityDocumentTitle 1IEEE149-1979IEEEStandardTestProceduresforAntennas 3.2TestVerdict ReportSectionDescr…

Text truncated - open the document above for the full version.

STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date: 2015-09-01 Page 1 of 84 No.: DM120749 Applicant: HORI Co., Ltd. 640 Saedo-Cho, Tsuzuki-ku, Yokohama-shi, Kanagawa-ken 224-0054, Japan Manufacturer: HORI Co., Ltd. 640 Saedo-Cho, Tsuzuki-ku, Yokohama-shi, Kanagawa-ken 224-0054, Japan Description of Sample(s): Product: HORI PAD ULTIMATE Brand Name: HORI Model Number: HIP-047(U/E) FCC ID: RQZHIP-1850 Date Sample(s) Received: 2015-08-21 Date Tested: 2015-08-25 to 2015-09-01 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date: 2015-09-01 Page 2 of 84 No.: DM120749 CONTENT: Cover Page 1 of 84 Content Page 2 of 84 1.0 General Details 1.1 Test Laboratory Page 3 of 84 1.2 Equipment Under Test [EUT] Page 3 of 84 Description of EUT operation 1.3 Date of Order Page 3 of 84 1.4 Submitted Sample Page 3 of 84 1.5 Test Duration Page 3 of 84 1.6 Country of Origin Page 3 of 84 1.7 RF Module Details Page 4 of 84 1.8 Antenna Details Page 4 of 84 2.0 Technical Details 2.1 Investigations Requested Page 5 of 84 2.2 Test Standards and Results Summary Page 5 of 84 2.3 Table for Test Modes Page 6 of 84 3.0 Test Results 3.1 Emission Page 7 – 78 of 84 Appendix A List of Measurement Equipment Page 79 of 84 Appendix B Ancillary Equipment Page 80 of 84 Appendix C Photographs Page 81-84 of 84 STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date: 2015-09-01 Page 3 of 84 No.: DM120749 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, Guangdong, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: HORI PAD ULTIMATE Manufacturer: HORI Co., Ltd. 640 Saedo-Cho, Tsuzuki-ku, Yokohama-shi, Kanagawa-ken 224-0054, Japan Brand Name: HORI Model Number: HIP-047(U/E) Rating: 5.0Vd.c. (Powered by USB port) / Li-ion rechargeable battery x1 = 3.7Vd.c 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a HORI PAD ULTIMATE. The r.f. signal was modulated by IC and type of modulation was frequency hopping spread spectrum Modulation. 1.3 Date of Order 2015-08-21 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2015-08-25 to 2015-09-01 1.6 Country of Origin China STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date: 2015-09-01 Page 4 of 84 No.: DM120749 1.7 RF Module Details Module Model Number: CSRB5342 Module FCC ID: Module Transmission Type: Bluetooth V4.1+ EDR Modulation: FHSS (GFSK / π/4-DQPSK / 8DPSK) Data Rates: 1MBps: GFSK 2 MBps: π/4-DQPSK 3 MBps: 8DPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: PCB antenna Antenna Gain: -3.41dBi STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date: 2015-09-01 Page 5 of 84 No.: DM120749 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 Regulations. FCC Pubic Notice DA 00-705 and ANSI C63.4: 2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Maximum Peak Conducted Output Power FCC 47CFR 15.247(b)(1) FCC Pubic Notice DA 00-705 N/A Radiated Spurious Emissions FCC 47CFR 15.209 ANSI C63.4:2009N/A AC Mains Conducted Emissions FCC 47CFR 15.207 ANSI C63.4:2009N/A Number of Hopping Frequency FCC 47CFR 15.247 (b)(1) FCC Pubic Notice DA 00-705 N/A 20dB Bandwidth FCC 47CFR 15.247(a)(2) FCC Pubic Notice DA 00-70…
