RQZUHP2-109Game Controller Transmitter

Assembly of Sword and Scabbard Attach the sword to the controller as shown the illustration blow. Attach the scabbard to the controller combined with the sword as shown in the illustration below. The sword and the scabbard are set only for visual use. When you play with this controller, make sure to remove the scabbard and the sword from the controller. Make sure to read carefully the after-mentioned information on "Caution". Assemble each part of the sword stand as shown in the illustration below. Assembly of Sword Stand This sword stand can support the controller attached to the sword and the scabbard as the excellent display. When playing with this controller, make sure to remove the scabbard and the sword from the controller. Never swing the controller still attached to the scabbard and the sword. Very dangerous such a play is! Thrown scabbard and sword may cause injury and damage against surrounding household furniture. Never done! Make sure to look around to check whether any persons and substances are out of the controller touchable area in order to avoid from hitting them by the controller. Further, keep any person off during a play. The controller swung by a player is very dangerous and may cause a personal injury and damage against surrounding household furniture from a hit. Make sure to put your wrist through the strap and grip the controller firmly with both hands not to be thrown off unexpectedly when you play using this controller. This controller is so heavy that e.g., a fall on your foot may cause a severe injury. Do not whip the strap around your finger and so on. It is very dangerous because blood flow obstruction may occur. There may be possible accident caused by the strap, so that keep it off from the kids below the age of three. Do not use the controller in irregular manners such as hitting, knocking by the controller or wielding the controller. Never point at any person with this controller. It is so much dangerous if you point at a person that the pointed person may injure you from his/her self-defensive mind. Do not move around with the bare controller not to give a false idea to any person. Make sure carry it in the case or your bag. Keep off the controller set from the kids below the age of three after a play to ensure their safety. Kid's play with it may cause unexpected injury and/or accidents Do not let this controller drop, or give a strong impact or abnormal force on the controller. Broken fragment may injure your body. Do not use a broken or deformed controller. It is dangerous. Never disassemble or modify the controller. We are never responsible for any accident, damage and/or loss caused from wrong handling by a customer. Please be forewarned, we are not responsible for any compensation of injury, damage and/or loss caused by such wrong handling. Important Information For ParentsMake sure to read here. CAUTION Caution on Communication Keep the distance between this controller and the receiver within 5 m for successful communication. However the possible distance range for communication may become smaller due to environment condition such as radio noise, electromagnetic interference or radio interference. Do not use this controller and the receiver near apparatus (e.g., wireless devices) that may cause radio interference or electromagnetic interference. Loss of normal control or malfunction of other devices may be caused. Use the controller keeping off large metal substances such as steel furniture as far as possible. If you feel some inconvenience due to frequent loss of control, change the current channel switch numbers of this controller and the receiver to the other number. Caution for Health Get rest for 15 minutes after playing for 30 minutes as a rough rule for your health if you want to play a game for a long time. Please do not play a game if you are tired or short of sleep as it is not favorable condition for your health. Some symptom such as temporary muscle spasm or loss of consciousness appears in rare casecs on a player when receiving a strong light stimulus or looking at flashing TV screen. If you have such an experience, make sure to consult a medical doctor before playing a game. Immediately stop a play and consult a medical doctor, if you feel such as the above-mentioned symptoms, nausea, fatigue or a symptom like travel sickness when looking at the playing screen. Immediately leave off a play, if you feel fatigue or unexpected pain on your hand or arm during a game play. If such a symptom appears in a game play or continues after that, abort a play and make sure to consult a medical doctor. If you ignore these cautions, it might cause some long-term disease. When you feel some bad condition such as eye fatigue or dry, stop a play and get rest for 5 to 10 minutes. Never play with this product if you have some disease of bones or a joint. Never play with this product if you have a bone fracture at your finger, hand or wrist, or you are suffering dislocation, have your muscle torn or have a strain. If you have some disease at a part of hand or arm or get fatigue from other factor, a game play might deteriorate such symptoms. If you have some of such symptoms, make sure to consult a medical doctor before playing a game. Make a room brighter and keep a correct distance when playing a game. Vibration Function This product is the sensory type game controller with vibration function. The vibration function is available only for the software that supports the vibration function. When you enjoy the vibration function, activate the vibration function of game software at the first setout. For more information, see an operation manual of software. Caution for Your Health (Vibration Function) Stop a play immediately, if you feel fatigue, sick or pain on your hand and/or arm. If such a symptom does not disappear after some rest, consult a medical doctor. Never hit bone-close parts of human body such as head, elbow and knee, or face and abdominal area…

Text truncated - open the document above for the full version.

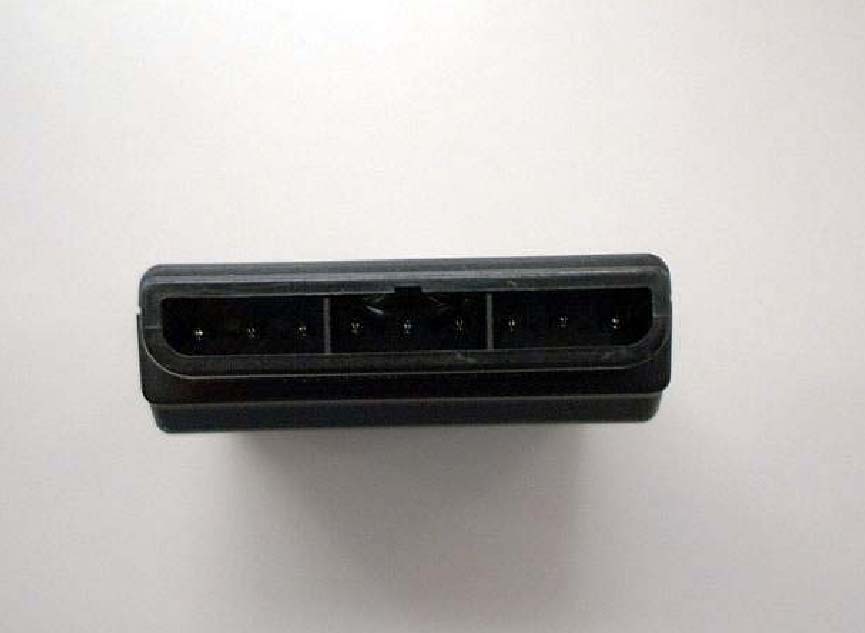

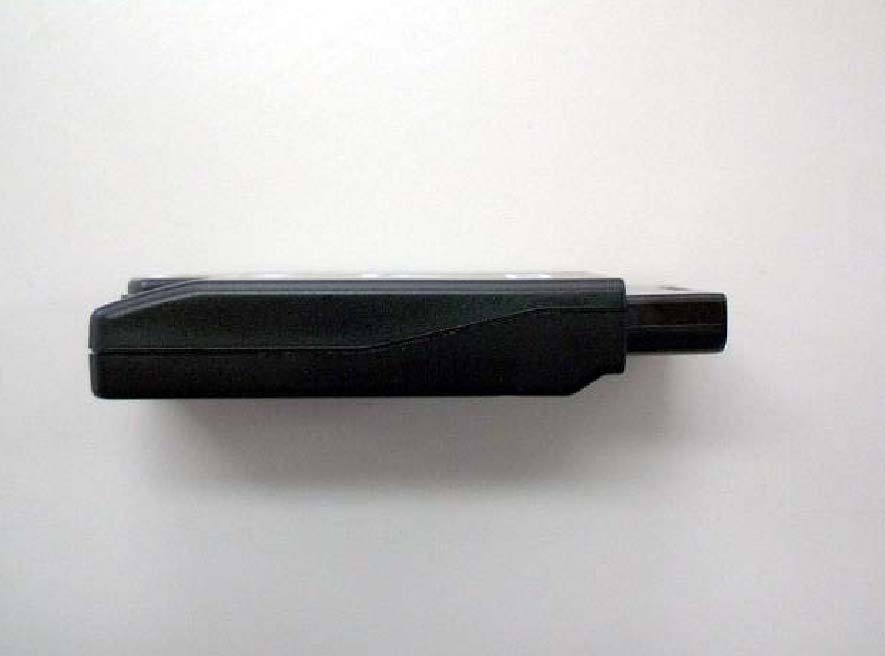

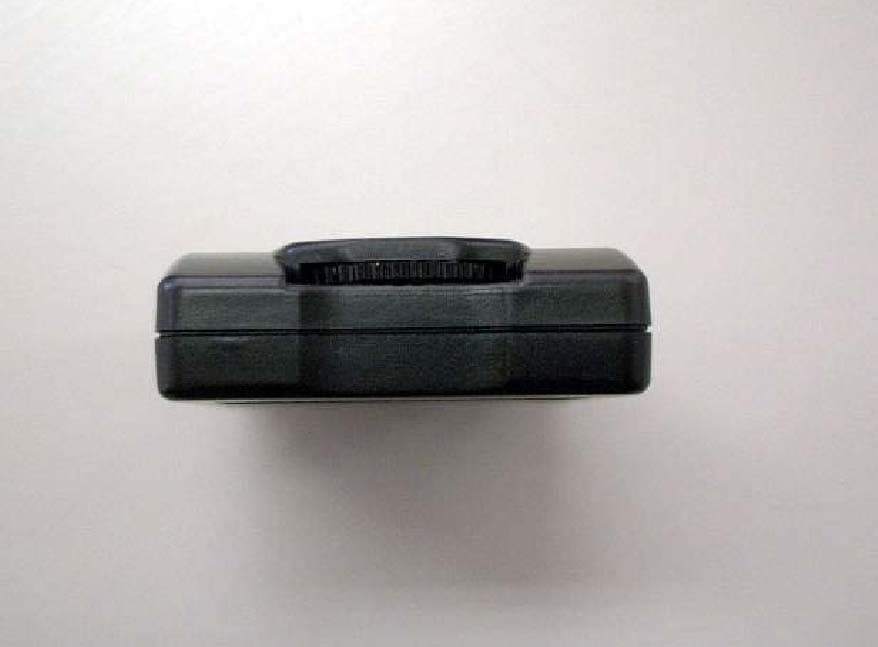

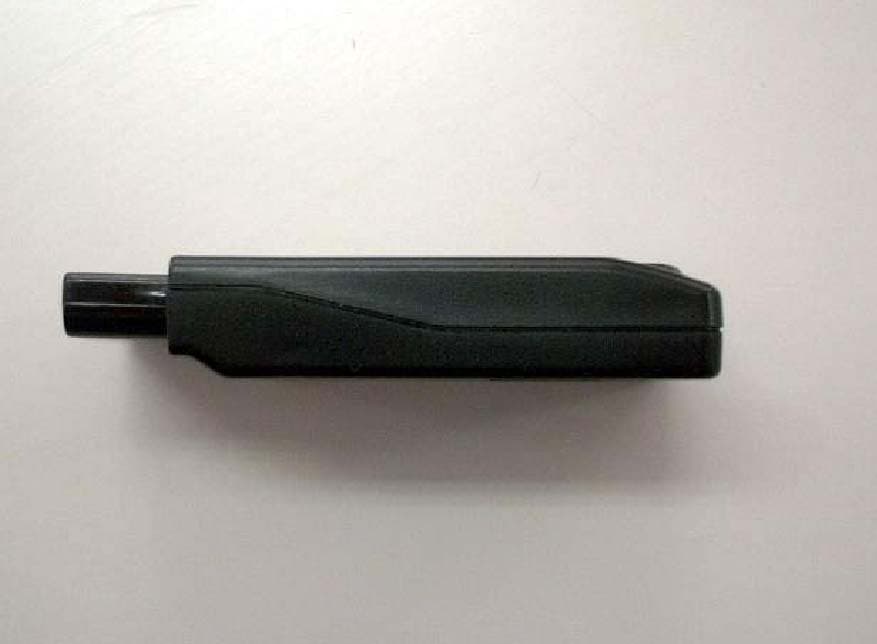

External Photo HORI Co.,Ltd. Model: UHP2-109 FCC ID: RQZUHP2-109 Front View Rear View External Photo HORI Co.,Ltd. Model: UHP2-109 FCC ID: RQZUHP2-109 Top View Bottom View External Photo HORI Co.,Ltd. Model: UHP2-109 FCC ID: RQZUHP2-109 Left Hand Side Right Hand Side

200% WIRELESS CONTROLLER CO,.LTD. MADE IN CHINA FCC ID : RQZUHP2-109 MODEL NO. : UHP2-109

Internal Photo HORI Co.,Ltd. Model: UHP2-109 FCC ID: RQZUHP2-109 RF Module Front RF Module Rear Internal Photo HORI Co.,Ltd. Model: UHP2-109 FCC ID: RQZUHP2-109 Location of RF Module

FCC ID : RQZUHP2-109 Test report No. : 24DE0265-YK-1 Page : 2 of 34 Issued date : January 22, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) Table of Contents Page 1 GENERAL INFORMATION 3 1.1 Tested Methodology 3 1.2 Test Facility 3 2 PRODUCT DESCRIPTION 4 3 SYSTEM TEST CONFIGURATION 5 3.1 Justification 5 3.2.Configuration of Tested System 5 4 MEASUREMENT UNCERTAINTY 6 5 SUMMARY OF TESTS 7 5.1 § 15.207 Conducted Emissions(Limit by CISPR Pub.22 Class B) 7 5.2 § 15.249(a) Field Strength(Radiated Emissions) 8 5.3 26dB Bandwidth 8 Contents of Appendixes 9 APPENDIX 1: Photographs of test setup 10 APPENDIX 2: Test Data 13 APPENDIX 3: Test instruments 34 FCC ID : RQZUHP2-109 Test report No. : 24DE0265-YK-1 Page : 3 of 34 Issued date : January 22, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 1 GENERAL INFORMATION Applicant Company Name : HORI CO., LTD. Brand Name : HORI Address : 640 Saedo-cho, Tsuzuki-ku, Yokohama, 224-0054 Japan Telephone Number : +81 45 933 9611 Facsimile Number : +81 45 933 9617 Contact Person : Kazutoshi Kijima / [email protected] Type of Equipment : Game Controller Model No. : UHP2-109 Serial No. : S1 Rating : DC3.5V Receipt Date of Sample : January 13, 2004 Condition of EUT : Production prototype Regulation(s) : FCC Part15 Subpart C, Section 15.249 Test Site : UL Apex No.1 Anechoic Chamber 1.1 Tested Methodology The measurements were performed according to the procedures in ANSI C63.4 (2001). 1.2 Test Facility This site has been fully described in a report submitted to FCC office, and accepted on November 28, 2002 (Registration No.: 95967). NVLAP Lab. code : 200441-0 FCC ID : RQZUHP2-109 Test report No. : 24DE0265-YK-1 Page : 4 of 34 Issued date : January 22, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 2 PRODUCT DESCRIPTION HORI CO., LTD. , Model: UHP2-109 (referred to as the EUT in this report) is a Game Controller. The clock frequencies used in EUT : 14.7456MHz, 8MHz Frequency characteristics : 903.018MHz through 926.3652MHz Number of channels/ channel spacing : 8 channels/ 3MHz Modulation : Frequency modulation Antenna type : Chip Antenna Gain : -3dBi Operating Voltage : DC3.5V *FCC Part15.31 (e) The host device SCPH-39001 provides the Game controller with stable power supply (DC3.5V), and the power is not changed when voltage of the Play Station2 is varied. Therefore, the Game Controller complies power supply regulation. *FCC Part15.203 The Game controller and its antenna comply with this requirement since this antenna is built in Game controller when they are put up for sale and they are used with a particular antenna connector. FCC ID : RQZUHP2-109 Test report No. : 24DE0265-YK-1 Page : 5 of 34 Issued date : January 22, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode: Transmitting mode Low channel : 903.0180MHz Middle channel : 912.8484MHz High channel : 926.3652MHz The EUT was tested in all three orthogonal planes in order to determine worst case emissions. Channels at 903.0180 MHz, 912.8484 MHz and 926.3652 MHz were tested and investigated from 30 MHz to 10 GHz. Data for all three channels are presented in this report. 3.2 Configuration of Tested System Front View *Cabling was taken into consideration and test data was taken under worse case conditions. Top View *Cabling was taken into consideration and test data was taken under worse case conditions. B A:EUT A:EUT B AC120V/60Hz AC120V/60Hz 1 1 FCC ID : RQZUHP2-109 Test report No. : 24DE0265-YK-1 Page : 6 of 34 Issued date : January 22, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) Description of EUT and support equipment No. Item Model number Serial number Manufacturer FCC ID Remarks A Game Controller UHP2-109 S1 HORI CO., LTD. RQZUHP2-109 EUT B Play Station 2 SCPH-39001 AU2559312 SONY D.o.C. - List of cables used No. Name Length (m) Shield Backshell material 1 AC Cable 2.0 Unshielded Polyvinyl chloride 4 MEASUREMENT UNCERTAINTY Conducted emission test The measurement uncertainty (with a 95% confidence level) for this test was ±1.3dB. The data listed in this test report has enough margin, more than site margin. Radiated emission test The measurement uncertainty (with 95% confidence level) for this test using Biconical antenna is ±4.8dB. The measurement uncertainty (with 95% confidence level) for this test using Logperiodic antenna is ±5.2dB. The measurement uncertainty (with 95% confidence level) for this test using Horn antenna is ±6.6dB. The result is within Yamakita EMC lab’s uncertainty. FCC ID : RQZUHP2-109 Test report No. : 24DE0265-YK-1 Page : 7 of 34 Issued date : January 22, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 5 SUMMARY OF TESTS 5.1 §15.207 Conducted Emissions (Limits by CISPR Pub.22 Class B) Test Procedure EUT was placed on a platform of nominal size, 1m by 1.8m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting plane. The rear of EUT, including peripheral was aligned and flushed with rear of tabletop. All other surfaces of tabletop w…

Text truncated - open the document above for the full version.

FCC ID : RQZUHP2-109 Test report No. : 24DE0265-YK-1 Page : 10 of 34 Issued date : January 22, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) Conducted emission FCC ID : RQZUHP2-109 Test report No. : 24DE0265-YK-1 Page : 11 of 34 Issued date : January 22, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) Radiated emission FCC ID : RQZUHP2-109 Test report No. : 24DE0265-YK-1 Page : 12 of 34 Issued date : January 22, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) Pre check of worse-case position X axis Y axis
