RR3-LS8688WIFI Module

‐ 1 ‐ / 16 LS-WIFI 8688 Module Specification 1 Features ■ Qualified 2.4-GHz IEEE 802.11b/g transceiver ■ Address the connectivity demand in M2M applications, e.g. UART-WiFi Bridge, WiFi Gateway, Wireless Sensor Node and etc ■ ARMv5TE-compliant MCU running up to 106MHz ■ Ultra-low power: 4 uA sleep, 40 mA Rx, 210 mA Tx ■ Receive sensitivity: • -87 dBm @ b mode • -72.5 dBm @ g mode ■ Maximum Couducted Peak output power: • 16 dBm @ b mode • 16 dBm @ g mode ■ High throughput, 1 Mbps sustained data rate with TCP/IP and WPA2 ■ Small, compact surface-mount module ■ On-board ceramic chip antenna ■ UART hardware interface ■ Supports ad hoc and infrastructure networking modes ■ On board ECOS -OS, TCP/IP stacks ■ Wi-Fi Alliance certified for WPA2-PSK ■ FCC/CE/ICS certified and RoHS compliant. Applications ■ Remote equipment monitoring ■ Telemetry ■ Industrial sensors and home automation controls ■ Medical device monitoring 2 Overview 2.1 Description The LS-WIFI8688 module is a standalone, embedded wireless 802.11 b/g networking module. With its small form factor and extremely low power consumption, the LS-WIFI8688 is perfect for mobile wireless applications such as asset monitoring, GPS tracking, and battery sensors. The WiFl module incorporates a 2.4-GHz radio, processor, TCP/IP stack, crypto accelerator, power management, and analog sensor interfaces. The module is preloaded with software to simplify integration and minimize application development. In the simplest configuration, the hardware requires only four connections (PWR, TX, RX, and GND) to create a wireless data connection. Additionally, the sensor interface provides temperature, audio, motion, acceleration, and other analog data without requiring additional hardware. The module is programmed and controlled with a simple ASCII command language. Once the module is set up, it can scan to find an access point, associate, authenticate, and connect over any Wi-Fi network. 2.2 Overview ■ Host data rate up to 1 Mbps for the UART ‐ 2 ‐ / 16 ■ Intelligent, built-in power management with programmable wakeup ■ Real-time clock for time stamping, auto-sleep, and auto-wakeup ■ Configuration over UART using simple ASCII commands ■ Remote configuration over WiFi using Telnet ■ Supports over the air firmware upgrade (FTP) ■ Supports WPS pushbutton mode for easy association with access points ■ Secure WiFi authentication using WEP-128, WPA-PSK (TKIP), or WPA2-PSK (AES) ■ Built-in networking applications—DHCP, UDP, DNS, ARP, ICMP, TCP, HTTP client, and FTP client ■ 802.11 power saving and roaming functions ■The modules size: Size: 32mm x 17.5 mm x 3.0 mm 3 Electrical characteristics 3.1 DC/RF CHARACTERISTICS 3.11 Characteristics for IEEE802.11 b 3 / 16 3.12 Characteristics for IEEE802.11g 3.2 Environmental Conditions Parameter WiFi 8688 Temperature Range(Operating) -20°C to +70°C Temperature Range(Storage) -40°C to +85°C Relative Humidity(Operating) ≤90% Relative Humidity(Storage) ≤90% 4 / 16 3.3 Absolute maximum ratings Parameter Minimum Maximum Unit VDD33 -0.3 3.9V V GND - 0 V I/O pin voltage -0.3 VDD33+0.3V V 3.4 Operating conditions Symbol Parameter min Nominal Max Unit VDD33 Supply voltage 3.1 3.3 3.6 V VIH I/O input high voltage 2.3 - Vdd33+0.3 V VIL I/O input low voltage -0.3 - 1.1 V VOH I/O output high voltage 2.57 - - V VOL I/O output low voltage - - 0.4 V 4 Pin-out and signal description 4.1 Pin Pads(Top View): 5 / 16 4.2 Pin Description: No. Terminal Name Type System Connection to IC Terminal Description 1 GND G - VSS Ground 2 NC - - 3 UART_SIN I/O - UART SIN input When not used, this pin should be left floating. 4 UART_SOUT I/O - UART SOUT outpup When not used, this pin should be left floating. 5 NC - - 6 GND G - VSS Ground 7 VDD33 VDD33 - VDD33 3.3V Power Supply 8 GND G - VSS Ground 9 SPI_CLK_REQ/ SD_DAT[3] I/O WLAN SPI_CLK_REQ/ SD_DAT[3] G-SPI Mode: SPI_CLK_REQ G-SPI Clock Request SDIO 4-bit Mode: SD_DAT[3] Data Line Bit[3] SDIO 1-bit Mode: SD_DAT[3] Reserved SDIO SPI Mode: SD_DAT[3] Card Select (active low) 10 SPI_SINTn/ SD_DAT[2] I/O WLAN SPI_SINTn/ SD_DAT[2] G-SPI Mode: SPI_SINTn G-SPI Interrupt Output (active low) SDIO 4-bit Mode: SD_DAT[2] Data Line Bit[2] or Read Wait (optional) SDIO 1-bit Mode: SD_DAT[2] Read Wait (optional) SDIO SPI Mode: SD_DAT[2] Reserved 6 / 16 11 SPI_SDO/ SD_DAT[1] I/O WLAN SPI_SDO/ SD_DAT[1] G-SPI Mode: SPI_SDO G-SPI Data Output SDIO 4-bit Mode: SD_DAT[1] Data Line Bit[1] SDIO 1-bit Mode: SD_DAT[1] Interrupt SDIO SPI Mode: SD_DAT[1] Reserved 12 SPI_SCSn/ SD_DAT[0] IO WLAN SPI_SCSn/ SD_DAT[0] G-SPI Mode: SPI_SCSn G-SPI Chip Select input (active low) SDIO 4-bit Mode: SD_DAT[0] Data Line Bit[0] SDIO 1-bit Mode: SD_DAT[0] Data Line SDIO SPI Mode: SD_DAT[0] Data Output 13 SPI_SDI/ SD_CMD I/O WLAN SPI_SDI/ SD_CMD G-SPI Mode: SPI_SDI G-SPI Data Input SDIO 4-bit Mode: SD_CMD Command/Response SDIO 1-bit Mode: SD_CMD Command Line SDIO SPI Mode: SD_CMD Data Input 14 SPI_CLK/ SD_CLK I WLAN SPI_CLK/ SD_CLK G-SPI Mode: SPI_CLK G-SPI Clock Input SDIO 4-bit Mode: SD_CLK Clock Input SDIO 1-bit Mode: SD_CLK Clock Input SDIO SPI Mode: SD_CLK Clock Input 15 SLEEP_CLK I WLAN SLEEP_CLK Clock Input for External Sleep Clock 16 RESETn I - RESETn Reset (active low) 17 GND G - VSS Ground 18 GND G - VSS Ground 19 GND G - VSS Ground 20 GND G - VSS Ground 7 / 16 5 Functional description 5.1 Functional block diagram 5.2 RF descriptions The LS8688 is equipped with a fully integrated RF to baseband transceiver that operates in both the 2.4 GHz ISM radio band for 802.11g/b WLAN applications, It contains all the circuitry to support both transmit and receive operations. 5.3 On-board antenna specification The LS8688 contains a chip multilayer antenna. Part Number: LDA312G4413H-280. Manufacturer: Murata. Gain: 0.1 dBi 8 / 16 5.3.1 Return Loss 5.3.2 Radiation Pattern 5.4 Clock specifications LS8688 has a high-speed 38.4MHz oscillator to provide clock signals for the processors. The customer doesn’t need to use external CLK. 9 / 16 5.…

Text truncated - open the document above for the full version.

                  !""" #$%&&'( )' ( '* + ,  -       !""" #$%&&(  #$%&& %     .   /   *  ( (  0     (   $%1 234 !-   ( / #$%&&'( + ,    !        (    0  %          %1-34     0     /     %     & -(   /  0 /       + , )56       / /   %              (              +  /     / +   )5'!5        /  78%
 9 *9  2,:                  !% !         /          '(        %

                  !""" #$%&&'( )' ( '* + ,  -       !""" #$%&&(  #$%&& %     .   /   *  ( (  0     (   $%1 234 !-   ( / #$%&&'( + ,    !        (    0  %          %1-34     0     /     %     & -(   /  0 /       + , )56       / /   %              (              +  /     / +   )5'!5        /  78%
 9 *9  2,:                  !% !         /          '(        %

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 21.06.07 Datum: 00.00.00 Seite 1 von 1 Li Seng Technology Limited Date: 2013-04-12 Subject: Ad Hoc Mode Function Declaration FCC ID: RR3-LS8688 To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, (YOUR CONTACT DETAILS) Name: Danny Tsang Position: Sales Director Company: Li Seng Technology Limited Adress: 9/F, Shiu Fung Hong Building, 239-241 Wing Lok Street, Sheung Wan, Hong Kong Tel.: +852-25408348 Fax.: +852-25475706 E-Mail: [email protected]

Limited Module Approved Request Letter Subject: Limited Module Approval Date: 2013-3-20 FCC ID: RR3-LS8688 Dear Reviewer, We, Most Technology Service Co., Limited, are authorized by Li Seng Technology Limited to have their state-of-the-art WIFI module approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirement regulated in public Notice DA00-1407 have been fulfilled and clearly explained below: 1. The requirement of RF shielding: The module is limited module, no shielding, Please refer to instructions inside the integration manual. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip 88W8688, Support UART Communiction with a data flow control. 3. The requirement of power supply regulation: The modular transmitter has not an own power supply, host device must have 3.3V regulated power supply. 4. The requrement of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled,On-board ceramic chip antenna indicated, Plese refer to user manual. 5. The EUT was tested in stand-alone configurations Via an extender, Please refer to test setup photos. 6. The requirement of labelling: The instruction on the labelling rule of the end product has been stated in the users manual of this module, Please also see the exhibition label sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the users manual. 8. the modular transmitter comply with minimum separation distance 10mm RF exposure requirements, Please refer to RF exposure report. Please don not hesitate to contact me for any questions of this request letter, Thank you. Signature: Company name: Most Technology Co., Limited. Company Address: No.5, 2nd Langshan Road, North District, Hi-Tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Contact Person: Mark Wen Postion: General Manager

Li Seng Technology Limited PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 21.03.2013 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Wen Position General Manager Company Name Most Technology Service Co., Ltd. Address No.5, 2 nd Langshan Road, North District, Hi-Tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel / Fax 86-755-86170306/86-755-86170310 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name WIFI Module Model Name LS8688 Brand Name Li Seng Yours sincerely, Signatory Name Danny Tsang Position Sales Director Company Name Li Seng Technology Limited Address 9/F, Shiu Fung Hong Building, 239-241 Wing Lok Street, Sheung Wan, Hong Kong Tel / Fax 852-2540-8348/ 852-25475706 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Li Seng Technology Limited Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Li Seng Technology Limited FCC ID: RR3-LS8688 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values Block Diagrams Details of device showing the frequency of all oscillators Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are com monly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill O f Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Danny Tsang Position Sales Director Company Name Li Seng Technology Limited Address 9/F, Shiu Fung Hong Building, 239-241 Wing Lok Street, Sheung Wan, Hong Kong Tel / Fax 852-2540-8348/ 852-25475706 E-Mail [email protected]

Tune Up Description: WIFI Module WLAN: Support Power Supply: DC 3.3V By Notebook Input AC 120V/60Hz Frequency Range: 802.11b/g: 2412-2462MHz Number of Channels: IEEE 802.11b/g mode:11 Channels Modulation Technique: IEEE 802.11b mode: DSSS IEEE 802.11g mode: OFDM Antenna Type: Internal Fixed Channel Spacing: 5MHz Antenna Gain: 0.1dBi Max.Conducted output Power(Peak): 14.04dBm

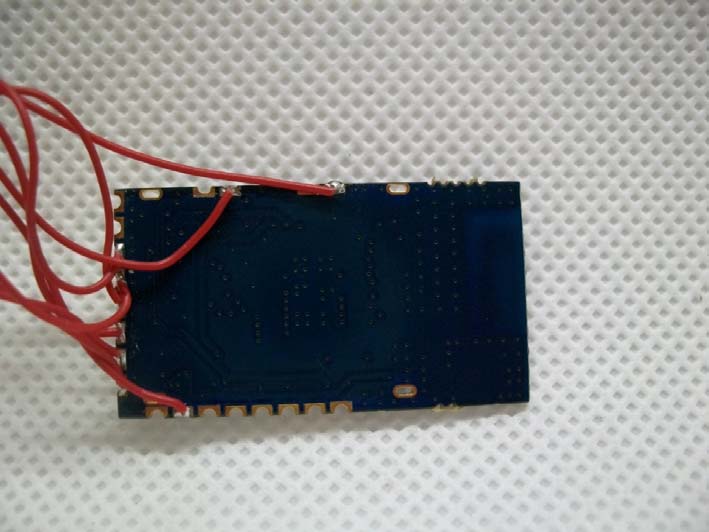

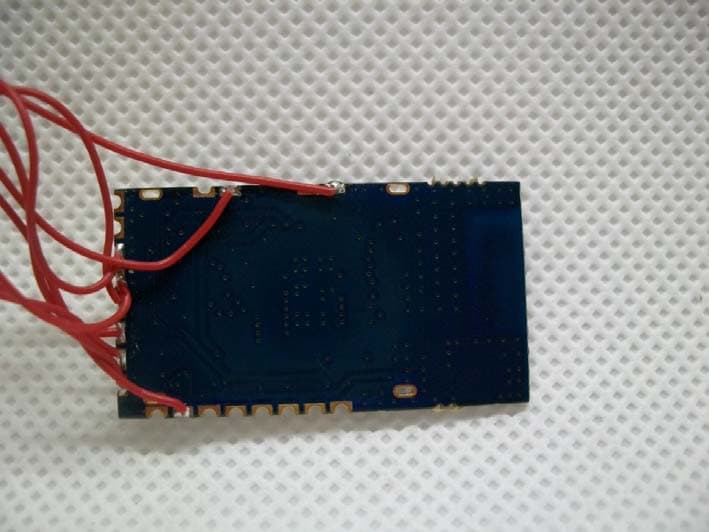

FCC ID: RR3-LS8688 Model No.: LS8688 PHOTO OF THE ENTIRE SAMPLE PHOTO OF THE ENTIRE SAMPLE FCC ID: RR3-LS8688 Model No.: LS8688 PHOTO OF THE ENTIRE SAMPLE PHOTO OF THE ENTIRE SAMPLE

FCC ID : RR3-LS8688 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100MHz-6GHz and ≦50mm Approximate SAR Test Exclusion Power Thresholds at selected frequencies and Test separation distances are illustrated in the following Table. Maximum measured transmitter power:802.11b AVG. Conducted Power(dBm) Max Antenna Gain (dBi) EIRP(mw) 11.25 0.1 13.64 Maximum measured transmitter power:802.11g AVG. Conducted Power(dBm) Max Antenna Gain (dBi) EIRP(mw) 12.45 0.1 17.98 Conclusion: AVG. Maximum Tx power is 17.98mw EIRP, The RF module meets 2450MHz 10mm separation distance and can be integrated in the type of host device.

FCC ID：RR3-LS8688

FCC ID: RR3-LS8688 Model No.: LS8688 PHOTO OF THE ENTIRE SAMPLE PHOTO OF THE ENTIRE SAMPLE FCC ID: RR3-LS8688 Model No.: LS8688 PHOTO OF THE ENTIRE SAMPLE PHOTO OF THE ENTIRE SAMPLE

Item 名 称Descriptions位号Qty制造商 P/N制造商 1PCBV2.00WIFI_8688_201211291 2 Resistor 0R ±5% 0402 R5 R6 R7 R9 R11 R15 R29 R30 L3 9WW04X000 JTLWalsin 3 Resistor 10K ±5% 0402 R1 R2 R3 R4 R16 R17 R18 7WR04X103 JTLWalsin 4 Resistor 100K ±5% 0402R13 R22 R25 R264WR04X104 JTLWalsin 5 Capacitor 0.5pF ±.1% 0402 50V C0GC181GRM1555C1HR50BZ01MURATA 6 Capacitor 100nF -20+80% 0402 16V Y5V C1 C3 C4 C5 C6 C7 C8 C9 C10 C11 C13 C14 120402F104Z160CTWalsin 7 Capacitor 10uF -20+80% 0603 6.3V Y5VC12 C1520603F106Z6R3CTWalsin 8 Ferrite Bead 220R/100MHz 0402L11 BLM15GG221SN1 742792780 MURATA WE 9 Inductor 10nH ±5% 0402CL11LQG15HS10NJ02MURATA 10 Inductor 3.3uH ±10% 1008L21LQM2HPN3R3MJ0MURATA 11 Diode BAT54WS , SOD-323R101BAT54WSON 12 Antenna LDA312G441H-280ANT1LDA312G441H-280MURATA 13 DC Power IC XC9216A18CMR , SOT-23-5U71XC9216A18CMRTorex 14 Serial Flash MX25L8006EM1I-12GU81MX25L8006EM1I-12GMXIC 15 WIFI Module 88W8688 MODULEU11LBEE19NJZC-TEMPMURATA BOM_WIFI_8688_20121129
