RR3-LSN8001Bluetooth LE Module

2013/1/7 1 Module : LSN8001 FCC Qualification Application to MOST by Li Seng Technology Ltd. Rev 1.1 Jan-2013 Aims & Content Content : User Manual / User Guide FCC Statement Label of End Product User Manual of End Product Overiew Functional Block Diagram Technical Description Circuit Schematics PCB Layout & Component Layouts Part List User Manual / User Guide (1/4) Parts Description & Before Installation : Li Seng Bluetooth BLE Module LSN8001 x2 Adaptor Board nRF2735 x1 Mother Board nRF6310 x1 Tx / Rx Cable x1 ! : Connection Socket Position ! : Antenna Protection Cap : Remove before Test ! : Side Switch Setting > RS232  ON > S8  VBUS > S9  OFF > Power Source (Banana Plug) : 4.5V DC User Manual / User Guide (2/4) 1) Place the “Adaptor Board nRF2735” on “Mother Board nRF 6310” 3) Connect “Tx/Rx cable” on “Li Seng Bluetooth BLE Module LSN8001” Finished Assembly Installation : 2) Place the “Li Seng Bluetooth BLE Module LSN8001” on “Adaptor Board nRF2735” Remove “Antenna Protection Cap” and Connect to Testing Equipment 4) Connect “Tx/Rx cable” on “Mother Board nRF6310” 1 2 3 4 Power OFF the unit by Switch OFF the Slide Switch S9 after Testing The Unit is Ready for Testing User Manual / User Guide (3/4) 6) Power On the Unit by Power ON Silde Switch S9 Installation : 5) Connect Power Source by “Banana Plug” 4.5V DC (Beware of + & - ) 5 6 7 8 User Manual / User Guide (4/4) Direct Test Mode : The DTM RS232 interface : Baud Rate : 192000 Number of data bits : 8 No Parity 1 Stop bit No flow control (meaning no RTS/CTS) FCC statement : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Label Of The End Product : The final end product must be labeled in a visible area with the following " Contains TX FCC ID: RR3-LSN8001 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Overview LSN8001 Module Apply to Bluetooth Low Energy (4.0) as Bluetooth Smart. Electrical Data Reference of LSN8001 Module Module Supply Power : 1.9V to 3.6 V DC LSN8001 LSN8001 Technical Description Module Dimension : 33 x 23 x 3 (15.0)mm PCB & Components Layout Front Rear Part List Bill of material PCB: LSN8001 Version: 1.0 Designator Value Footprint Description Comment Quanti ty Digi-Key part number Farnell part number C1, C2, C13, C14 15pF 0402s Capacitor NP0 +/- 2% 4 C3 2.2nF 0402s Capacitor X7R +/- 10% 1 C4 NA 0402s Capacitor Not mounted 0 C5 1.8pF 0402s Capacitor NP0 +/-0.1pF 1 1650788 C6 1.2pF 0402s Capacitor NP0 +/-0.1pF 1 C7, C9 1.0μF 0603s Capacitor X7R +/- 10%,TAIYO YUDEN - LMK107B7105KA-T 2 587-1242-1-ND 1683674 C8 1.0nF 0402s Capacitor X7R +/- 10% 1 C10, C12 100nF 0402s Capacitor X7R +/- 10% 2 C11 33nF 0402s Capacitor X7R +/- 10% 1 C15 1.5pF 0402s Capacitor NP0 +/-0.1pF 1 L1 8.2nH 0402s Inductor +/-5%, Murata LQP15MN8N2B02D 1 L2 5.6nH 0402s Inductor +/-5%, Murata LQP15MN5N6B02D 1 L3 3.9nH 0402s Inductor +/-5%, Murata LQP15MN3N9B02D 1 L4 10μH 0603s Inductor I DC,min = 50mA, +/-20%, TAIYO YUDEN - LBMF1608T100K 1 587-1714-1-ND 178-6105 L5 15nH 0402s Inductor +/-10%, TAIYO YUDEN - HK100515NJ-T 587-1521-1-ND 6581328 P1 HDR2x5 - small Header, 5-Pin, Dual row, B=5.8mm, A=5.3mm Fisher Elektronik, SL2/53/72G 2x36-pin 2.54mm 1 P2 HDR1X2 Header, 2-Pin UART 1 R1 22k 0402s Resistor 1% 1 U1 nRF8001 Nordic_QFN50P500X500X 90-33N 2.4GHz Single chip Bluetooth low energy QFN32 5x5 1 X1 16MHz 3.2 x 2.5 mm Crystal Epson-Toyocom TSX-3225, 16MHz, Cl=9pF, Total tolerance (at 25ºC + temp. drift + aging) = ±50ppm max, ESR=100Ω max, C0=7pF max, Operating temperature range = -20ºC to +70ºC min. 1 X2 32.768kHz 3.2 x 1.5 mm Crystal FC-135, 32.768kHz, Cl=9pF, Frequency toleranse = ±20ppm, Operating temperature range = -20ºC to +70ºC min. 1 1278037 2013/1/7 17 Thank You ~! Further contact : Danny Tsang [email protected] Hong Kong office: Address: 9/F, Shiu Fung Hong Building, 239-241 Wing Lok Street, Sheung Wan, Hong Kong Cellphone : (852) 9430-7943 Main : (852) 2540-8348 Fax : (852) 2547-5706

Limited Module Approved Request Letter Subject: Limited Module Approval Date: 2013-1-4 FCC ID: RR3- LSN8001 Dear Reviewer, W e, Most Technology Service Co., Limited, are authorize d by Li Sen g Technology Limited to have their state-of-the-art Bluetooth module approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirement regulated in public Notice DA00-1407 have been fulfilled and clearly explained below: 1. The requirement of RF shielding: The EUT has no own shielding. 2. The requirement of buf fered inputs: Buffered data inputs stage has been integrated in chip nRF8001. 3. The requirement of power supply regulation: The p art number of the power regulator is P2 4. The requrement of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfille d,No dedicated antenna indicated. 5. The EUT was not te sted in stand-alone configurations, It was tested on a evaluation or testing board. 6. The requirement of labelling: The instruction on the labe lling rule of the end product has been stated in the users manual of this module, Please also see the exhibition label sample. 7. The requirement of compliance on specific rule or operat ing requirements: The required FCC rule ha s been f ulfilled and all the in structions for maintaining compliance has been clearly stated in the users manual. 8. The modular transmitter comply with any applicable RF exposure requirement s: The EUT is exempted from RF exposure requirements due to low output power. Please don not hesitate to contact me for any questions of this request letter, Thank you. Signature: Company name: Most Technology Co., Limited. Company Address: No.5, 2nd Langshan Road, North District, Hi-Tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Contact Person: Mark Wen Postion: General Manager

Model difference letter January 05, 2013 Dear PHONIEX Reviewer, This is a new Application from Li Seng Technology Limited. All of models (LSN8001, LSN8xxx) are identical, only Model Name is different. Thank you for your cooperation! Y ours sincerely, Signatory: Name: Danny Tsang Position: Sales Director Company Li Seng Technology Limited Name: Address: 9/F, Shiu Fung Hong Building, 239-241 Wing Lok Street, Sheung Wan, Hong Kong E-Mail: [email protected]

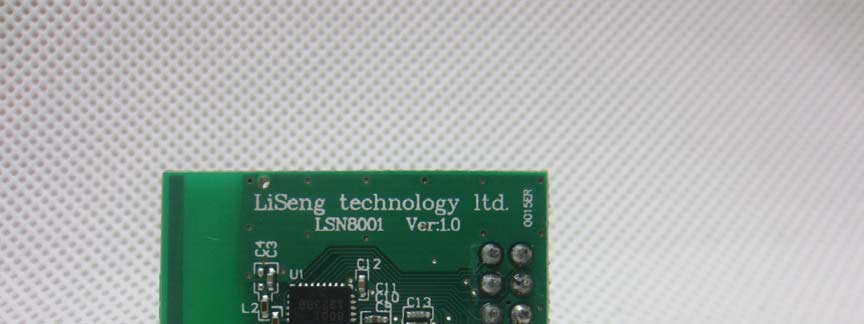

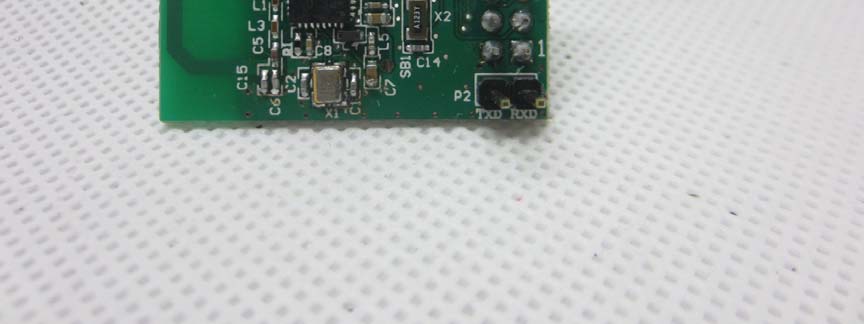

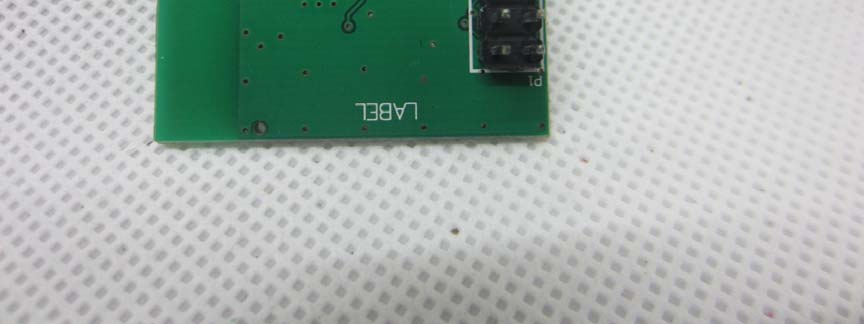

FCC ID: RR3-LSN8001 LSN8001 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE

FCC ID:RR3-LSN8001

FCC ID: RR3-LSN8001 LSN8001 INTERNAL PHOTO OF SAMPLE - 1 INTERNAL PHOTO OF SAMPLE - 2
