RRK-2012070022WIRELESS AC MODULE

Alpha Networks Proprietary and Confidential Information Product External Specifications For 802.11ac PCI Express Card (Broadcom BCM4352) Model Number : WMC-AC02 Revision: 1.0 This document contains confidential proprietary information and is the property of Alpha Networks Inc.. The contents of this document may not be disclosed to unauthorized persons without the written consent of Alpha Networks Inc.. Alpha Networks Proprietary and Confidential Information ii Revision History Rev. Date Author Reason for Changes 1.0 July. 16, 2012 Mi-ling Li Initial Draft  Alpha Networks Proprietary and Confidential Information iii Contents 1.0 SCOPE........................................................................................................................................................................... 4 1.1 DOCUMENT................................................................................................................................................................. 4 1.2 PRODUCT FEATURES.................................................................................................................................................. 4 2.0 REQUIREMENTS ....................................................................................................................................................... 4 2.1 GENERAL REQUIREMENTS........................................................................................................................................ 5 2.2.1 IEEE 802.11a Section.......................................................................................................................................... 5 2.2.2 IEEE 802.11n Section.......................................................................................................................................... 5 2.2.3 IEEE 802.11ac Section ........................................................................................................................................ 7 2.2.4 General Section ................................................................................................................................................... 8 2.3 SOFTWARE REQUIREMENTS...................................................................................................................................... 8 2.3.1 Security ................................................................................................................................................................ 8 2.4 MECHANICAL REQUIREMENTS................................................................................................................................. 8 2.5 COMPATIBILITY REQUIREMENTS............................................................................................................................. 9 2.6 REQUIREMENTS OF RELIABILITY, MAINTAINABILITY AND QUALITY..................................................................... 9 2.7 ENVIRONMENTAL REQUIREMENTS........................................................................................................................... 9 Alpha Networks Proprietary and Confidential Information 4 1.0 Scope 1.1 Document This document is to specify the product requirements for 802.11ac PCI Express. This PCI Express card is based on BCM chip that complied with IEEE 802.11ac from 5GHz, and it is also backward compatible to comply with IEEE 802.11a and IEEE 802.11n standard. 1.2 Product Features Compatible with IEEE 802.11a high rate standard to provide wireless 54Mbps data rate Compatible with IEEE 802.11n draft standard to provide wireless 300Mbps data rate Compatible with IEEE 802.11ac draft standard to provide wireless 1300Mbps data rate Operation at 5.15~5.85GHz frequency band to meet worldwide regulations Supports WEP, 802.1x, WPA and WPA2 enhanced security Friendly user configuration and diagnostic utilities Support Linux driver. Supports PCIe interface . 2.0 Requirements The following sections identify the detailed requirements of the 802.11ac PCI Express. 5 2.1 General Requirements 2.1.1 IEEE 802.11a Section Feature Detailed Description 2.1.1.1 Standard
IEEE 802.11a 2.1.1.2 Radio and Modulation Schemes
BPSK, QPSK, 16QAM, 64QAM, with OFDM 2.1.1.3 Operating Frequency
5150MHz~5250MHz,5725MHz~5850MHz 2.1.1.4 Channel Numbers
Ch36~CH64/CH149~CH165 2.1.1.5 Data Rate
54, 48, 36, 24, 18, 12, 9, and 6 Mbps 2.1.1.6 Media Access Protocol
CSMA/CA with ACK 2.1.1.7 Transmitter Output Power
Frequency 5150~5250MHz IEEE 802.11a: IEEE 802.11a: IEEE 802.11a: IEEE 802.11a: 15.70 dBm
Frequency 5725MHz~5850MHz IEEE 802.11a: IEEE 802.11a:IEEE 802.11a: IEEE 802.11a: 25.56 dBm 2.1.1.8 Effective Isotropic Radiated Power
EIRP17.5dbm@ CH36~CH64
EIRP29.5dbm@ CH149~CH165 2.1.1.9 Receiver Sensitivity
Error Rate = 10% at room temperature. –82dBm at 6Mbps –81dBm at 9Mbps –79dBm at 12Mbps –77dBm at 18Mbps –74dBm at 24Mbps –70dBm at 36Mbps –66dBm at 48Mbps –65dBm at 54Mbps 6 2.1.2 IEEE 802.11n Section Feature Detailed Description 2.1.2.1 Standard
IEEE 802.11n 2.1.2.2 Radio and Modulation Schemes
BPSK, QPSK, 16QAM, 64QAM with OFDM 2.1.2.3 Operating Frequency
5150MHz~5250MHz,5725MHz~5850MHz 2.1.2.4 Channel Numbers
Ch36~CH48 , CH149~CH165 for IEEE 802.11a/n 2.1.2.5 Data Rate
6.5~300 Mbps 2.1.2.6 Media Access Protocol
CSMA/CA with ACK 2.1.2.7 Transmitter Output Power
Frequency 5150~5250MHz IEEE 802.11n MCS0 20MHz: IEEE 802.11n MCS0 20MHz: IEEE 802.11n MCS0 20MHz: IEEE 802.11n MCS0 20MHz: 16.06 dBm IEEE 802.11n MCS0 40MHz: IEEE 802.11n MCS0 40MHz:IEEE 802.11n MCS0 40MHz: IEEE 802.11n MCS0 40MHz: 16.87 dBm
Frequency 5725~5850MHz I II IEEE 802.11n MCS0 20MHz: EEE 802.11n MCS0 20MHz:EEE 802.11n MCS0 20MHz: EEE 802.11n MCS0 20MHz: 25.57 dBm IEEE 802.11n MCS0 40MH: IEEE 802.11n MCS0 40MH:IEEE 802.11n MCS0 40MH: IEEE 802.11n MCS0 40MH: 25.56 dBm Note: The maximum RF output power setting is different by channel and individual country regulations. 2.1.2.8 Eff…

Text truncated - open the document above for the full version.

Alpha Networks Inc. No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Tel: 886-3-5636666 / Fax: 886-3-5665091 Ad Hoc Mode Function Declaration Date: 2013/1/22 FCC ID：RRK-2012070022 To Whom it may concern, We, the undersigned, declare that the EUT (Model Name: WMC-AC02) doesn’t have Ad Hoc function on “non-US/Canada frequencies”. Regards, FCC Grantee contact person information. Applicant’s company name : Alpha Networks Inc. Applicant’s company address : No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Kelly Tsai / Director E-Mail : [email protected] Tel. : 886-3-5636666

Alpha Networks Inc. No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Tel: 886-3-5636666 / Fax: 886-3-5665091 DoC Attestation Letter Date: 2013/1/22 We Alpha Networks Inc., as the grantee of this project (FCC ID: RRK-2012070022 / Brand Name: ALPHA / Model No.: WMC-AC02), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD310926, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : Alpha Networks Inc. Applicant’s company address : No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Kelly Tsai / Director E-Mail : [email protected] Tel. : 886-3-5636666

Alpha Networks Inc. No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Tel: 886-3-5636666 / Fax: 886-3-5665091 Confidential Letter Date: 2013/1/22 Federal Communications Commission Authorization and Evaluation Division FCC ID：RRK-2012070022 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Alpha Networks Inc. Applicant’s company address : No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Kelly Tsai / Director E-Mail : [email protected] Tel. : 886-3-5636666

Page No. : 22 Module Approval Request Letter Subject: Module Approval Date: 2013/1/31 FCC ID: RRK-2012070022 Dear Reviewer, We, Sporton International Inc., are authorized by Alpha Networks Inc. to have their state-of-the-art WIRELESS AC MODULE approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip BCM4352. 3. The requirement of power supply regulation: The part number of the power regulator is MP2130. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Alpha Networks Inc. No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Tel: 886-3-5636666 / Fax: 886-3-5665091 Power of Attorney Date: 2013/1/22 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: ALPHA / WMC-AC02 FCC ID: RRK-2012070022 Product name: WIRELESS AC MODULE FCC Grantee contact person information. Applicant’s company name : Alpha Networks Inc. Applicant’s company address : No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Kelly Tsai / Director E-Mail : [email protected] Tel. : 886-3-5636666

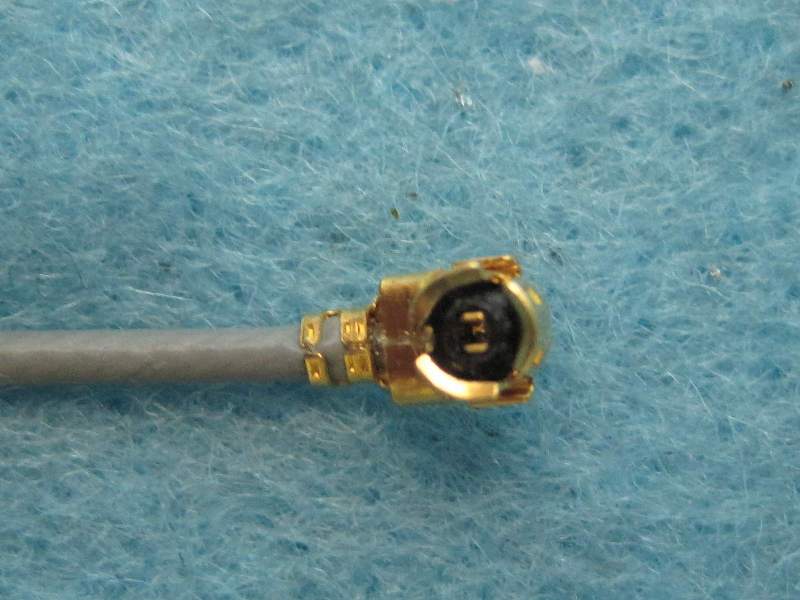

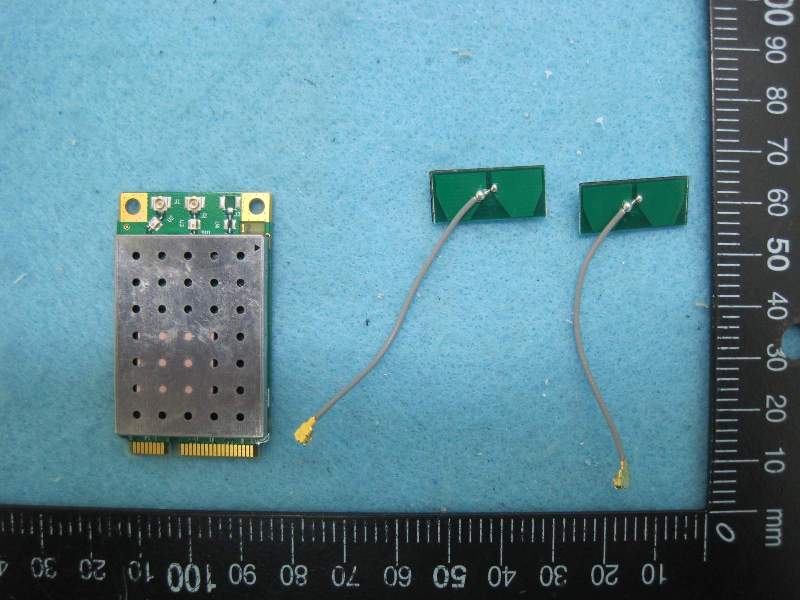

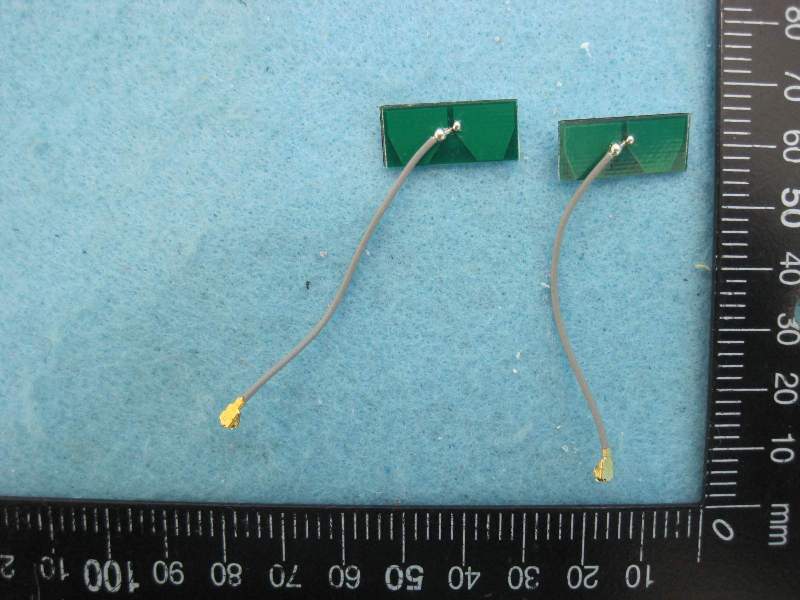

Report No.: 310926 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 30, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 310926 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 30, 2013 FAX : 886-2-2696-2255

Label

Report No.: 310926 SPORTON International Inc. PAGE NUMBER : 1 OF 3 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 30, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 310926 SPORTON International Inc. PAGE NUMBER : 2 OF 3 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 30, 2013 FAX : 886-2-2696-2255 Report No.: 310926 SPORTON International Inc. PAGE NUMBER : 3 OF 3 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 30, 2013 FAX : 886-2-2696-2255

Report No.: FR310926 FCC ID: RRK-2012070022 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR310926 FCC ID: RRK-2012070022 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR310926 FCC ID: RRK-2012070022 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11n MCS0 40MHz : 16.87 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.82 2.4099 16.8532 48.4534 0.023242 1 Complies For 5GHz ISM Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11ac MCS0 20MHz: 25.59 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.82 2.4099 25.5854 361.8574 0.173575 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Alpha Networks Inc. Applicant Address No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. FCC ID RRK-2012070022 Manufacturer’s company Alpha Networks Inc. Manufacturer Address No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Manufacturer’s company Alpha Networks (Dongguan) Co., Ltd. Manufacturer Address Xin An District, Chang An Town, DongGuan City, GuangDong Province, China Product Name WIRELESS AC MODULE Brand Name ALPHA Model Name WMC-AC02 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Jan. 04, 2013 Final Test Date Jan. 17, 2013 Submission Type Original Equipment Operating Mode Slave Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E, KDB 789033 D01 v01r02 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR310926AB Report Format Version: 01 Page No. : i of ii FCC ID: RRK-2012070022 Issued Date :Jan. 30, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 6 3.3. Table for Filed Antenna ............................................................................................................................................................................. 7 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 8 3.5. Table for Test Modes .................................................................................................................................................................................. 8 3.6. Table for Testing Locations........................................................................................................................................................................ 9 3.7. Table for Supporting Units ......................................................................................................................................................................... 9 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 10 3.9. Test Configurations................................................................................................................................................................................... 11 4. TEST RESULT......................................................................................................................................................... 13 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 13 4.2. 99% Occupied Bandwidth Measurement............................................................................................................................................ 19 4.3. Maximum Conducted Output Power Measurement......................................................................................................................... 27 4.4. Power Spectral Density Measurement.................................................................................................................................................. 31 4.5. Peak Excursion Measurement ................................................................................................................................................................ 37 4.6. Radiated Emissions Measurement......................................................................................................................................................... 42 4.7. Band Edge Emissions Measurement...................................................................................................................................................... 57 4.8. Frequency Stability Measurement......................................................................................................................................................... 64 4.9. Antenna Requirements ........................................................................................................................................................................... 66 5. LIST OF MEASURING EQUIPMENTS ......................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR310926 FCC ID: RRK-2012070022 Page No. : A1 of A8 Appendix A. Test Photos Report No.: FR310926 FCC ID: RRK-2012070022 Page No. : A2 of A8 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR310926 FCC ID: RRK-2012070022 Page No. : A3 of A8 SIDE VIEW Report No.: FR310926 FCC ID: RRK-2012070022 Page No. : A4 of A8 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR310926 FCC ID: RRK-2012070022 Page No. : A5 of A8 Test Configuration: 30 MHz ~ 1 GHz FRONT VIEW REAR VIEW Report No.: FR310926 FCC ID: RRK-2012070022 Page No. : A6 of A8 SIDE VIEW Report No.: FR310926 FCC ID: RRK-2012070022 Page No. : A7 of A8 Test Configuration: Above 1 GHz FRONT VIEW REAR VIEW Report No.: FR310926 FCC ID: RRK-2012070022 Page No. : A8 of A8 SIDE VIEW
