RRK-AR430WSuper G Wireless Router

Super G Wireless Broadband Router Model # AR430W Quick Installation Guide Ver. 1A This Quick Installation Guide only provides the basic instructions. For more detailed information, please refer to the User’s Manual in the supplied CD. Connecting the Router Note: Prior to connecting the router, be sure to power off your computer, DSL/Cable modem, and the router. You should setup the router with a wired connection first before attempting to setup any wireless connection. Step 1 Connect one end of a network cable to the WAN port of the router and connect the other end of the cable to the DSL/Cable modem. Step 2 With another network cable, connect one end of the cable to your computer’s network card and connect the other end to one of the LAN (Ethernet) ports of the router. Step 3 Power on the DSL/Cable modem and wait for the lights on the modem to settle down. Step 4 Power on the router by connecting one end of the supplied power adapter to the power jack of the router and connecting the other end to an electrical outlet. Step 5 Power on your computer. Step 6 Make sure the WAN, WLAN, and the LAN port that the computer is connected to are lit. If not try the above steps again. Verifying Connection to the Router Step 1 Go to Start, Run, type command (for Windows 95/98/ME) or cmd (for Windows 2000/XP) and click OK. You will see the command prompt as below. Step 2 Type ping 192.168.1.1 and press Enter. You should get four reply responses back. Step 3 If you get Request timed out, or Destination host unreachable, double-check the network cable connection between the computer and the router and try Step 2 again. If you still encounter problem, go to the next step; otherwise proceed to Section 3, Configure the Router. Step 4 For Windows 2000/XP, type ipconfig/release and press Enter. Step 5 Type ipconfig/renew and press Enter. You should get an IP address of 192.168.1.x (where x is a number between 2 - 254). Proceed to Section 3, Configure the Router. If you don’t get an IP address, reset the router by holding in the reset button at the back of the router for 10 seconds while it is ON and try ipconfig/renew again. Step 6 For Windows 95/98/ME go to Start, Run, type winipcfg and click OK. Step 7 Select your network card from the drop-down menu and click Release. Step 8 After your IP address is released, click Renew. You should get an IP address of 192.168.1.x (where x is a number between 2 - 254). If you don’t get an IP address, reset the router by holding in the reset button at the back of the router for 10 seconds while it is ON and try Renew again. Configuring the Router Step 1 Open the web browser and type 192.168.1.1 in the URL Address field and press Enter. Step 2 Enter admin for both username and password fields and click OK. Cable Modem For most cable modem users, you should be able to connect to the Internet without any configuration. If your ISP has provided you with a host name, enter it in the optional Host Name field. If your ISP requires a registered MAC Address, click on the Clone MAC Address button. Click Apply and OK to save the setting. If you have trouble connecting to the Internet, please refer to the Troubleshooting section at the end of this guide. DSL For DSL users, follow the steps below to configure the router. Step 1 Select PPPoE from the drop-down menu. Step 2 Enter your username and password provided by your ISP. Note: Depending on the ISP, you may need to include the domain name with your username. Example: [email protected] Step 3 Click Apply and OK to save the setting. If you have trouble connecting to the Internet, please refer to the Troubleshooting section at the end of this installation guide. Connecting the Router Wirelessly Below are the default wireless settings of the router. You must configure your wireless network card to the same settings in order to establish a wireless connection to the router. Please refer to your wireless network card’s manual on how to configure these settings. SSID: default Operating Mode: Infrastructure Authentication: Open System Channel #: 6 WEP: disabled If you want to change the router’s wireless settings, log in to the router and select the Wireless tab. Be sure to click Apply and OK to save the setting. For information on changing the router’s log in password and enabling wireless encryption, please refer to the User’s Manual in the provided CD. Troubleshooting If you have trouble connecting to the Internet, try the following steps. Step 1 Power off the Cable/DSL modem, router, and computer and wait for 5 minutes. Step 2 Turn on the Cable/DSL modem and wait for the lights on the modem to settle down. Step 3 Turn on the router and wait for the lights on the router to settle down. Step 4 Turn on the computer. Step 5 Reconfigure the router as described in Section 3. Step 6 Log in to the router and select the Status tab. Step 7 Verify that the IP Address, Default Gateway, and at least one of the DNS fields have valid numbers assigned to them (instead of all 0’s). If each field has a valid number assigned, the router is connected to the Internet. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separat…

Text truncated - open the document above for the full version.

Federal Communications Commission January 24, 2007 Authorization and Evaluation Division ATTESTATION FCC ID: RRK-AR430W Product: Super G Wireless Router Model: AR430W We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Best Regards Leeming Li/ Senior Manager Alpha Networks Inc. Tel: +886 3 563-6666#6613 Fax:+886 3 566-5091 E-mail: [email protected]

Declaration of Authorization We Name: Alpha Networks Inc. Address: No. 8, Li-Hsin VII Road, Science-Based Industrial Park, City: Hsin-Chu, ................................................................... Country: Taiwan, R.O.C.. ...................................................................... Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: Super G Wireless Router ...................... Type designation: AR430W............................ Trademark: Airlink101 on our behalf. Date: ......2007/01/24........... City: ......Hsinchu.................. Name: ......Leeming Li .............. Signature: ......................................

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: RRK-AR430W Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics (AR430W)BlkDia (AR430W)Schem The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Leeming Li/ Senior Manager Alpha Networks Inc. Tel: +886 3 563-6666#6613 Fax:+886 3 578-1861 E-mail: [email protected]

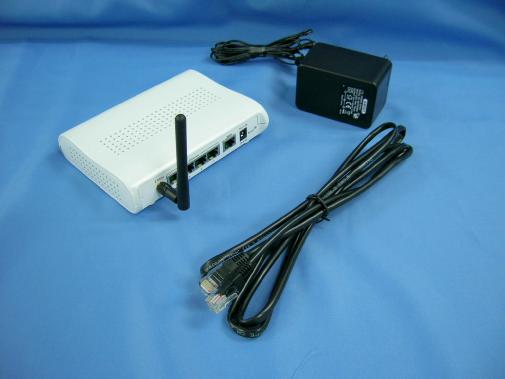

Report No： 071H018-RFUSP05V01 Page: 69 of 76 Version:1.0 Attachement ÿ EUT Photograph (1) EUT Photo (2) EUT Photo

Alpha Networks Inc. No. 8, Li-Hsin VII Road, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. +886-3-5636666 FCC ID.: RRK-AR430W FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. Super G Wireless Router Model No.: AR430W F F C C C C I I D D : : RRK-AR430W This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No： 071H018-RFUSP05V01 Page: 70 of 76 Version:1.0 (3) EUT Photo (4) EUT Photo Report No： 071H018-RFUSP05V01 Page: 71 of 76 Version:1.0 (5) EUT Photo (6) EUT Photo Report No： 071H018-RFUSP05V01 Page: 72 of 76 Version:1.0 (7) EUT Photo (8) EUT Photo Report No： 071H018-RFUSP05V01 Page: 73 of 76 Version:1.0 (9) EUT Photo Report No： 071H018-RFUSP05V01 Page: 74 of 76 Version:1.0 (10) EUT Photo Report No： 071H018-RFUSP05V01 Page: 75 of 76 Version:1.0 (11) EUT Photo Report No： 071H018-RFUSP05V01 Page: 76 of 76 Version:1.0 (12) EUT Photo

Report No： 071H018-RFUSP05V01 Page: 6 of 76 Version:1.0 1.2. Operational Description The EUT is capable of transferring data with a maximum wireless signal rate of up to 54Mbps* in the 2.4GHz frequency — the same wireless frequency as 802.11b. The EUT also offers four Ethernet ports to support multiple computers. The advanced wireless technology built into the EUT offers data transfer speeds with a maximum wireless signal rate of up to 54Mbps* through its wireless channels allowing streaming videos and other high bandwidth applications, such as online gaming events, to operate without the hassle of Ethernet cables. The ability to use high bandwidth applications also makes streaming real-time programs more enjoyable and more efficient. The device delivers Internet sharing, local area network connectivity and security in a single device. The EUT has a 10/100 WAN port for connection to Cable or xDSL modem. The four-port 10/100 Ethernet switch along with the built-in 802.11b/g wireless access point provides network connectivity to multiple machines in the Local Area Network (LAN).

Report No. 071H018-RF-US-Exp Page: 1 of 4 Version:1.0 RF Exposure Evaluation declaration Product Name ： Super G Wireless Router Model No. ： AR430W FCC ID. ： RRK-AR430W Applicant : Alpha Networks Inc. Address : No. 8, Li-Hsin VII Road, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Date of Receipt : 2006/12/19 Date of Declaration : 2007/02/05 Report No. : 071H018-RF-US-Exp The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 071H018-RF-US-Exp Page: 2 of 4 Version:1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 071H018-RF-US-Exp Page: 3 of 4 Version:1.0 1.3. Test Result of RF Exposure Evaluation Product Super G Wireless Router Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.585 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 250.6109 0.07902 6 2437.00 263.0268 0.08293 11 2462.00 304.7895 0.09610 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 071H018-RF-US-Exp Page: 4 of 4 Version:1.0 Product Super G Wireless Router Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.585 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: IEEE 802.11g Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 207.4914 0.06542 6 2437.00 194.5360 0.06134 11 2462.00 216.2719 0.06819 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 071H018-RFUSP05V01 Page: 1 of 76 Version:1.0 Test Report Product Name ：Super G Wireless Router Model No. ：AR430W FCC ID. ：RRK-AR430W Applicant ： Alpha Networks Inc. Address ： No. 8, Li-Hsin VII Road, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Date of Receipt：2006/12/19 Issued Date ：2007/02/05 Report No. ：071H018-RFUSP05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 071H018-RFUSP05V01 Page: 2 of 76 Version:1.0 Test Report Certification Issued Date : 2007/02/05 Report No. : 071H018-RFUSP05V01 Product Name ： Super G Wireless Router Applicant ： Alpha Networks Inc. Address ： No. 8, Li-Hsin VII Road, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Manufacturer ： Alpha Networks Inc. Model No. ： AR430W FCC ID. ： RRK-AR430W Rated Voltage : AC 120 V / 60 Hz EUT Voltage : AC 120 V / 60 Hz Trade Name ： Airlink101 Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2005 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Sandy Chuang ) Reviewed By : ( Sheena Huang ) Approved By ： ( Roy Wang ) Report No： 071H018-RFUSP05V01 Page: 3 of 76 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information ..................................................................................................... 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description .................................................................................................. 6 1.3. Test Mode ....................................................................................................................... 7 1.4. Tested System Details .................................................................................................... 8 1.5. Configuration of tested System ...................................................................................... 9 1.6. EUT Exercise Software ................................................................................................ 10 1.7. Test Facility................................................................................................................... 11 2. Peak Power Output .................................................................................................... 12 2.1. Test Equipment............................................................................................................. 12 2.2. Test Setup .................................................................................................................... 12 2.3. Limits ............................................................................................................................ 12 2.4. Test Specification.......................................................................................................... 12 2.5. Uncertainty ................................................................................................................... 12 2.6. Test Result.................................................................................................................... 13 3. Conducted Emission.................................................................................................. 15 3.1. Test Equipment............................................................................................................. 15 3.2. Test Setup .................................................................................................................... 15 3.3. Limits ............................................................................................................................ 16 3.4. Test Procedure ............................................................................................................. 16 3.5. Test Specification.......................................................................................................... 16 3.6. Uncertainty ................................................................................................................... 16 3.7. Test Result.................................................................................................................... 17 3.8. Test Photo .................................................................................................................... 25 4. Radiated Emission ..................................................................................................... 26 4.1. Test Equipment............................................................................................................. 26 4.2. Test Setup .................................................................................................................... 26 4.3. Limits ............................................................................................................................ 27 4.4. Test Procedure ............................................................................................................. 27 4.5. Test Specification.......................................................................................................... 27 4.6. Uncertainty ................................................................................................................... 27 4.7. Test Result.................................................................................................................... 28 4.8. Test Photo .................................................................................................................... 50 5. Band Edge................................................................................................................... 52 5.1. Test Equipment.....................................…

Text truncated - open the document above for the full version.

Report No： 071H018-RFUSP05V01 Page: 25 of 76 Version:1.0 3.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 071H018-RFUSP05V01 Page: 50 of 76 Version:1.0 4.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 071H018-RFUSP05V01 Page: 51 of 76 Version:1.0 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn)
