RRK-C300RC300 Mbps Wireless PC Card

multilanguage hardware installation guide 300Mbps Wireless Client C300RC/C300Ri/C300RU www.conceptronic.net CONNECTIVITYENTERTAINMENT DATACOMMUNICATION NETWORKING WIRELESS version 1.0 Cover Manual C300RC_Ri_RU.qxd 10-07-2007 12:11 Pagina 1

NEDERLANDS 1 Conceptronic C300Ri / C300RC / C300RU Snelstart Handleiding Hartelijk gefeliciteerd met de aanschaf van uw Conceptronic 802.11N Wireless Netwerk Client. In de bijgaande Snelstart handleiding wordt stap voor stap uitgelegd hoe u de Conceptronic 802.11N Wireless Netwerk Client kunt installeren. In geval van problemen adviseren wij u onze support-site te bezoeken (ga naar: www.conceptronic.net en klik op ‘Support’). Hier vindt u een database met veelgestelde vragen waar u waarschijnlijk de oplossing voor uw probleem kunt vinden. Heeft u andere vragen over uw product die u niet op de website kunt vinden, neem dan contact met ons op via e-mail: [email protected] . Voor meer informatie over Conceptronic producten kunt u terecht op de Conceptronic website: www.conceptronic.net . De software configuratie beschreven in deze handleiding kan afwijken op uw computer. Dit is afhankelijk van het besturingssysteem dat u gebruikt. 1. Inhoud van de verpakking De volgende onderdelen dienen aanwezig te zijn in de verpakking van de Conceptronic 802.11N Client (afhankelijk van de aangeschafte 11N Client): Conceptronic C300Ri * Conceptronic 802.11N PCI kaart * 3x Antenne * Product CD-ROM * Meertalige Snelstart Handleiding Of Conceptronic C300RC * Conceptronic 802.11N PC kaart * Product CD-ROM * Meertalige Snelstart Handleiding Of Conceptronic C300RU * Conceptronic 802.11N USB Adapter * USB Verlengkabel * Product CD-ROM * Meertalige Snelstart Handleiding NEDERLANDS 2 2. Stuurprogramma & Software Installatie Let op: Installeer eerst de stuurprogramma’s & software voordat u de kaart in de computer plaatst of de USB adapter op uw computer aansluit! A. Plaats de CD-ROM in uw CD-ROM speler. Het Autorun Menu zal automatisch verschijnen. Als het Autorun Menu niet getoond wordt, ga dan naar “Mijn Computer” en dubbelklik op de CD-ROM speler om het Autorun Menu te starten. B. Selecteer de optie “Install Drivers & Software” in het Autorun Menu. De Setup Wizard zal getoond worden. C. Klik op “Next” om door te gaan. D. Wijzig de installatiemap voor de software met de knop “Browse”, of behoud de standaard locatie. Klik op “Next” om door te gaan. E. Wijzig de Start Menu map, of behoud de standaard locatie. Klik op “Next” om door te gaan. De Setup Wizard zal de stuurprogramma’s en de software installeren op uw computer. Wacht tot de Setup Wizard klaar is met de installatie. F. Als de installatie is voltooid kiest u voor “Yes, I Want to restart my computer now” en klikt u op “Finish”. Let op: Als u de C300Ri (802.11N PCI kaart) heeft aangeschaft, kies dan voor “No, I want to restart my computer later” en klik op “Finish”. Ga verder bij Hoofdstuk 3 voor de Hardware Installatie van de 802.11N Wireless Netwerk Client. NEDERLANDS 3 3. Hardware Installatie Als de installatie van de stuurprogramma’s & software gereed is, kunt u beginnen met de hardware installatie. Conceptronic C300Ri – PCI kaart A. Schakel uw computer uit en ontkoppel de stroomkabel. B. Open de computer behuizing door de schroeven aan de achterzijde te verwijderen en verwijder het zijpaneel. C. Zoek een vrij PCI slot en verwijder de beschermplaat aan de achterzijde van de computer behuizing. D. Plaats de C300Ri voorzichtig in het vrije PCI slot en zet deze met een schroef vast aan uw computer behuizing.. E. Sluit de computer behuizing en monteer de 3 antenne’s op de C300Ri. Zet de antenne’s op de volgende positie: F. Schakel uw computer in. Windows zal automatisch nieuwe hardware detecteren en de stuurprogramma’s installeren. Conceptronic C300RC – PC kaart A. Nadat uw notebook opnieuw is opgestart, plaatst u de C300RC in een vrij PC kaartslot van uw notebook. Windows zal automatisch nieuwe hardware detecteren en de stuurprogramma’s installeren. Conceptronic C300RU – USB Adapter A. Nadat uw computer opnieuw is opgestart plaatst u de C300RU in een vrije USB poort van uw computer. Windows zal automatisch nieuwe hardware detecteren en de stuurprogramma’s installeren. Tip: Voor een beter signaalontvangst kunt u de USB verlengkabel gebruiken zodat u de USB adapter kunt verplaatsen. NEDERLANDS 4 4. Verbinden met een draadloos netwerk Als de hardware is geïnstalleerd is de Wireless Netwerk Client klaar voor gebruik. In uw systeembalk zal een actieve Conceptronic Wireless Utility getoond worden: A. Dubbelklik op het systeembalk icoon van de Conceptronic Wireless Utility. De Conceptronic Wireless Utility zal op uw scherm getoond worden: De Conceptronic Wireless Utility toont alle draadloze netwerken in de omgeving van uw computer. Als uw draadloze netwerk niet getoond wordt, klik dan op “Refresh” om opnieuw te scannen naar draadloze netwerken. B. Klik op het netwerk waarmee u wilt verbinden en klik vervolgend op “Connect”. De Wireless Utility zal een connectie-popup tonen, die afhankelijk van de ingestelde beveiliging op uw netwerk, kan variëren. NEDERLANDS 5 Onbeveiligd Netwerk: Als uw draadloze netwerk niet is beveiligd, zal de volgende popup getoond worden:: Klik op “OK” om te verbinden met het geselecteerde netwerk, of klik op “Cancel” om een ander netwerk te kiezen. Let op: Als u met uw eigen netwerk probeert te verbinden en deze is niet beveiligd, raden wij u aan om deze alsnog te beveiligen om ongewenste toegang tot uw netwerk te voorkomen. Zie de handleiding van uw Wireless Router/Access Point hoe u de beveiliging van uw netwerk kunt instellen. Beveiligd Netwerk: Als uw netwerk is beveiligd, zal de Wireless Utility u vragen de encryptie sleutel of pass phrase in te voeren, afhankelijk van de ingestelde beveiliging op uw draadloze netwerk: Voer de encryptiesleutel of de pass phrase in bij het veld “Network Key” en herhaal dit bij het veld “Confirm Field”. Klik op “Connect” om te verbinden met het geselecteerde draadloze netwerk. Als u bent verbonden met het draadloze netwerk zal de Wireless Utility de signaalsterkte tonen in uw systeembalk: NEDERLANDS 6 5. Wi-Fi Protected Setup – WPS De Conceptronic 802.11N Clients ondersteunen WPS (Wi-Fi Protected…

Text truncated - open the document above for the full version.

August 21, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: RRK-C300RC Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Leeming Li/ Senior Manager Alpha Networks Inc. Tel: 886-3-563666 ext.6613 Fax: 886-3-5665091 E-mail: [email protected]

Date: August 21, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: h) Comply with the relevant provisions of the certification program; i) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; j) Make claims regarding certification only in respect of the scope for which certification has been granted; k) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; l) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Leeming Li/ Senior Manager Alpha Networks Inc. Tel: 886-3-563666 ext.6613 Fax: 886-3-5665091 E-mail: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

Mike Kuo From: alice.lan [[email protected]] on behalf of application [[email protected]] Sent: Monday, November 12, 2007 9:54 PM To: Mike Kuo Subject: Re:Re:Re:RE: Alpha Networks Inc., FCC ID: RRK-C300RC, Assessment NO.: AN07T7271, Notice#1 Attachments: C300RC antenna.pdf; 802.11n- HT40.pdf 11/16/2007 Dear Mike, Good afternoon.The below is a response for FCC ID: Question#1: Please confirm during radiated restricted band edge and spurious emission tests, both transmitting chains were activiated in CDD and MIMO mode. SAR portion: Question:2 During the SAR evaluation, due to the device is capable of transmitting at legacy mode( single chain transmission ) and also in CDD/MIMO mode ( dual TX chains transmission), while the device is configured with dual chain transmission, multiple hot spots are expected. However, as indicated in the SAR plots, only one hot spot is observed. Please confirm during the SAR evaluation, CDD/MIMO mode with dual TX chain activated were investigated and explain why there is only one hot spot shown on plots. Answer: (1) Check antenna ports, EUT's function is ok, "TX/Chain 0" and "TX/Chain 1" transmitting RF power, RX/Chain 2 can't , and conducted power is closely SAR test report. (2) Try to adjusted the distance between EUT and phantom from 9mm to 2mm, in Area Scan still has one hot spot, and hot spot almost at the center of EUT's breadth(as the attach PDF file "802.11n- HT40.PDF"). (3) "TX/Chain 0" and "TX/Chain 1" antenna's design is by 90 degree intersections, so during MIMO mode with dual TX chain activated, possibly generate RF energy will concenter, and get one hot spot(as the attach PDF file "C300RC antenna.PDF"). Please find attachment.Thank you very much. Best Regarding, application 寄件人： alice.lan 藍怡蘭 2007/11/13 01:36 PM 收件人： [email protected]@ccsemc 副本抄送： 主旨： Re:Re:RE: Alpha Networks Inc., FCC ID: RRK-C300RC, Assessment NO.: AN07T7271, Notice#1連結 Alice Dear Mike, Sorry that delay this case. The case is under testing SAR. Thanks your reminding. What is the status for this request? Best Regards Mike Kuo Compliance Certification Services 47173 Benicia Street Fremont, CA 94538 Direct: (510) 771-1105 Fax: (510) 661-0888 Main: (510) 771-1000 e-mail:[email protected] Web Site:www.ccsemc.com -----Original Message----- From: Mike Kuo Sent: Monday, October 15, 2007 10:18 PM To: 'application' Cc: Lucy Tsai application 寄件人： alice.lan 藍怡蘭 2007/11/06 07:57 PM 收件人： "application" <[email protected]> 副本抄送： "Mike Kuo" <[email protected]>, "Lucy Tsai" <[email protected]> 主旨： Re:RE: Alpha Networks Inc., FCC ID: RRK-C300RC, Assessment NO.: AN07T7271, Notice#1連結 "Mike Kuo" <[email protected]> 2007/10/31 02:02 PM 收件人： "Mike Kuo" <[email protected]>, "application" <[email protected]> 副本抄送： "Lucy Tsai" <[email protected]> 主旨： RE: Alpha Networks Inc., FCC ID: RRK-C300RC, Assessment NO.: AN07T7271, Notice#1 11/16/2007 Subject: FW: Alpha Networks Inc., FCC ID: RRK-C300RC, Assessment NO.: AN07T7271, Notice#1 Administrative portion: No issue. EMC portion: FYI: for PPSD tests, you are required to perform the tests on individual chain and with combiner. You are not required to sum the each chain. Question#1: Please confirm during radiated restricted band edge and spurious emission tests, both transmitting chains were activiated in CDD and MIMO mode. SAR portion: Question:2 During the SAR evaluation, due to the device is capable of transmitting at legacy mode( single chain transmission ) and also in CDD/MIMO mode ( dual TX chains transmission), while the device is configured with dual chain transmission, multiple hot spots are expected. However, as indicated in the SAR plots, only one hot spot is observed. Please confirm during the SAR evaluation, CDD/MIMO mode with dual TX chain activated were investigated and explain why there is only one hot spot shown on plots. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. No virus found in this incoming message. Checked by AVG Free Edition. Version: 7.5.488 / Virus Database: 269.14.11/1071 - Release Date: 10/15/2007 6:48 AM No virus found in this outgoing message. Checked by AVG Free Edition. Version: 7.5.488 / Virus Database: 269.14.11/1071 - Release Date: 10/15/2007 6:48 AM No virus found in this outgoing message. Checked by AVG Free Edition. Version: 7.5.503 / Virus Database: 269.15.13/1099 - Release Date: 10/30/2007 10:06 AM ________________________________________________________________________ This e-mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact 11/16/2007 immediately by phone (Tel: 886-2-2299-9720) for any problem with this transmission. Thank you for your attention. No virus found in this incoming message. Checked by AVG Free Edition. Version: 7.5.503 / Virus Database: 269.15.30/1126 - Release Date: 11/12/2007 12:56 PM 11/16/2007

300Mbps Wireless PC Card ™C04-210h ̈+!7B4JA9-aajecd! C04-210 C300RC Made in China ! FCC ID: RRK-C300RC Backsticker C300RC 27-08-2007 13:26 Pagina 1

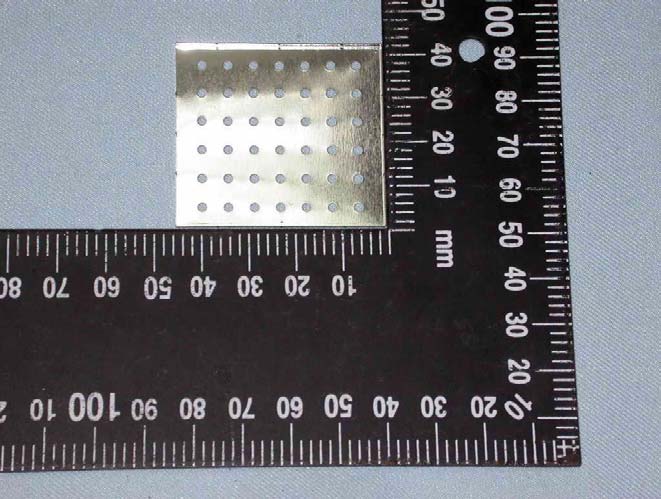

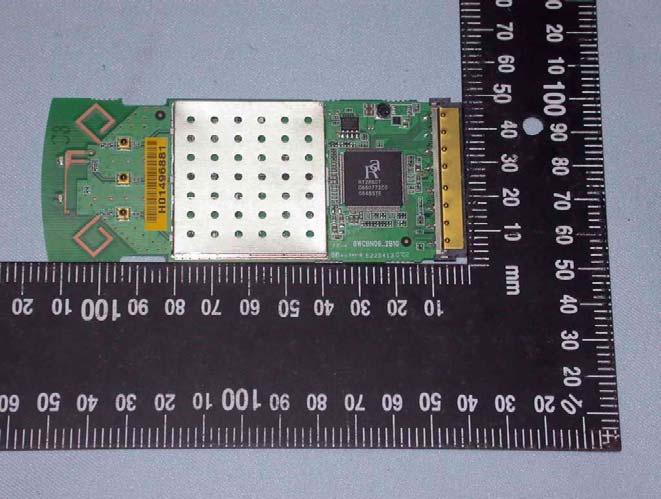

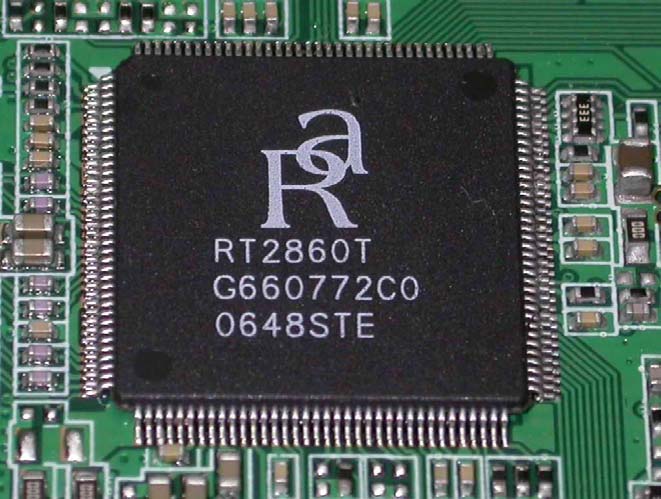

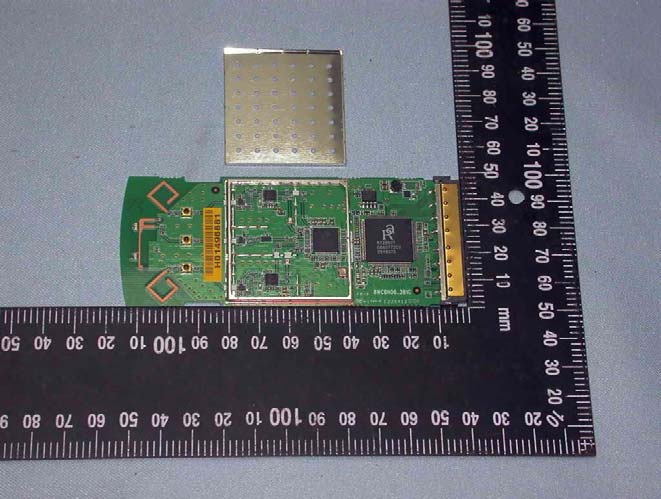

Compliance Certification Services Inc. Report No.70814001 Page 3 of 9 Internal Photo Compliance Certification Services Inc. Report No.70814001 Page 4 of 9 Compliance Certification Services Inc. Report No.70814001 Page 5 of 9 Compliance Certification Services Inc. Report No.70814001 Page 6 of 9 Compliance Certification Services Inc. Report No.70814001 Page 7 of 9 Compliance Certification Services Inc. Report No.70814001 Page 8 of 9 Compliance Certification Services Inc. Report No.70814001 Page 9 of 9

C300RC Antenna 90° RF energy

Alpha Antenna Design for 11N Cardbus Illustration of Antenna Location Antenna M Antenna L Antenna R Return Loss of Antenna L Return Loss of Antenna M Return Loss of Antenna R Isolation between Antenna M & Antenna R Isolation between Antenna M & Antenna L Isolation between Antenna R & Antenna L Rotation Angle for scanning 0 90 180 270 Radiation Pattern of Antenna L – H Polarization Peak Gain = -0.23 Radiation Pattern of Antenna L – V Polarization Peak Gain = -10.44 Radiation Pattern of Antenna M – H Polarization Peak Gain = -2.87 Radiation Pattern of Antenna M – V Polarization Peak Gain = -12.94 Radiation Pattern of Antenna R – H Polarization Peak Gain = 0.56 Radiation Pattern of Antenna R – V Polarization Peak Gain = -11

Date/Time: 3/23/2007 12:03:29 PM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.91 mho/m; İ r = 51.7; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.8 deg C;Liquid Temperature:23.8 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.92 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.8 V/m; Power Drift = -0.087 dB Peak SAR (extrapolated) = 32.6 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.0 mW/g Maximum value of SAR (measured) = 15.5 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 15.7 mW/g Page1 Page2 Date/Time: 3/23/2007 1:12:42 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Bottom Flat Touch mode sony DUT: C300RC; Type: 300Mbps Wireless PC Card; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.88 mho/m; İ r = 51.8; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.8 deg C;Liquid Temperature:23.8 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Middle CH, Rate=1M/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.323 mW/g Middle CH, Rate=1M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 9.07 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 0.594 W/kg SAR(1 g) = 0.282 mW/g; SAR(10 g) = 0.140 mW/g Maximum value of SAR (measured) = 0.390 mW/g Page1 Page2 Date/Time: 3/23/2007 1:37:00 PM Test Laboratory: Compliance Certification Services Inc. 802.11g Bottom Flat Touch mode sony DUT: C300RC; Type: 300Mbps Wireless PC Card; Serial: N/A Communication System: IEEE 802.11g WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.88 mho/m; İ r = 51.8; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.8 deg C;Liquid Temperature:23.8 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe:EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Middle CH, Rate=6M/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.472 mW/g Middle CH, Rate=6M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.5 V/m; Power Drift = -0.038 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 0.452 mW/g; SAR(10 g) = 0.199 mW/g Maximum value of SAR (measured) = 0.498 mW/g Page1 Page2 Date/Time: 3/23/2007 2:08:15 PM Test Laboratory: Compliance Certification Services Inc. 802.11n Bottom Flat Touch mode HT20 sony DUT: C300RC; Type: 300Mbps Wireless PC Card; Serial: N/A Communication System: IEEE 802.11n WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.88 mho/m; İ r = 51.8; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.8 deg C;Liquid Temperature:23.8 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe:EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Middle CH, Rate=6.5M/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.574 mW/g Middle CH, Rate=6.5M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 12.0 V/m; Power Drift = -0.059 dB Peak SAR (extrapolated) = 0.899 W/kg SAR(1 g) = 0.446 mW/g; SAR(10 g) = 0.239 mW/g Maximum value of SAR (measured) = 0.600 mW/g Page1 Page2 Date/Time: 3/23/2007 2:33:40 PM Test Laboratory: Compliance Certification Services Inc. 802.11n Bottom Flat Touch mode HT40 sony DUT: C300RC; Type: 300Mbps Wireless PC Card; Serial: N/A Communication System: IEEE 802.11n WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.88 mho/m; İ r = 51.8; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.8 deg C;Liquid Temperature:23.8 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Middle CH, Rate=13M/Area Scan (7x11x1): Measurement gri…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference report: 70226006 Report No.: 70814001-SF FCC ID: RRK-C300RC Date of Issue: August 31, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 29 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For 300Mbps Wireless PC Card Trade Name: CONCEPTRONIC Model: C300RC Issued to Alpha Networks Inc. No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Reference report: 70226006 Report No.: 70814001-SF Date of Issue: August 31, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .................5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................................5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES ...............................................................................................9 5. MEASUREMENT UNCERTAINTY ......................................................................................13 6. EXPOSURE LIMIT ..................................................................................................................14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS .15 8. MEASUREMENT RESULTS..................................................................................................16 8.1 SYSTEM PERFORMANCE CHECK..............................................................................16 8.2 TEST LIQUID CONFIRMATION...................................................................................17 8.3 EUT TUNE-UP PROCEDURES AND TEST MODE.....................................................18 8.4 SAR MEASUREMENTS RESULTS...............................................................................20 9. EUT PHOTOS ...........................................................................................................................26 10. EQUIPMENT LIST & CALIBRATION STATUS................................................................27 11. FACILITIES..............................................................................................................................28 12. REFERENCES ..........................................................................................................................28 13. ATTACHMENTS......................................................................................................................29 Compliance Certification Services Inc. Reference report: 70226006 Report No.: 70814001-SF Date of Issue: August 31, 2007 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: Alpha Networks Inc. No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan R.O.C. Equipment Under Test: 300Mbps Wireless PC Card Trade Name: CONCEPTRONIC Model Number: C300RC Date of Test: March 23 ~ 24, 2007 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Reviewed by: Rex Lai Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Reference report: 70226006 Report No.: 70814001-SF Date of Issue: August 31, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product 300Mbps Wireless PC Card Trade Name CONCEPTRONIC Model Number C300RC Model Discrepancy N/A Frequency Range 802.11b: 2400 ~ 2483.5 MHz 802.11g: 2400 ~ 2483.5 MHz 802.11n: 2400 ~ 2483.5 MHz Max. O/P Power: (Conducted/Peak) 802.11b: 23.51 dBm 802.11g: 21.09 dBm 802.11n: 22.96 dBm(HT20) 802.11n: 19.86 dBm(HT40) Sony host: 802.11b: 0.282 W/kg 802.11g: 0.452 W/kg 802.11n: 0.446 W/kg(HT20) 802.11n: 0.215 W/kg(HT40) Acer host: 802.11b: 0.681 W/kg 802.11g: 0.932 W/kg 802.11n: 1.010 W/kg(HT20) 802.11n: 0.969 W/kg(HT40) Max. SAR (1g): Dell host: 802.11b: 0.478 W/kg 802.11g: 0.597 W/kg 802.11n: 1.320 W/kg(HT20) 802.11n: 0.681 W/kg(HT40) Modulation Technique 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) Antenna Specification Antenna type: Printed antenna Host 1 Sony, Model: VGN-S44TP, SN: 28198080 8100339 Host 2 Acer, Model: TravelMate 8000, SN: 04070038 Host 3 Dell, Model: D600, SN: CN-0T9369-48643-4CB-0392 Remark: The sample selected for test was prototype that approximated to production product and was provided by manufacturer. Compliance Certification Services Inc. Reference report: 70226006 Report No.: 70814001-SF Date of Issue: August 31, 2007 Page 5 Rev. 00 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commiss…

Text truncated - open the document above for the full version.

Date/Time: 11/7/2007 7:43:54 PM Test Laboratory: Compliance Certification Services Inc. 802.11n Bottom Flat Touch mode HT40 DUT: C300RC; Type: Wireless USB Adapter; Serial: N/A High CH, Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.68 mW/g Page1

Compliance Certification Services Inc.FCC ID RRK-C300RC Refer No. 70613002-RP1 Report No.70814001-RP1 Page 1 of 140 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For 300Mbps Wireless PC Card Model : C300RC Trade Name : CONCEPTRONIC Issued for Alpha Networks Inc. No. 8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582…
