RRK-C300RU300Mbps Wireless USB adapter

Date: August 21, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: h) Comply with the relevant provisions of the certification program; i) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; j) Make claims regarding certification only in respect of the scope for which certification has been granted; k) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; l) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Leeming Li/ Senior Manager Alpha Networks Inc. Tel: 886-3-563666 ext.6613 Fax: 886-3-5665091 E-mail: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

August 21, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: RRK-C300RU Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Leeming Li/ Senior Manager Alpha Networks Inc. Tel: 886-3-563666 ext.6613 Fax: 886-3-5665091 E-mail: [email protected]

http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11560b90ab35d124&ww=1131&cvap=6&qt=&zx=gb9xbo80p0q2 Re: Alpha Networks Inc., FCC ID: RRK-C300RU, Assessment NO.: AN07T7196, Notice#1 Inbox Reply from "vicky.liu" <[email protected]> hide details 7:49 am (8 hours ago) to [email protected] cc [email protected], [email protected] date Oct 2, 2007 7:49 AM subject Re: Alpha Networks Inc., FCC ID: RRK-C300RU, Assessment NO.: AN07T7196, Notice#1 Dear Tim, Thank you for your reply and please find the attachment for revised SAR Report. If it still has any questions, please let me know. ----- vicky.liu/ccsemc 2007/10/02 07:47 PM ----- "Tim Dwyer" <Timothy_Dwyer@ieee. org> [email protected] 2007/09/17 10:25 PM "vicky.liu" <[email protected]> Re: Alpha Networks Inc., FCC ID: RRK-C300RU, Assessment NO.: AN07T7196, Notice#1 Dear Vicki, In my review, I thought the SAR evaluation was acceptable, but I was informed by certification that we need additional evaluation. In all cases with USB dongles and notebooks, both horizontal and vertical USB slots must be investigated. This is to demonstrate testing in all typical configurations. So for this application, additional SAR data is required with one notebook with vertical USB slots. Only http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv...560b90ab35d124&ww=1131&cvap=6&qt=&zx=gb9xbo80p0q2 (1 of 4)10/2/2007 4:08:03 PM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11560b90ab35d124&ww=1131&cvap=6&qt=&zx=gb9xbo80p0q2 the lap held position needs to be investigated. The three notebooks tested all had only horizontal slots. The SAR test lab should be aware of this requirement. This applies to both this application and AN07T7193. I will send a copy of this information for that application also. Best regards, Tim Dwyer On 9/17/07, vicky.liu <[email protected]> wrote: Dear Tim, Thank you for your reply and please find the attachment for Label Drawing and Loction. If it still has any questions, please let me know. ----- vicky.liu/ccsemc 2007/09/17 04:32 PM ----- <tim.dwyer@ccsemc. com> 2007/09/13 10:17 AM "Vicki Liu" < [email protected]> < [email protected] > Alpha Networks Inc., FCC ID: RRK-C300RU, Assessment NO.: AN07T7196, Notice#1 Dear Vicki, http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv...560b90ab35d124&ww=1131&cvap=6&qt=&zx=gb9xbo80p0q2 (2 of 4)10/2/2007 4:08:03 PM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11560b90ab35d124&ww=1131&cvap=6&qt=&zx=gb9xbo80p0q2 This application review is complete. Please reply to the following time. Q1: The FCCID label shows FCCID: RRK-C300RC. The application is for RRK-C300RU. Also no label location information was provided. Please send a revised label and location information. Best regards, Tim Dwyer CCS Technical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 4 attachments — Download all attachments 70817004-SF _70126004_ Revised 1001.pdf 903K View as HTML Download D2450V2-SN728.pdf 1366K View as HTML Download EX3DV3-SN3531.pdf 1581K View as HTML Download TestPlots 20071001 revised.pdf 1704K View as HTML Download Reply Reply to all Forward Invite vicky.liu to Gmail Reply from Tim Dwyer <[email protected]> hide details 8:38 am (7 hours ago) to "vicky. liu" <[email protected]> date Oct 2, 2007 8:38 AM subject Re: Alpha Networks Inc., FCC ID: RRK-C300RU, Assessment NO.: AN07T7196, Notice#1 mailed-by gmail.com http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv...560b90ab35d124&ww=1131&cvap=6&qt=&zx=gb9xbo80p0q2 (3 of 4)10/2/2007 4:08:03 PM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11560b90ab35d124&ww=1131&cvap=6&qt=&zx=gb9xbo80p0q2 Dear Vicki, Thank you for your reply. I hope to complete this application today. Please remember that we also need a revised SAR report for Alpha application AN07T7193. Best regards, Tim Dwyer CCS Technical Reviewer http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv...560b90ab35d124&ww=1131&cvap=6&qt=&zx=gb9xbo80p0q2 (4 of 4)10/2/2007 4:08:03 PM

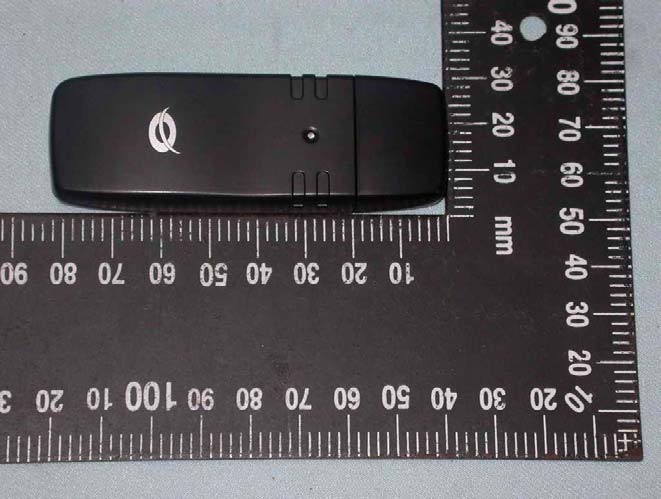

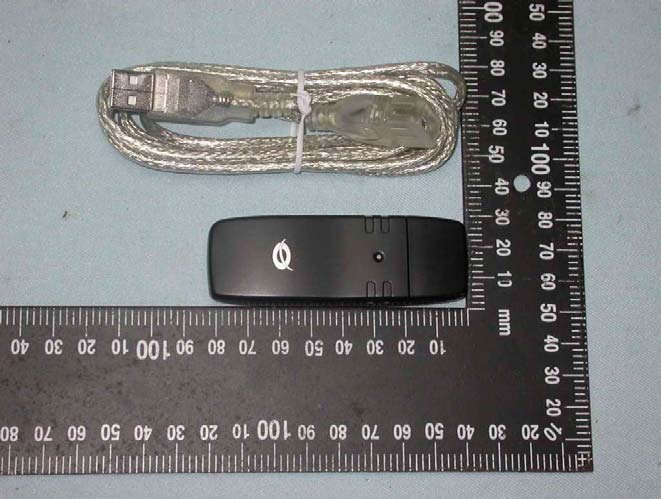

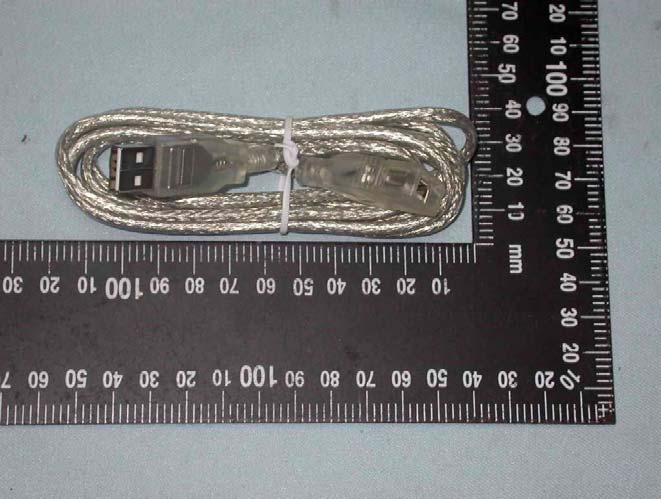

Compliance Certification Services Inc. Report No.70817004 Page 1 of 13 External Photo Compliance Certification Services Inc. Report No.70817004 Page 2 of 13 Compliance Certification Services Inc. Report No.70817004 Page 3 of 13

Compliance Certification Services Inc. Report No.70817004 Page 4 of 13 Internal Photo Compliance Certification Services Inc. Report No.70817004 Page 5 of 13 Compliance Certification Services Inc. Report No.70817004 Page 6 of 13 Compliance Certification Services Inc. Report No.70817004 Page 7 of 13 Compliance Certification Services Inc. Report No.70817004 Page 8 of 13 Compliance Certification Services Inc. Report No.70817004 Page 9 of 13 Compliance Certification Services Inc. Report No.70817004 Page 10 of 13 Compliance Certification Services Inc. Report No.70817004 Page 11 of 13 Compliance Certification Services Inc. Report No.70817004 Page 12 of 13 Compliance Certification Services Inc. Report No.70817004 Page 13 of 13

ACX Advanced Ceramic X AT5020 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™Bluetooth/Wireless LAN/Home RF ™ISM band 2.4GHz applications Specifications Part Number Frequency Range (MHz) Peak Gain XZ-V Average Gain XZ-V VSWR Impedance AT5020 -B2R8HAA_ 2400 ~ 2500 0 dBi typ. -1 dBi typ. 2 max. 50 Ω Q’ty/Reel (pcs) : 2,000pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 5020 - B 2R8 HAA ‡ ‡ i ghfe dc c Type AT : Antenna d Dimensions ( L × W ) 5.0× 2.0 mm e Material Code B f Frequency Range 2R8=2800MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk i Soldering =lead-containing /LF=lead-free Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T L Mark L W T a Dimensions 5.00.2 2.00.2 1.10.2 0.50.3 (a) Without Matching Circuits 1.0 * 3.9 5.9 1.0 * * 1.8 1.0 (b) With Matching Circuits * 3.9 8.9 1.8 4.0 1.0 1.0 * * *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. ACX Advanced Ceramic X Typical Electrical Characteristics (T=25 o C) ™Test Board Antenna No Ground Ground 18mm 18mm 30mm 50Ω Feed Line 9.6mm ™Return Loss (a) Without Matching Circuits (b) With Matching Circuits ACX Radiation Patterns Advanced Ceramic X 180 o 270 o 0 o 90 o X Z Y XY-cut scanning direction 180 270 o 0 o 90 o X Z Y XZ-cut scanning direction 180 270 0 o 90 o X Z Y YZ-cut scanning direction XY cut @2.45GHz Vertical Horizontal XY cut @2.45GHz Vertical Horizontal XZ cut @2.45GHz Vertical Horizontal YZ-V/YZ-H XZ-V/XZ-H XY-V/XY-H Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail: [email protected] http://www.acxc.com.tw

Date/Time: 2/28/2007 9:32:16 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.98 mho/m; İ r = 51.7; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.5 deg C;Liquid Temperature:23.5 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.2 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 97.6 V/m; Power Drift = -0.033 dB Peak SAR (extrapolated) = 28.3 W/kg SAR(1 g) = 13.5 mW/g; SAR(10 g) = 6.19 mW/g Maximum value of SAR (measured) = 19.2 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 19.7 mW/g Page1 Page2 Date/Time: 3/1/2007 9:46:32 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2450 MHz; ı = 2.01 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.1 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.4 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 98.1 V/m; Power Drift = -0.054 dB Peak SAR (extrapolated) = 28.7 W/kg SAR(1 g) = 13.7 mW/g; SAR(10 g) = 6.29 mW/g Maximum value of SAR (measured) = 19.5 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 19.9 mW/g Page1 Page2 Date/Time: 3/2/2007 10:33:45 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.94 mho/m; İ r = 51.6; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.8 deg C;Liquid Temperature:23.8 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.1 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 88.2 V/m; Power Drift = -0.103 dB Peak SAR (extrapolated) = 33.2 W/kg SAR(1 g) = 14.1 mW/g; SAR(10 g) = 6.2 mW/g Maximum value of SAR (measured) = 15.8 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 15.9 mW/g Page1 Page2 Date/Time: 10/1/2007 10:11:19 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.93 mho/m; İ r = 51.7; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.3 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7Build53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.0 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 88.2 V/m; Power Drift = -0.067 dB Peak SAR (extrapolated) = 33.1 W/kg SAR(1 g) = 14.1 mW/g; SAR(10 g) = 6.17 mW/g Maximum value of SAR (measured) = 15.7 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 15.8 mW/g Page1 Page2 Date/Time: 2/28/2007 10:18:45 AM Test Laboratory: Compliance Certification Services Inc. 802.11b Tip Touch mode DUT: C300RU; Type: 300Mbps Wireless USB adapter; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.96 mho/m; İ r = 51.8; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.5 deg C;Liquid Temperature:23.5 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn50…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID RRK-C300RU Refer No. 70126004-RP1 Report No.70817004-RP1 Page 1 of 140 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For 300Mbps Wireless USB adapter Model : C300RU Trade Name : CONCEPTRONIC Issued for Alpha Networks Inc. No. 8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc.FCC ID RRK-C300RU Refer No. 70126004-RP1 Report No.70817004-RP1 Page 2 of 140 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER.................................................................................... 4 3. DESCRIPTION OF TEST MODES .......................................................................................... 5 4. TEST METHODOLOGY............................................................................................................6 5. FACILITIES AND ACCREDITATIONS .................................................................................. 6 5.1 FACILITIES .......................................................................................................................... 6 5.2 EQUIPMENT ........................................................................................................................ 6 5.3 LABORATORY ACCREDITATIONS LISTINGS................................................................... 6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 7 6. CALIBRATION AND UNCERTAINTY .................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 8 6.2 MEASUREMENT UNCERTAINTY....................................................................................... 8 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 9 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 10 8.1 6dB BANDWIDTH ................................................................................................................ 10-23 8.2 99% BANDWIDTH ............................................................................................................... 24-37 8.3 MAXIMUM PEAK OUTPUT POWER ................................................................................. 38-52 8.4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................. 53-54 8.5 AVERAGE POWER............................................................................................................... 55-57 8.6 POWER SPECTRAL DENSITY ............................................................................................ 58-77 8.7 CONDUCTED SPURIOUS EMISSION................................................................................ 78-94 8.8 RADIATED EMISSIONS ...................................................................................................... 95 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS............................................. 95-98 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ............................................ 99 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ........................................... 100-111 8.8.4 RESTRICTED BAND EDGES..................................................................................... 112-127 8.9 POWERLINE CONDUCTED EMISSIONS .......................................................................... 128-131 9. ANTENNA REQUIREMENT .................................................................................................... 132 9.1 STANDARD APPLICABLE................................................................................................... 132 9.2 ANTENNA CONNECTED CONSTRUCTION ...................................................................... 132 APPENDIX SETUP PHOTOS....................................................................................................... 133-140 Compliance Certification Services Inc.FCC ID RRK-C300RU Refer No. 70126004-RP1 Report No.70817004-RP1 Page 3 of 140 1. TEST REPORT CERTIFICATION Applicant Alpha Networks Inc. Address No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan R.O.C. Equipment Under Test 300Mbps Wireless USB adapter Model C300RU Trade Name CONCEPTRONIC Tested Date January 27 ~ March 05, 2007 ; August 17 ~ 27, 2007 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C:2006 AND ANSI C63.4:2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc.FCC ID RRK-C300RU Refer No. 70126004-RP1 Report No.70817004-RP1 Page 4 of 140 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name 300Mbps Wireless USB adapter Model Number C300RU IEEE 802.11b/g, 802.11n HT20 : 2412MHz～2462MHz F…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID RRK-C300RU Refer No. 70126004-RP1 Report No.70817004-RP1 Page 133 of 140 APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID RRK-C300RU Refer No. 70126004-RP1 Report No.70817004-RP1 Page 134 of 140 Compliance Certification Services Inc.FCC ID RRK-C300RU Refer No. 70126004-RP1 Report No.70817004-RP1 Page 135 of 140 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID RRK-C300RU Refer No. 70126004-RP1 Report No.70817004-RP1 Page 136 of 140 Compliance Certification Services Inc.FCC ID RRK-C300RU Refer No. 70126004-RP1 Report No.70817004-RP1 Page 137 of 140 RF PORT COUNTED MEASURE SETUP Compliance Certification Services Inc.FCC ID RRK-C300RU Refer No. 70126004-RP1 Report No.70817004-RP1 Page 138 of 140 Compliance Certification Services Inc.FCC ID RRK-C300RU Refer No. 70126004-RP1 Report No.70817004-RP1 Page 139 of 140 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID RRK-C300RU Refer No. 70126004-RP1 Report No.70817004-RP1 Page 140 of 140
