RRK-E2FMY NET N750

  User Manual PRELIMINARY คጕቨᓎၡҗᏔ! WD ® Service and Support Should you encounter a problem, please give us an opportunity to address it before returning this product. Most technical support questions can be answered through our knowledge base or e-mail support service at http://support.wdc.com. If the answer is not available or, if you prefer, please contact WD at the best telephone number shown below. Your product includes 30 days of free telephone support during the warranty period. This 30-day period starts on the date of your first telephone contact with WD technical support. E-mail support is free for the entire warranty period and our extensive knowledge base is available 24/7. To help us keep you informed of new features and services, remember to register your product online at http:/ /register.wdc.com . Accessing Online Support Visit our product support website at http://support.wdc.com and choose from these topics:  Downloads - Download drivers, software, and updates for your WD product.  Registration - Register your WD product to get the latest updates and special offers.  Warranty & RMA Services - Get Warranty, Product Replacement (RMA), RMA Status, and Data Recovery Information.  Knowledge Base - Search by keyword, phrase, or answer ID.  Installation - Get online installation help for your WD product or software.  WD Community – Share your thoughts and connect with other users. Contacting WD Technical Support When contacting WD for support, have your WD product serial number, system hardware, and system software versions available. North AmericaEurope (toll free)*00800 ASK4 WDEU English800.ASK.4WDC(00800 27549338) (800.275.4932) Spanish800.832.4778Europe +31 880062100 Middle East+31 880062100 Mexico001 8002754932Africa+31 880062100 South AmericaAsia Pacific Chile 1230 020 5871Australia1 800 42 9861 Venezuela 0800 100 2855China800 820 6682/+65 62430496 Peru0800-54003Hong Kong+800 6008 6008 Uruguay000 413 598 3787 India1 800 200 5789 Argentina0800 4440839Indonesia+803 852 9439 Brazil0800 7704932Japan00 531 650442 TABLE OF CONTENTS – ii Table of Contents WD ® Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Accessing Online Support 2 Contacting WD Technical Support 2 1Important User Information . . . . . . . . . . . . . . . . . . . . 1 Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Recording your WD Product Information . . . . . . . . . . . . . . . . . . . . . 2 Registering your WD Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 2Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Accessories 5 AC Power Adapters 5 Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Front View 5 Back Views 6 Bottom (not shown) 8 Requirements/Technical Specifications . . . . . . . . . . . . . . . . . . . . . . 8 3Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Using a Windows PC with Easy Setup . . . . . . . . . . . . . . . . . . . . . . . 9 Windows XP 9 Windows Vista/Windows 7 9 Choosing a Setup Option 10 Setting Up a New Router (PC) 10 Installing Additional WD Software 11 Using a Mac Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Installing the Router 11 Accessing My Dashboard 12 My Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Dashboard Icons NEED ICONS WITHOUT BLACK BACKGROUND 13 Opening the Dashboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 4Basic Settings and Tasks . . . . . . . . . . . . . . . . . . . . . 15 Reviewing Current Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Connecting to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Configuring Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Setting Up External Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Adding a Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 TABLE OF CONTENTS – iii 5Advanced Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Typical Advanced Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 WAN (Internet) Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Screens 25 Glossary 26 Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Screens 27 Glossary 28 LAN SettingsNEED NEW SCREEN SHOT . . . . . . . . . . . . . . . . . . 29 Screens 29 Glossary 29 Storage Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Security Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Screens 32 Glossary 33 Additional Features Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Screens 34 Glossary 35 Administrative Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Screens 37 38 Glossary 38 6Performing Advanced Tasks . . . . . . . . . . . . . . . . . . 40 Enabling Guest Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Setting Up Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Register Your Router 41 Managing Parental Controls 42 Changing the Administrator's Password . . . . . . . . . . . . . . . . . . . . 44 Upgrading the Router’s Firmware . . . . . . . . . . . . . . . . . . . . . . . . . 44 Restoring the Router to Factory Defaults . . . . . . . . . . . . . . . . . . . . 45 Rebooting the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Using the Router as an Access Point? . . . . . . …

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Declaration Letter We, Alpha Networks Inc.declare that the device does not support any non-US channels in all the operational mode(s) for the following product. FCC ID: RRK-E2F Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 2/13/2012

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RRK-E2F Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics/Block Diagram/ Operating description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 2/13/2012

Power of Attorney To whom it may concern: We, the undersigned Alpha Networks Inc. hereby authorize BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C/15E approvals and any communication needed with the national authority. Any and all acts carried out by BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan on our behalf shall have the same effects as acts of our own. FCC ID: RRK-E2F If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 2012/2/13

FCC ID: RRK-E2F IC: 4833A-E2F Model: E2F Modification Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch April 13, 2012 Dear Application Examiner, Since there is a bit typo in the test reports description of 2.4G ANT Connector type, therefore we are going to modify this one from MHF to N/A, others are no modified. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

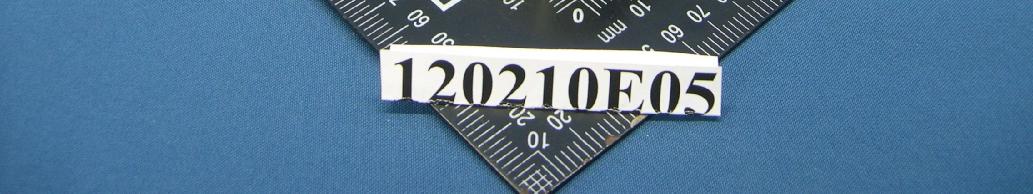

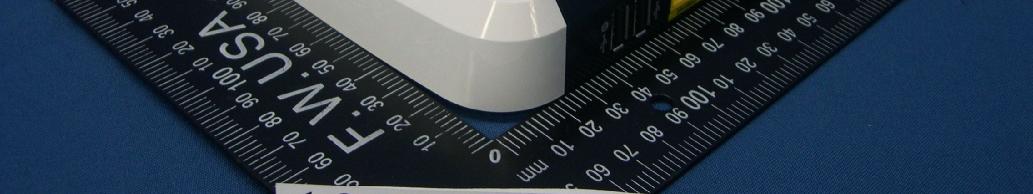

Report No.: 120210E05 1 Reference No.:120213E09 CONSTRUCTION PHOTOS OF EUT

Label drawing and location‐E2F Label size: 72.8*37.6(W*L) (mm)

Report No.: 120210E05 2 Reference No.:120213E09 Report No.: 120210E05 3 Reference No.:120213E09 Report No.: 120210E05 4 Reference No.:120213E09 Report No.: 120210E05 5 Reference No.:120213E09 Report No.: 120210E05 6 Reference No.:120213E09 Report No.: 120210E05 7 Reference No.:120213E09

Report No.: SA120210E05 R1 Report Format Version 4.0.0 Cancels and replaces the report No.: SA120210E05 dated Apr. 10, 201 1 RF EXPOSURE REPORT REPORT NO.: SA120210E05 R1 MODEL NO.: E2F FCC ID: RRK-E2F RECEIVED: Feb. 10, 2012 TESTED: Feb. 16, 2012 ISSUED: Apr. 13, 2012 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 9 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120210E05 R1 Report Format Version 4.0.0 Cancels and replaces the report No.: SA120210E05 dated Apr. 10, 201 2 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT..............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. ANTENNA GAIN.......................................................................................................6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...........................7 Report No.: SA120210E05 R1 Report Format Version 4.0.0 Cancels and replaces the report No.: SA120210E05 dated Apr. 10, 201 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120210E05 Original release Apr. 10, 2012 SA120210E05 R1 Modified Antenna Connecter type of the EUT Apr. 13, 2012 Report No.: SA120210E05 R1 Report Format Version 4.0.0 Cancels and replaces the report No.: SA120210E05 dated Apr. 10, 201 4 1. CERTIFICATION PRODUCT: MY NET N750 BRAND NAME: WD MODEL NO.: E2F TEST SAMPLE: MASS-PRODUCTION APPLICANT: Alpha Networks Inc. TESTED: Feb. 16, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: E2F) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Apr. 13, 2012 (Elsie Hsu, Specialist ) APPROVED BY : , DATE: Apr. 13, 2012 (May Chen, Deputy Manager ) Report No.: SA120210E05 R1 Report Format Version 4.0.0 Cancels and replaces the report No.: SA120210E05 dated Apr. 10, 201 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120210E05 R1 Report Format Version 4.0.0 Cancels and replaces the report No.: SA120210E05 dated Apr. 10, 201 6 5. ANTENNA GAIN 6. The antennas provided to the EUT, please refer to the following table: For 2.4GHz Transmitter Circuit Brand Model Peak Gain (dBi) Antenna Type Connecter Type Chain (0) WHA YU GROUP C037-511171-A (SSR-14424) 3 PCB NA Chain (1) WHA YU GROUP C037-511170-A (SSR-2011130) 3 PCB NA For 5GHz Transmitter Circuit Brand Model Peak Gain (dBi) Antenna Type Connecter Type Chain (0) WHA YU GROUP C037-511158-A (SSR-14469) 5 PCB MHF Chain (1) WHA YU GROUP C037-511172-A (SSR-2011133) 5 PCB MHF Chain (2) WHA YU GROUP C037-511176-A (SSR-14470) 5 PCB MHF Report No.: SA120210E05 R1 Report Format Version 4.0.0 Cancels and replaces the report No.: SA120210E05 dated Apr. 10, 201 7 7. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): 802.11b: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 191.8 6.01 20 0.152 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=6.01 802.11g: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 564.3 6.01 20 0.448 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=6.01 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 806.8 3.00 20 0.320 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2422-2452 390.1 3.00 20 0.155 1.00 Report No.: SA120210E05 R1 Report Format Version 4.0.0 Cancels and replaces the report No.: SA120210E05 dated Apr. 10, 201 8 For 15.247(5GHz): 802.11a: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 57…

Text truncated - open the document above for the full version.

Report No.: RF120210E05 R1 1 Report Format Version 4.2.0 Cancels and replaces the report No.: RF120210E05 dated Apr. 10, 2012 FCC TEST REPORT (15.247) REPORT NO.: RF120210E05 R1 MODEL NO.: E2F FCC: RRK-E2F RECEIVED: Feb. 10, 2012 TESTED: Feb. 15 to 17, 2012 ISSUED: Apr. 13, 2012 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 90 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120210E05 R1 2 Report Format Version 4.2.0 Cancels and replaces the report No.: RF120210E05 dated Apr. 10, 2012 Table of Contents RELEASE CONTROL RECORD..............................................................................5 1. CERTIFICATION...........................................................................................6 2. SUMMARY OF TEST RESULTS...................................................................7 2.1 MEASUREMENT UNCERTAINTY................................................................8 3. GENERAL INFORMATION...........................................................................9 3.1 GENERAL DESCRIPTION OF EUT..............................................................9 3.2 DESCRIPTION OF TEST MODES..............................................................12 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............13 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................16 3.4 DESCRIPTION OF SUPPORT UNITS........................................................17 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................18 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band).....19 4.1 CONDUCTED EMISSION MEASUREMENT..............................................19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................19 4.1.2 TEST INSTRUMENTS................................................................................19 4.1.3 TEST PROCEDURES.................................................................................20 4.1.4 DEVIATION FROM TEST STANDARD.......................................................20 4.1.5 TEST SETUP..............................................................................................21 4.1.6 EUT OPERATING CONDITIONS................................................................21 4.1.7 TEST RESULTS..........................................................................................22 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT......................24 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT...24 4.2.2 TEST INSTRUMENTS................................................................................25 4.2.3 TEST PROCEDURES.................................................................................27 4.2.4 DEVIATION FROM TEST STANDARD.......................................................27 4.2.5 TEST SETUP..............................................................................................28 4.2.6 EUT OPERATING CONDITIONS................................................................28 4.2.7 TEST RESULTS..........................................................................................29 4.3 6dB BANDWIDTH MEASUREMENT..........................................................42 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................42 4.3.2 TEST INSTRUMENTS................................................................................42 4.3.3 TEST PROCEDURE...................................................................................42 4.3.4 DEVIATION FROM TEST STANDARD.......................................................42 4.3.5 TEST SETUP..............................................................................................42 4.3.6 EUT OPERATING CONDITIONS................................................................43 4.3.7 TEST RESULTS..........................................................................................44 4.4 CONDUCTED OUTPUT POWER...............................................................46 Report No.: RF120210E05 R1 3 Report Format Version 4.2.0 Cancels and replaces the report No.: RF120210E05 dated Apr. 10, 2012 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........46 4.4.2 INSTRUMENTS..........................................................................................46 4.4.3 TEST PROCEDURES.................................................................................46 4.4.4 DEVIATION FROM TEST STANDARD.......................................................46 4.4.5 TEST SETUP..............................................................................................46 4.4.6 EUT OPERATING CONDITIONS................................................................46 4.4.7 TEST RESULTS..........................................................................................47 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................48 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................48 4.5.2 TEST INSTRUMENTS................................................................................48 4.5.3 TE…

Text truncated - open the document above for the full version.

Report No.: RF120210E05-1 R1 1 Report Format Version 4.2.0 Cancels and replaces the report No.: RF120210E05-1 dated Apr. 10, 2012 FCC TEST REPORT (15.407) REPORT NO.: RF120210E05-1 R1 MODEL NO.: E2F FCCC: RRK-E2F RECEIVED: Feb. 10, 2012 TESTED: Feb. 15 to 17, 2012 ISSUED: Apr. 13, 2012 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 59 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120210E05-1 R1 2 Report Format Version 4.2.0 Cancels and replaces the report No.: RF120210E05-1 dated Apr. 10, 2012 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................14 3.4 DUTY CYCLE OF TEST SIGNAL.........................................................................14 3.5 DESCRIPTION OF SUPPORT UNITS..................................................................15 3.6 CONFIGURATION OF SYSTEM UNDER TEST...................................................16 4. TEST TYPES AND RESULTS..............................................................................17 4.1 CONDUCTED EMISSION MEASUREMENT........................................................17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................17 4.1.2 TEST INSTRUMENTS..........................................................................................17 4.1.3 TEST PROCEDURES..........................................................................................18 4.1.4 DEVIATION FROM TEST STANDARD.................................................................18 4.1.5 TEST SETUP.......................................................................................................19 4.1.6 EUT OPERATING CONDITIONS.........................................................................19 4.1.7 TEST RESULTS...................................................................................................20 4.2 RADIATED EMISSION MEASUREMENT.............................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................22 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS..........23 4.2.3 TEST INSTRUMENTS..........................................................................................24 4.2.4 TEST PROCEDURES..........................................................................................25 4.2.5 DEVIATION FROM TEST STANDARD.................................................................25 4.2.6 TEST SETUP.......................................................................................................26 4.2.7 EUT OPERATING CONDITION............................................................................26 4.2.8 TEST RESULTS...................................................................................................27 4.3 TRANSMIT POWER MEASUREMENT................................................................36 4.3.1 LIMITS OF TRANSMIT POWER MEASUREMENT..............................................36 4.3.2 TEST INSTRUMENTS..........................................................................................36 4.3.3 TEST PROCEDURE.............................................................................................37 4.3.4 DEVIATION FROM TEST STANDARD.................................................................37 4.3.5 TEST SETUP.......................................................................................................38 4.3.6 EUT OPERATING CONDITIONS.........................................................................38 4.3.7 TEST RESULTS...................................................................................................39 Report No.: RF120210E05-1 R1 3 Report Format Version 4.2.0 Cancels and replaces the report No.: RF120210E05-1 dated Apr. 10, 2012 4.4 PEAK POWER SPECTRAL DENSITY MEASUREMENT.....................................41 4.4.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT...................41 4.4.2 TEST INSTRUMENTS..........................................................................................41 4.4.3 TEST PROCEDURES..........................................................................................41 4.4.4 DEVIATION FROM TEST STANDARD..................................…

Text truncated - open the document above for the full version.

Report No.: 120210E05 1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120210E05 2 RADIATED EMISSION TEST
