RRK-EA-7HW02AP1Wireless Access Point

User’s Guide Wireless LAN Access Point Model No. EA-7HW02AP1 EA-7HW03AP1 Before operating this product, please read the instructions carefully and save this manual for future use. Wireless LAN Access Point（wave1） EA-7HW02AP1 Wireless LAN Access Point（wave2） EA-7HW03AP1 2 Introduction Thank you for purchasing the Panasonic Enterprise Wireless LAN Access Point. This User’s Guide described the instructions for the Enterprise Wireless LAN Access Point. Before connecting, operating or adjusting this product, please read these instructions completely, and save this manual for future use. ■ Trademarks and registered trademarks • Wi-Fi is a trademark of the Wi-Fi Alliance. • Ethernet is a trademark of Fuji Xerox Co.,Ltd. • All other company names and product names in this document are trademarks or registered trademarks of their respective companies. ■ Notice • The content of this document is subject to change without notice to improve. • All of "Access point", "AP", "Wireless unit", "EA-7HW02AP1" and "EA-7HW03AP1" indicate Wi-Fi base station for business use. • "PoE injector" indicates the option item "EA-7HW00PWR1". • "PoE power feeding device" indicates the option item "EA-7HW00PWR1" or a PoE injector/power feeding hub on the market. ■ Disclaimers • Panasonic shall have no liability for any economic damage resulting from communication loss or recording failure caused by a fault, malfunction, failure of this product or by external factors upon power outage. • Panasonic shall have no liability for any damage caused by disaster such as earthquakes, lightnings, storm and floods, fire, actions by a third party, other incidents, accidents arising from customers' intentional or negligent misuse and use under abnormal conditions, and for any incidental loss arising from availability or unavailability of this product. • This product is not intended to be used with any medical equipments, life-support systems, air traffic control devices and any other device, equipments and systems involving human lives. Panasonic shall have no liability for any damage and loss caused by using this product with these devices, equipments and systems. 3 Safety Precautions To prevent severe injury and loss of life/property, read this section carefully before using the unit to ensure proper and safe operation of your unit. WARNING: • Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. • To prevent injury, this apparatus must be securely attached to the wall/ceiling in accordance with the installation instructions. • All work related to the installation of this product should be made by qualified service personnel or system installers. • The installation shall be carried out in accordance with all applicable installation rules. • The connections should comply with local electrical code. CAUTION: Compliance with FCC requirement 15.407(c) Data transmission in always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure. • AC adaptor with ferrite core must be used for RF interference suppression. Frequency Tolerance: ±20 ppm This device is restricted for indoor use. This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. 4 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. 5 Contents 1. Specifications ···························································································································· 13 1.1. Equipment specifications ·····························…

Text truncated - open the document above for the full version.

Alpha Networks Inc. No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, 300 Taiwan Tel: 886-3-5636666 ext: 6760 / Fax: 886-3-5665091 Confidential Letter Date: 2015/12/25 Federal Communications Commission Authorization and Evaluation Division FCC ID：RRK-EA-7HW02AP1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Alpha Networks Inc. Applicant’s company address : No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, 300 Taiwan Signature : Name and Job Title : Kelly Tsai / Director E-Mail : [email protected] Tel. : 886-3-5636666 ext: 6760

Alpha Networks Inc. No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, 300 Taiwan Tel: 886-3-5636666 ext: 6760 / Fax: 886-3-5665091 DoC Attestation Letter Date: 2015/12/25 We Alpha Networks Inc., as the grantee of this project (FCC ID: RRK-EA-7HW02AP1 / Brand Name: Panasonic / Model No.: EA-7HW02AP1W, EA-7HW02AP1T, EA-7HW02AP1K), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sporton report No.: FD432156-06, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : Alpha Networks Inc. Applicant’s company address : No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, 300 Taiwan Signature : Name and Job Title : Kelly Tsai / Director E-Mail : [email protected] Tel. : 886-3-5636666 ext: 6760

Alpha Networks Inc. No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, 300 Taiwan Tel: 886-3-5636666 ext: 6760 / Fax: 886-3-5665091 Power of Attorney Date: 2015/12/25 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Panasonic / EA-7HW02AP1W, EA-7HW02AP1T, EA-7HW02AP1K FCC ID: RRK-EA-7HW02AP1 Product name: Wireless Access Point FCC Grantee contact person information. Applicant’s company name : Alpha Networks Inc. Applicant’s company address : No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, 300 Taiwan Signature : Name and Job Title : Kelly Tsai / Director E-Mail : [email protected] Tel. : 886-3-5636666 ext: 6760

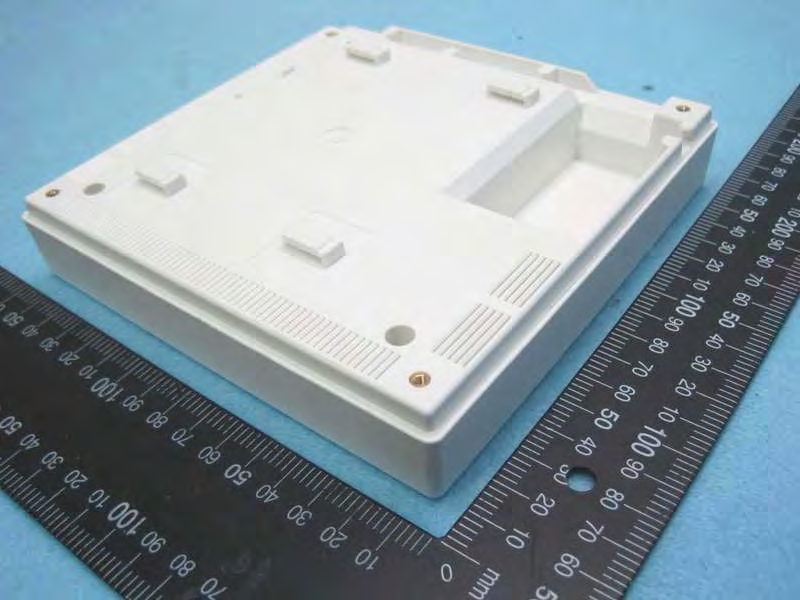

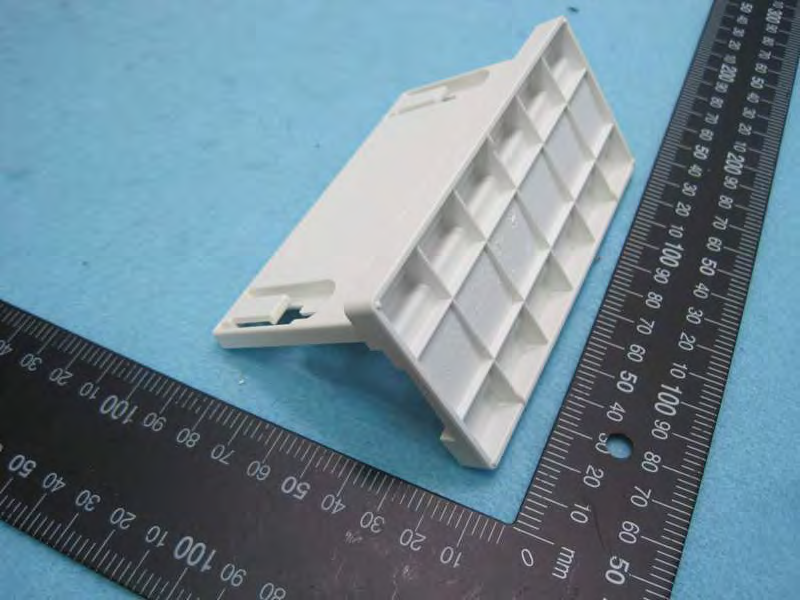

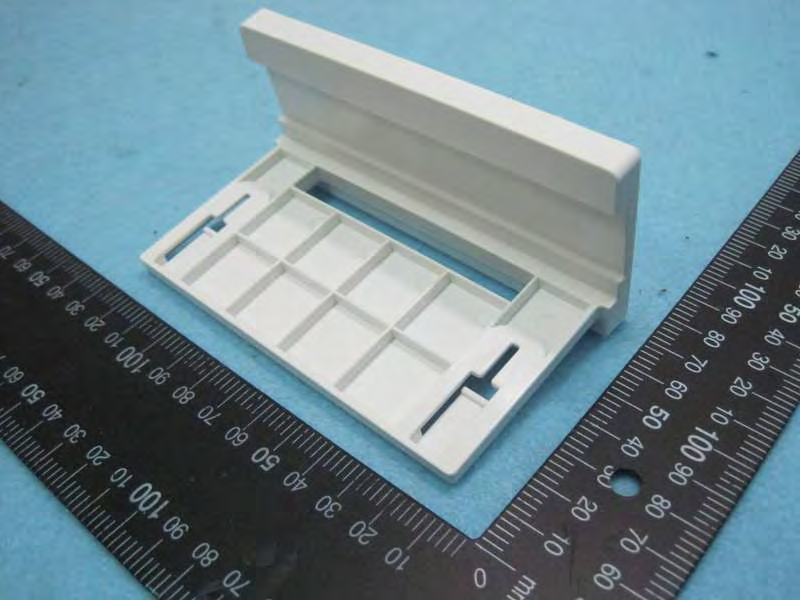

Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 1 of 6 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Photographs of EUT Model No.: EA-7HW02AP1W (Color of housing: White) Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 2 of 6 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 3 of 6 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Wall-mounted rack Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 4 of 6 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Foot holder Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 5 of 6 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Adapter Model No.: UIA336-1220 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 6 of 6 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973

Label: label size: 80 mm x 35 mm Label location Label Here

Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 1 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Photographs of EUT Model No.: EA-7HW02AP1W (Color of housing: White) Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 2 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 3 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 4 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 5 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 6 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 7 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 8 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 9 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 10 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 11 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 12 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 13 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 14 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 15 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973 Report No.: 432156-06 SPORTON International Inc. PAGE NUMBER : 16 of 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 29, 2015 FAX : 886-3-327-0973

Report No.: FR432156-06 FCC ID: RRK-EA-7HW02AP1 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR432156-06 FCC ID: RRK-EA-7HW02AP1 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR432156-06 FCC ID: RRK-EA-7HW02AP1 Page No. : B3 of B3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz UNII Band: Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11a: 27.57dBm The maximum combined Average Output Power Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 4.64 2.9107 27.5657 570.9103 0.330764 1 Complies For 2.4GHz Band: Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11b: 28.23 dBm The maximum combined Average Output Power Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 3.88 2.4434 28.2256 664.6069 0.323233 1 Complies Conclusion: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.323233 / 1 + 0.330764 / 1 = 0.653997, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company Alpha Networks Inc. Applicant Address No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, 300 Taiwan FCC ID RRK-EA-7HW02AP1 Product Name Wireless Access Point Brand Name Panasonic Model No. EA-7HW02AP1W, EA-7HW02AP1T, EA-7HW02AP1K Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250 MHz / 5725 ~ 5850 MHz Received Date Oct. 02, 2013 Final Test Date Feb. 02, 2015 Submission Type Original Equipment Operating Mode Master Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E, KDB789033 D02 v01, KDB662911 D01 v02r01, KDB644545 D03 v01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Note: Using 1.5m table as an alternative was permitted by the FCC per TCBC conference call of Dec. 2, 2014. Report No.: FR432156-06AB Report Format Version: Rev. 01 Page No. : i of ii FCC ID: RRK-EA-7HW02AP1 Issued Date : Dec. 29, 2015 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations................................................................................................................................................................10 3.7. Table for Multiple List.........................................................................................................................................................................10 3.8. Table for Supporting Units .................................................................................................................................................................11 3.9. Table for Parameters of Test Software Setting ...................................................................................................................................12 3.10. EUT Operation during Test .................................................................................................................................................................12 3.11. Duty Cycle ........................................................................................................................................................................................12 3.12. Test Configurations ...........................................................................................................................................................................13 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................19 4.3. 6dB Spectrum Bandwidth and 99% Occupied Bandwidth Measurement........................................................................................27 4.4. Maximum Conducted Output Power Measurement .........................................................................................................................32 4.5. Power Spectral Density Measurement ..............................................................................................................................................36 4.6. Radiated Emissions Measurement ....................................................................................................................................................50 4.7. Band Edge Emissions Measurement .................................................................................................................................................75 4.8. Frequency Stability Measurement ...............................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR432156-06 FCC ID: RRK-EA-7HW02AP1 Page No. : C1 of C3 Appendix C. Radiated Emission Co-location Report Report No.: FR432156-06 FCC ID: RRK-EA-7HW02AP1 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 25.1°C Humidity 50% Test Engineer YC Chen Configurations 2.4G + 5G Horizontal Report No.: FR432156-06 FCC ID: RRK-EA-7HW02AP1 Page No. : C3 of C3 Vertial

Report No.: FR432156-06 FCC ID: RRK-EA-7HW02AP1 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR432156-06 FCC ID: RRK-EA-7HW02AP1 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR432156-06 FCC ID: RRK-EA-7HW02AP1 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR432156-06 FCC ID: RRK-EA-7HW02AP1 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR432156-06 FCC ID: RRK-EA-7HW02AP1 Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
