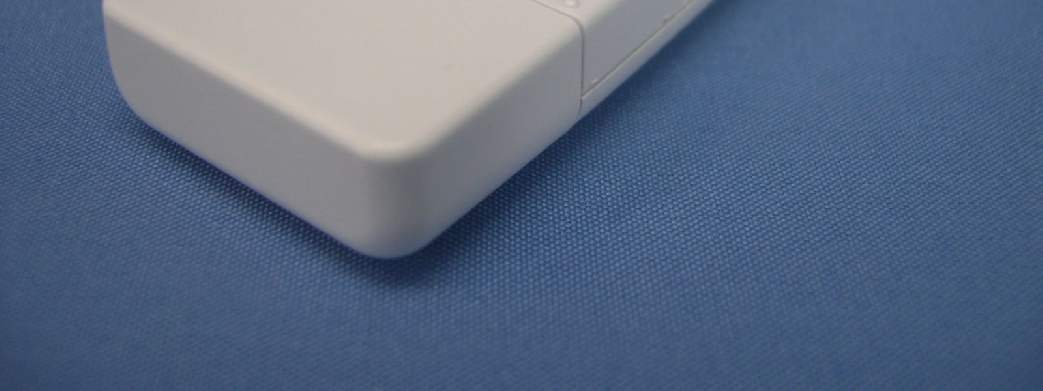

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID：RRK-NECNP01LM FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label location

Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID: RRK-NECNP01LM Report No. 960427H02 Technical Description This device is an USB Wireless LAN unit operates in both the 5GHz and 2.4GHz Bands with DSSS and OFDM technique. The transmitter rate could be 1/2/5.5/6/9/11/12/18/24/ 36/48/54Mbps. The transmitter of the EUT is powered from host equipment. The antennas are as following: For 2.4GHz Brand Name Model No. Gain (dBi) Antenna Type Connector Advanced Ceramic X corp. AT5020-B2R5HAA__ 0 Multilayer Chip Antenna N/A For 5GHz Brand Name Model No. Gain (dBi) Antenna Type Connector Advanced Ceramic X corp. AT3216-B2R5HAA_/LF 2 Multilayer Chip Antenna N/A For more detailed instruction, please refer to the user’s manual. FCC ID: RRK-NECNP01LM Report No. 960427H02 FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: RRK-NECNP01LM Report No. 960427H02 Technical Description This device is an USB Wireless LAN unit operates in both the 5GHz and 2.4GHz Bands with DSSS and OFDM technique. The transmitter rate could be 1/2/5.5/6/9/11/12/18/24/ 36/48/54Mbps. The transmitter of the EUT is powered from host equipment. The antennas are as following: For 2.4GHz Brand Name Model No. Gain (dBi) Antenna Type Connector Advanced Ceramic X corp. AT5020-B2R8HAA__ 0 Multilayer Chip Antenna N/A For 5GHz Brand Name Model No. Gain (dBi) Antenna Type Connector Advanced Ceramic X corp. AT3216-B5R5HAA__ 2 Multilayer Chip Antenna N/A For more detailed instruction, please refer to the user’s manual. FCC ID: RRK-NECNP01LM Report No. 960427H02 FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report no.: SA960427H02 1 Report Format Version 2.0.5 SAR TEST REPORT REPORT NO.: SA960427H02 MODEL NO.: NP01LM RECEIVED: Apr. 27, 2007 TESTED: Jun. 06 ~ Jun. 08, 2007 ISSUED: Jun. 14, 2007 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Partk, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 45 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA960427H02 2 Report Format Version 2.0.5 TABLE OF CONTENTS 1. CERTIFICATION.......................................................................................................3 2. GENERAL INFORMATION........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT..........................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM..................................................6 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION..................9 3. DESCRIPTION OF SUPPORT UNITS.....................................................................12 4. DESCRIPTION OF TEST MODES AND CONFIGURATIONS.................................13 4.1. DESCRIPTION OF ANTENNA LOCATION..............................................................13 4.2. DESCRIPTION OF ASSESSMENT POSITION.......................................................14 4.3. DESCRIPTION OF TEST MODE.............................................................................15 4.4. SUMMARY OF TEST RESULTS.............................................................................15 5. TEST RESULTS......................................................................................................17 5.1 TEST PROCEDURES.............................................................................................17 5.2 MEASURED SAR RESULTS...................................................................................19 5.3 SAR LIMITS............................................................................................................24 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS.....................................................25 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY.......................................................30 6. SYSTEM VALIDATION............................................................................................31 6.1 TEST EQUIPMENT.................................................................................................31 6.2 TEST PROCEDURE...............................................................................................32 6.3 VALIDATION RESULTS...........................................................................................34 6.4 SYSTEM VALIDATION UNCERTAINTIES...............................................................35 6.1 SYSTEM VALIDATION UNCERTAINTIES (FOR 5.0GHz).......................................36 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES........................................37 7.1. PROBE CALIBRATION UNCERTAINTY.................................................................37 7.2. ISOTROPY UNCERTAINTY....................................................................................38 7.3. BOUNDARY EFFECT UNCERTAINTY...................................................................38 7.4. PROBE LINEARITY UNCERTAINTY.......................................................................39 7.5. READOUT ELECTRONICS UNCERTAINTY...........................................................39 7.6. RESPONSE TIME UNCERTAINTY.........................................................................39 7.7. INTEGRATION TIME UNCERTAINTY....................................................................40 7.8. PROBE POSITIONER MECHANICAL TOLERANCE..............................................41 7.9. PROBE POSITIONING...........................................................................................41 7.10. PHANTOM UNCERTAINTY....................................................................................42 7.11. DASY4 UNCERTAINTY BUDGET (FOR 2.4GHz)...................................................43 7.12. DASY4 UNCERTAINTY BUDGET (FOR 5 ~ 6GHz)................................................44 8. INFORMATION ON THE TESTING LABORATORIES.............................................45 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA960427H02 3 Report Format Version 2.0.5 1. CERTIFICATION PRODUCT: USB Wireless LAN unit MODEL: NP01LM BRAND: NEC APPLICANT: Alpha Networks Inc. TESTED: Jun. 06 ~ Jun. 08, 2007 TEST SAMPLE: MASS-PRODUCTION STANDARDS: FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) IEEE 1528-2003 The above equipment (Model: NP01LM) have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Jun. 14, 2007 Joanna Wang / Specialist TECHNICAL ACCEPTANCE : , DATE: Jun. 14, 2007 Responsible for RF Stanely Hsu / S…

Text truncated - open the document above for the full version.

Report No.: RF960427H02 1 Report Format Version 2.0.5 FCC TEST REPORT (15.247) REPORT NO.: RF960427H02 MODEL NO.: NP01LM RECEIVED: April 27, 2007 TESTED: May 02 to June 07, 2007 ISSUED: June 11, 2007 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 101 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960427H02 2 Report Format Version 2.0.5 Table of Contents 1. CERTIFICATION...........................................................................................6 2. SUMMARY OF TEST RESULTS...................................................................7 2.1 MEASUREMENT UNCERTAINTY...............................................................9 3. GENERAL INFORMATION.........................................................................10 3.1 GENERAL DESCRIPTION OF EUT............................................................10 3.2 DESCRIPTION OF TEST MODES..............................................................12 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.............13 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................15 3.4 DESCRIPTION OF SUPPORT UNITS........................................................16 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................16 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band).....17 4.1 CONDUCTED EMISSION MEASUREMENT..............................................17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................17 4.1.2 TEST INSTRUMENTS................................................................................17 4.1.3 TEST PROCEDURES.................................................................................18 4.1.4 DEVIATION FROM TEST STANDARD.......................................................18 4.1.5 TEST SETUP..............................................................................................19 4.1.6 EUT OPERATING CONDITIONS................................................................19 4.1.7 TEST RESULTS..........................................................................................20 4.2 RADIATED EMISSION MEASUREMENT...................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................22 4.2.2 TEST INSTRUMENTS................................................................................23 4.2.3 TEST PROCEDURES.................................................................................24 4.2.4 DEVIATION FROM TEST STANDARD.......................................................24 4.2.5 TEST SETUP..............................................................................................25 4.2.6 EUT OPERATING CONDITIONS................................................................25 4.2.7 TEST RESULTS..........................................................................................26 4.3 6dB BANDWIDTH MEASUREMENT..........................................................41 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................41 4.3.2 TEST INSTRUMENTS................................................................................41 4.3.3 TEST PROCEDURE...................................................................................42 Report No.: RF960427H02 3 Report Format Version 2.0.5 4.3.4 DEVIATION FROM TEST STANDARD.......................................................42 4.3.5 TEST SETUP..............................................................................................42 4.3.6 EUT OPERATING CONDITIONS................................................................42 4.3.7 TEST RESULTS..........................................................................................43 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................49 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........49 4.4.2 INSTRUMENTS..........................................................................................49 4.4.3 TEST PROCEDURES.................................................................................50 4.4.4 DEVIATION FROM TEST STANDARD.......................................................50 4.4.5 TEST SETUP..............................................................................................50 4.4.6 EUT OPERATING CONDITIONS................................................................50 4.4.7 TEST RESULTS..........................................................................................51 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................53 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................53 4.5.2 TEST INSTRUMENTS................................................................................53 4.5.3 TEST PROCEDURE...................................................................................54 4.5.4 DEVIATION FROM TEST STANDARD.......................................................54 4.5.5 TEST SETUP..............................................................................................54 4.5.6 EUT OPERATING CONDITION..................................................................54 4.5.7 TEST RESULTS..........................................................................................55 4.6 BAND EDGES MEASUREMENT................................................................61 …

Text truncated - open the document above for the full version.

Report No.: RF960427H02 1 Report Format Version 2.0.5 FCC TEST REPORT (15.407) REPORT NO.: RF960427H02 MODEL NO.: NP01LM RECEIVED: April 27, 2007 TESTED: May 02 to June 07, 2007 ISSUED: June 11, 2007 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 75 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960427H02 2 Report Format Version 2.0.5 Table of Contents 1. CERTIFICATION.............................................................................................................4 2. SUMMARY OF TEST RESULTS...................................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................................6 3. GENERAL INFORMATION............................................................................................7 3.1 GENERAL DESCRIPTION OF EUT.............................................................................7 3.2 DESCRIPTION OF TEST MODES................................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:..........................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................12 3.4 DESCRIPTION OF SUPPORT UNITS.......................................................................13 3.5 CONFIGURATION OF SYSTEM UNDER TEST.......................................................13 4. TEST TYPES AND RESULTS.....................................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT.............................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.........................................14 4.1.2 TEST INSTRUMENTS.................................................................................................14 4.1.3 TEST PROCEDURES..................................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD.......................................................................15 4.1.5 TEST SETUP................................................................................................................16 4.1.6 EUT OPERATING CONDITIONS................................................................................16 4.1.7 TEST RESULTS............................................................................................................17 4.2 RADIATED EMISSION MEASUREMENT..................................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT..............................................19 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS...........20 4.2.3 TEST INSTRUMENTS.................................................................................................21 4.2.4 TEST PROCEDURES..................................................................................................22 4.2.5 DEVIATION FROM TEST STANDARD.......................................................................22 4.2.6 TEST SETUP................................................................................................................23 4.2.7 EUT OPERATING CONDITION..................................................................................23 4.2.8 TEST RESULTS............................................................................................................24 4.3 PEAK TRANSMIT POWER MEASUREMENT...........................................................38 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT.......................................38 4.3.2 TEST INSTRUMENTS.................................................................................................38 4.3.3 TEST PROCEDURE.....................................................................................................39 4.3.4 DEVIATION FROM TEST STANDARD.......................................................................39 4.3.5 TEST SETUP................................................................................................................39 Report No.: RF960427H02 3 Report Format Version 2.0.5 4.3.6 EUT OPERATING CONDITIONS................................................................................39 4.3.7 TEST RESULTS............................................................................................................40 4.4 PEAK POWER EXCURSION MEASUREMENT........................................................49 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT....................................49 4.4.2 TEST INSTRUMENTS.................................................................................................49 4.4.3 TEST PROCEDURE.....................................................................................................50 4.4.4 DEVIATION FROM TEST STANDARD.......................................................................50 4.4.5 TEST SETUP................................................................................................................50 4.4.6 EUT OPERATING CONDITIONS................................................................................50 4.4.7 TEST RESULTS............................................................................................................51 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT.........................................55 4.5.1 L…

Text truncated - open the document above for the full version.

Report No.: RF960427H02 1 Report Format Version 2.0.5 DFS TEST REPORT REPORT NO.: RF960427H02 MODEL NO.: NP01LM (refer to item 3.1 for more details) RECEIVED: April 27, 2007 TESTED: July 09, 2007 ISSUED: July 09, 2007 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 19 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any g…
