RRK-NECNP02LMWireless LAN Unit

Alpha Networks Inc.
Wireless LAN Unit - FCC ID RRK-NECNP02LM - Alpha Networks Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 14, 2010
Application Purpose
Original Equipment
Date of Application
Jul 14, 2010
Equipment Note
Wireless LAN Unit
Frequency Range
2422.00000000 - 2452.00000000
Company
Alpha Networks Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 Wireless LAN Unit Installation Guide Model: NP02LM NEC Display Solutions, Ltd. 2010 2 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. IMPORTANT NOTE: This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” 3 Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device 以下警語適用台灣地區: 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、加大功率 或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改 善至無干擾時方得繼續使用。前項合法通信,指依電信法規定作業之無線電通信。低功率射頻電機須 忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 This Class B digital apparatus complies with Canadian RSS-210. Cet appareil numérique de la Classe B est conforme à la norme CNR-210 du Canada. 4 Table of Contents 1. Introduction ...............................................................................................................................5 2. Connecting to a Wireless LAN ................................................................................................6 3. Technical Specifications..........................................................................................................7 5 1. Introduction Thank you purchasing the Wireless LAN Unit NP02LM series (Wireless LAN Unit). Set the Wireless LAN Unit in the NEC Projector (described below) for use. Refer to the user’s manual that comes with the projector for installation or removal procedures and for how to set the wireless LAN. ● Parts Included ・Wireless LAN Unit ........................ 1 ・Important Information (this document) ........ 1 ● Supported Projector Wireless LAN Unit supports the following NEC projector. NP-M350X NP02LM Series offers performance comparable to an Ethernet Local Area Network (LAN) system, without the limitations of network cables. It allows you to connect your computer to a Local Area Network from anywhere within the wireless coverage area. It also enables you to roam throughout the network while remaining connected to the LAN. 6 2. Connecting to a Wireless LAN The Wireless LAN Unit also provides a wireless LAN connection. To use a wireless LAN connection, you are required to assign an IP address to the projector. Important: • If you use the projector with the USB Wireless LAN Unit in the area where the use of wireless LAN equipment is prohibited, remove the USB Wireless LAN Unit from the projector. (→ page 143) • Buy the appropriate USB Wireless LAN Unit for your country or area. NOTE: • The green LED on the USB Wireless LAN Unit flashes to show that the USB Wireless LAN Unit is working. • Your computer’s wireless LAN adapter (or unit) must be complied with Wi-Fi (IEEE802.11b/g/n) standard. Flow of Setting Wireless LAN Step 1: Connect the computer to the projector via wired LAN. (→ page xx) Use the computer’s browser to display the projector’s HTTP server. (→ page xx) Step 2: Attach the USB Wireless LAN Unit to the projector. (→ page xx) Step 3: Use an HTTP server to set the wireless LAN. (→ page xx) Access the HTTP server function to set [NETWORK SETTINGS] → [SETTINGS] → [WIRELESS] → [EASY CONNECTION] , [PROFILE1] or [PROFILE2]. NOTE: • To use the HTTP server function, the projector must be connected to a network. First use the wired LAN to connect the projector to a network and then use the HTTP server to set the wireless LAN. • After setting the wireless LAN by using the HTTP server, set [NETWORK SETTINGS] → [SET…

Text truncated - open the document above for the full version.

Attestation Statements

FCC ID: RRK-NECNP02LM To whom it may concern: Please be notified that we, the undersigned Alpha Networks Inc., declare that our device Wireless LAN Unit is a wireless USB WLAN adapter, but we only sale this device for projector use, and the user will have a distance above 20cm from the device, so SAR test is not required. Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] 2010/6/8

Cover Letter(s)

AGENCY AUTHORIZATION LETTER Authority to Act as Agent American Telecommunication Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Audix Technology (Shenzhen) Co., Ltd is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunication Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] 2010/6/8

Cover Letter(s)

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RRK-NECNP02LM Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] 2010/6/8

External Photos

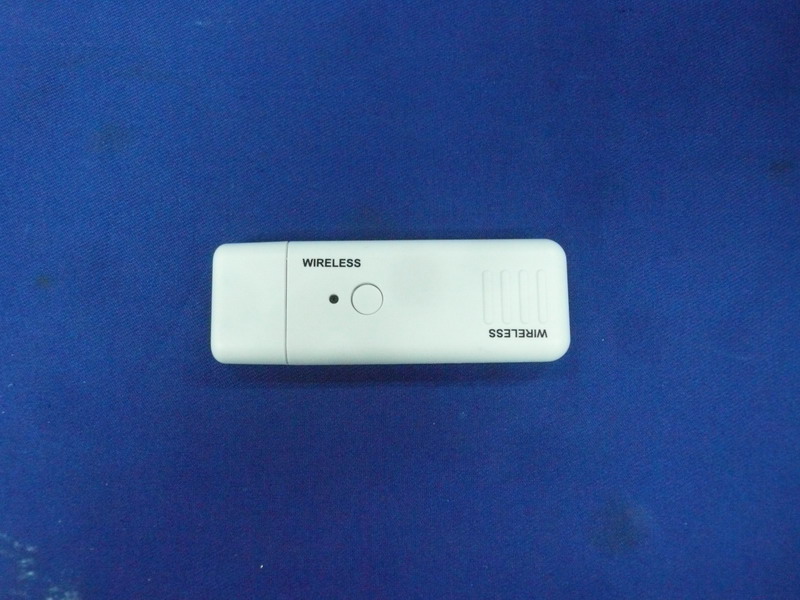

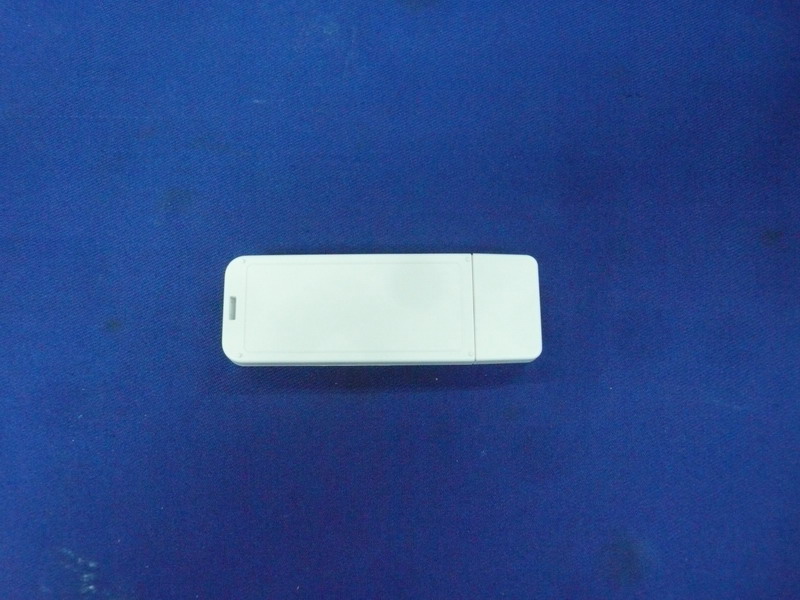

FCC ID:RRK-NECNP02LM Page 13-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10109 13. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID:RRK-NECNP02LM Page 13-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10109 Figure 3 General Appearance of the EUT Figure 4 Inside of the EUT

ID Label/Location Info

Label Location

Internal Photos

FCC ID:RRK-NECNP02LM Page 13-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10109 Figure 3 General Appearance of the EUT Figure 4 Inside of the EUT FCC ID:RRK-NECNP02LM Page 13-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10109 Figure 5 Inside of the EUT Antenna Location Figure 6 Inside of the EUT

RF Exposure Info

MPE ESTIMATION 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 2, Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) antenna Gain (dBi) antenna Gain(linear) MPE 11b 1 2412 21.12 129.42 0 1.00 0.0258 6 2437 20.33 107.89 0 1.00 0.0215 11 2462 20.09 102.09 0 1.00 0.0203 11g 1 2412 24.13 258.82 0 1.00 0.0515 6 2437 24.52 283.14 0 1.00 0.0564 11 2462 24.61 289.07 0 1.00 0.0575 11n HT20 1 2412 28.43 696.63 0 1.00 0.1387 6 2437 28.19 659.17 0 1.00 0.1312 11 2462 28.42 695.02 0 1.00 0.1383 11n HT40 1 2422 27.74 594.29 0 1.00 0.1183 4 2437 27.93 620.87 0 1.00 0.1236 7 2452 28.09 644.17 0 1.00 0.1282 Note: The estimation distance is 20cm

Test Report

FCC ID:RRK-NECNP02LM Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10109 APPLICATION FOR CERTIFICATION On Behalf of Alpha Networks Inc. Wireless LAN Unit Model Number: NP02LM FCC ID: RRK-NECNP02LM Prepared for : Alpha Networks Inc. No.8, Li-shing 7th Rd., Science-based Industrial Park Hsinchu, Taiwan, R.O.C. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number : ACS-F10109 Date of Test : Apr.04~May.25, 2010 Date of Report : May.27, 2010 FCC ID:RRK-NECNP02LM Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10109 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ................................................................... 1-1 1.1. Description of Standards and Results ............................................................................................ 1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) ......................................................................................................... 2-1 2.2. Test Information ............................................................................................................................. 2-2 2.3. Data rate VS power ........................................................................................................................ 2-3 2.4. Tested Supporting System Details ................................................................................................. 2-4 2.5. Test Facility ................................................................................................................................... 2-5 2.6. Measurement Uncertainty (95% confidence levels, k=2) .............................................................. 2-5 3. POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1. Test Equipments ............................................................................................................................. 3-1 3.2. Block Diagram of Test Setup ......................................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ................................................................................ 3-1 3.4. Configuration of EUT on Test ....................................................................................................... 3-2 3.5. Operating Condition of EUT .......................................................................................................... 3-2 3.6. Test Procedure ................................................................................................................................ 3-2 3.7. Power Line Conducted Emission Test Results .............................................................................. 3-2 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment .............................................................................................................................. 4-1 4.2. Block Diagram of Test Setup ......................................................................................................... 4-1 4.3. Radiated Emission Limit ................................................................................................................ 4-2 4.4. EUT Configuration on Test ............................................................................................................ 4-3 4.5. Operating Condition of EUT .......................................................................................................... 4-3 4.6. Test Procedure ................................................................................................................................ 4-3 4.7. Radiated Emission Test Results ..................................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS............................................................................... 5-1 5.1. Test Equipment .............................................................................................................................. 5-1 5.2. Limit ............................................................................................................................................... 5-1 5.3. Test Procedure ................................................................................................................................ 5-1 5.4. Test result ....................................................................................................................................... 5-1 6. BAND EDGE COMPLIANCE TEST ..................................................................................... 6-1 6.1. Test Equipment .............................................................................................................................. 6-1 6.2. Limit ............................................................................................................................................... 6-1 6.3. Test Produce ................................................................................................................................... 6-1 6.4. Test Results .................................................................................................................................... 6-1 7. 6dB Bandwidth Test .................................................................................................................. 7-1 7.1. Test Equipment .............................................................................................................................. 7-1 7.2. Limit .....................................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID:RRK-NECNP02LM Page 12-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10109 12. PHOTOGRAPH OF TEST 12.1.Photos of Power Line Conducted Emission Test FCC ID:RRK-NECNP02LM Page 12-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10109 12.2.Photos of Radiated Emission Test (30-1000MHz) FCC ID:RRK-NECNP02LM Page 12-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10109 (Above 1000MHz)

Contact Information

Applicant

Kelly Tsai(Director)
[email protected]886-3-5636666Fax: 886-3-5665091

Technical Contact

AUDIX Technology (Shenzhen) Co., Ltd.Ken Lu
[email protected]86-755-26639497

52 Block Shenzhen Science&Industry · Shenzhen · China

Non-Technical Contact

AUDIX Technology (Shenzhen) Co., Ltd.Kris Zheng
[email protected]86-755-26639497

Test Firm

Audix Technology (Shenzhen) Co.Smart Tsai
[email protected]86-755-663-9495Fax: 86-755-663-2877

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz644.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is the maximum combined conducted output. Device is an 802.11n device in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing.The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The USB Dongle listed within this application is to be installed only in the specific projector(s) shown in manual(s) under this FCC ID. The Grantee must insure that the end user has no software to install in the other devices.
