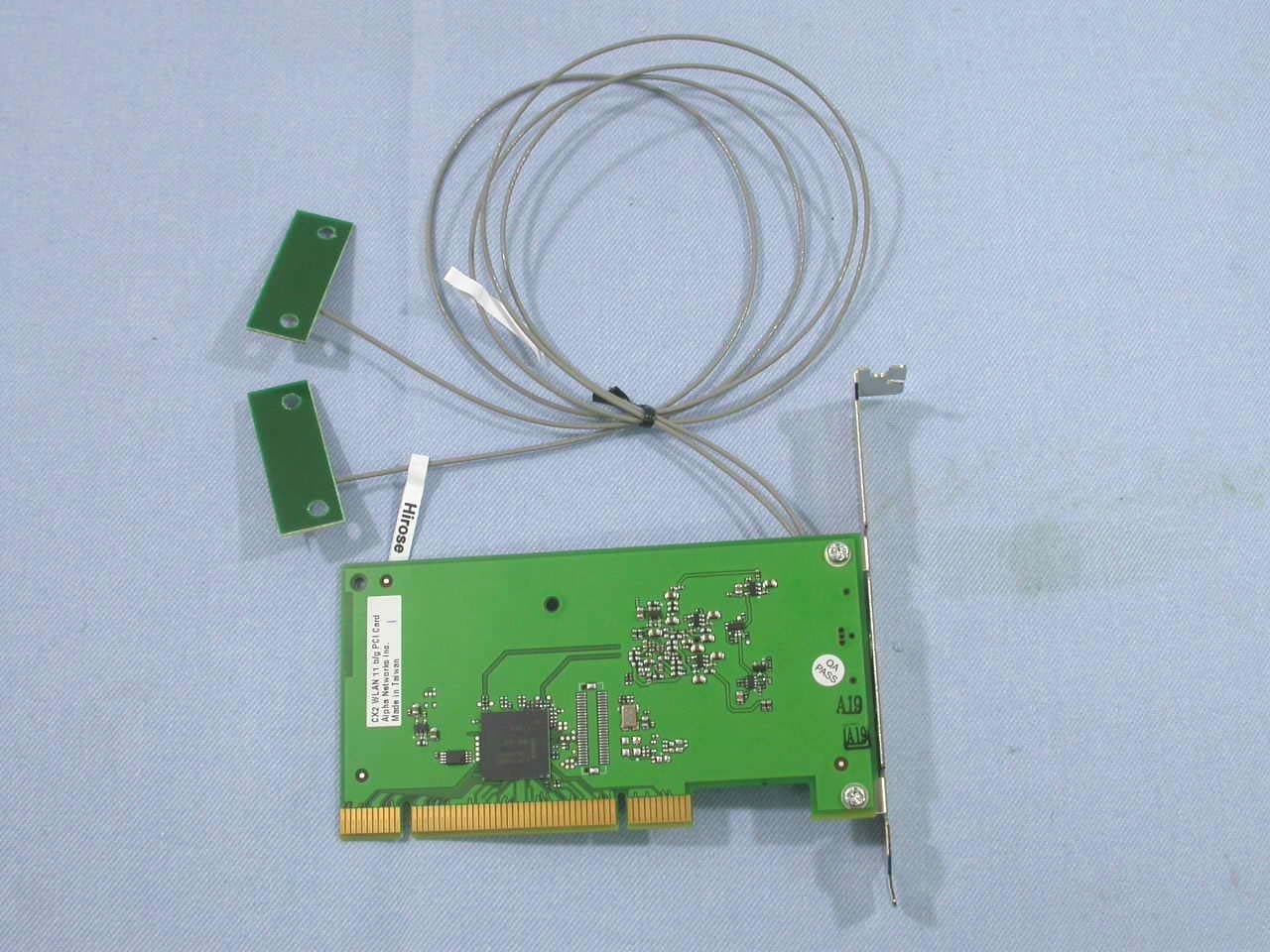

RRK-P0603038802.11 b/g WLAN PCI Card

Manual D-Link AirPlus G DWL-G520i High-Speed 802.11g Building Networks for People TM Wireless PCI Adapter Rev. A1 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics .................................................................................... 6 Getting Started...................................................................................... 9 Using the Configuration Utility.............................................................. 12 Networking Basics.............................................................................. 26 Troubleshooting................................................................................... 39 Technical Specifications...................................................................... 44 Contacting Technical Support.............................................................. 46 Warranty and Registration................................................................... 47 3 Package Contents System Requirements: Windows XP/2000/Me/98SE ! A computer or laptop with an available 32-bit PCI slot ! At least 32 MB of memory and a 300 MHz processor ! An 802.11g or 802.11b Access Point (for Infrastructure mode), or another 802.11g or 802.11b wireless adapter (for Ad-Hoc, Peer-to- Peer networking mode). ! Contents of Package: D-Link AirPlus G DWL-G520i High-Speed 2.4 GHz/802.11g Wireless PCI Adapter Manual and Drivers on CD Quick Installation Guide If any of the above items are missing, please contact your reseller. ! ! ! TM 4 Introduction The DWL-G520i has the newest, strongest, and most advanced security features available today. When used with other 802.11 WPA (Wi-Fi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access which authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This ensures much greater security than the standard WEP security. (By contrast, the older WEP encryption required the keys to be changed manually.) 802.1x: Authentication which is a first line of defense against intrusion. In the authentication process, the Authentication Server* verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. For home users that will not incorporate a RADIUS server in their network, the security for the DWL-G520i, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before. Utilizing the Pre Shared Key mode of WPA, the DWL-G520i will obtain a new security key every time it connects to the 802.11 network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security. With the DWL-G520i, you will automatically receive a new key every time you connect, vastly increasing the safety of your communication. * Not all servers can provide Authentication. The D-Link AirPlus G DWL-G520i Wireless PCI Adapter is an 802.11g high-perfor- mance, wireless adapter that supports high-speed wireless networking at home,at wo- rk or in public places. Unlike most network cards, the DWL-G520i provides data transfers at up to 54 Mbps. The 802.11g standard is backwards compatible with 802.11b products. TM 5 Features & Benefits ! Fully compliant with the 802.11b standard and interoperable with all existing 802.11b-compliant and 802.11g compliant devices ! Operates in the 2.4GHz frequency range ! Maximum reliability, throughput and connectivity with automatic data rate switching ! High Performance 32-bit PCI - The high capacity PCI interface utilized by the DWL-G520i ensures optimal performance in transmitting a wireless signal within the desktop computer. By utilizing a standard PCI 2.2 interface, the DWL-G520i ensures a wide range of compatibility with motherboards used by PC manufac- turers ! Quick and Easy Installation- The DWL-G520i installs quickly and easily into a standard PCI 2.2 slot in a desktop computer. By following the simple steps outlined in the Quick Installation Guide, you can connect to an available wire- less network in a matter of seconds Stronger Security than ever before with WPA - Wi-Fi Protected Access authorizes and identifies users based on a secret key that changes automati- cally at regular intervals, for example: ! ! TKIP (Temporal Key Integrity Protocol), in conjunction with a RADIUS server, changes the temporal key every 10,000 packets, ensuring greater security Pre-Shared Key mode means that the home user, without a RADIUS server, will obtain a new security key every time he or she connects to the network, vastly improving the safety of communications on the net- work ! Extra Protection - 802.1x Authentication in conjunction with the RADIUS server verifies the identity of wireless clients wishing to gain access to the WLAN ! Provides a measure of security for the information transmitted over a wireless network with high data encryption at 64-, 128-, and 152-bit WEP ! Supports Infrastructure networks via an access point and Peer-to-Peer communication in Ad-Hoc mode ! ! User-friendly configuration and diagnostic utilities Five times faster - achieve data transfer speeds up to 54 Mbps; up to 5x faster than conventional 802.11b networks, when used with other 802.11g devices ! ! Provides a simple and inexpensive way to connect your desktop com- puter to a wireless network at home, at the office, or in public places 6 Wireless Basics D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity …

Text truncated - open the document above for the full version.

Before You Begin DWL-G520E External Antenna Installation •Make sure to turn off your computer and unplug the power cord. Install the DWL-G520E carefully and firmly seat it into an available PCI slot (may require removing an existing bracket on the computer back panel). Secure the DWL-G520E PCI bracket to the computer back panel. Insert the Antenna into the connector.

Before You Begin DWL-G520I Internal Antenna Installation •Make sure to turn off your computer and unplug the power cord. A. High on the metal front of the chassis. B. Use a clearance area which will not interfere with the plastic cover. Identify an antenna installation location: Remove the front plastic cover from the computer. Carefully guide the antenna cable through the desired aperture towards the PCI slots. Verify proper clearance exists between the metal and front plastic cover. Attach the antenna cable Pull the cable taut, expose the adhesive on the antenna, and affix the antenna less than 2cm from the cable hole on the clean metal surface. Attach the antenna cable to the DWL-G520I by gently pushing it into the on-board connector. Install the DWL-G520I carefully and firmly seat it into an available PCI slot (may require removing an existing bracket on the computer back panel). Replace the computer front plastic cover. Ensure the cable is clear of sharp corners or edges, away from wide ribbon cables, and secure as needed. Secure the DWL-G520I PCI bracket to the computer back panel.

Mike Kuo 4/19/2004 Hi Mike, Q2: The Installation guide is attached. Please take the reference. Thank you!! Best regards, Ting ----- Âà§eªÌ ting/ccsemc ©ó 2004/04/09 04:14 PM ----- Hi Mike, Question #1: MPE estimate contains in the section 7.5 of test report is wrong. Please revise your Mpe calculation. (Ting): Please refer to the revised test report. Question #2: Please provide installation instruction to show how the end user will install the internal and/or external antenna in a desktop computer. (Ting): We will provide a revised installation guide later. Question #3: What is the antenna connector type of internal antenna. (Ting): It is a standard connector with U.FL type. Question #4: Will the WLAN PCI will be sold with external and internal antenna together or only one type of antenna will be sold ? (Ting): Only one type of antenna, either the external antenna of Model DWL-G520e or the internal one of Model DWL-G520i, will be sold and shipped. Best regard, Ting ----- Âà§eªÌ ting/ccsemc ©ó 2004/04/01 09:21 AM ----- Hi W.K. and Ting : What is the status of this application ? M.Kuo -----Original Message----- ting ªL«ä§Ê 2004/04/01 10:41 AM ¦¬¥ó¤H¡G [email protected] °Æ¥»§Û°e¡G wklo/ccsemc@ccsemc ¥D¦®¡G RE: Alpha Networks Inc., FCC ID:RRK-P0603038, AN04T3730 Mike Kuo <[email protected]> 2004/03/31 02:33 PM ¦¬¥ó¤H¡G Mike Kuo <[email protected]>, "'CCS-Taiwan, Ting (E-mail)'" <[email protected]>, "'CCS-Taiwan, Wklo (E-mail)'" <[email protected]> °Æ¥»§Û°e¡G ¥D¦®¡G RE: Alpha Networks Inc., FCC ID:RRK-P0603038, AN04T3730 From: Mike Kuo Sent: Tuesday, March 09, 2004 3:48 PM To: CCS-Taiwan, Ting (E-mail); CCS-Taiwan, Wklo (E-mail) Subject: FW: Alpha Networks Inc., FCC ID:RRK-P0603038, AN04T3730 -----Original Message----- From: CERTADM Sent: Tuesday, March 09, 2004 3:47 PM To: Mike Kuo Subject: Alpha Networks Inc., FCC ID:RRK-P0603038, AN04T3730 Notice_content ------------- Question #1: MPE estimate contains in the section 7.5 of test report is wrong. Please revise your Mpe calculation. Question #2: Please provide installation instruction to show how the end user will install the internal and/or external antenna in a desktop computer. Question #3: What is the antenna connector type of internal antenna. Question #4: Will the WLAN PCI will be sold with external and internal antenna together or only one type of antenna will be sold ? Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 4/19/2004

Compliance Certification Services Inc. Report No: B40211602 Date of Issue: February 19, 2004 Page 1 of 8 EXTERNAL PHOTOGRPHS OF EUT DWL-G520e Compliance Certification Services Inc. Report No: B40211602 Date of Issue: February 19, 2004 Page 2 Compliance Certification Services Inc. Report No: B40211602 Date of Issue: February 19, 2004 Page 3 DWL-G520i

D-Link AirPlus TM 2.4GHz Wireless PCI Adapter 3.3 cm DWL-G520i 4.3 cm G 8 02.11 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1)This device may not cause harmful interference,and(2)this device must accept any interference received,including interference that may cause undesiredo p eration. ICID:4833A-P0603038 FCCID:RRK-P0603038 Com p lies with CANADA RSS-210 / CNR-210 , CLASS B S/N:Node ID:Mode in Taiwan

Compliance Certification Services Inc. Report No: B40211602 Date of Issue: February 19, 2004 Page 4 INTERNAL PHOTOGRPHS OF EUT DWL-G520e Compliance Certification Services Inc. Report No: B40211602 Date of Issue: February 19, 2004 Page 5 Compliance Certification Services Inc. Report No: B40211602 Date of Issue: February 19, 2004 Page 6 Compliance Certification Services Inc. Report No: B40211602 Date of Issue: February 19, 2004 Page 7 Compliance Certification Services Inc. Report No: B40211602 Date of Issue: February 19, 2004 Page 8

CONFIDENTIAL M803 Assembly Bluetooth Antenna 2.39 – 2.5GHz Rowland B. Jones Jr. February 20, 2004 Confidential Ethertronics Inc. 2 9605 Scranton Road, Suite 850 Confidential San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX INDEX 1 Summary................................................................................................................................ 3 2 Definition of Radiation Pattern Plane................................................................................. 4 3 M803 Efficiency Measurements .......................................................................................... 5 3.1 Efficiency WLAN Band 2.4 – 2.495GHz .....................................................................................................5 3.2 M803 Radiation Patterns..............................................................................................................................6 3.3 Return Loss M803 .........................................................................................................................................7 Confidential Ethertronics Inc. 3 9605 Scranton Road, Suite 850 Confidential San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX 1 Summary To insure the increase in cable length does not affect the performance of the M803 antenna. Figure 1: M803 Assembly Return Loss at - 8dB M803 Bandwidth (MHz) 170 Efficiency M803 2.4 – 2.485 MHz Overall (%) 40.49 Maximum (peak) (%) 45.35 Low Freq. (%) 34.69 High Freq. (%) 42.94 Confidential Ethertronics Inc. 4 9605 Scranton Road, Suite 850 Confidential San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX 2 Definition of Radiation Pattern Plane Figure 2: Reference axis. Azimuth = XY Elevation = XZ Z Y X Confidential Ethertronics Inc. 5 9605 Scranton Road, Suite 850 Confidential San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX 3 M803 Efficiency Measurements 3.1 Efficiency WLAN Band 2.4 – 2.495GHz Overall Eff. (Az.+El.) : 40.49 % (-3.93 dBi) between [2.4 2.495] GHz Best Eff. (Az.+El.) : 45.35 % (-3.43 dBi) @ 2.45 GHz between [2.4 2.495] GHz Low Edge Eff. (Az.+El.) : 34.69 % (-4.6 dBi) @ 2.4 GHz High Edge Eff. (Az.+El.) : 42.94 % (-3.67 dBi) @ 2.495 GHz 2.32.352.42.452.52.552.6 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 Frequency (GHz) dBi Total efficiency (dBi). Figure 3: Efficiency (%). Confidential Ethertronics Inc. 6 9605 Scranton Road, Suite 850 Confidential San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX 3.2 M803 Radiation Patterns -30 dB -20 dB -10 dB 0 dB Freq = 2.44 GHz G ma x . = -0.59465 dBi Gain avg. = -2.1159 dBi Red. Max: -1.3557 dBi, -134 deg. Blue. Max: -2.8139 dBi, 145 deg. Green. Max: -0.59465 dBi, 180 deg. Figure 4: Azimuth -30 dB -20 dB -10 dB 0 dB Freq = 2.44 GHz G ma x . = -1.3204 dBi Gain avg. = -3.5112 dBi Red. Max: -1.4795 dBi, -179 deg. Blue. Max: -5.2185 dBi, -154 deg. Green. Max: -1.3204 dBi, -179 deg. Figure 5: Elevation Red: Azimuth Main Blue: Azimuth Cross Green: Main + Cross X Y X Z Confidential Ethertronics Inc. 7 9605 Scranton Road, Suite 850 Confidential San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX 3.3 Return Loss M803 2.32.352.42.452.52.552.6 -20 -18 -16 -14 -12 -10 -8 -6 -4 -2 0 M803 Frequency, (GHz) dB Figure 6: Return Loss

Portable Omni Directio nal Antenna for 2.4 GHz Product Number SA2-05002-15H5 SmartAnt R&D Department Jan,05 2004 Specifications Applicable Standard Item Requirements Frequency Range 2400 MHz ~ 2500 MHz Characteristic Impendence 50 ohm Cable Type SHIKOKU 1.5 DS-QEHV(TA) Connector Type HIROSE MS 151 Series Cable Length 1.5 meter Power Handling 2 W (cw) Electric Specifications Item Test Method Requirements VSWR Tested by Vector Network Analyzer 2.0 Max Antenna Gain Tested by SmartAnt Anechoic chamber 1 dBi min HPBW/Horizontal Tested by SmartAnt Anechoic chamber 360 0 HPBW/Vertical Tested by SmartAnt Anechoic chamber 40 0 Environmental & Mechanical Specifications Item Test Method Requirements Dimensions Tested by measuring instrument According the Drawing Temperature Tested by SmartAnt indoor standard (Refer to IEC/MIL standard) -10 0 C ~ 55 0 C Humidity Tested by SmartAnt indoor standard ((Refer to IEC/MIL standard) 95 % at 25 0 C Weight Tested by measuring instrument 0.1Kgw Chamber Information Vector Network Analyzer HP 8722D 30 KHz ~ 40 GHz Standard Gain Horn EMCO Model 0043 1.7GHz ~ 2.6GHz Probe EMCO Model 3115 Double Ridged Guide Antenna Anechoic Chamber ANTCOM NFH Hybrid Near/Far Field System Height Between Ground and AUT 1.9 meter Distance Between Probe and AUT 2.5 meter Amplifier Vector Network Analyzer AUT Probe 2.5 m Gain Table Frequency (GHz) 2.4 2.45 2.5 Peak Gain (dBi) 1.23 1.44 1.46 H-Plane Average Gain (dBi) -0.19 0.53 0.44 Peak Gain (dBi) 1.3 1.89 2.2 E-Plane Average Gain (dBi) -4.86 -4.28 -4.17 -25-20-15-10 -5 05 0 30 60 90 120 150 180 210 240 270 300 330 -25-20-15-10 -5 05 H-Plane SA2-05002-15H5 2.40 GHz 2.45 GHz 2.50 GHz -25-20-15-10 -5 05 0 30 60 90 120 150 180 210 240 270 300 330 -25-20-15-10 -5 05 E-Plane SA2-05002-15H5 2.40 GHz 2.45 GHz 2.50 GHz V.S.W.R.
