PT-3152/ PT-3152C/ PT- 3153/ PT-3153C Network Camera Quick Installation Guide 1 PT-3152(C)/PT-3153(C) Quick Installation Guide FCC Warning Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES) Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS 2 PT-3152(C)/PT-3153(C) Quick Installation Guide EQUIPMENT SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. CAUTION: 1. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3 PT-3152(C)/PT-3153(C) Quick Installation Guide 1 Before You Begin... System Requirements ● 10 Base-T Ethernet or 100 Base-TX Fast Ethernet ● CD-ROM or DVD-ROM drive ● CPU: Intel Pentium IV 2.0 GHz and above, or AMD Athlon 64 3000+ and above ● Memory: 512 MB or above ● VGA resolution:1024 x 768 or above Package Contents ● One SOHO Internet Camera ● This Quick Installation Guide ● One or Two External Antenna (Wireless model only) ● One Installation CD-ROM ● One Metal Clip ● One DC Power Adapter ● One RJ-45 Ethernet Cable NOTE: If any item contained is damaged or missing, please contact your local dealer immediately. 4 PT-3152(C)/PT-3153(C) Quick Installation Guide 2 Hardware Installation Attach the Metal Plate 1. Remove the two rubber pads under the base of the Camera. 2. Slide the metal plate onto the base of the Camera, making sure that the two holes on the base of the Camera align with the two screw holes on the base of the Camera. 3. Secure the metal plate to the base of the Camera with the two screws provided. 4. You can: install the camera to the ceiling using two ceiling screws (
); or, install the camera to the wall using two wall screws (). Connect the Ethernet Cable Connect an Ethernet cable to the network cable connector located on the camera’s rear panel, and then connect it to the network. Connect the Power Adapter Connect the external power adapter to the DC power input connector located on the camera’s rear panel, and then connect it to your wall outlet. (Tip: You can confirm the power source is supplied from the Power LED on the camera.) 5 PT-3152(C)/PT-3153(C) Quick Installation Guide 3 Running the IPCam Wizard Launch IPCam Wizard Use the IPCam Wizard to quickly configure IP settings for the camera that are compatible with your computer. The IPCam Wizard is a program run separately from the web browser video display and manager. First install the program from the Installation CD, then use the IPCam Wizard to configure suitable IP settings for the camera. Follow the steps below to install the IPCam Wizard program. 1. Insert the Installation CD-ROM into your CD-ROM drive. Click IPCam Wizard to launch the setup wizard software. The following window appears, click the > symbol to proceed to the next setup window. 2. Choose the PT-3152/PT-3152C/PT- 3153/PT-3153C from the list. If there is more than one camera operating on the network, these will also appear in the list. If the camera does not appear in the list, click the Magnifying Glass icon to renew the search. If it still does not appear, check the network connection on the camera, especially the LED indicators on the right side of the camera. Select the PT-3152/PT-3152C/PT-3153/PT-3153C from the list and click the > symbol to begin configuration with the IPCam Wizard. 3. Type the administrator ID (user name) and Password to proceed to configure the camera. The default ID is admin and the default Password is also admin. Click the > symbol to proceed to the next IPCam Wiz…

Text truncated - open the document above for the full version.

DeclarationfornononͲUSchanneloperation  2014/6/5 We,Alpha Networks Inc. declare that the device does not support any non-US channels in all the operational mode(s) for the following product. FCC ID: RRK-PT3152 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you!            ͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲͲ Kelly Tsai / Director Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 2014/6/5

Date: 2014/6/5 FCC ID: RRK-PT3152 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operating description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Kelly Tsai / Director Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 2014/6/5

Date: 2014/6/5 FCC ID: RRK-PT3152 AUTHORIZATION LETTER To whom it may concern: We, the undersigned Alpha Networks Inc. hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part 15 and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ----------------------------------- Kelly Tsai / Director Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 2014/6/5

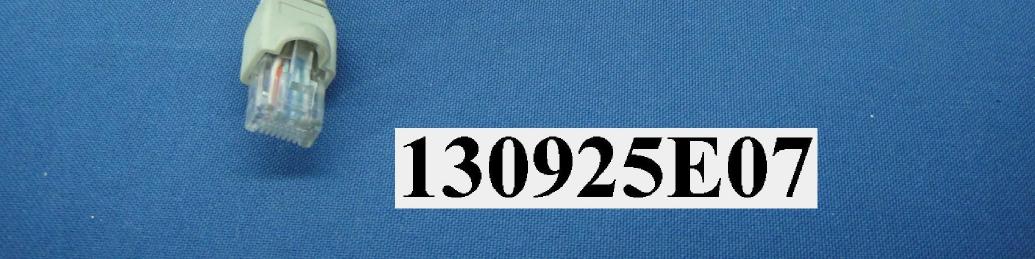

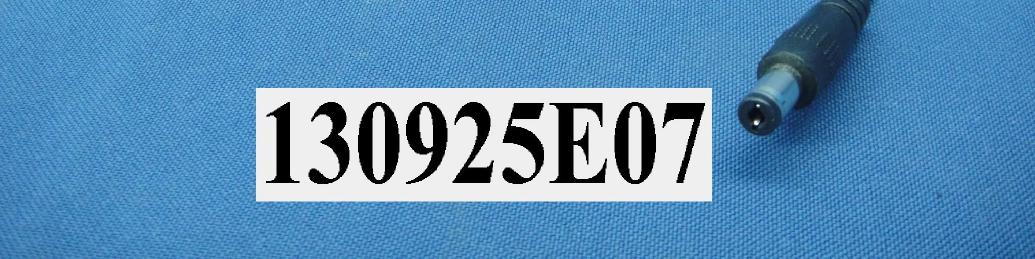

Report No.: 130925E07D Page 1 Reference No.: 140506E05 CONSTRUCTION PHOTOS OF EUT Report No.: 130925E07D Page 10 Reference No.: 140506E05 Report No.: 130925E07D Page 11 Reference No.: 140506E05 Adapter 1: Model No.: AMS9-1201000FU2 Report No.: 130925E07D Page 12 Reference No.: 140506E05 Report No.: 130925E07D Page 13 Reference No.: 140506E05 Adapter 2: Model No.: CAP012121 US Report No.: 130925E07D Page 14 Reference No.: 140506E05
