RRK-WMPN12A111N Wireless Lan Card

Alpha Networks Proprietary and Confidential Information 1 User’s Manual For 11N Wireless Lan Card Model Number : WMP-N12 Revision: 1.0 Alpha Networks Proprietary and Confidential Information 2 Test Utility Installation: Hardware: RT3052 RGMII INIC test fixture, with gigabit Ethernet port computer Software: RT3x5x MII V1.0.1.0 1. Insert WMPN12 to RT3052 RGMII INIC test fixture, connect the test fixture to computer with Ethernet cable 2. Use RT3x5x MII V1.0.1.0, make sure the computer has installed the wincap.exe 3. Select GIGABIT INIC 4. Use QA tool control WMPN12 Alpha Networks Proprietary and Confidential Information 3 1.1 Document This document is to specify the product requirements for 802.11n Draft 2.0 Intelligent NIC Card. This iNIC Card is based on Ralink RT3052 single chipset that complied with complied with IEEE 802.11n Draft 2.0, IEEE 802.11 b/g standard from 2.4~2.5GHz. It can be used to provide up to 54Mbps for IEEE 802.11g , 11Mbps for IEEE 802.11b and 300Mbps for IEEE 802.11n to connect your wireless LAN. 1.2 Product Features y RT3052 , single chip , 2T2R , MA/BBP/RF y A WLAN intelligent NIC solution to a host SOC platform y High performance 384 MHz MIPS24Kec CPU inside to Ethernet PHY and Gigabit Ethernet MAC y 300Mbps PHY data rate for longer range and better throughput y Compatible with IEEE 802.11g high rate standard to provide wireless 54Mbps data rate y Compatible with IEEE 802.11b high rate standard to provide wireless 11Mbps data rate y Compatible with IEEE 802.11n draft standard to provide wireless 300Mbps data rate y Operation at 2.4 ~ 2.5GHz frequency band to meet worldwide regulations y Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54Mbps for IEEE 802.11a and IEEE 802.11g y Dynamic date rate scaling at 1, 2, 5.5, and 11Mbps for IEEE 802.11b y Dynamic date rate of IEEE 802.11n scaling from MCS – 0 to MCS –15 as shown in Appendix I y Supports wireless data encryption with 64/128 bit WEP for security y Support WPA and WPA2 enhanced security y Support QoS – WMM , WMM power save y Support RGMii signals transmission y Drivers support Linux 2.6 Alpha Networks Proprietary and Confidential Information 4 2.0 Requirements The following sections identify the detailed requirements of the 802.11n Draft 2.0 mPCI . 2.2 General Requirements 2.2.1 IEEE 802.11b Section # Feature Detailed Description 2.2.2.1 Standard y IEEE 802.11b 2.2.2.2 Radio and Modulation Schemes y DQPSK, DBPSK, DSSS, and CCK 2.2.2.3 Operating Frequency y 2400 ~ 2483.5MHz ISM band 2.2.2.4 Channel Numbers y 11 channels for United States/ TAIWAN 13 channels for Europe Countries 14 channels for Japan 2.2.2.5 Data Rate y 11, 5.5, 2, and 1Mbps 2.2.2.6 Media Access Protocol y CSMA/CA with ACK 2.2.2.7 Transmitter Output Power y Typical RF Output Power (Tolerance +-2dB) at each RF chain, Data Rate and at room Temp. 25degree C y 18 ± 2dBm at 1,2,5.5,11Mbps 2.2.2.8 Receiver Sensitivity y Typical Sensitivity at Which Frame (1000-byte PDUs) Error Rate = 8% y –88 dBm at 1Mbps y –88 dBm at 2Mbps y –88 dBm at 5.5Mbps y –86 dBm for 11Mbps 2.2.2 IEEE 802.11g Section # Feature Detailed Description 2.2.3.1 Standard y IEEE 802.11g 2.2.3.2 Radio and Modulation Type y BPSK, QPSK, 16QAM, 64QAM with OFDM 2.2.3.3 Operating Frequency y 2400 ~ 2483.5MHz ISM band 2.2.3.4 Channel Numbers y 11 channels for United States/ TAIWAN 13 channels for Europe Countries 13 channels for Japan 2.2.3.5 Data Rate y 6,9,12,18,24,36,48,54Mbps 2.2.3.6 Media Access Protocol y CSMA/CA with ACK 2.2.3.7 Transmitter Output Power y Typical RF Output Power (tolerance +-2dB) at each RF chain, Data Rate and at room Temp. 25degree C y 18 ± 2dBm at 6~18 Mbps y 17 ± 2dBm at 36 and 24Mbps y 15 ± 2dBm at 54 and 48 Mbps 2.2.3.8 Receiver Sensitivity y Typical Sensitivity at Which Frame (1000-byte PDUs) Error Rate = 10% y –87 dBm at 6Mbps Alpha Networks Proprietary and Confidential Information 5 # Feature Detailed Description y –86 dBm at 9Mbps y –84 dBm at 12Mbps y –82 dBm at 18Mbps y –79 dBm at 24Mbps y –75 dBm at 36Mbps y –71 dBm at 48Mbps y –70 dBm at 54Mbps 2.2.3 IEEE 802.11n Section for 2.4G Band # Feature Detailed Description 2.2.4.1 Standard y IEEE 802.11n 2.2.4.2 Radio and Modulation Type y BPSK, QPSK, 16QAM, 64QAM with OFDM 2.2.4.3 Operating Frequency y 2400 ~ 2483.5MHz ISM band 2.2.4.4 Data Rate y From MCS – 0 to MCS –15 as shown in Appendix I 2.2.4.5 Media Access Protocol y CSMA/CA with ACK 2.2.4.6 Transmitter Output Power y Typical RF Output Power (tolerance +-2dB) at each RF chain, Data Rate and at room Temp. 25degree C HT 20 y 17± 2 dBm at MCS 0,1 y 17± 2 dBm at MCS 2,3 y 16± 2 dBm at MCS 4,5 y 14± 2 dBm at MCS 6,7 HT 40 y 15± 2 dBm at MCS 0,1 y 15± 2 dBm at MCS 2,3 y 14± 2 dBm at MCS 4,5 y 12± 2 dBm at MCS 6,7 2.2.4.7 Receiver Sensitivity y Typical Sensitivity at Which Frame (1000-byte PDUs) Error Rate = 10% HT20 y –85 dBm at MCS 0 y –82 dBm at MCS 1 y –80 dBm at MCS 2 y –77 dBm at MCS 3 y –74 dBm at MCS 4 y –70 dBm at MCS 5 y –68 dBm at MCS 6 y –66 dBm at MCS 7 HT40 y –82 dBm at MCS 0 y –79 dBm at MCS 1 y –77 dBm at MCS 2 y –74 dBm at MCS 3 y –71 dBm at MCS 4 y –67 dBm at MCS 5 y –65 dBm at MCS 6 y –63 dBm at MCS 7 2.3 General Section # Feature Detailed Description 2.3.1.1 Antenna Connector y Three UFL antenna connectors Alpha Networks Proprietary and Confidential Information 6 2.3.1.2 Operating Voltage y 3.3VDC +/- 10% 2.31.3 Current Consumption y 450 mA at continuous transmit mode (2 Tx chains on ) y 250 mA at continuous receive mode (2 Rx chains on ) 2.3.1.4 Form Factor and Interface y PCI-E form factor 2.3.1.5 LED y External LED function supported 2.4 Software Requirements The Configuration Software supports Linux2.6. This configuration software includes the following functions: y Information Information allows you to monitor network status. y Configuration Configuration allows you to configure parameters for wireless networking. y Security Supports enhanced security WEP, 802.1x, WPA and WPA2. 2.4.1 Information # Feature Detailed Description 2.…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RRK-WMPN12A1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 2010/3/23

Power of Attorney To whom it may concern: We, the undersigned Alpha Networks Inc. hereby authorize BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C and E approval and any communication needed with the national authority. Any and all acts carried out by BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan on our behalf shall have the same effects as acts of our own. FCC ID: RRK-WMPN12A1 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 2010/3/23 To whom it may concern: We, the undersigned Alpha Networks Inc. hereby authorize BV-ADT(Shanghai) Corporation to act on our behalf in all matters relating to all processes required in the FCC Part 15C and E approval and any communication needed with the national authority. Any and all acts carried out by BV-ADT(Shanghai) Corporation on our behalf shall have the same effects as acts of our own.

Power of Attorney To whom it may concern: I, the undersigned, Leeming, hereby authorize the person listed in below to act in behalf of me to sign all related documents for Alpha’s FCC application. Kelly Tsai / Senior Manager TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] Company Name: Alpha Networks Inc. Company Address: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Authorization period: Nov 1 st , 2008 ~ Dec 21 st , 2015 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________ Leeming / Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5781861 E-mail: [email protected] 2009/11/19

FCC ID: RRK-WMPN12A1 Report No.: 100313FIA01 Modular Approval Request Letter ADT (Shanghai) Corporation April 14, 2010 Dear Application Examiner, Alpha Networks Inc., It’s a Wireless Mini PCI Adapter, FCC ID: RRK-WMPN12A1 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RT3052. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is chip RT3052. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via an data cable extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RRK-WMPN12A1 Report No.: 100313FIA01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Wallace Pan Director of Operations ADT (Shanghai) Corporation

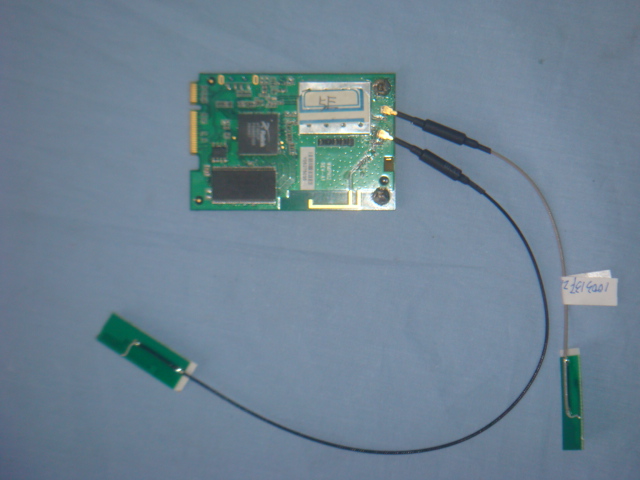

EXT PHOTOS With antenna A+B With antenna C+D Antenna B Antenna A Antenna D Antenna C

FCC ID： RRK-WMPN12A1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

INT PHOTOS

11N Wireless Lan Card OPERATIONAL DESCRIDPTION 1. Supply voltage: 3.2V+/-10% from PCB board 2. Frequency of operation: 2400~2483.5MHz 3. Number of channels: 11 channels for 11b, 11g, draft 11n (20MHz) 7 channels for draft 11n (40MHz) 4. Antenna type: PCB Antenna 5. Antenna gain: PCB Antenna A with 3.77dBi gain for chain 1 PCB Antenna B with 3.47dBi gain for chain 0 PCB Antenna C with 1.50dBi gain for chain 1 PCB Antenna D with 1.10dBi gain for chain 0 6. Antenna connector: MHF 7. Introduction of the device: The device is wireless router, is used to communicating between PCs. 8. Related antenna connector photo: EUT with antenna A&B Antenna port Antenna A Antenna B EUT with antenna C&D Antenna port Antenna D Antenna C

FCC ID: RRK-WMPN12A1 Report No: 100313FIA01 1 RF EXPOSURE REPORT REPORT NO.: 100313FIA01 MODEL NO.: WMP-N12 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 2F, C Building, No.1618, Yi Shan Rd., Shanghai, China TEST LOCATION: 2F, C Building, No.1618, Yi Shan Rd., Shanghai, China FCC ID: RRK-WMPN12A1 Report No: 100313FIA01 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: RRK-WMPN12A1 Report No: 100313FIA01 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RRK-WMPN12A1 Report No: 100313FIA01 4 6. TEST RESULTS 6.1 ANTENNA GAIN There is one antenna provided to this EUT, please refer to the following table: No. Antenna Type Gain(dBi) Antenna Connector A (TX1) PCB 3.77dBi MHF B (TX0) PCB 3.47dBi MHF C (TX1) PCB 1.50dBi MHF D (TX0) PCB 1.10dBi MHF 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: EUT work with antenna A&B 802.11b DSSS MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 66.681 18.24 0.032 1 6 2437 65.917 18.19 0.031 1 11 2462 64.121 18.07 0.030 1 802.11g OFDM MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 67.608 18.30 0.032 1 6 2437 68.549 18.36 0.032 1 11 2462 66.834 18.25 0.032 1 FCC ID: RRK-WMPN12A1 Report No: 100313FIA01 5 DRAFT 802.11n (20MHz) OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHAN. CHAN. FREQ. (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER OUTPUT (mw) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 17.11 17.43 106.74 0.051 1 6 2437 17.12 17.37 106.10 0.050 1 11 2462 17.29 16.29 96.14 0.046 1 DRAFT 802.11n (40MHz) OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHAN. CHAN. FREQ. (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER OUTPUT (mw) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2422 15.3 15.37 68.32 0.032 1 4 2437 15.4 15.4 69.35 0.033 1 7 2452 15.61 15.05 68.38 0.032 1 EUT work with antenna C&D 802.11b DSSS MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 66.681 18.24 0.019 1 6 2437 65.917 18.19 0.019 1 11 2462 64.121 18.07 0.018 1 802.11g OFDM MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 67.608 18.30 0.019 1 6 2437 68.549 18.36 0.019 1 11 2462 66.834 18.25 0.019 1 FCC ID: RRK-WMPN12A1 Report No: 100313FIA01 6 DRAFT 802.11n (20MHz) OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHAN. CHAN. FREQ. (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER OUTPUT (mw) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 17.11 17.43 106.74 0.030 1 6 2437 17.12 17.37 106.10 0.030 1 11 2462 17.29 16.29 96.14 0.027 1 DRAFT 802.11n (40MHz) OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHAN. CHAN. FREQ. (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER OUTPUT (mw) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2422 15.3 15.37 68.32 0.019 1 4 2437 15.4 15.4 69.35 0.019 1 7 2452 15.61 15.05 68.38 0.019 1

Report No.: 100313FIA01 1 Report Format Version 2.1.0 FCC TEST REPORT (15.247) REPORT NO.: 100313FIA01 MODEL NO.: WMP-N12 RECEIVED: Mar. 15, 2010 TESTED: Mar. 16, 2010 ISSUED: Mar. 24, 2010 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: ADT (Shanghai) Corporation ADDRESS: 2F, Building C, No.1618, Yishan Rd., 201103, Shanghai, China This test report consists of 106 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: 100313FIA01 2 Report Format Version 2.1.0 TABLE OF CONTENTS 1. CERTIFICATION ................................................................................................. 3 2. SUMMARY OF TEST RESULTS......................................................................... 4 2.1 MEASUREMENT UNCERTAINTY.......................................................................................................... 4 3. GENERAL INFORMATION ................................................................................. 5 3.1 GENERAL DESCRIPTION OF EUT ....................................................................................................... 5 3.2 DESCRIPTION OF TEST MODES .......................................................................................................... 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................................................11 3.4 DESCRIPTION OF SUPPORT UNITS....................................................................................................11 4. TEST TYPES AND RESULTS .......................................................................... 12 4.1 RADIATED EMISSION MEASUREMENT .......................................................................................... 12 4.2 CONDUCTED EMISSION MEASUREMENT...................................................................................... 46 4.3 6dB BANDWIDTH MEASUREMENT ................................................................................................... 53 4.4 MAXIMUM PEAK OUTPUT POWER .................................................................................................. 73 4.5 POWER SPECTRAL DENSITY MEASUREMENT............................................................................. 77 4.6 BAND EDGES MEASUREMENT ..........................................................................................................91 4.7 ANTENNA REQUIREMENT ................................................................................................................ 105 5. APPENDIX - INFORMATION ON THE TESTING LABORATORIES.............. 106 Report No.: 100313FIA01 3 Report Format Version 2.1.0 1. CERTIFICATION PRODUCT: 11N Wireless Lan Card MODEL: WMP-N12 BRAND: Alpha APPLICANT: Alpha Networks Inc. TEST SAMPLE: ENGINEERING SAMPLE TESTED: Mar.16, 2010 STANDARDS: FCC Part 15, Subpart C (Section 15.247) ANSI C63.4-2003 The above equipment (Model: WMP-N12) has been tested by Bureau Veritas Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Mar. 24, 2010 Ray Xue Project Engineer TECHNICAL ACCEPTANCE : , DATE: Mar. 24, 2010 Joy Zhu Lab Manager APPROVED BY : , DATE: Mar. 24, 2010 Wallace Pan Director of Operations Report No.: 100313FIA01 4 Report Format Version 2.1.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC PART 15, SUBPART C (SECTION 15.247) STANDARD SECTION TEST TYPE AND LIMIT RESULTREMARK 15.207 AC Power Conducted Emission PASS Meet the requirement of limit. Minimum passing margin is -4.93dB at 0.45MHz 15.247(a)(2) Spectrum Bandwidth of a Direct Sequence Spread Spectrum System Limit: min. 500kHz PASS Meet the requirement of limit. 15.247(b) Maximum Peak Output Power Limit: max. 30dBm PASS Meet the requirement of limit. 15.247(d) Radiated Emissions Limit: Table 15.209 PASS Meet the requirement of limit. Minimum passing margin is -0.4dB at 2390MHz 15.247(e) Power Spectral Density Limit: max. 8dBm PASS Meet the requirement of limit. 15.247(d) Band Edge Measurement Limit: 20dB less than the peak value of fundamental frequency PASS Meet the requirement of limit. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2 Ed 1.0. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. This lab’s measurement uncertainty U Lab , is low than U Cispr , Table 1 – Values of U Cispr of CISPR 16-4-2 Ed. 1.0, therefore compliance is deemed to occur if no measured disturbance exceeds the disturbance limit. Measurement Value Conducted emissions 2.55 dB Conducted emissions at telecom port 2.6180 dB Radiated emissions 3.99 dB Report No.: 100313FIA01 5 Report Format Version 2.1.0 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT EUT 11N Wireless Lan Card MODEL NO. WMP-N12 FCC ID RRK-WMPN12A1 POWER SUPPLY Powered by test PCB board MODULATION TYPE CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM MODULATION TECHNOLOGY DSSS, OFDM TRANSFER RATE 802.11b:11.0/ 5.5/ 2.0/ 1.0Mbps 802.11g: 54.0/ 48.0/ 36.0/ 24.0/ 18.0/ 12.0/ 9.0/ 6.0Mbps Draft 802.11n: up to 300.0Mbps FREQUENCY RANGE 2.4GHz: 2400 ~ 2483.5MHz NUMBER OF CHANNEL 2.4GHz: 11 for 802.11b, 802.11g, draft 802.11n (20MHz) 7 for draf…

Text truncated - open the document above for the full version.

CONDUCTED EMISSION MEASUREMENT EUT work with Antenna A&B EUT work with Antenna C&D RADIATED EMISSION MEASUREMENT EUT work with Antenna A&B EUT work with Antenna C&D
