FCC ID: RRK-WMPND02A1 Report No. RF970821H05 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Jan. 16, 2009 Dear Application Examiner, Alpha Networks Inc., LLC’s 11N Wireless LAN CARD, FCC ID: RRK-WMPND02A1, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RT2880. 3. “The modular transmitter must have its own power supply regulation.” The RF chip is RT2850 that has own regulator in chip. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RRK-WMPND02A1 Report No. RF970821H05 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, May Chen Deputy Manager of Hsinchu Certification Service Div. Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

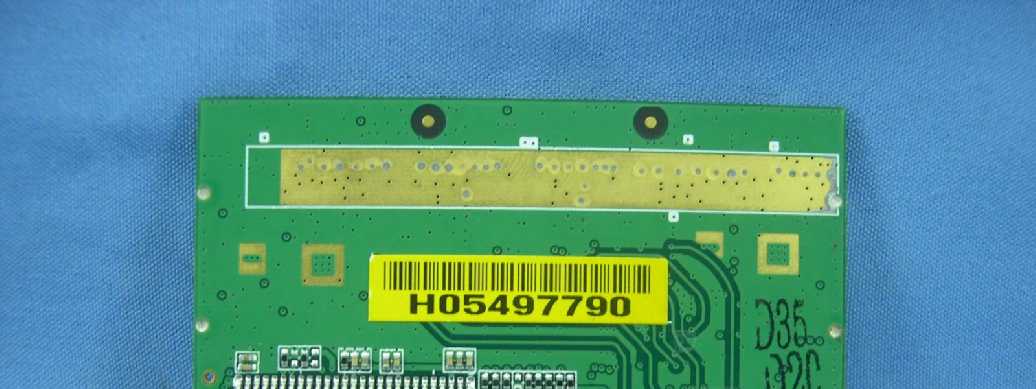

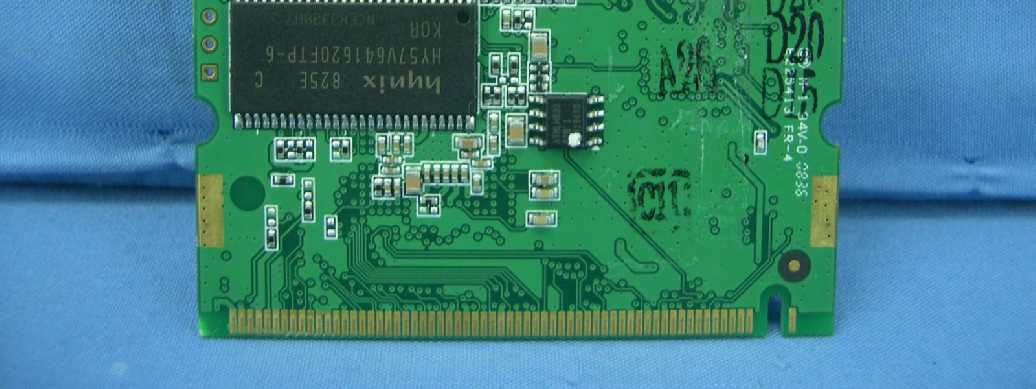

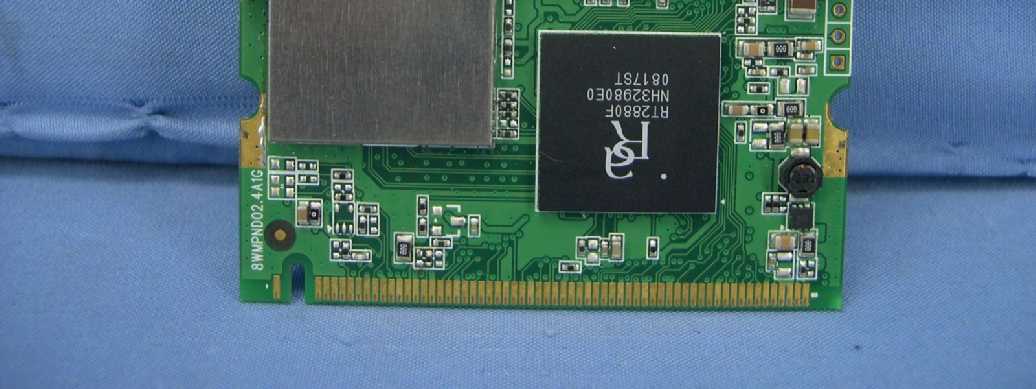

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with Antenna Set 1 Page 2 EUT with Antenna Set 2 Page 3 EUT with Antenna Set 3 Page 4 EUT with Antenna Set 4 Page 5 EUT with Antenna Set 5 Page 6

FCC ID： RRK-WMPND02A1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 7 Page 8 Page 9 Antenna Set 1 Page 10 Page 11 Page 12 Antenna Set 2 Page 13 Page 14 Page 15 Antenna Set 3 Page 16 Page 17 Page 18 Antenna Set 4 Page 19 Page 20 Antenna Set 5 Page 21

FCC ID: RRK-WMPND02A1 Report No. : RF970821H05 Technical Description This device is an 11N Wireless LAN CARD with Dual-Band operates in both the 5GHz and 2.4GHz Bands with DSSS and OFDM technique. The transmitter rate could be 11Mbps for 11b; 54Mbps for 11a/g; 144.444Mbps for Draft 802.11n (20MHz); 300Mbps for Draft 802.11n (40MHz). The transmitter of the EUT is powered from host equipment. NOTE: 1. The EUT has three model names which are identical to each other in all aspects except for the following: Brand Model No. Difference WMP-ND02 For IEEE 802.11a/b/g/n WMP-N08 For IEEE 802.11b/g/n, Via Software to disable 11a/n function Alpha WMP-N10 For IEEE 802.11a/n, Via Software to disable 11b/g/n function From the above models, model: WMP-ND02 was selected as representative model for the test and its data were recorded in this report. FCC ID: RRK-WMPND02A1 Report No. : RF970821H05 2. There are five set antennas provided to this EUT, please refer to the following table: Set No. Transmitter Circuit Antenna Gain For 2.4GHz Gain (dBi) For 5.15~ 5.25GHz Gain (dBi) For 5.725~ 5.850GHz Gain (dBi) Cable Length (cm) Gain (dBi) 2.31 2.26 3.91 Cable Loss (dB) 1.48 1.45 1.53 Set. 1 Chain(0), Chain(1), Chain(2) Net Gain (dB) 0.83 0.81 2.38 18 Gain (dBi) 2.31 2.26 3.91 Cable Loss (dB) 1.51 2.16 2.29 Chain(0) Net Gain (dB) 0.8 0.1 1.62 40 Gain (dBi) 2.31 2.26 3.91 Cable Loss (dB) 1.48 1.45 1.53 Chain(1) Net Gain (dB) 0.83 0.81 2.38 18 Gain (dBi) 2.31 2.26 3.91 Cable Loss (dB) 1.16 1.17 1.87 Set 2 Chain(2) Net Gain (dB) 1.15 1.09 2.04 27 Gain (dBi) 3.72 3.55 2.76 Cable Loss (dB) 0.52 0.82 1.00 Chain(0), Chain(1) Net Gain (dB) 3.2 2.73 1.76 25.5 Gain (dBi) 3.72 3.55 2.76 Cable Loss (dB) 0.51 0.75 0.90 Set 3 Chain(2) Net Gain (dB) 3.21 2.8 1.86 12 Chain(0) Gain (dBi) involve cable loss 2.65 NA NA 11 Set 4 Chain(1), Chain(2) Gain (dBi) involve cable loss 2.49 NA NA 10 Set 5 Chain(0), Chain(1), Chain(2) Gain (dBi) involve cable loss 2.43 NA NA 6 FCC ID: RRK-WMPND02A1 Report No. : RF970821H05 Set No. Transmitter Circuit Antenna Type Manufacture Model No. Antenna Connector Chain(0) Chain(1) Set 1 Chain(2) Dipole WANSHIH ELECTRONIC CO., LTD. WSS001 RP-SMA(M) Chain(0) Chain(1) Set 2 Chain(2) Dipole WANSHIH ELECTRONIC CO., LTD. WSS001 RP-SMA(M) Chain(0) Chain(1) Set 3 Chain(2) Dipole WHA YU INDUSTRIAL CO., LTD. C056-510399-A SMA Plug Reverse Chain(0) C037-510934-A (SSR-83320) Chain(1) C037-510935-A (SSR-83347) Set 4 Chain(2) PCB WHA YU GROUP C037-510935-A (SSR-83347) I-PEX Chain(0) Chain(1) Set 5 Chain(2) PCB WHA YU GROUP C037-510953-A (SSR-84244) MHF Plug From the above antennas, the worst case was found in set no. 1 & 4 for 2.4GHz, set no. 1 for 5Ghz. Therefore only the test data of the mode was recorded in this report individually. 3. The EUT incorporates a MIMO function with 802.11a, 802.11b, 802.11g, draft 802.11n. Physically, the EUT provides two completed transmits and three completed receivers. 4. The EUT is 2 * 3 spatial MIMO (2Tx & 3Rx) without beam forming function. The antenna configurations are two transmitter antennas and three receiver antennas, as there are 3 Dipole or PCB antennas. Spatial multiplexing modes for simultaneous transmission using 2 antennas, and for simultaneous receiver using 3 antennas. The 11a and 11bg legacy mode is limited to single transmitter only. 5. When the EUT operating in draft 802.11n, the software operation, which is defined by manufacturer, MCS (Modulation and Coding Schemes) from 0 to 15. 6. The EUT complies with draft 802.11n standards and backwards compatible with 802. 11a, 802.11b, 802.11g products. 7. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual. FCC ID: RRK-WMPND02A1 Report No. : RF970821H05 FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA970821H05 1 RF EXPOSURE REPORT REPORT NO.: SA970821H05 MODEL NO.: WMP-ND02, WMP-N08, WMP-N10 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Alpha Networks Inc. ADDRESS: No. 8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA970821H05 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA970821H05 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA970821H05 4 6. Test Results 6.1 Antenna Gain There are five set antennas provided to this EUT, please refer to the following table: Set No. Transmitter Circuit Antenna Gain For 2.4GHz Gain (dBi) For 5.15~ 5.25GHz Gain (dBi) For 5.725~ 5.850GHz Gain (dBi) Cable Length (cm) Gain (dBi) 2.31 2.26 3.91 Cable Loss (dB) 1.48 1.45 1.53 Set. 1 Chain(0), Chain(1), Chain(2) Net Gain (dB) 0.83 0.81 2.38 18 Gain (dBi) 2.31 2.26 3.91 Cable Loss (dB) 1.51 2.16 2.29 Chain(0) Net Gain (dB) 0.8 0.1 1.62 40 Gain (dBi) 2.31 2.26 3.91 Cable Loss (dB) 1.48 1.45 1.53 Chain(1) Net Gain (dB) 0.83 0.81 2.38 18 Gain (dBi) 2.31 2.26 3.91 Cable Loss (dB) 1.16 1.17 1.87 Set 2 Chain(2) Net Gain (dB) 1.15 1.09 2.04 27 Gain (dBi) 3.72 3.55 2.76 Cable Loss (dB) 0.52 0.82 1.00 Chain(0), Chain(1) Net Gain (dB) 3.2 2.73 1.76 25.5 Gain (dBi) 3.72 3.55 2.76 Cable Loss (dB) 0.51 0.75 0.90 Set 3 Chain(2) Net Gain (dB) 3.21 2.8 1.86 12 Chain(0) Gain (dBi) involve cable loss 2.65 NA NA 11 Set 4 Chain(1), Chain(2) Gain (dBi) involve cable loss 2.49 NA NA 10 Set 5 Chain(0), Chain(1), Chain(2) Gain (dBi) involve cable loss 2.43 NA NA 6 Report No.: SA970821H05 5 Set No. Transmitter Circuit Antenna Type Manufacture Model No. Antenna Connector Chain(0) Chain(1) Set 1 Chain(2) Dipole WANSHIH ELECTRONIC CO., LTD. WSS001 RP-SMA(M) Chain(0) Chain(1) Set 2 Chain(2) Dipole WANSHIH ELECTRONIC CO., LTD. WSS001 RP-SMA(M) Chain(0) Chain(1) Set 3 Chain(2) Dipole WHA YU INDUSTRIAL CO., LTD. C056-510399-A SMA Plug Reverse Chain(0) C037-510934-A (SSR-83320) Chain(1) C037-510935-A (SSR-83347) Set 4 Chain(2) PCB WHA YU GROUP C037-510935-A (SSR-83347) I-PEX Chain(0) Chain(1) Set 5 Chain(2) PCB WHA YU GROUP C037-510953-A (SSR-84244) MHF Plug From the above antennas, the worst case was found in set no. 1 for 5GHz (5.725~ 5.850), no. 3 for 2.4GHz / 5GHz (5.15~ 5.25) & no. 4 for 2.4GHz. Therefore only the test data of the mode was recorded in this report individually. Report No.: SA970821H05 6 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 15.247(2.4GHz) : For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 134.276 0.0558 1.0 6 2437 104.713 0.0435 1.0 11 2462 75.858 0.0315 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 266.686 0.1108 1.0 6 2437 302.691 0.1258 1.0 11 2462 272.270 0.1132 1.0 DRAFT 802.11n (20MHz) OFDM Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 423.398 0.1760 1.0 6 2437 549.592 0.2284 1.0 11 2462 435.616 0.1811 1.0 DRAFT 802.11n (40MHz) OFDM Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 422.715 0.1757 1.0 4 2437 408.348 0.1697 1.0 7 2452 289.165 0.1202 1.0 Report No.: SA970821H05 7 For 15.247(5GHz) : For Part 802.11a: Channel C…

Text truncated - open the document above for the full version.

Report No.: RF970821H05 71 Report Format Version 3.0.0 RESTRICTED BANDEDGE (802.11g MODE,CH1, HORIZONTAL ) Report No.: RF970821H05 72 Report Format Version 3.0.0 RESTRICTED BANDEDGE (802.11g MODE,CH1, VERTICAL ) Report No.: RF970821H05 73 Report Format Version 3.0.0 RESTRICTED BANDEDGE (802.11g MODE,CH11, HORIZONTAL ) Report No.: RF970821H05 74 Report Format Version 3.0.0 RESTRICTED BANDEDGE (802.11g MODE,CH11, VERTICAL ) Report No.: RF970821H05 75 Report Format Version 3.0.0 DRAFT 802.11n (20MHz) OFDM MODULATION EUT TEST CONDITION MEASUREMENT DETAIL CHANNEL Channel 1 FREQUENCY RANGE 1 ~ 25GHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak (PK) Average (AV) ENVIRONMENTAL CONDITIONS 25 deg. C, 65%RH 965hPa TESTED BY Frank Liu TEST MODE PCB Antenna ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1 2390.00 64.32 PK 74.00 -9.68 1.28 H 106 34.26 30.06 2 2390.00 50.73 AV 54.00 -3.27 1.28 H 106 20.67 30.06 3 *2412.00 108.80 PK 1.29 H 104 78.65 30.15 4 *2412.00 97.30 AV 1.29 H 104 67.15 30.15 5 4824.00 45.40 PK 74.00 -28.60 1.27 H 130 9.94 35.46 6 4824.00 31.30 AV 54.00 -22.70 1.27 H 130 -4.16 35.46 7 #7236.00 55.00 PK 88.80 -33.80 1.24 H 4 13.15 41.85 8 #7236.00 40.80 AV 77.30 -36.50 1.24 H 4 -1.05 41.85 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1 2390.00 64.55 PK 74.00 -9.45 1.00 V 21 34.49 30.06 2 2390.00 50.38 AV 54.00 -3.62 1.00 V 21 20.32 30.06 3 *2412.00 107.70 PK 1.00 V 22 77.55 30.15 4 *2412.00 96.00 AV 1.00 V 22 65.85 30.15 5 4824.00 44.60 PK 74.00 -29.40 1.60 V 350 9.14 35.46 6 4824.00 30.40 AV 54.00 -23.60 1.60 V 350 -5.06 35.46 7 #7236.00 59.00 PK 87.70 -28.70 1.16 V 36 17.15 41.85 8 #7236.00 44.30 AV 76.00 -31.70 1.16 V 36 2.45 41.85 REMARKS: 1. Emission level (dBuV/m) = Raw Value (dBuV) + Correction Factor (dB/m). 2. Correction Factor (dB/m) = Antenna Factor (dB/m) + Cable Factor (dB). 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. “ * “: Fundamental frequency. 6. "#":The radiated frequency is out the restricted band. Report No.: RF970821H05 76 Report Format Version 3.0.0 EUT TEST CONDITION MEASUREMENT DETAIL CHANNEL Channel 6 FREQUENCY RANGE 1 ~ 25GHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak (PK) Average (AV) ENVIRONMENTAL CONDITIONS 25 deg. C, 65%RH 965hPa TESTED BY Frank Liu TEST MODE PCB Antenna ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1 *2437.00 112.20 PK 1.29 H 104 81.96 30.24 2 *2437.00 100.30 AV 1.29 H 104 70.06 30.24 3 4874.00 47.50 PK 74.00 -26.50 1.24 H 133 11.95 35.55 4 4874.00 32.30 AV 54.00 -21.70 1.24 H 133 -3.25 35.55 5 7311.00 56.30 PK 74.00 -17.70 1.25 H 6 14.26 42.04 6 7311.00 42.40 AV 54.00 -11.60 1.25 H 6 0.36 42.04 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1 *2437.00 110.40 PK 1.00 V 22 80.16 30.24 2 *2437.00 98.70 AV 1.00 V 22 68.46 30.24 3 4874.00 46.30 PK 74.00 -27.70 1.61 V 324 10.75 35.55 4 4874.00 31.20 AV 54.00 -22.80 1.61 V 324 -4.35 35.55 5 7311.00 61.70 PK 74.00 -12.30 1.34 V 35 19.66 42.04 6 7311.00 48.20 AV 54.00 -5.80 1.34 V 35 6.16 42.04 REMARKS: 1. Emission level (dBuV/m) = Raw Value (dBuV) + Correction Factor (dB/m). 2. Correction Factor (dB/m) = Antenna Factor (dB/m) + Cable Factor (dB). 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. “ * “: Fundamental frequency. Report No.: RF970821H05 77 Report Format Version 3.0.0 EUT TEST CONDITION MEASUREMENT DETAIL CHANNEL Channel 11 FREQUENCY RANGE 1 ~ 25GHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak (PK) Average (AV) ENVIRONMENTAL CONDITIONS 25 deg. C, 65%RH 965hPa TESTED BY Frank Liu TEST MODE PCB Antenna ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1 *2462.00 108.20 PK 1.29 H 104 77.86 30.34 2 *2462.00 96.50 AV 1.29 H 104 66.16 30.34 3 2483.50 65.27 PK 74.00 -8.73 1.26 H 104 34.84 30.43 4 2483.50 48.95 AV 54.00 -5.05 1.26 H 104 18.52 30.43 5 4924.00 48.20 PK 74.00 -25.80 1.26 H 133 12.57 35.63 6 4924.00 33.10 AV 54.00 -20.90 1.26 H 133 -2.53 35.63 7 7386.00 50.60 PK 74.00 -23.40 1.38 H 7 8.37 42.23 8 7386.00 36.70 AV 54.00 -17.30 1.38 H 7 -5.53 42.23 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1 *2462.00 108.70 PK 1.00 V 21 78.36 30.34 2 *2462.00 96.70 AV 1.00 V 21 66.36 30.34 3 2483.50 64.20 PK 74.00 -9.80 1.00 V 22 33.77 30.43 4 2483.50 48.46 AV 54.00 -5.54 1.00 V 22 18.03 30.43 5 4924.00 47.30 PK 74.00 -26.70 1.54 V 332 11.67 35.63 6 4924.00 32.40 AV 54.00 -21.60 1.54 V 332 -3.23 35.63 7 7386.00 55.60 PK 74.00 -18.40 1.40 V 35 13.37 42.23 8 7386.00 42.10 AV 54.00 -11.90 1.40 V 35 -0.13 42.23 REMARKS: 1. Emission level (dBuV/m) = Raw Value (dBuV) + Correction Factor (dB/m). 2. Correction Factor (dB/m) = Antenna Factor (dB/m) + Cable Factor (dB). 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. “ * “: Fundamental frequency. Report No.: RF970821H05 78 Report Format Version 3.0.0 RESTRICTED BANDEDGE (DRAFT 802.11n (20MHz) MODE,CH1, HORIZONTAL ) 3 Report No.: RF970821H05 79 Report Format Version 3.0.0 RESTRICTED BANDEDGE (DRAFT 802.11n (20MHz) MOD…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST – Site B (Dipole antenna) 3 RADIATED EMISSION TEST – Site C (Dipole antenna) 4 RADIATED EMISSION TEST – Site C (PCB antenna) 5
