RRK-WPCN04AIRLINK 101 150N WIRELESS PCI ADAPTER

AIRLINK 101 150N WIRELESS PCI ADAPTER Model # AWLH6070 User’s Manual Rev. 1.0 2 Table of Contents 1. Introduction .................................................................................................................3 1.1 Package Contents ................................................................................................. 3 1.2 Features ................................................................................................................ 3 2. Installation ................................................................................................................... 4 3. Configuring the Adapter ............................................................................................ 13 4. Wireless Monitor........................................................................................................ 18 4.1 Wireless Information ............................................................................................ 18 4.2 AP List ................................................................................................................. 19 4.3 Profile Settings..................................................................................................... 20 4.4 Configuring Encryption ........................................................................................ 22 4.5 Ad-hoc and Peer-to-Peer Wireless Networks ...................................................... 28 4.6 Wi-Fi Protected Setup (WPS).............................................................................. 31 4.7 About ...................................................................................................................36 Appendix A – Features.................................................................................................. 37 Appendix B – Information .............................................................................................. 38 Industry Canada Statement........................................................................................... 39 Technical Support......................................................................................................... 40 3 1. Introduction Congratulations on your purchase of the 150N Draft 802.11n Wireless PCI Adapter. Its high bandwidth combined with extended wireless coverage delivers fast and reliable connection for all of your networking applications when used with other Airlink101® 300N (AR680W, AWLH6080, AWLC6080 and AWLL6080) and 150N products. A full range of security features such as WEP, WPA-PSK, and WPA2-PSK provide the highest level of wireless network security. The bundled Wireless Utility allows you to set up the adapter with an easy-to-use user interface. Best of all the 150N PCI Adapter works with 802.11g and 802.11b network devices ensuring compatibility with your existing wireless products. 1.1 Package Contents Before you begin the installation, please check the items of your package. The package should include the following items: • 150N Wireless PCI Adapter • 2 Antennas • Quick Installation Guide • Installation CD (Driver/Utility/Manual) 1.2 Features • Industry’s highest wireless data rate with IEEE 802.11n draft specification 2.0 • 2 antennas for wider coverage and continuous connectivity eliminates dead spots • 64-bit/128-bit WEP encryption, Pre-shared Key (PSK), and Wi-Fi Protected Access (WPA2) and WPA support provide full protection for your wireless connection • Higher data rate increases the reliability and stability of wireless connections • Great for environments with higher wireless data traffic requirements • Fully backward-compatible with 802.11b/g devices • Works best with other AirLink101® 150N and 300N (AR680W, AWLH6080, AWLC6080 and AWLL6080) wireless products 4 2. Installation This section provides instructions on how to install the 150N Draft 802.11n Wireless PCI Adapter. The driver is installed along with the utility. Step 1 Insert the PCI adapter into an available PCI slot and turn on your computer. Step 2 After turning on the computer, Windows will launch the Found New Hardware Wizard. The Found New Hardware Wizard appears differently depending on your operating system. Click Cancel to quit the wizard and insert the Installation CD into your CD drive. Step 3 The Autorun screen will pop up. Select Install Utility and Driver from the menu. 5 Note: If the Autorun screen doesn’t appear automatically, or if you get a blank white screen, go to Start, Run, and type D:\Utility\Setup.exe (where D is the letter of your CD drive) and click OK. Windows Vista users: At this point, you may get a warning message like the one below. Make sure that you click Allow to continue with the installation. 6 Step 4 Click Next at the welcome screen. Step 5 Click Next to accept the default destination folder. 7 8 Step 6 Click Continue Anyway at the Windows Logo Screen. (For Windows 2000, click Yes at the Digital Signature Not Found prompt). For Windows Vista, click the Install this driver software anyway button when the security warning appears. Step 7 Click Yes, I want to restart my computer now and then Finish to restart your computer. 9 Step 8 After the computer is restarted, Windows will ask to connect to Windows Update, select No, not this time and click Next. If this screen does not appear, you can skip to section 2.2. 10 Step 9 Select Install the software automatically and click Next. 11 Step 10 Click Continue Anyway at the Windows Logo Screen. (For Windows 2000, click Yes at the Digital Signature Not Found prompt). For Windows Vista, click the Install this driver software anyway button when the security warning appears. 12 Step 11 Click Finish. 13 3. Configuring the Adapter This section describes how to connect your wireless adapter to a wireless network. Note to Windows XP Users: You must disable the Wireless Zero Configuration Utility in order to use the bundled Wireless Utility. Please follow the steps below to disable XP’s wirele…

Text truncated - open the document above for the full version.

Ad-hoc attestation We, Alpha Networks Inc. declare that device does not have “Ad Hoc on non-US frequencies and / or DFS frequencies” while applying for the follow product. FCC ID: RRK- WPCN04 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! ------------------------------------------ Leeming Li /Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5781861 E-mail: [email protected] 2007/12/25

Power of Attorney To whom it may concern: We, the undersigned Alpha Networks Inc. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. FCC ID: RRK- WPCN04 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Leeming Li / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5781861 E-mail: [email protected] 2007/12/24

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RRK-WPCN04 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------ Leeming Li/Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5781861 E-mail: [email protected] 2007/12/24

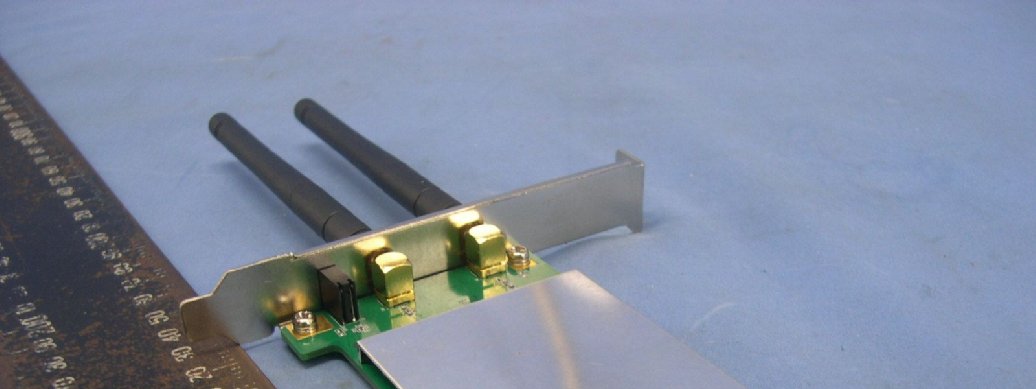

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID： RRK-WPCN04 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 2 Page 3 Page 4 Page 5

Report No.: SA961212H01 1 RF EXPOSURE REPORT REPORT NO.: SA961212H01 MODEL NO.: AWLH6070, C300RiV2, WPC-N04 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Alpha Networks Inc. ADDRESS: No. 8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA961212H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA961212H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA961212H01 4 6. Test Results 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: Transmitter Circuit Antenna Type Gain (dBi) Antenna Connector Chain(0) Dipole 2dBi SMA Plug Reverse Chain(1) Dipole 2dBi SMA Plug Reverse 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 50.119 0.016 1.0 6 2437 144.544 0.046 1.0 11 2462 50.119 0.016 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 73.451 0.023 1.0 6 2437 151.356 0.048 1.0 11 2462 73.451 0.023 1.0 Report No.: SA961212H01 5 DRAFT 802.11n (20MHz) OFDM Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 44.668 0.014 1.0 6 2437 144.544 0.046 1.0 11 2462 35.481 0.011 1.0 DRAFT 802.11n (40MHz) OFDM Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 23.014 0.007 1.0 4 2437 54.075 0.017 1.0 7 2452 23.014 0.007 1.0
