RRK-WRGG15CA1802.11g Wireless Router

User Manual 802.11b/g Wireless Router CG-WLBARGS WLBARGS Manual PB1 1. Product Introduction 1.1 Package Contents................................................................................... 3 1.2 Features..................................................................................................... 3 1.3 Hardware Introduction........................................................................ 4 2. Hardware Installation 2.1 WLBARGS should be connecting to PC and modem............ 5 2.2 Installation Procedure ......................................................................... 5 3. PC Setting 3.1 TCP/IP Configuration............................................................................. 6 3.1.1 Windows XP O/S................................................................ 6 3.1.2 Windows 2000 O/S........................................................... 8 3.1.3 Windows 98/95/ME O/S.............................................. 11 3.1.4 Mac OS 8.x~9.x O/S....................................................... 12 3.2 Browser Configuration...................................................................... 13 3.2.1 Windows O/S................................................................... 13 3.2.2 Mac O/S.............................................................................. 14 4. Network Configuration 4.1 Quick Network Configuration........................................................ 15 4.1.1 Auto obtain IP (DHCP)................................................. 17 4.1.2 Fixed IP................................................................................ 19 4.1.3 Dynamic IP (PPPoE)....................................................... 21 4.2 Establishing Wireless Internet Connection ............................. 23 <Windows XP (SP1) O/S>...................................................... 24 <Windows XP (SP2) O/S>...................................................... 25 5. Wireless Security Configuration 5.1 WEP Setting............................................................................................ 27 5.2 WPA Setup............................................................................................... 28 <WPA-PSK>.................................................................................. 28 <WPA-EAP>................................................................................. 29 6. Function Introduction 6.1 Features................................................................................................... 30 <Mode>........................................................................................ 30 Contents WLBARGS Manual 23 2323 <WAN setting (internet)>...................................................... 30 <WAN setting/ Dynamic DNS>........................................... 33 <WAN setting/Other setting>............................................. 34 <LAN setting/LAN IP>............................................................. 34 <LAN setting /DHCP server>................................................ 35 <LAN setting/PC database>................................................. 35 <Wireless setting/802.11g/b setting>............................. 36 <Wireless setting/802.11g/b security setting>........... 36 <Wireless setting/Access control>.................................... 37 <Security setting>..................................................................... 37 <Security setting/Connection control>.......................... 37 <Security setting/filter list>.................................................. 38 <Advanced setting/virtual server>................................... 39 <Advanced setting/DMZ>..................................................... 39 <Advanced setting/UPnP setting>.................................... 40 <Avanced setting/UPnP setting/UPnP port>............... 40 <Management>......................................................................... 40 <Status>......................................................................................... 43 <Status/Log Display/Dos Attack log>.............................. 43 <Status/Log Display/DHCP log>........................................ 43 <Status/Log Display/system log>...................................... 44 <Status/Log Display/E-mail function>............................ 44 6.2 Additional Functions........................................................................... 44 <Advanced Setting/Backup DNS>.................................... 45 <Advanced Setting/Routing/Static Routing>.............. 45 <Advanced Setting/ Routing/ Dynamic Routing (RIP)>..... 45 <Advanced Setting/ Routing/Routing Table>.............. 45 7. AP/Router Switching................................................................................................ 46 8. FAQ.................................................................................................................................... 47 9. Sepcifictaion................................................................................................................. 50 Contents 2323 WLBARGS Manual 23 corega ‘s WLBARGS is an advanced model of broadband Router as well as a IEEE802.11g wireless access point which can speeds up to 108Mbps. Its management interface is straightforward for ease in setting up, while it sup- ports various security features to effectively prevent hackers from attacking your networks, such as firewall, WPA, Mac Address filtering, VPN pass through, hidden ESSID and no respond to the WAN ping function. Different from the dull and usual matchbox design, WLBARGS router is elegantly streamline designed, which is a definitely a plus to this superb device. 1.1 Package Contents Check the listed contents thoroughly before installation. In case of discrepancy to the list below, check with your local dealers. - Wireless 108M Boardband router - Power Adapter - Detachable Antenna - Flat UTP cable - Product stand Kit (with mounting screws) - Wall mount kit - …

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RRK-WRGG15CA1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________ Leeming Li / Manager Alpha Networks Inc. Tel: 886-3-563-6666 ext.6613 Fax: 886-3-566-7047 E-mail: [email protected]

Power of Attorney To whom it may concern: We, the undersigned Alpha Networks Inc. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________ Leeming Li / Manager Alpha Networks Inc. Tel: 886-3-563-6666 ext.6613 Fax: 886-3-566-7047 E-mail: [email protected]

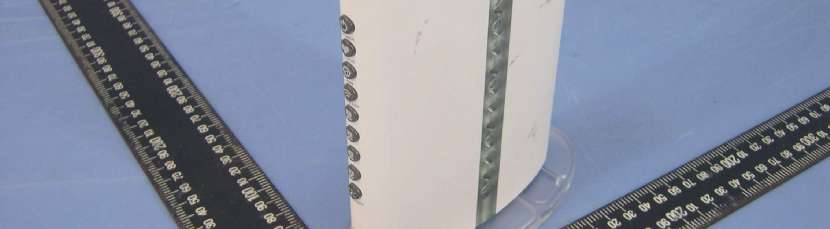

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

FCC ID: RRK-WRGG15CA1 Report No. 941109H03A Operational Description This device is a 802.11g Wireless Router, the maximum data rate could be up to 54Mbps (108Mbps for Turbo mode, channel 6 ) which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (802.11g Wireless Router) is powered by power adapter. The antennas type used in this product are as below. No.Model No.Gain (dBi)Antenna Type Antenna Connector Remark 1 NA-2.0 dBiPrinted AntennaNA RX only 2 IW-241RS-120-12.0 dBiDipole AntennaR-SMATX/ RX 3 SA2-05035-A54.5 dBiDipole AntennaR-SMATX/ RX The other instruction, please have a look at the users manual.

Report No.: SA941109H03A Reference No.: 950307H01 1 RF EXPOSURE REPORT REPORT NO.: SA941109H03A MODEL NO.: CG-WLBARGS FCC ID: RRK-WRGG15CA1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Alpha Networks Inc. ADDRESS: NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA941109H03A Reference No.: 950307H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA941109H03A Reference No.: 950307H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA941109H03A Reference No.: 950307H01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 4.5dBi or 2.818(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241289.1250.0501.0 6243791.2010.0511.0 11246295.4990.0541.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241252.4810.0291.0 62437112.2020.0631.0 11246272.4440.0411.0

Report No.: RF941109H03A1Report Format Version 2.0.5 Reference No.: 950307H01 FCC TEST REPORT REPORT NO.: RF941109H03A MODEL NO.: CG-WLBARGS RECEIVED: March 7, 2006 TESTED: March 8 to 15, 2006 ISSUED: March 17, 2006 APPLICANT: Alpha Networks Inc. ADDRESS: NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF941109H03A2Report Format Version 2.0.5 Reference No.: 950307H01 Table of Contents 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................8 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................9 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS..............................11 3.5DESCRIPTION OF SUPPORT UNITS........................................................12 3.6CONFIGURATION OF SYSTEM UNDER TEST.........................................13 4TEST TYPES AND RESULTS.....................................................................15 4.1CONDUCTED EMISSION MEASUREMENT..............................................15 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................15 4.1.2TEST INSTRUMENTS.................................................................................15 4.1.3TEST PROCEDURES.................................................................................16 4.1.4TEST SETUP..............................................................................................16 4.1.5EUT OPERATING CONDITIONS................................................................17 4.1.6TEST RESULTS..........................................................................................18 4.2RADIATED EMISSION MEASUREMENT...................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................20 4.2.2TEST INSTRUMENTS.................................................................................21 4.2.3TEST PROCEDURES.................................................................................22 4.2.4TEST SETUP..............................................................................................23 4.2.5EUT OPERATING CONDITIONS................................................................24 4.2.6TEST RESULTS..........................................................................................25 4.2.7TEST RESULTS – DSSS.............................................................................26 4.2.8TEST RESULTS – OFDM............................................................................29 4.36dB BANDWIDTH MEASUREMENT...........................................................33 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................33 4.3.2TEST INSTRUMENTS.................................................................................33 4.3.3TEST PROCEDURE....................................................................................34 4.3.4TEST SETUP..............................................................................................34 4.3.5EUT OPERATING CONDITIONS................................................................34 4.3.6TEST RESULTS –DSSS..............................................................................35 4.3.7TEST RESULTS-OFDM..............................................................................38 4.4MAXIMUM PEAK OUTPUT POWER..........................................................43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........43 4.4.2TEST INSTRUMENTS.................................................................................43 4.4.3TEST PROCEDURES.................................................................................44 4.4.4TEST SETUP..............................................................................................44 4.4.5EUT OPERATING CONDITIONS................................................................44 Report No.: RF941109H03A3Report Format Version 2.0.5 Reference No.: 950307H01 4.4.6TEST RESULTS – DSSS.............................................................................45 4.4.7TEST RESULTS –OFDM.............................................................................46 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................47 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................47 4.5.2TEST INSTRUMENTS.................................................................................47 4.5.3TEST PROCEDURE....................................................................................48 4.5.4TEST SETUP..............................................................................................48 4.5.5EUT OPERATING CONDITIONS................................................................48 4.5.6TEST RESULTS –DSSS..............................................................................49 4.5.7TEST RESULTS –OFDM.............................................................................52 4.6BAND EDGES …

Text truncated - open the document above for the full version.

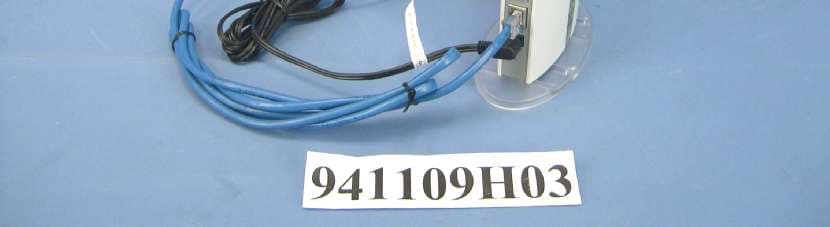

Report No.: RF941109H03A71Report Format Version 2.0.5 Reference No.: 950307H01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF941109H03A72Report Format Version 2.0.5 Reference No.: 950307H01 RADIATED EMISSION TEST
