RRK-WUSND12B802.11a/b/g/n WIFI Dongle

Before Use Precautions for use • Keep this product and this accessory out of the reach of children. • This product is for use with the Unique 1.0 m / 3.281 ft extension cable only. • Do not place this product in a location near a heat source, or a place subject to direct sunlight. Doing so may cause a distortion or malfunction. • Keep this product away from fl ammable objects or naked fl ame sources (such as lighted candles). • Do not repair this product by yourself. Refer servicing to qualifi ed personnel only. Introduction This product is the wireless adapter with a USB connector. It is for use with Blu-ray DiscTM Player only. You can use this product by connecting it to the USB port of a system. FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Interference: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Wireless Radio For product available in the USA and Canada market, only channel 1–11 can be operated. Selection of other channels is not possible. The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. If this device is going to be operated in 5.15– 5.25GHz frequency range, then it is restricted in indoor environment only. Important: Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device and its antenna (s) must not be co- located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Specifications Standards Compliance: IEEE 802.11a/b/g/n Host Interface: USB 2.0 Authentication Mode: WPAPSK, WPA2PSK Encryption Type: WEP, TKIP, AES Frequency and Channel*1: 2.412 GHz – 2.462 GHz [CH1 – 11] 5.15 GHz – 5.25 GHz [CH36 – 48] 5.25 GHz – 5.35 GHz [CH52 – 64] 5.47 GHz – 5.725 GHz [CH100 – 140] 5.725 GHz – 5.85 GHz [CH149 – 165] Power Consumption: 2.2 W Mass (Approx.): USB Wireless LAN Adapter: 15 g Dimensions (Approx.) (w × h × d): USB Wireless LAN Adapter: 73.3 mm × 26.6 mm × 10.5 mm Design and specifications are subject to change without notice. *1 The frequency and channel differ depending on the area. Standards Compliance • Compatible with IEEE 802.11a/b/g and 802.11n. Note • The location where the transmission is most effective differs depending on the usage environment. In this case, use the Unique 1.0 m / 3.281 ft extension cable. • Check precautions and instructions about the usage location of the product. For details, refer to the operating instructions of each product. Accessories • USB Wireless LAN Adapter (1) • Unique 1.0 m / 3.281 ft extension cable (1) • Operating Instructions (this manual) (1) USB WiFi Adapter for Blu-ray Disc TM /DVD Player WUS-ND12B OWNER’S MANUAL For USA USA-Federal Communications Commission Statement Configuring a wireless Internet connection This section describes how to configure the Blu-ray Disc TM player for accessing the Internet via a WiFi connection. The procedure for connecting to a wireless network depends on various network arameters. Read the following configuration methods to determine which instructions to use to onnect to your network. Wireless Setting If no Ethernet cable is connected to the ETHERNET jack of your player, you can connect this USB WiFi adapter to your player and then select “Interface -> Wireless” in the Network setting menu and the following screen appears: LED Indicator 2. Manual mode (connection to the Wireless Network via your input SSID) 1) Press / to select Auto, then press OK. The following screen appears. 3) Press OK to activate the on-screen keyboard. Carefully enter the network password by using the , , / to highlight the desired letter on the keyboard, and then press OK. (If you make a mistake, use , , / to highlight Back on the keyboard and press OK to erase the mistake. Or highlight Clear on the keyboard and press OK to clear them, them enter again.) 4) Use , , / to highlight Enter on the keyboard, and then press OK. If the wireless network is functioning, a message “Connection success and IP is obtained” will appear on the TV. 5) Press OK to close the message. The Blu-ray TM disc player is now connected to the network. From now on, when you turn on the player, it will automatically connect to the network; there is no need to repeat these steps again. Notes: • If you do not see this messa…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Declaration for DFS client devices We, Alpha Networks Inc. declare that the device does not support any non-US channels in all the operational mode(s), like Ad-Hoc...etc, for the following product. Also, the client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. This includes restriction on transmissions for beacons and support for ad-hoc peer-to-peer modes. FCC ID: RRK-WUSND12B Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 1/9/2012

Channel plan and software operational info Question 1 A Statement of Conformity for the Client in Non-Associated mode is required. The Form 731 application must include a Cover Letter Attachment stating that the client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. This includes restriction on transmissions for beacons and support for ad-hoc peer-to-peer modes. <Reply> We declare that the device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” while applying for the product. Our software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. Also, this model is client device without Radar detection. Question 2 Submit a channel/frequency plan for this device showing the channels that have active scanning or passive scanning. Active scanning is where the device can transmit a probe (beacon) and passive scanning is where the device is can listen only with no probes. <Reply> The radio supports 802.11d and will not transmit until a valid Master device is detected. In the case when 802.11d is not activated then only non-DFS channels are actively probed. Also, we have asked test lab to perform a boot up test to monitoring if the device should generate any beacon in the DFS bands. Question 3 For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) or in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies), or modular devices that configure the modes of operations through software; the applicant must provide in the application software and operations description that discuss how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by an end user or an installer. Also, include an attestation that the device complies with the requirements for software configuration control as discussed in KDB #594280. <Reply> On DFS channels, the WLAN driver on the device operates under the control of an AP at all times, except when in ad-hoc mode, on US non-DFS channels. As described in the answer to question 1, the device passively scans DFS frequencies until a master device is detected. As part of the DFS functionality in the WLAN driver, software is implemented to react to radar detection messages and move to a new channel. The control of this functionality is not accessible to anyone under any conditions. Furthermore, the firmware is protected by CRC method and cannot be changed or modified by end user, this will cause WLAN non-workable. Anyway the device complies with the requirements for software configuration control as discussed in KDB #594280. Finally, We declare that our device doesn’t do active scanning in the DFS frequencies. This behavior is controlled by software. FCC ID: RRK-WUSND12B If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 1/9/2012

Federal Communications Commission Authorization and Evaluation Division Declaration We, Alpha Networks Inc. declare that this device could not work when it was used to connect the device to a standard laptop PC, and this equipment can only work with the TV’s and Blue-Ray disk players. This device will not be recognized by the Windows/ Linux/ other operating system of a standard PC, and that no drivers and available which would support such a configuration. Model: WUS-ND12B FCC ID: RRK-WUSND12B Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 1/9/2012

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RRK-WUSND12B Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics/Block Diagram/ Operating description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 1/9/2012

Power of Attorney To whom it may concern: We, the undersigned Alpha Networks Inc. hereby authorize BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C/E approvals and any communication needed with the national authority. Any and all acts carried out by BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan on our behalf shall have the same effects as acts of our own. FCC ID: RRK-WUSND12B If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 2012/1/9

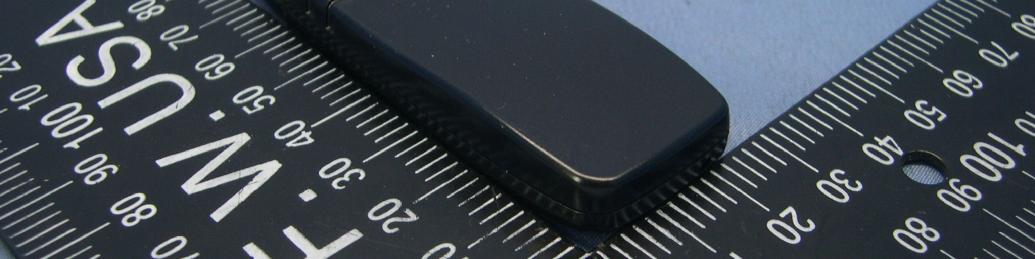

Report No.: 110913E01C 1 Reference No.:111221E04 CONSTRUCTION PHOTOS OF EUT Report No.: 110913E01C 2 Reference No.:111221E04

LABEL Location LABEL Drawing Model: WUS-N12B Model: WUS-N12B

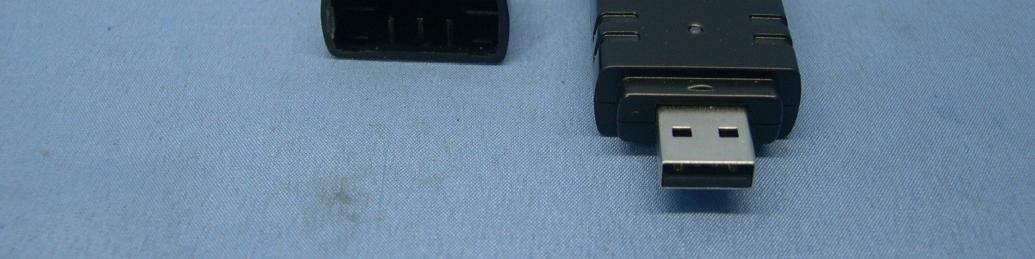

Report No.: 110913E01C 3 Reference No.:111221E04 111221E04 Report No.: 110913E01C 4 Reference No.:111221E04 111221E04 111221E04

Report No.: SA110913E01D Report Format Version 4.0.0 Reference No.:111227E01 1 RF EXPOSURE REPORT REPORT NO.: SA110913E01D MODEL NO.: WUS-ND12B FCC ID: RRK-WUSND12B RECEIVED: Sep. 13, 2011 TESTED: Oct. 18, 2011 ISSUED: Jan. 16, 2012 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 6 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA110913E01D Report Format Version 4.0.0 Reference No.:111227E01 2 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT..............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...........................6 Report No.: SA110913E01D Report Format Version 4.0.0 Reference No.:111227E01 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA110913E01D Original release Jan. 16, 2012 Report No.: SA110913E01D Report Format Version 4.0.0 Reference No.:111227E01 4 1. CERTIFICATION PRODUCT: 802.11a/b/g/n WIFI Dongle BRAND NAME: Alpha MODEL NO.: WUS-ND12B TEST SAMPLE: MASS-PRODUCTION APPLICANT: Alpha Networks Inc. TESTED DATE: Oct. 18, 2011 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: WUS-ND12B) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Jan. 16, 2012 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Jan. 16, 2012 ( May Chen, Deputy Manager ) Report No.: SA110913E01D Report Format Version 4.0.0 Reference No.:111227E01 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION This WIFI dongle will be sold and used with TV. So the antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110913E01D Report Format Version 4.0.0 Reference No.:111227E01 6 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: 15.247(2.4GHz) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 709.8 1.39 20 0.195 1.00 For WLAN: 15.247(5GHz) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 - 5825 486.1 2.87 20 0.187 1.00 802.11n (40MHz): 120.1mW For WLAN: 15.407(5GHz) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180 -5240, 5260 - 5320, 5500 - 5580 & 5660 - 5700 120.1 2.87 20 0.047 1.00 --- END --- CONCLUSION: Both of the WLAN(5GHz band) and Bluetooth can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.074 / 1 + 0.003 / 1= 0.077, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: RF110913E01C 1 Report Format Version 4.0.0 Reference No.:111221E04 FCC TEST REPORT (15.247) REPORT NO.: RF110913E01C MODEL NO.: WUS-ND12B FCC ID: RRK-WUSND12B RECEIVED: Sep. 13, 2011 TESTED: Oct. 04 to Dec. 24, 2011 ISSUED: Jan. 16, 2012 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 117 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110913E01C 2 Report Format Version 4.0.0 Reference No.:111221E04 Table of Contents RELEASE CONTROL RECORD..............................................................................5 1. CERTIFICATION...........................................................................................6 2. SUMMARY OF TEST RESULTS...................................................................7 2.1 MEASUREMENT UNCERTAINTY................................................................9 3. GENERAL INFORMATION.........................................................................10 3.1 GENERAL DESCRIPTION OF EUT............................................................10 3.2 DESCRIPTION OF TEST MODES..............................................................12 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............13 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................17 3.4 DESCRIPTION OF SUPPORT UNITS........................................................18 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................18 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band).....19 4.1 CONDUCTED EMISSION MEASUREMENT..............................................19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................19 4.1.2 TEST INSTRUMENTS................................................................................19 4.1.3 TEST PROCEDURES.................................................................................20 4.1.4 DEVIATION FROM TEST STANDARD.......................................................20 4.1.5 TEST SETUP..............................................................................................21 4.1.6 EUT OPERATING CONDITIONS................................................................21 4.1.7 TEST RESULTS..........................................................................................22 4.2 RADIATED EMISSION MEASUREMENT...................................................24 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................24 4.2.2 TEST INSTRUMENTS................................................................................25 4.2.3 TEST PROCEDURES.................................................................................27 4.2.4 DEVIATION FROM TEST STANDARD.......................................................27 4.2.5 TEST SETUP..............................................................................................28 4.2.6 EUT OPERATING CONDITIONS................................................................28 4.2.7 TEST RESULTS..........................................................................................29 4.3 6dB BANDWIDTH MEASUREMENT..........................................................58 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................58 4.3.2 TEST INSTRUMENTS................................................................................58 4.3.3 TEST PROCEDURE...................................................................................58 4.3.4 DEVIATION FROM TEST STANDARD.......................................................58 4.3.5 TEST SETUP..............................................................................................58 4.3.6 EUT OPERATING CONDITIONS................................................................58 4.3.7 TEST RESULTS..........................................................................................59 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................63 Report No.: RF110913E01C 3 Report Format Version 4.0.0 Reference No.:111221E04 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........63 4.4.2 INSTRUMENTS..........................................................................................63 4.4.3 TEST PROCEDURES.................................................................................63 4.4.4 DEVIATION FROM TEST STANDARD.......................................................63 4.4.5 TEST SETUP..............................................................................................63 4.4.6 EUT OPERATING CONDITIONS................................................................63 4.4.7 TEST RESULTS..........................................................................................64 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................66 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................66 4.5.2 TEST INSTRUMENTS................................................................................66 4.5.3 TEST PROCEDURE...................................................................................66 4.5.4 DEVIATION FROM T…

Text truncated - open the document above for the full version.

Report No.: RF110913E01C-1 1 Report Format Version 4.0.0 Reference No.:111221E04 FCC TEST REPORT (15.407) REPORT NO.: RF110913E01C-1 MODEL NO.: WUS-ND12B FCC ID: RRK-WUSND12B RECEIVED: Sep. 13, 2011 TESTED: Oct. 04 to Dec. 24, 2011 ISSUED: Jan. 16, 2012 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 124 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110913E01C-1 2 Report Format Version 4.0.0 Reference No.:111221E04 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................15 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................16 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................16 4. TEST TYPES AND RESULTS..............................................................................17 4.1 CONDUCTED EMISSION MEASUREMENT........................................................17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................17 4.1.2 TEST INSTRUMENTS..........................................................................................17 4.1.3 TEST PROCEDURES..........................................................................................18 4.1.4 DEVIATION FROM TEST STANDARD.................................................................18 4.1.5 TEST SETUP.......................................................................................................19 4.1.6 EUT OPERATING CONDITIONS.........................................................................19 4.1.7 TEST RESULTS...................................................................................................20 4.2 RADIATED EMISSION MEASUREMENT.............................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................22 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS..........23 4.2.3 TEST INSTRUMENTS..........................................................................................24 4.2.4 TEST PROCEDURES..........................................................................................26 4.2.5 DEVIATION FROM TEST STANDARD.................................................................26 4.2.6 TEST SETUP.......................................................................................................27 4.2.7 EUT OPERATING CONDITION............................................................................27 4.2.8 TEST RESULTS...................................................................................................28 4.3 OUTPUT TRANSMIT POWER MEASUREMENT.................................................74 4.3.1 LIMITS OF OUTPUT TRANSMIT POWER MEASUREMENT...............................74 4.3.2 TEST INSTRUMENTS..........................................................................................74 4.3.3 TEST PROCEDURE.............................................................................................74 4.3.4 DEVIATION FROM TEST STANDARD.................................................................74 4.3.5 TEST SETUP.......................................................................................................75 4.3.6 EUT OPERATING CONDITIONS.........................................................................75 4.3.7 TEST RESULTS...................................................................................................76 4.4 PEAK POWER EXCURSION MEASUREMENT...................................................91 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT.................................91 4.4.2 TEST INSTRUMENTS..........................................................................................91 Report No.: RF110913E01C-1 3 Report Format Version 4.0.0 Reference No.:111221E04 4.4.3 TEST PROCEDURE.............................................................................................91 4.4.4 DEVIATION FROM TEST STANDARD.................................................................91 4.4.5 TEST SETUP.......................................................................................................92 4.4.6 EUT OPERATING CONDITIONS.........................................................................92 …

Text truncated - open the document above for the full version.

Report No.: RF110913E01C-2 1 Report Format Version 4.0.0 Reference No.: 111221E04 DFS TEST REPORT REPORT NO.: RF110913E01C-2 MODEL NO.: WUS-ND12B FCC ID: RRK-WUSND12B RECEIVED: Sep. 13, 2011 TES…
