RRK20005110016-1802.11 b/g MIMO Mini-PCI Card

WMP-N06 WMP-N06 User’s Guide WMP-N06 FCC Statement : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. FCC RF Radiation Exposure Statement: 1.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Modular Approval This device is intended only form OEM integrator under the following conditions: 1) The antenna must be installed such that 20cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. WMP-N06 IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ADSL modems, and similar equipment). The final end product must be labeled in visible area with the following: “Contains RF Module FCC ID: RRK2005110016-1 End Product Manual Information The user manual for end users must include the following information in a prominent location “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” WMP-N06 1.0 Scope 1.1 Document This document is to specify the product requirements for 802.11b/g MIMO Mini-PCI Card. This MIMO Mini-PCI Card is based on Atheros AR5008 chipset that complied with 802.11n draft 1.0 standard from 2.4~2.5GHz, and it can be used to provide up to 11Mbps for IEEE 802.11b and 54Mbps for 2.4GHz IEEE 802.11g to connect your wireless LAN. With seamless roaming, fully interoperability and advanced security with WEP standard, 802.11b/g MIMO Mini- PCI Card offers absolute interoperability with different vendors’ 802.11b/g MIMO Access Points through the wireless LAN. 1.2 Product Features y Compatible with IEEE 802.11b high rate standard to provide wireless 11Mbps data rate y Compatible with IEEE 802.11g higher speed standard to provide wireless 54Mbps data rateo y Operation at 2.4 ~ 2.5GHz frequency band to meet worldwide regulations y Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54Mbps for 802.11g y Dynamic date rate scaling at 1, 2, 5.5, and 11Mbps for IEEE 802.11b y Compatible with IEEE 802.11n draft 1.0 higher speed standard in High Throughput mode from MCS-0 to MCS-15. The HT data rate refers to Appendix A. y Maximum reliability, throughput and connectivity with automatic data rate switching y Supports wireless data encryption with 64/128/152-bit WEP for security y Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication y Dual UFL antenna connectors for diversity y Supports WPA and AES enhanced security y Supports VLAN tagging y Friendly user configuration and utilities y Drivers support Windows 98SE, ME, 2K, and XP y Supports Mini-PCI Type IIIA form factor 2.0 Requirements The following sections identify the detailed requirements of the 802.11g/b MIMO Mini-PCI Card. 2.1 General Requirements 2.1.1 IEEE …

Text truncated - open the document above for the full version.

Alpha Networks Inc. NO.8, Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. TEL: +886 3-563-6666 FAX: +886 3-578-1861 Date: August 7,2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: RRK2005110016-1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Leeming Li / Manager Alpha Networks Inc. Tel: 886-3-563-6666 ext.6613 Fax: 886-3-566-5091 E-mail: [email protected]

Alpha Networks Inc. NO.8, Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. TEL: +886 3-563-6666 FAX: +886 3-578-1861 Date: Aug. 7,2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Leeming Li / Manager Alpha Networks Inc. Tel: 886-3-563-6666 ext.6613 Fax: 886-3-566-5091 E-mail: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

Chris Harvey From: daphne.liang [[email protected]] Sent: Thursday, August 24, 2006 10:04 PM To: [email protected] Cc: [email protected] Subject: Alpha Networks Inc., FCC ID: RRK2005110016-1, Assessment NO.: AN06T6057, Notice#2-- Updated files(950825) Attachments: WMP-N06_Operation(950825).pdf; WMP-N06_Report (RP1-1)950825.pdf Page 1 of 2 8/27/2006 Dear Chris Harvey: Thank you for your notice.Please find the belowing reply(950825) and find the updated files. If still have any problems,please connect with me. BEST REGARDS Daphne Liang / 梁鈺如 8/25/2006 Certification Team Leader / Certification Dept. ============================================= Compliance Certification Services Inc. Rm.258, Bldg.17, No.195, Sec.4, Chung Hsing Rd.,Chutung,Hsinchu,Taiwan,R.O.C. Tel: 886-3-5910068 EXT: 502 Fax: 886-3-5825720 E-mail: [email protected] URL: http://www.ccsemc.com.tw ----- 轉呈者 daphne.liang/ccsemc 於 2006/08/24 02:25 PM ----- Dear Daphne Liang <[email protected]> 2006/08/23 07:35 PM 收件人： <[email protected]> 副本抄送： 主旨： Alpha Networks Inc., FCC ID: RRK2005110016-1, Assessment NO.: AN06T6057, Notice#2 I have completed the review of all of the exhibits and have the following additional questions that need to be addressed: 1. The Block Diagram on page 2 of 4 of the Operational Description is not complete (looks cut-off). Please update this exhibit to include the entire block diagram. Ans:Please find the updated operational description(950825) 2. The Block Diagram shown in the new Operational Description exhibit indicates that Chain 1 'is not present in this design'. However, this device is a 3x3 MIMO which contains Chain 0, 1 and 2. Please either explain this statement in the Operational description, or update the exhibit with the correct and consistent information. Ans:Please find the updated operational description(950825) 3. Please confirm if this device uses Cyclic Delay Diversity in the legacy 802.11 b and g modes of operation as it does in the MIMO mode. Ans:It is under 11b and 11g mode,this feature is disable. 4. Please update the test report to show the formula used to compute the total PPSD for the MIMO modes as you did for the total power. Ans:Please find the updated test report(950825) The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] ________________________________________________________________________ This e-mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886-2-2299-9720) for any problem with this transmission, Thank you for your attention. Page 2 of 2 8/27/2006

Mike Kuo From: daphne.liang [[email protected]] Sent: Wednesday, September 20, 2006 1:40 AM To: Mike Kuo Cc: application; Chris Harvey; Chris Harvey; lucy.tsai Subject: Re:Alpha Networks Inc., FCC ID: RRK2005110016-1, Assessment NO.: AN06T6057--Updated(950920) Attachments: WMP-N06_User Guide(950916).pdf; WMP-N06_Report (RP1-1)950916.pdf; WMP-N06_User Guide (950920).pdf; WMP-N06_Report (FCC Part 15 Subpart C-1)950920.pdf  9/20/2006 Dear Mike: Thank you for your e-mail,please see the belowing reply and find the updated files(950916). If still have any problems,please let me know,thank you so much! BEST REGARDS Daphne Liang / 梁鈺如 9/16/2006 Certification Team Leader / Certification Dept. ============================================= Compliance Certification Services Inc. Rm.258, Bldg.17, No.195, Sec.4, Chung Hsing Rd.,Chutung,Hsinchu,Taiwan,R.O.C. Tel: 886-3-5910068 EXT: 502 Fax: 886-3-5825720 E-mail: [email protected] URL: http://www.ccsemc.com.tw Hi Daphne : Please address the following questions: 1. Even though in you replies to Chris question indicated CDD mode is disabled for 802..11 b and g mode. However, in the theory of operation, it clearly stated this b/g/n MIMO 3x3 can support CDD mode. Please modify the theory of operation based daphne.liang 梁玉如 2006/09/16 10:21 AM 收件人： "Mike Kuo" <[email protected]> 副本抄送： "application" <[email protected]>, "Chris Harvey" <[email protected]>, "Chris Harvey" <charvey- [email protected]>, lucy.tsai/ccsemc@ccsemc 主旨： Re:Alpha Networks Inc., FCC ID: RRK2005110016-1, Assessment NO.: AN06T6057--Updated(950916) 連結 "Mike Kuo" <[email protected]> 2006/09/01 06:43 AM 收件人： "daphne.liang" <[email protected]>, "application" <[email protected]> 副本抄送： "Chris Harvey" <[email protected]>, "Chris Harvey" <[email protected]> 主旨： Alpha Networks Inc., FCC ID: RRK2005110016-1, Assessment NO.: AN06T6057 upon your reply. ( Mike Kuo: Based upon my understanding of Atheros MIMO design, only in the power save mode can transmit in single transmitting chain. ) Ans:T he CDD enables in 11b/g/n mix mode . 2. I do not understand why the RF conducted tests were based upon antenna gain. Will different output power setting require based upon the antenna gain to achieve product compliance ? If yes, then in the user manual, they should state the target output power based upon the antenna gain. Please explain the rational based. Ans:Please find the updated user manual(950916). 3. During legacy 802.11 b and 802.11 b measurement, which antenna chain was measured and activated ? ( chain 0 , chain 1 or chain 2 ?) Test report does not provide such info. Ans: Please find the test report of page 10 & Page 11 which showed the following statement: Please also find the updated test report(950916). 4. During Radiated H20/H40 tests, will three antennas be activated during the radiated emission tests ? No information in the test report. Ans: Please find the test report(950916) of page 4 & 10 & Page 11 which showed the antenna informations. 5. Based upon TCB/FCC training on May 2005, FCC wants RF conducted spurious emission and PSD tests to be measured with individual TX chain AND with combiner. In the test report, there is no combiner test data. Please provide test data with combiner. Ans: We have add these test data,please find the updated test report(950916). 6. If this b/g/n 3x3 transmitter can support CDD mode, then during the non-MIMO mode, the total direction antenna gain equals to 2 dBi antenna = 2+(10log 3)= 2+3 = 5 dBi < 6dBi . There is no power reduction. For 3 dBi antenna = 3 + (10log 3)=3+4=7 > 6dBi  9/20/2006 ( 1 dB power reduction ). Ans: We have redo some tests,please find the updated test report(950916). Best Regards Mike Kuo Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 Tel: (408)463-0885 x: 105 Fax: (408)463-0888 e-mail:[email protected] http://www.ccsemc.com  9/20/2006

Modular Approval Request Letter August 7, 2006 Compliance Certification Services 561F Monterey Rd., Morgan Hill, CA 95037, USA To Whom It May Concern: Please be advised that WLAN 802.11b/g MiniPCI Card, with the FCC ID: RRK2005110016-1 would be certified as the Modular Approval with the Mobile device classification. User shall be informed that keeping at least 20cm safe separation away the device. We also assure the device complies with the requirements listed in the Public Notice DA-00-1407, details are listed as follows: 1. The modular transmitter must have its own RF shielding: The radio portion of this module has been shielded. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation / data inputs: The EUT has buffered data inputs, it is integrated in chip AR2133 & AR5416 The modular transmitter must have its own power supply regulation: The part number of this regulator is M24C32WMN6 3. The modular transmitter must comply with the antenna requirements of the Section 15.203 and 15.204(c): The EUT meets the FCC antenna requirements. The spurious emission unique antenna connector and photo of antennas are shown in the test report. 4. The modular transmitter must be tested in a stand-alone configuration: The EUT was tested in a stand-alone configuration via a Compact Flash interface to test kit. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this test kit. 5. The modular transmitter must be labeled with its own FCC ID number and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 6. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: The EUT is complied with all FCC rules. Please refer to user’s manual for detail. 7. The modular transmitter must comply with any applicable RF exposure requirements: The EUT is complied with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Should you have any question, please don’t hesitate to ask us. Best regards, Leeming Li / Manager Alpha Networks Inc. Tel: 886-3-563-6666 ext.6613 Fax: 886-3-566-5091 E-mail: [email protected]

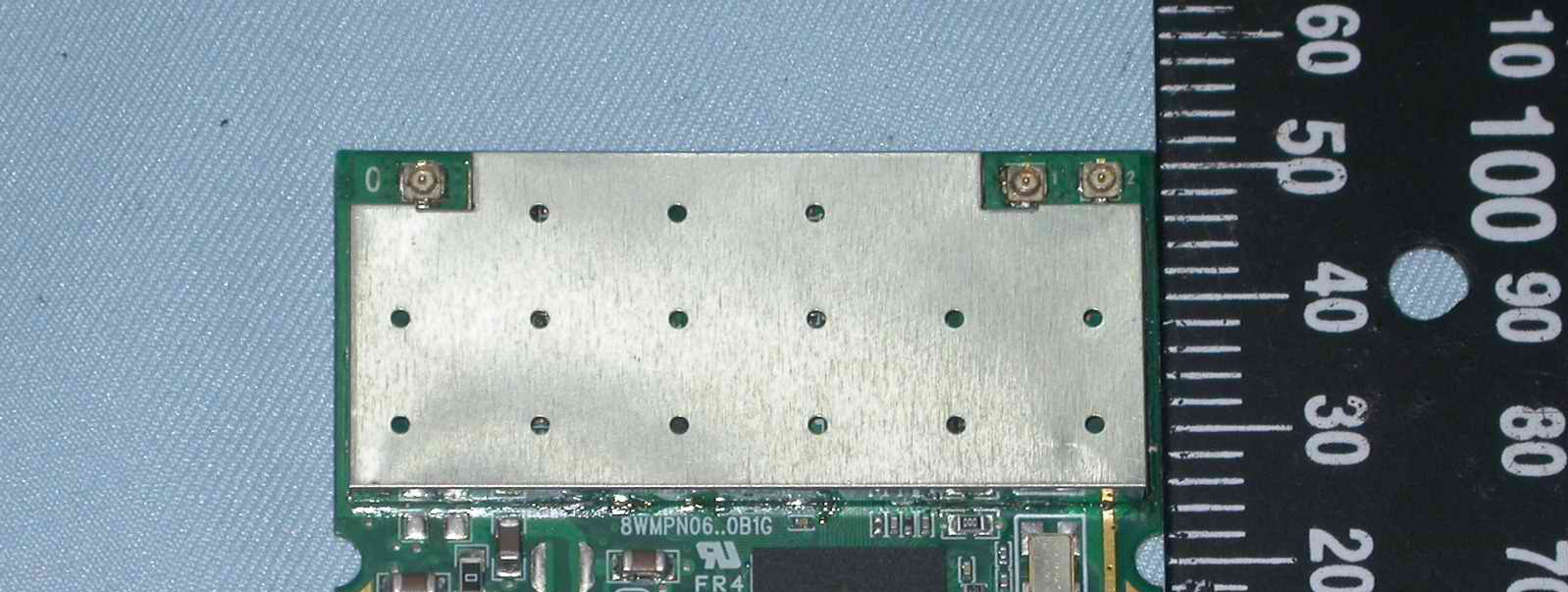

Compliance Certification Services Inc. Report No.：60803003 Page 1 of 10 External Photo

Label Location

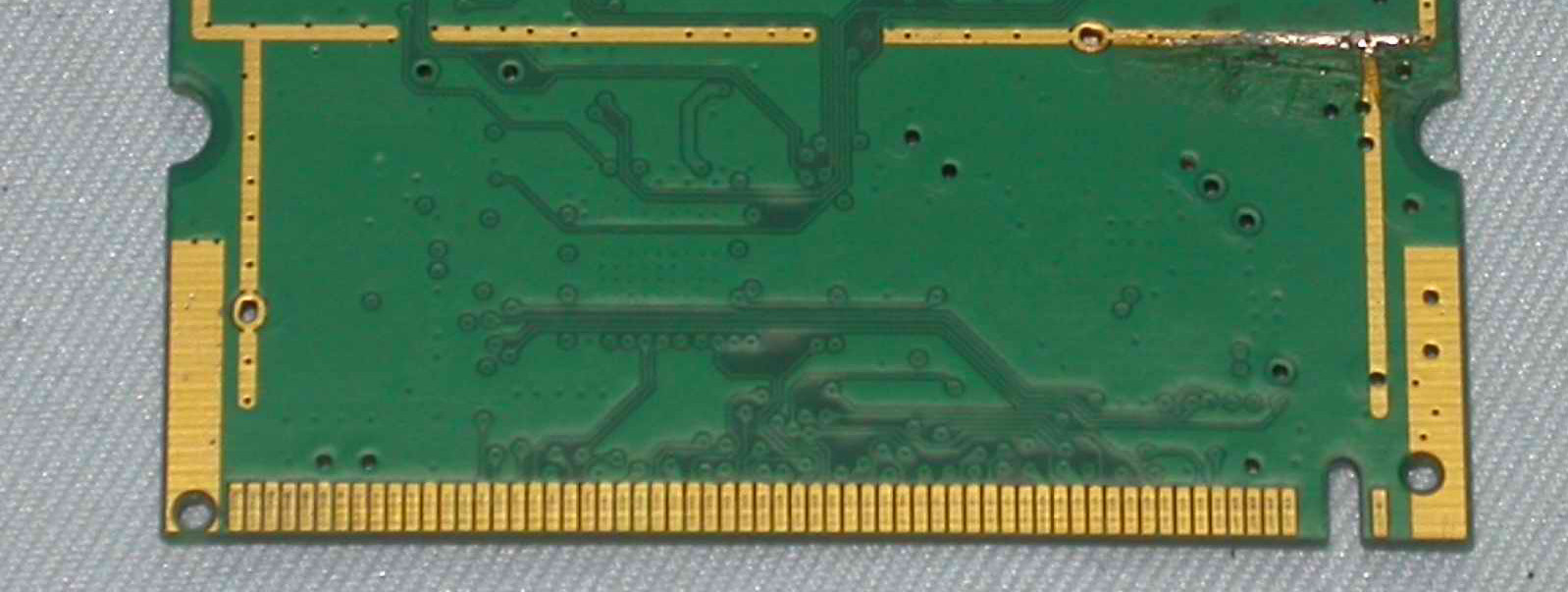

!Compliance Certification Services Inc.!Report No.Κ60803003 Page 2 of 10 ! ! ! ! ! Internal Photo ! !Compliance Certification Services Inc.!Report No.Κ60803003 Page 3 of 10 ! ! ! ! ! !Compliance Certification Services Inc.!Report No.Κ60803003 Page 4 of 10 ! ! ! ! ! ! !Compliance Certification Services Inc.!Report No.Κ60803003 Page 5 of 10 ! ! ! ! ! ! !Compliance Certification Services Inc.!Report No.Κ60803003 Page 6 of 10 ! ! ! ! ! ! !Compliance Certification Services Inc.!Report No.Κ60803003 Page 7 of 10 ! ! ! ! ! Adapter Photo (JTA0302B) !Compliance Certification Services Inc.!Report No.Κ60803003 Page 8 of 10 ! ! ! ! ! !Compliance Certification Services Inc.!Report No.Κ60803003 Page 9 of 10 ! ! ! ! ! !Compliance Certification Services Inc.!Report No.Κ60803003 Page 10 of 10 ! ! ! ! ! !

/ 2005/12/23 2005/12/23 SGS 1. 2. 3. COMMETS Alpha P/N 505924142810G R139812005/12/28 02-22988066-481 THW1428A1 (505780) :ENG ANT 2.4G 2 dBi THW1428A1 2 : SPECIFICATION FOR APPROVAL CUSTOMER DATE DESCRIPTION CUSTOMER P/N Part NO. WANSHIH ELECTRONIC CO., LTD. 723 3F 72 WU KONG 6TH RD., WU KU INDUSTRIAL DISTRICT TAIPEI HSIEN, TAIWAN,R.O.C. TEL(02) 22988066 (5 LINE) FAX(02)22981102 94 12 15 D-Link Swivel Type1/4λ Dipole Ant ennawith RP-SMA(M) (Black) THW1428A1 1 Table of Contents Table of Contents ......... 1 Specification ......... 2 Antenna Drawing ......... 3 Connector ......... 4 Electrical Properties Return Loss ......... 5 V. S . W. R ......... 6 Radiation Pattern ......... 7-8 Material Data Sheet Coaxial Cable ......... 9-11 Housing ......... 12 Hinge ......... 13 2 SPECIFICATION 1. Description The antenna is a Swivel Type Dipole Antenna 2. Customer 3. Model No. WSS002 4. Part No. THW1428A1 5. Standard IEEE 802.11b/g Wireless LAN 6. Antenna Profile 108 mm length (see Drawing) 7. Color Black 8. Electrical Characteristics Operating Frequency 2.4~2.5GHz Antenna Type 1/4λ Dipole Sleeve Polarization Type Linear Type of Radiation Toroidal Peak Gain 2.0 dBi Typical Impedance 50 Ohm nominal V.S.W.R. 2.0:1 Max. 9. Mechanical Characteristics Action Swivel Type Connector RP-SMA(M) Core N/A 10. Raw Material Coaxial Cable MIL-C-17 RG-178 B/U Housing TPU Hinge PC+ALLOY 3 THW1428 4 5 Electrical Properties Return Loss 2.8 GHz 10 dB/ -80 dB 20 dB MAGdB CH110 dB/REF 0 dB START2 GHzSTOP2.9 GHz100 MHz/ CPL FIL 10k10k FIL 10k10k CAL S22 1 2 3 3: -17.51 dB 2.5 GHz 1: -17.92 dB 2.4 GHz 2: -25.18 dB 2.45 GHz 〈 0 dB 6 Electrical Properties V. S . W. R 2.1 GHz2.8 GHz 1 U/ 1 U 11 U SWRLINCH11 U/REF 1 U START2 GHzSTOP2.9 GHz100 MHz/ FIL 10k10k FIL 10k10k CPL CAL S22 1 2 3 3: 1.150 U 2.5 GHz 1: 1.332 U 2.4 GHz 2: 1.099 U 2.45 GHz 〈 1U 7 Electrical Properties Radiation Pattern – H Plane 8 Electrical Properties Radiation Pattern – E Plane 9 Coaxial Cable Data Sheet RG-178 10 11 12 Housing Material Data Sheet z Housing - TPU 13 z Hinge(/) - PC+ALLOY

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation ..................... 1.6 Gain(peak)................... 3dBi 1.7 Polarization............... ...Linear Vertical 1.8 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................RG-178 Coaxial Cable 2.2 Antenna Cover............ ...TPE 2.3 Antenna Base............... PC 2.4 Antenna Base............... PBT 2.5 Operating Temp. ......... ...-20 ~ +65 2.6 Storage Temp. ............ ...-30 ~ +75 2.7 Color ........................ .Black 2.8 Connector.................. ...SMA Plug Reverse 1W 2.4GHz ~ 2.5GHz 50 Nominal 1.92 Max. -10 dB Maximum RF Antenna Cable Assembly Omni-directional 1 2 RF Antenna Assembly P/NO : C037-510694-A SPEC : 2.4GHz 3/2/2006 3 3/2/2006 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C037-510694-A-H.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 4 3/2/2006 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C037-510694-A-V.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5 6 7 8

Compliance Certification Services Inc. FCC ID：RRK2005110016-1 Report No.：60803003-RP1 Page 1 of 382 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For 802.11b/g MIMO Mini-PCI Card Model : WMP-N06 Trade Name : Alpha Issued for Alpha Networks Inc. No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Compliance Certification Services Inc. FCC ID：RRK2005110016-1 Report No.：60803003-RP1 Page 2 of 382 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION .............................................................................................. 3 2. EUT DESCRIPTION ..................................................................................................................... 4 2.1 DESCRIPTION OF EUT & POWER .......................................................................................................4 3. DESCRIPTION OF TEST MODES ............................................................................................. 5 4. TEST METHODOLOGY ............................................................................................................... 6 5. FACILITIES AND ACCREDITATIONS ..................................................................................... 6 5.1 FACILITIES..............................................................................................................................................6 5.2 EQUIPMENT ...........................................................................................................................................6 5.3 LABORATORY ACCREDITATIONS LISTINGS ......................................................................................6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ....................................................................................7 6. CALIBRATION AND UNCERTAINTY ....................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ........................................................................................8 6.2 MEASUREMENT UNCERTAINTY ..........................................................................................................8 7. SETUP OF EQUIPMENT UNDER TEST ................................................................................... 9-11 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................... 12 8.1 6dB BANDWIDTH....................................................................................................................................12-62 8.2 99% BANDWIDTH...................................................................................................................................63-113 8.3 MAXIMUM PEAK OUTPUT POWER .....................................................................................................114-166 8.4 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................167-168 8.5 AVERAGE POWER ..................................................................................................................................169-172 8.6 POWER SPECTRAL DENSITY ................................................................................................................173-243 8.7 CONDUCTED SPURIOUS EMISSION ...................................................................................................244-300 8.8 RADIATED EMISSIONS ..........................................................................................................................301 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ................................................... 301-304 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ................................................... 305-306 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz.................................................. 307-330 8.8.4 RESTRICTED BAND EDGES ........................................................................................... 331-362 8.9 POWERLINE CONDUCTED EMISSIONS ..............................................................................................363-368 9. ANTENNA REQUIREMENT ....................................................................................................... 369 9.1 STANDARD APPLICABLE ......................................................................................................................369 9.2 ANTENNA CONNECTED CONSTRUCTION..........................................................................................369 APPENDIX SETUP PHOTOS ..........................................................................................................370-382 Compliance Certification Services Inc. FCC ID：RRK2005110016-1 Report No.：60803003-RP1 Page 3 of 382 1. TEST REPORT CERTIFICATION Applicant ： Alpha Networks Inc. Address ： No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan R.O.C. Applicant ： 802.11b/g MIMO Mini-PCI Card Model ： WMP-N06 Trade Name ： Alpha Tested Date ： July 10 ~ September 11, 2006 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 1…
