RRK2004030045-1802.11b/g Cardbus Wireless Network Adapter

CG-WLCB54GL User’s Guide 2 Contents Package Contents .................................................... 3 Introduction ............................................................... 4 Wireless Basics ........................................................ 7 Getting Started........................................................ 10 Installation .............................................................. 14 Using the Configuration Utility for Windows 2000, 98, or ME...................................................................... 27 Using the Configuration Utility for Windows XP...... 33 Networking Basics .................................................. 43 Troubleshooting ...................................................... 75 Technical Specifications.......................................... 80 IEEE 802.11g Cardbus Wireless Network Adapter 3 Package Contents Contents of Package: • CG-WLCB54GL • Manual and Drivers on CD If any of the above items are missing, please contact your reseller. System Requirements: • A laptop computer with an available 32-bit Cardbus slot • Windows XP, Windows 2000, Windows ME, or Windows 98SE • At least 32 MB of memory and a 300 MHz processor or higher • An 802.11a/b Access Point for (Infrastructure Mode) IEEE 802.11g Cardbus Wireless Network Adapter 4 Introduction CG-WLCB54GL is an advanced IEEE 802.11b/g compatible, high performance, wireless card that supports data transfer speeds of up to 54 Mbps in 802.11g mode. CG-WLCB54GL comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP, Windows 2000, Windows ME, Windows 98SE, Infrastructure mode (with an Access Point). This manual provides a quick introduction to wireless technology and its application as it relates to networking. Take a moment to read through this manual and get acquainted with wireless technology. IEEE 802.11g Cardbus Wireless Network Adapter 5 Product Features • Compatible with IEEE 802.11b standard to provide wireless Ethernet data rates of up to11Mbps data rate • Compatible with IEEE 802.11g high rate standard to provide wireless 54Mbps data rate • Operation at dual 2.4 ~ 2.5GHz frequency bands to meet worldwide regulations • Dynamic date rate scaling at 1, 2, 5.5, and 11Mbps for IEEE 802.11b • Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54Mbps for IEEE 802.11g • Maximum reliability, throughput and connectivity with automatic data rate switching • Supports wireless data encryption with 64/128/152-bit WEP for security • Supports infrastructure networks via Access Point • Built-in printed inverted F antenna • Supports AES enhanced security • Supports CardBus (32-bit) Type II PC Card • User-friendly configuration and diagnostic utilities • Driver support for Windows 98SE, ME, 2000, and XP IEEE 802.11g Cardbus Wireless Network Adapter 6 LEDS LED stands for Light-Emitting Diode. The IEEE 802.11g Cardbus Wireless Network Adapter has two LEDs: POWER and ACTIVITY. Network Mode LED Activity Network Activity Both LEDs flash in unison Searching for a Network Connection Both LEDs flash alternately Associated with the Network, but No Activity Both LEDs flicker dimly Power Save Mode (Power-up or Reset) POWER LED – slow rate blink Card is disabled Only the POWER LED flashes IEEE 802.11g Cardbus Wireless Network Adapter 7 Wireless Basics Wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home or business. Strictly adhering to the 802.11b and 802.11g standards, our wireless family of products will allow you to access the data you want, when and where you want it. No longer will you be limited to one location or forced to run new wiring through your home or office. You will be able to enjoy the freedom that wireless networking delivers. A Wireless LAN (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless LANs are used increasingly in both home and office environments. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial for many users. Wireless users can use the same network applications they use on an Ethernet LAN. Wireless card cards used on laptop and desktop systems, support the same protocols as Ethernet card cards. For most users, there is no noticeable functional difference between a wired Ethernet desktop computer and a wireless computer equipped with a wireless card other than the added benefit of the ability to roam within the wireless-cell. Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Access Point (AP) is a device used to provide this link. Your new IEEE 802.11g Carbus Wireless Network Adapter can connect to an 802.11b/g AP, as well as other computers that have an 802.11b/g WLAN card installed. People use wireless LAN technology for many different purposes: Mobility - Productivity increases when people have access to data in any location within the operating range of the WLAN. Ad-hoc management decisions based on real-time information can significantly improve worker efficiency. Low Implementation Costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently change, both physically and logically, can benefit from WLANs’ ease of implementation. WLANs can operate in locations where installation of wiring may be impractical. Furthermore, IEEE IEEE 802.11g Cardbus Wireless Network Adapter 8 standardization facilitates interoperability of all WLAN devices that conform to the 802.11b or 802.11g sets of standards. Installation Speed and Simplicity - Installing a wireless LAN system can be fast and ea…

Text truncated - open the document above for the full version.

Chris Harvey From: [email protected] Sent: Monday, June 14, 2004 2:32 AM To: Chris Harvey Cc: Mike Kuo; '[email protected]'; [email protected]; [email protected] Subject: ??: additional information needed for AN04T3920 FCC ID: Page 1 of 2 6/14/2004 ----- Âà§eªÌ wklo/ccsemc ©ó 2004/06/14 02:29 PM ----- ----- Âà§eªÌ wklo/ccsemc ©ó 2004/06/14 08:59 AM ----- Dear Chris, Here are our replies. Your Question 1) This device is a portable transmitter which requires RF Exposure information to be provided to the user. I could not locate this information in the Users Manual. Please provide this RF Exposure information in the Users Manual (please let me know if you need some guidance on the requirements). Our Reply The RF Exposure info to the user is added. Please refer to the attached file. Your Question 2) The RF report has the RF Power listed 18.25dBm in 802.11g mode on page 4 and 14.2dBm in all other places in the application. If this is a typographical error, please correct this and re-submit the report. Our Reply Yes, it is a typo. Correction is made as attached. Thank you for your kind notice. Best Rgds, WK wklo ù¤å¶Q 2004/06/14 09:04 AM ¦¬¥ó¤H¡G Mike Kuo <[email protected]> °Æ¥»§Û°e¡G harris/ccsemc@ccsemc, cert/ccsemc@ccsemc, ting/ccsemc@ccsemc ¥D¦®¡G ¦^«H¡G additional information needed for AN04T3920 FCC ID: wklo ù¤å¶Q 2004/05/28 10:33 AM ¦¬¥ó¤H¡G Chris Harvey <[email protected]> °Æ¥»§Û°e¡G Mike Kuo <[email protected]>, "'[email protected]'" <[email protected]>, harris/ccsemc@ccsemc, cert/ccsemc@ccsemc ¥D¦®¡G ¦^«H¡G additional information needed for AN04T3920 FCC ID:³sμ² Dear CCS TW, I have reviewed the application for Certification listed above and need the following item(s) addressed in order to complete the review: 1) This device is a portable transmitter which requires RF Exposure information to be provided to the user. I could not locate this information in the Users Manual. Please provide this RF Exposure information in the Users Manual (please let me know if you need some guidance on the requirements). 2) The RF report has the RF Power listed 18.25dBm in 802.11g mode on page 4 and 14.2dBm in all other places in the application. If this is a typographical error, please correct this and re-submit the report. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] Chris Harvey <charvey- [email protected]> 2004/05/27 11:09 PM ¦¬¥ó¤H¡G "'[email protected]'" <[email protected]>, "'[email protected]'" <[email protected]> °Æ¥»§Û°e¡G Mike Kuo <[email protected]>, Chris Harvey <[email protected]> ¥D¦®¡G additional information needed for AN04T3920 FCC ID: Page 2 of 2 6/14/2004

Compliance Certification Services Inc. Report No: B40305203 Date of Issue: April 7, 2004 Page 1 of 5 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40305203 Date of Issue: April 7, 2004 Page 2 Compliance Certification Services Inc. Report No: B40305203 Date of Issue: April 7, 2004 Page 3

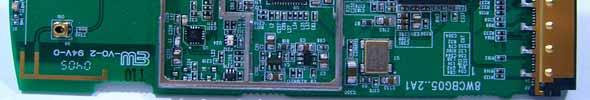

Compliance Certification Services Inc. Report No: B40305203 Date of Issue: April 7, 2004 Page 4 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40305203 Date of Issue: April 7, 2004 Page 5

CG-WLCB54GL printed inverted F antenna Gain: 1.3dBi E_Plane H_Plane

Compliance Certification Services Inc. Report No: B40305203-SF FCC ID: RRK2004030045-1 Date of Issue: March 29, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 22 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C TEST REPORT For Alpha Networks Inc. 802.11g cardbus Model: CG-WLCB54GL Trade Name: corega K.K. Prepared for Alpha Networks Inc. No. 8, Li-Shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B40305203-SF FCC ID: RRK2004030045-1 Date of Issue: March 29, 2004 Page 2 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: March 23, 2004 Applicant: Alpha Networks Inc. No. 8, Li-Shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Model Number: CG-WLCB54GL Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 17.62dBm Max. SAR (1g): 0.457W/kg Application Type: Certification FCC Rule Part(s): 15C Note: This Report is only applicable for 802.11b/g. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Approved by: Reviewed by: Harris W. Lai James Lee Executive Vice President Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B40305203-SF FCC ID: RRK2004030045-1 Date of Issue: March 29, 2004 Page 3 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .... 5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................... 5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 DASY4 Measurement Server.............................................................................................7 Data Acquisition Electronics (DAE)..................................................................................7 ET3DV6 Isotropic E-Field Probe for Dosimetric Measurements ......................................7 SAM Phantom (V4.0) ........................................................................................................8 Device Holder for SAM Twin Phantom ............................................................................8 System Validation Kits ......................................................................................................8 4. EVALUATION PROCEDURES................................................................................... 9 5. MEASUREMENT UNCERTAINTY ......................................................................... 12 6. EXPOSURE LIMIT ..................................................................................................... 13 7. MEASUREMENT RESULTS ..................................................................................... 14 7.1 SYSTEM PERFORMANCE CHECK..............................................................................14 7.2 TEST LIQUID CONFIRMATION ..................................................................................15 7.3 EUT TUNE-UP PROCEDURES......................................................................................16 7.4 SAR MEASUREMENTS RESULTS...............................................................................17 8. EUT PHOTOS .............................................................................................................. 19 9. EQUIPMENT LIST & CALIBRATION STATUS ................................................... 20 10. REFERENCES ............................................................................................................. 21 11. ATTACHMENTS ......................................................................................................... 22 Compliance Certification Services Inc. Report No: B40305203-SF FCC ID: RRK2004030045-1 Date of Issue: March 29, 2004 Page 4 1. EUT DESCRIPTION Applicant: Alpha Networks Inc. No. 8, Li-Shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Model Number: CG-WLCB54GL Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 17.62dBm Max. SAR (1g): 0.457W/kg Application Type: Certification FCC Rule Part(s): 15C Antennas: Printed Ant. Test Hos…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40305203-RP FCC ID: RRK2004030045-1 Date of Issue: April 1, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 63 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Alpha Networks Inc. 802.11g cardbus Model: CG-WLCB54GL Trade Name: corega K.K. Prepared for Alpha Networks Inc. No. 8, Li-Shing Road, VII, Science-based Industrial Park, Hsinchun, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B40305203-RP FCC ID: RRK2004030045-1 Date of Issue: April 1, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION...................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS....................................................6 3.5 DESCRIPTION OF TEST MODES......................................................................................................6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES....................................................................................................................................8 5.2 EQUIPMENT...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT..................................................................................................10 6.2 SUPPORT EQUIPMENT ..........................................................................................................10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 7.1 6DB BANDWIDTH........................................................................................................................11 7.2 PEAK POWER...............................................................................................................................16 7.3 BAND EDGES MEASUREMENT ...........................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY...............................................................................................30 7.5 RADIO FREQUENCY EXPOSURE...................................................................................................35 7.6 SPURIOUS EMISSIONS............................................................................................................36 7.7 POWERLINE CONDUCTED EMISSIONS..........................................................................................58 Compliance Certification Services Inc. Report No: B40305203-RP FCC ID: RRK2004030045-1 Date of Issue: April 1, 2004 Page 4 2. EUT DESCRIPTION Product 802.11g cardbus Trade Name corega K.K. Model Number CG-WLCB54GL Module Trade Name corega K.K. Model Discrepancy N/A Power Supply Powered by Notebook via PCMCIA interface Frequency Range IEEE 802.11b,g: 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 17.58 dBm (Max) IEEE 802.11g: 14.22 dBm (Max) Modulation Technique IEEE 802.11b: DSSS (CCK; DQPSK; DBPSK) IEEE 802.11g: OFDM Antenna Gain 1.30 dBi (Max) Antenna Designation 2 Printed Inverted F Antenna Note: This submittal(s) (test report) is intended for FCC ID: RRK2004030045-1 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: B40305203-RP FCC ID: RRK2004030045-1 Date of Issue: April 1, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requireme…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40305203-RP FCC ID: RRK2004030045-1 Date of Issue: April 1, 2004 Page 62 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B40305203-RP FCC ID: RRK2004030045-1 Date of Issue: April 1, 2004 Page 63 Conducted Emission Set Up Photos
