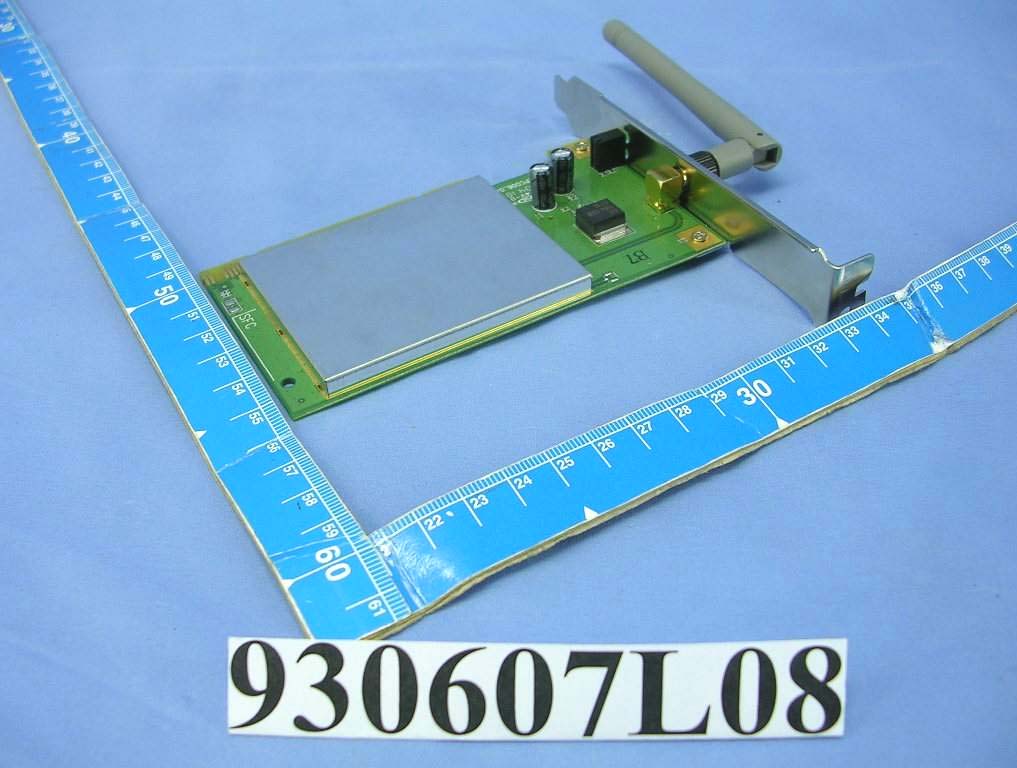

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: RRK2004050123-1 LABEL LOCATION Label

FCC ID:RRK2004050123-1 H/W.:B1 F/W.:xx MAC ID:xxxxxxxxxxxx P/N:DWLG510...B1 S/N:xxxxxxxxxxxxxx

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: RRK2004050123-1 Report No. 930607L08 Operational Description This device is a IEEE802.11g Wireless PCI Adapter, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (IEEE802.11g Wireless PCI Adapter) is powered by from host equipment. The antenna type used in this product are dipole Antenna with R-SMA connector. The other instruction, please have a look at the users manual.

FCC ID: RRK2004050123-1 Report No.: RF930607L08 1 Issued: Jun. 18, 2004 FCC TEST REPORT REPORT NO.: RF930607L08 MODEL NO.: DWL-G510, WPC-G06 RECEIVED: Jun. 07, 2004 TESTED: Jun. 07 to 14, 2004 APPLICANT: Alpha Networks Inc. ADDRESS: NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 60 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: RRK2004050123-1 Report No.: RF930607L08 2 Issued: Jun. 18, 2004 Table of Contents 1 CERTIFICATION ........................................................................................... 4 2 SUMMARY OF TEST RESULTS................................................................... 5 3 GENERAL INFORMATION ........................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2 DESCRIPTION OF TEST MODES................................................................ 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4 DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST ........................................... 9 4 TEST TYPES AND RESULTS..................................................................... 10 4.1 CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................ 10 4.1.2 TEST INSTRUMENTS ................................................................................ 10 4.1.3 TEST SETUP ...............................................................................................11 4.1.4 EUT OPERATING CONDITIONS................................................................ 12 4.1.5 TEST RESULTS.......................................................................................... 13 4.2 RADIATED EMISSION MEASUREMENT ................................................... 15 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................. 15 4.2.2 TEST INSTRUMENTS ................................................................................ 16 4.2.3 TEST PROCEDURES................................................................................. 17 4.2.4 TEST SETUP .............................................................................................. 18 4.2.5 EUT OPERATING CONDITIONS................................................................ 18 4.2.6 TEST RESULTS.......................................................................................... 19 4.2.7 TEST RESULTS –DSSS ............................................................................. 20 4.2.8 TEST RESULTS - OFDM ............................................................................ 23 4.3 6dB BANDWIDTH MEASUREMENT .......................................................... 26 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 26 4.3.2 TEST INSTRUMENTS ................................................................................ 26 4.3.3 TEST PROCEDURE ................................................................................... 27 4.3.4 TEST SETUP .............................................................................................. 27 4.3.5 EUT OPERATING CONDITIONS................................................................ 27 4.3.6 TEST RESULTS-DSSS ............................................................................... 28 4.3.7 TEST RESULTS-OFDM .............................................................................. 32 4.4 MAXIMUM PEAK OUTPUT POWER .......................................................... 36 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 36 4.4.2 TEST INSTRUMENTS ................................................................................ 36 FCC ID: RRK2004050123-1 Report No.: RF930607L08 3 Issued: Jun. 18, 2004 4.4.3 TEST PROCEDURES................................................................................. 37 4.4.4 TEST SETUP .............................................................................................. 37 4.4.5 EUT OPERATING CONDITIONS................................................................ 37 4.4.6 TEST RESULTS- DSSS .............................................................................. 38 4.4.7 TEST RESULTS- OFDM ............................................................................. 39 4.5 POWER SPECTRAL DENSITY MEASUREMENT...................................... 40 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 40 4.5.2 TEST INSTRUMENTS ................................................................................ 40 4.5.3 TEST PROCEDURE ................................................................................... 41 4.5.4 TEST SETUP .............................................................................................. 41 4.5.5 EUT OPERATING CONDITIONS................................................................ 41 4.5.6 TEST RESULTS-DSSS ............................................................................... 42 4.5.7 TEST RESULTS-OFDM .............................................................................. 46 4.6 BAND EDGES MEASUREMENT ................................................................ 50 4.6.1 LIMITS OF BAND EDGES MEASUREMENT ............................................. 50 4.6.2 TEST INS…

Text truncated - open the document above for the full version.

Report No. 930607L08 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G-1 0SS SN4 Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930607L08 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 930607L08 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930607L08 4 Ch1 Report No. 930607L08 5 Ch11 Report No. 930607L08 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930607L08 7 Ch1 Report No. 930607L08 8 Ch11
