RRK2004090192-1802.11a WLAN MiniPCI Card

OEM Installation Guide for WMP-A13 FCC Statement : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. FCC RF Radiation Exposure Statement: 1. This transmitter has been demonstrated co-located operation compliance requirement with [Outdoor AP/MODEL No: DWL-2700AP / FCC ID: KA22002090027-1]. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except the configuration listed below. - WMP-A13/5dBi dual band antenna co-locate DWL-2700AP/4.5dBi dual band antenna -WMP-A13/14dBi panel directional antenna co-locate DWL-2700AP/16dBi panel directional antenna -WMP-A13/18dBi panel directional antenna co-locate DWL-2700AP/16dBi panel directional antenna According to FCC 15.407(e), the device is intended to operate in the frequency band of 5.15GHz to 5.25GHz under all conditions of normal operation. Normal operation of this device is restricted to indoor used only to reduce harmful interference to co-channel MSS operations. IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ADSL modems, and similar equipment). The final end product must be labeled in visible area with the following: “Contains TX FCC ID: RRK2004090192-1” End Product Manual Information The user manual for end users must include the following information in a prominent location “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” Caution for 5GHz 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Test Utility Installation: 1. Unzip “ART48bld5.ZIP” to “C:\”. 2. Run “inst_new_drv_2K.bat”. 3. The utility must run on Win2000 and the Win2000 directory is “C:\WINNT\”. Configuration: 1. Open the artsetup.txt file, and modify some configuration to 0x2034 the following at windows path : C:\ART48bld5\artsetup.txt 2. Open the DOS console window, and start the test utility with typing the following at the DOS command prompt: C:\ART48bld5\art.exe Modify the value to 0x2034 3. Once ART.EXE is executed, a menu with test options will appear. To run a test, press the character key that is assigned to the test option. For example, press “c” to run the continuous transmit test, or press “r” to run the continuous receive test. 4. Continuous Transmit Options. The channel frequency, data rate and output power could be changed in continuous transmit options. For example, press “i” to increase the pcdac value to increase the output power. Press “b” to change the Turbo Mode or Normal Mode. Press ESC to return to the main Test Options menu when finished. The Continuous transmit power must press “s” change to TX100 Test mode and use “Tx100” Mode to Test. *Note that the initial frequency could be set in “artsetup.txt” directly. 5. Continuous Receive Options Continuous receive options will put the radio into receive mode to allow for radio measurements. Press …

Text truncated - open the document above for the full version.

Modular Approval Request Letter November 30, 2004 Compliance Certification Services 561F Monterey Rd., Morgan Hill, CA 95037, USA To Whom It May Concern: Please be advised that WLAN 802.11a MiniPCI Card, with the FCC ID: RRK2004090192-1 would be certified as a limited modular approval with an Access Point. User shall be informed that keeping at least 20cm safe separation away the device. We also assure the device complies with the requirements listed in the Public Notice DA-00-1407, details areare listed as follows: 1. The modular transmitter must have its own RF shielding: The radio portion of this module has been shielded. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation / data inputs: The EUT has buffered data inputs, it is integrated in chip AR5212. 3. The modular transmitter must have its own power supply regulation: Complied and the part number of this regulator is A8805DEF. 4. The modular transmitter must comply with the antenna requirements of the Section 15.203 and 15.204(c): The reverse N-type antenna is used, please refer to antenna specification and EUT photos for details. 5. The modular transmitter must be tested in a stand-alone configuration: The EUT was tested in a stand-alone configuration via a cardbus-to-mini PCI adapter/ extension. board. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this test kit. 6. The modular transmitter must be labeled with its own FCC ID number and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device must also display the FCC ID referring to the enclosed module. Please see exhibition Label Sample for the FCC ID of this module. And also please refer to the exhibition Users Manual, there are instructions given to the OEM on how to label the end product. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: The EUT is complied with all FCC rules and restricted to professional installation . Please 8. The modular transmitter must comply with any applicable RF exposure requirements: The EUT is complied with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Should you have any question, please don’t hesitate to ask us. Best regards, ________________________ Leeming Li / Manager Alpha Networks Inc. Tel: 886-3-563-6666 ext.6613 Fax: 886-3-578-1861 E-mail: [email protected]

Compliance Certification Services Inc. Report No: 40913009 FCC ID: RRK2004090192-1 Date of Issue: December 6, 2004 To the TCB Reviewer, The EUT of this project is a 802.11a mini PCI card which is submitted for module approval. The supplied antennas and applicable frequency are listed as below: -Dual-Band Omni-Directional Antenna Gain: 5dBi, operating in 5.150~5.250 / 5.725~5.850GHz -Panel Directional Antenna Gain: 14dBi, operating in 5.250 ~ 5.350 GHz, and 18dBi, operating in 5.725 ~ 5.850 GHz. So all tests regarding module testing were done according to the operating frequency range as above. In addition, co-location test has also been added with an approved 802.11b/g outdoor AP. After the above test, frequency 5180MHz with antenna 5dBi dual band antenna, 5320MHz with 14dBi Panel Directional antenna and 5745MHz with 18dBi Panel Directional antenna were chose for co-location test. The test configurations are as: -WMP-A13(EUT)/ 5dBi dual band antenna, AP/4.5dBi dual band antenna. ※ test result is recorded in the UNII test report. -WMP-A13(EUT)/14dBi panel directional antenna, AP/16dBi panel directional antenna. ※ test result is recorded in the UNII test report. -WMP-A13(EUT)/18dBi panel directional antenna, AP/16dBi panel directional antenna. ※ test result is recorded in the DTS test report. Any question regarding this submission, please feel free to contact us. Best Regards, Harris W. Lai Director of Linkou Laboratory Compliance Certification Services Inc.

NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. TEL: ++886 3-563-6666 FAX: +886 3-578-1861 09/16/2004 Federal Communications Commission Authorization and Evaluation Division FCC ID: RRK2004090192-1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Leeming Li / Manager Alpha Networks Inc. Tel: 886-3-563-6666 ext.6613 Fax: 886-3-578-1861 E-mail: [email protected]

NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. TEL: ++886 3-563-6666 FAX: +886 3-578-1861 POWER OF ATTORNEY 09/16/2004 We, the undersigned, hereby authorize Compliance Certification Services Inc. to act on our behalf in all matters relating to all processes related to FCC & IC applications and communications issue. Any and all acts carried out by Compliance Certification Services Inc. on our behalf shall have the same effects as acts of our own. If you have any questions regarding this authorization, please don’t hesitate to contact us. Thank you. Sincerely yours, ------------------------------------------------------------------- Leeming Li / Manager Alpha Networks Inc. Tel: 886-3-563-6666 ext.6613 Fax: 886-3-578-1861 E-mail: [email protected]

1 Helen Zhao Subject:FW: ??: RE: ??: RE: ??: RE: ??: FW: Alpha Networks Inc., FCC ID: RRK2004090192-1, Assessment NO.: AN04T4387, Notice#1 WMP-A13 Module Approval Letter... WMP-A13 Test Sup Photo (Part 1... -----Original Message----- From: [email protected] [mailto:[email protected]]On Behalf Of [email protected] Sent: Wednesday, December 29, 2004 4:50 PM To: Helen Zhao Cc: [email protected] Subject: ??: RE: ??: RE: ??: RE: ??: FW: Alpha Networks Inc., FCC ID: RRK2004090192-1, Assessment NO.: AN04T4387, Notice#1 Dear Helen, Please refer to below for our reply. Best Regards, Ting -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Tuesday, December 14, 2004 8:53 PM To: Helen Zhao Subject: Alpha Networks Inc., FCC ID: RRK2004090192-1, Assessment NO.: AN04T4387, Notice#1 Question #1: The test report has two sets of antenna port conducted test data associated with two different types of antenna: 5dBi omni-antenna and 18dBi patch antenna. Please confirm with the antenna change, there are any software, firmware or hardware changes are involved. If the answer is YES, please indicate what kind of changes were made in the test report. If the answer is NO, please explain why antenna port conducted test needs to be repeated with antenna change. Ans. Yes, software or firmware or hardware changes were involved. The reason to perform conducted test with each antenna is because the different antenna type and antenna gain, especially for the two high gain antennas, the limit of output power or other related conducted tests, if transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the peak power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi per 15.407 specified. And also different output power may influence other test result, for example, bandedge or spurious emission test. ==> The test report has two sets of antenna port conducted test data associated with two different types of antenna: 5dBi omni-antenna and 18dBi 2 patch antenna. Please note antenna port conducted test is done when no antenna is connected. So the measurement should be irrelevant to antenna type or antenna gain. If the output power must be adjusted when different antenna is used, repeated test makes sense. But in that case, professional installation is required, then Full Modular approval is not applicable as profession installation is required (but Limited Modular Approval might be allowed for some cases). If you confirm the firmware (or software) change is necessary when different antenna is used, please add installation instruction as how to tune the power when different antanna is used, and properly document power settings associated with the antennas. Ans. After confirmed with Alpha, they decided to change the full modular approval to limited modular approval and device will be restricted for professional installation. The setting instruction of output power with different antennas has been added in the section of 2.2 of OEM installation guide. Attached please find the revised OEM installation guide and modular request letter. Question #2: The user manual does not contain restriction statement of the use of 5GHz radio, e.g. indoor use only for 5.15-5.25 band. Please revise the user manual accordingly. Ans. The warning was stated in page 12 of user manual. Besides, to make more concisely, the warning has also been added in page 3 of user manual. Question #3: The user manual indicated that the device has been tested to be colocated with AP (FCC ID: KA22002090027-1) please note only two out of three antennas have been tested with, please rephase the statement to list the antennas that have been tested with. Ans. Revised as attached revised user manual. Question #4: The 14dBi patch antenna was used for 5.15-5.35 GHz band testing only, while 18dBi patch antenna was used for 5.725-5.850 GHz band testing only, please explain when 14dBi patch antenna is installed, how the device works at 5.725-5.850 GHz band, and 18dBi patch antenna is installed, how the device works at 5.15-5.35 GHz bands. Ans. When using 14dBi patch antenna, the device can only work in 5250-5350MHz, and 5725-5850MHz for 18dBi antenna only. So before placing on the market, the operating frequency may be set by software according to the antenna supplied. Such information has been added in the page 12 of user manual. New question: Question #5: Page 3-9 of the Installation manual provided detailed instrunction on how to do software control including frequency range setting. Please note this kind of information can be provided to OEM integrator only, can not be provided to the end users. Please add some kind of statement into the 3 installation manual. Ans. The installation manual is revised as "OEM Installation Guide" as attached file. New question: Question #6: Section 2.7 Regulatory Requirement (Page 17) of Installation Manual mentioned SAR: FCC Part 15.407(f), please note this device is seeking modular approval, SAR is not applicable here. Please remove it from the installation manual. Ans. Revised as attached file. New question: Question #7: Setup photos of colocation test show when two high gain panel antennas were used, two panel antennas were actually not placed at the same plane: one was perpendicular to the other one, which prevented the receiver antenna from receiving the maximum signals from two antennas. The test results thus does not acurately reflect the real situation. Please explain. Ans. According to the test procedure, the turntable shall be rotated for 360 degrees to determine the position of maximum emission level, so though the EUT antennas are set prependicular to one another, the max signal still can be measured by the receiving antenna. (See attached file: WMP-A13 UserMan revised1217.pdf) ==> Your receiving antenna might be able to get the maximum emission level fr…

Text truncated - open the document above for the full version.

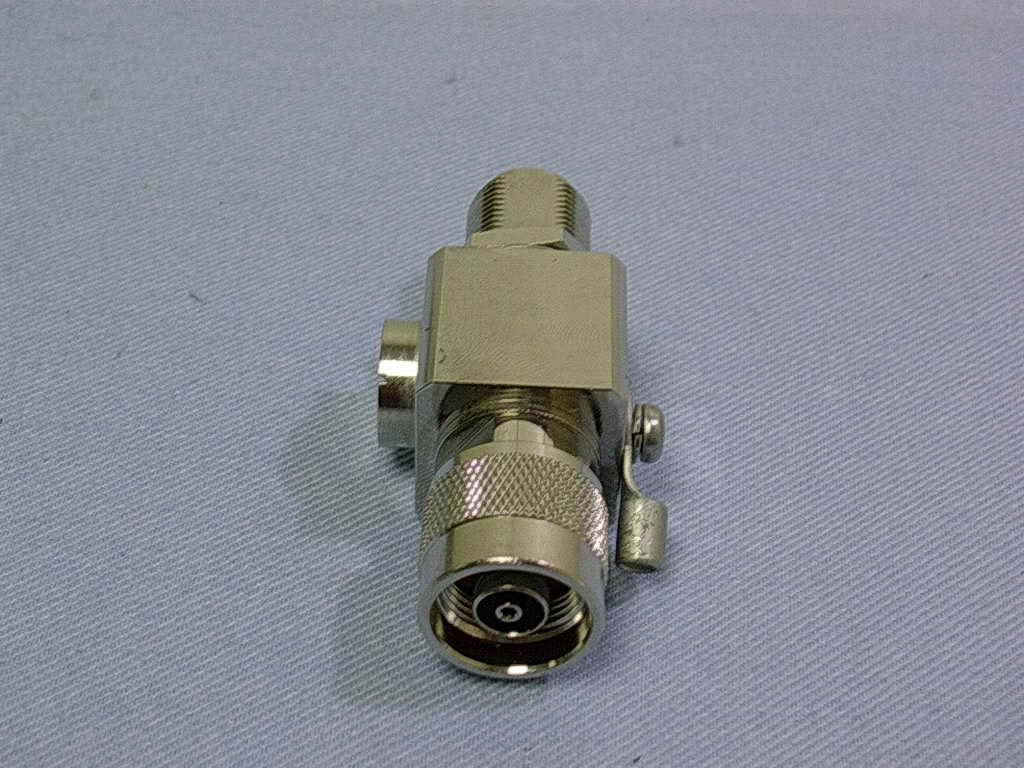

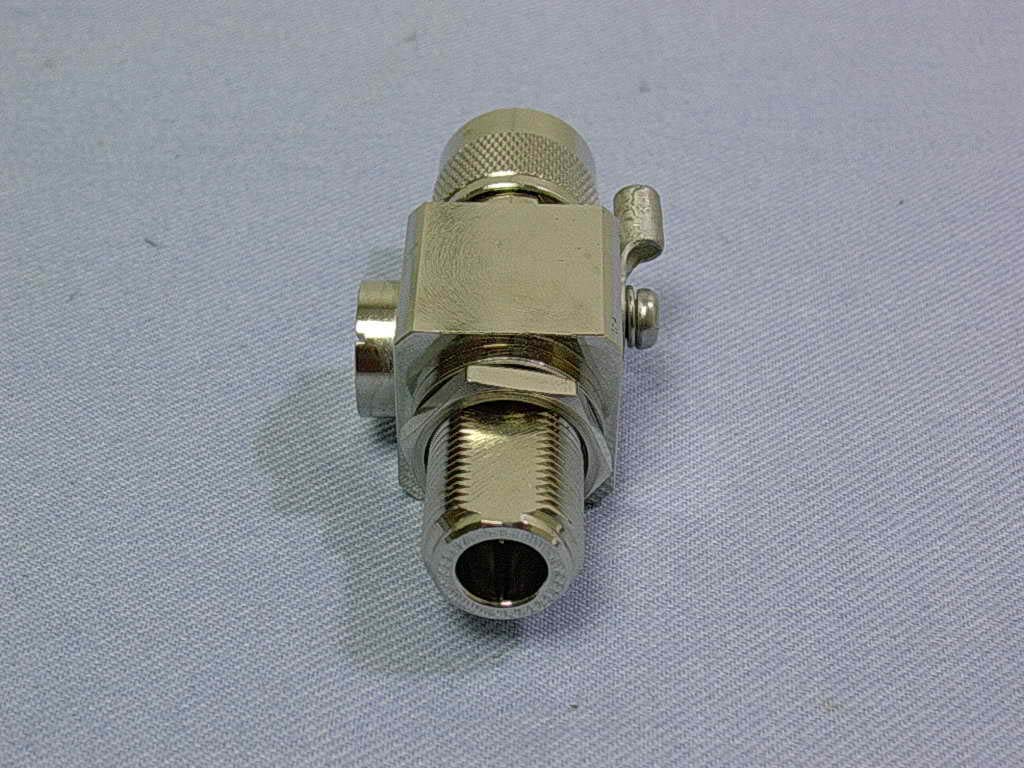

Compliance Certification Services Inc. Report No: 40913009 Date of Issue: November 12, 2004 Page 1of 11 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 40913009 Date of Issue: November 12, 2004 Page 2 Dual-Band Omni-Directional Antenna Compliance Certification Services Inc. Report No: 40913009 Date of Issue: November 12, 2004 Page 3 Panel Directional Antenna / 18dBi Compliance Certification Services Inc. Report No: 40913009 Date of Issue: November 12, 2004 Page 4 Compliance Certification Services Inc. Report No: 40913009 Date of Issue: November 12, 2004 Page 5 Panel Directional Antenna / 14dBi Compliance Certification Services Inc. Report No: 40913009 Date of Issue: November 12, 2004 Page 6 Compliance Certification Services Inc. Report No: 40913009 Date of Issue: November 12, 2004 Page 7 Compliance Certification Services Inc. Report No: 40913009 Date of Issue: November 12, 2004 Page 8

S/N: MAC ID: 802.11a Mini PCIModel:WMP-A13 Input:DC 3.3V FCC ID:RRK2004090192-1 Made In Taiwan

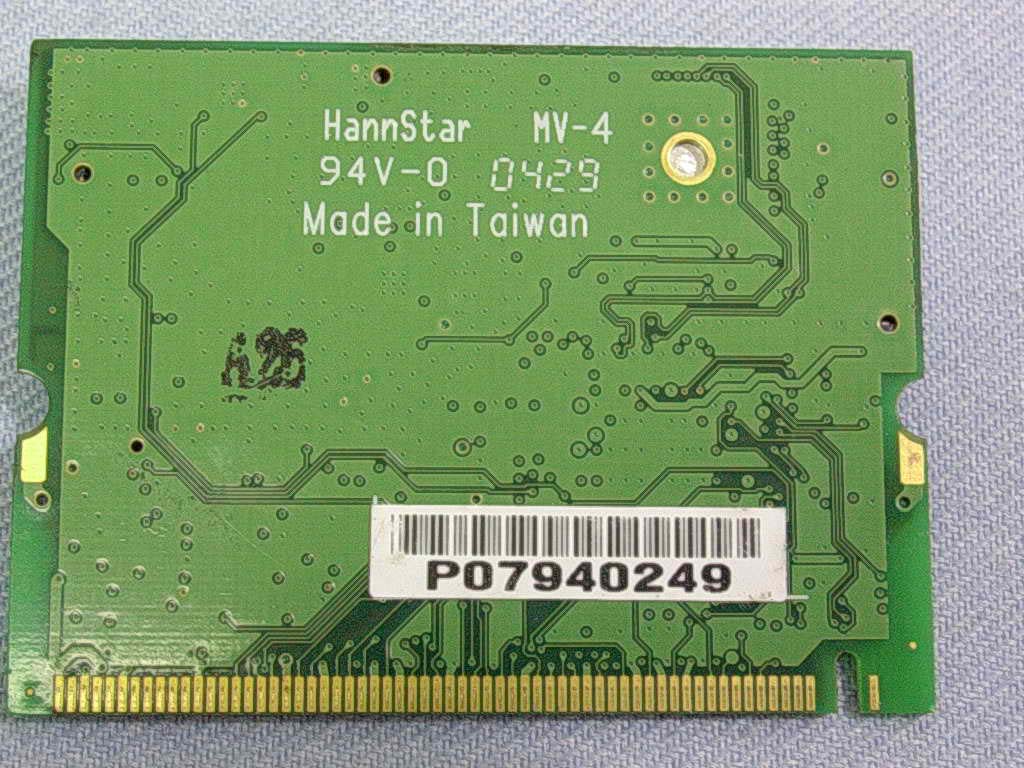

Compliance Certification Services Inc. Report No: 40913009 Date of Issue: November 12, 2004 Page 9 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 40913009 Date of Issue: November 12, 2004 Page 10 Dipole Antenna / 5dBi Panel Antenna / 18dBi Compliance Certification Services Inc. Report No: 40913009 Date of Issue: November 12, 2004 Page 11 Panel Antenna / 14dBi

Document for Approval Part NameSA2-22008-N5 Customer approved By Date Approved By Anderson Date 7 th , July,2004 Prepared By Dora Date 7 th , July,2004 SA2-22008-N5 Specification Electrical Specification Frequency range 2400 MHz - 2483 MHz 5150 MHz - 5875 MHz Peak gain 4.5 dBi 5.0 dBi VSWR 2.0 : 1 Max. Polarization Linear, vertical Power handling 2 W (cw) Impedance 50 Ohms Connector RP- N plug http:// www.smartant.com TEL: +886 (0)3 578-3188 FAX: +886 (0)3 578-3189 E-mail: [email protected] All rights reserved by SmartAnt Telecom Co., Ltd. Average gain 2.5 dBi 3.0 dBi Dual-Band Omni-Directional Antenna for 2.4 / 5.25 / 5.6 / 5.8 GHz E-plane Co-polarization pattern -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -20 -15 -10 -5 0 5 2.40 GHz 2.45 GHz 2.50 GHz -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -20 -15 -10 -5 0 5 2.40 GHz 2.45 GHz 2.50 GHz -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -20 -15 -10 -5 0 5 5.15 5.25 5.35 5.45 5.55 5.65 5.75 5.85 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -20 -15 -10 -5 0 5 5.15 5.25 5.35 5.45 5.55 5.65 5.75 5.85 E-plane Co-polarization pattern H-plane Co-polarization pattern H-plane Co-polarization pattern Environmental & Mechanical Characteristics Survival wind speed 216 km/hr Temperature - 40 o C to +70 o C Humidity 95% @ 25 o C Radome color Gray Radome material ABS Dimensions f22 x 183 mm DoraDoraDora SA2-22008-N5SA2-22008-N5SA2-22008-N5 PatPatPat R0422-068-01R0422-068-01R0422-068-01

High Gain Panel Directional Antenna for5.25/5.6/5.8GHz R0209-116 Electrical Specification Frequency range5.25 GHz - 5.875 GHz Gain18 dBi VSWR2.0 : 1 Max. PolarizationLinear, vertical HPBW / horizontal18 o HPBW / vertical18 o Front to back ratio25 dB Downtilt0 o Power handling10W (cw) Impedance50 ConnectorN-jack Environmental & Mechanical Characteristics Survival wind speed216 km/hr Temperature- 40 o Cto+80 o C Humidity95% @ 25 o C Lightning protectionDC ground Radome colorGray-white Radome materialABS, UV resistant Weight0.825 kgw Dimensions215 x 200 x 48.5 mm http:// www.smartant.comTEL: +886 (0)3 578-3188 FAX: +886 (0)3 578-3189E-mail: [email protected] All right reserved by SmartAnt Telecom Co., Ltd. P1 Version 1 -50050100150200250300350400 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 -50050100150200250300350400 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 -50050100150200250300350400 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 -50050100150200250300350400 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 V plane cross-polarization V plane co-polarization Amp (dB) (degree) 5.25 GHz 5.45 GHz 5.65 GHz 5.85 GHz 5.25 GHz 5.45 GHz 5.65 GHz 5.85 GHz Amp (dB) (degree) H plane co-polarization 5.25 GHz 5.45 GHz 5.65 GHz 5.85 GHz Amp (dB) (degree) H plane cross-polarization 5.25 GHz 5.45 GHz 5.65 GHz 5.85 GHz Amp (dB) (degree) 200 200 200 50

Compliance Certification Services Inc. Report No: 40913009-RP1 FCC ID: RRK2004090192-1 Date of Issue: November 12, 2004 Page 35 Rev.00 7.4 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT WLAN 802.11a MiniPCI Card Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.350GHz WLAN: 5.725GHz ~ 5.850GHz Others: ____________________________________ Device category Portable (<20cm separation) Mobile (>20cm separation) Others ____________________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power Dual-Band Omni-Directional Antenna / 5dBi: 15.70dBm (37.15mW) Panel Directional Antenna / 18dBi: 15.36dBm (34.35mW) Antenna gain (Max) Dual-Band Omni-Directional Antenna: 5dBi / Numeric gain: 3.162 Panel Directional Antenna: 18dBi / Numeric gain: 63.095 Evaluation applied MPE Evaluation* SAR Evaluation N/A Note: 1. The maximum output power is 15.70dBm (37.15mW) at 5800Hz (with 63.095 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No: 40913009-RP1 FCC ID: RRK2004090192-1 Date of Issue: November 12, 2004 Page 36 Rev.00 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field Strength in Volts / meter P = Power in Watts G=Numeric antenna gain d=Distance in meters S=Power Density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: S GP d × ×× = 3770 30 Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) Yields S GP S GP d × ×= × ×× ×=282.0 3770 )1000/(30 100 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) Yields 20 10 282.0 20 )(GP d + ×= Equation 1 Where d = MPE safe distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW / cm^2 Compliance Certification Services Inc. Report No: 40913009-RP1 FCC ID: RRK2004090192-1 Date of Issue: November 12, 2004 Page 37 Rev.00 Maximum Permissible Exposure EUT output power = 37.15mW Antenna Gain = 63.095 (Numeric gain) S = 1.0 mW / cm^2 from 1.1310 Table 1 Substituting these parameters into the above Equation 1: Æ MPE Safe Distance = 13.657 cm (For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less.)

Compliance Certification Services Inc. Report No: 40913009-RP1 FCC ID: RRK2004090192-1 Date of Issue: November 12, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 102 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Alpha Networks Inc. WLAN 802.11a MiniPCI Card Model: WMP-A13 Trade Name: Alpha Issued to Alpha Networks Inc. No.8, Li Hsing Rd. Vii, Science-Based, Industrial Park, Hsinchu, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40913009-RP1 FCC ID: RRK2004090192-1 Date of Issue: November 12, 2004 Page 2 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES ..... ...................................................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................19 7.3 PEAK POWER SPECTRAL DENSITY....................................................................................................27 7.4 RADIO FREQUENCY EXPOSURE........................................................................................................35 7.5 SPURIOUS EMISSIONS ................................................................................................................38 7.6 POWERLINE CONDUCTED EMISSIONS...............................................................................................86 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ..............................................................................95 Compliance Certification Services Inc. Report No: 40913009-RP1 FCC ID: RRK2004090192-1 Date of Issue: November 12, 2004 Page 3 Rev.00 1. TEST RESULT CERTIFICATION Applicant: Alp…
