Alpha Networks Proprietary and Confidential Information User’s Manual For WUS-G09V WUGC-100 Model Number: WUS-G09V, WUGC-100 Revision: 1.0 This document contains confidential proprietary information and is the property of Alpha Networks Inc.. The contents of this document may not be disclosed to unauthorized persons without the written consent of Alpha Networks Inc.. Alpha Networks Proprietary and Confidential Information ii Contents 1.0 SCOPE..................................................................................................................................................................1 1.1 DOCUMENT..........................................................................................................................................................1 1.2 PRODUCT FEATURES...........................................................................................................................................1 2.0 REQUIREMENTS.................................................................................................................................................1 2.1 FUNCTIONAL BLOCK DIAGRAM.............................................................................................................................1 2.2 GENERAL REQUIREMENTS...................................................................................................................................2 2.2.1 IEEE 802.11b Section................................................................................................................................2 2.2.2 IEEE 802.11g Section................................................................................................................................2 2.2.3 General Section..........................................................................................................................................3 2.3 SOFTWARE REQUIREMENTS................................................................................................................................3 2.3.1 Information..................................................................................................................................................3 2.3.2 Configuration...............................................................................................................................................3 2.3.3 Security.......................................................................................................................................................4 2.4 PCBA MECHANICAL REQUIREMENTS..................................................................................................................4 2.5 COMPATIBILITY REQUIREMENTS...........................................................................................................................4 2.7 REQUIREMENTS OF RELIABILITY, MAINTAINABILITY AND QUALITY.........................................................................4 2.8 ENVIRONMENTAL REQUIREMENTS........................................................................................................................4 Alpha Networks Proprietary and Confidential Information 1 1.0 Scope 1.1 Document This document is to specify the product requirements for 802.11g USB module. This USB module is based on Conexant chipset that complied with IEEE 802.11b and 802.11g standards from 2.4~2.5GHz, and it can be used to provide up to 11Mbps for IEEE 802.11b and 54Mbps to connect your wireless LAN. With seamless roaming, fully interoperability and advanced security with WEP standard, 802.11g USB module offers absolute interoperability with different vendors’ 802.11b/g Access Points through the wireless LAN. 1.2 Product Features ü Compatible with IEEE 802.11b high rate standard to provide wireless 11Mbps data rate ü Compatible with IEEE 802.11g higher speed standard to provide wireless 54Mbps data rate ü Operation at 2.4 ~ 2.5GHz frequency band to meet worldwide regulations ü Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, and 54Mbps for 802.11g ü Dynamic date rate scaling at 1, 2, 5.5, and 11Mbps for IEEE 802.11b ü Maximum reliability, throughput and connectivity with automatic data rate switching ü Supports wireless data encryption with 64/128 WEP, AES and TKIP for security ü Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication ü Supports WPA enhanced security ü Friendly user configuration and diagnostic utilities ü High speed USB 2.0 interface 2.0 Requirements The following sections identify the detailed requirements of the 802.11g USB module 2.1 Functional Block Diagram Alpha Networks Proprietary and Confidential Information 2 2.2 General Requirements 2.2.1 IEEE 802.11b Section # Feature Detailed Description 2.2.1.2 Standard ü IEEE 802.11b 2.2.1.2 Radio and Modulation Schemes ü DQPSK, DBPSK, DSSS, and CCK 2.2.1.3 Operating Frequency ü 2400 ~ 2497MHz ISM band 2.2.1.4 Channel Numbers ü 11 channels for United States 13 channels for Europe Countries 14 channels for Japan 2.2.1.5 Data Rate ü 11, 5.5, 2, and 1Mbps 2.2.1.6 Media Access Protocol ü CSMA/CA with ACK 2.2.1.7 Transmitter Output Power ü Typical 17(+/- 2)dBm at 11, 5.5, 2, and 1Mbps at room temperature. 2.2.1.8 Receiver Sensitivity ü Typical Sensitivity at Which Frame (1000-byte PDUs) Error Rate = 8% at room temperature. ü –84dBm for 11Mbps @ 8% PER ü –88dBm for 5.5Mbps @ 8% PER ü –89dBm for 2Mbps @ 8% PER ü –90dBm for 1Mbps @ 8% PER 2.2.2 IEEE 802.11g Section # Feature Detailed Description 2.2.2.1 Standard ü 2.4GHz OFDM (IEEE 802.11g ) 2.2.2.2 Radio and Modulation Schemes ü BPSK, QPSK, 16QAM, 64QAM, and OFDM 2.2.2.3 Operating Frequency ü 2400 ~ 2497MHz ISM band 2.2.2.4 Channel Numbers ü 11 channels for United States 13 channels for Europe Countries 13 channels for Japan 2.2.2.5 Data Rate ü 54, 48, 36, 24, 18, 12, 9, and 6Mbps 2.2.2.6 Media Access Protocol ü CSMA/CA with ACK 2.2.2.7 Transmitter Output Power ü Typical RF Output Power at e…
Text truncated - open the document above for the full version.
Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RRK2005070154-1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------ Leeming Li / Manager Alpha Networks Inc. Tel: 886-3-563-6666 ext.6613 Fax: 886-3-566-5091 E-mail: [email protected]
POWER OF ATTORNEY To whom it may concern: We, the undersigned Alpha Networks Inc. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! ------------------------------------------ Leeming Li / Manager Alpha Networks Inc. Tel: 886-3-563-6666 ext.6613 Fax: 886-3-566-5091 E-mail: [email protected]
FCC ID: RRK2005070154-1 Report No. RF950831H04 Mobile Modular Approval Request Letter Advance Data Technology September 21, 2006 Dear Application Examiner, Alpha Networks Inc.’s Wireless USB Module, FCC ID: RRK2005070154-1, would like to have your authorization as a mobile modular approval specific to the Notebook Computer Access Point...etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip ISL3686. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 3.3VDC powered. The USB interface provides 5VDC, so there are regulators in front of these chips, the part number of this regulator is XC9223B. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RRK2005070154-1 Report No. RF950831H04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

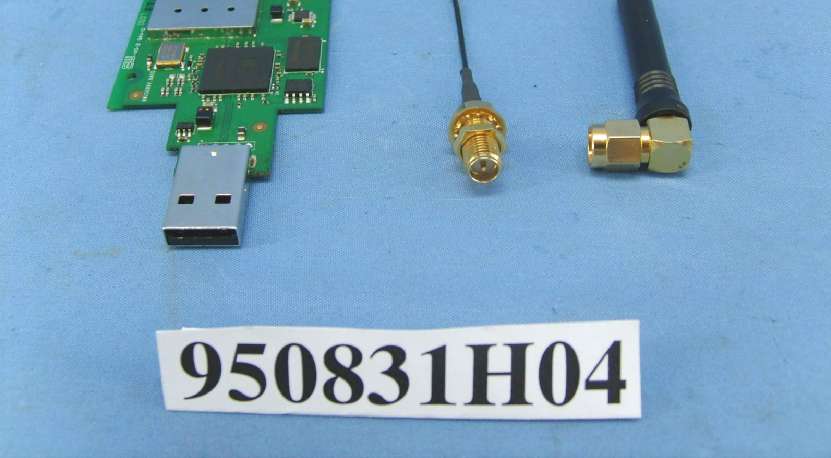

Page 1 CONSTRUCTION PHOTOS OF EUT EUT With USB connector
Page 2 Page 3 Page 4 Page 5 EUT Without USB connector Page 6 Page 7 Page 8
Report No.: SA950831H04 1 RF EXPOSURE REPORT REPORT NO.: SA950831H04 MODEL NO.: WUS-G09V, WUS-G09PB, WUGC-100 FCC ID: RRK2005070154-1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Partk, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950831H04 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950831H04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950831H04 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.2dBi or 1.318257 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241274.6450.0201.0 6243772.4440.0191.0 11246267.9200.0181.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241299.0830.0261.0 62437139.3160.0371.0 11246271.7790.0191.0
Report No.: RF950831H041Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950831H04 MODEL NO.: WUS-G09V, WUS-G09PB, WUGC-100 RECEIVED: Aug. 31, 2006 TESTED: Aug. 31 to Sep. 12, 2006 ISSUED: Sep. 14, 2006 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Partk, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950831H042Report Format Version 2.0.4 Table of Contents 1CERTIFICATION......................................................................................................4 2SUMMARY OF TEST RESULTS.............................................................................5 3GENERAL INFORMATION......................................................................................6 3.1GENERAL DESCRIPTION OF EUT........................................................................6 3.2DESCRIPTION OF TEST MODES..........................................................................8 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:...........................9 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS........................................11 3.5DESCRIPTION OF SUPPORT UNITS...................................................................12 3.6CONFIGURATION OF SYSTEM UNDER TEST....................................................13 4TEST TYPES AND RESULTS...............................................................................14 4.1CONDUCTED EMISSION MEASUREMENT.........................................................14 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................14 4.1.2TEST INSTRUMENTS...........................................................................................14 4.1.3TEST PROCEDURES...........................................................................................15 4.1.4TEST SETUP........................................................................................................15 4.1.5EUT OPERATING CONDITIONS...........................................................................16 4.1.6TEST RESULTS....................................................................................................17 4.2RADIATED EMISSION MEASUREMENT..............................................................21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT............................................21 4.2.2TEST INSTRUMENTS...........................................................................................22 4.2.3TEST PROCEDURES...........................................................................................23 4.2.4TEST SETUP........................................................................................................24 4.2.5EUT OPERATING CONDITIONS...........................................................................24 4.2.6TEST RESULTS....................................................................................................25 4.2.7TEST RESULTS –DSSS........................................................................................27 4.2.8TEST RESULTS – OFDM......................................................................................34 4.36dB BANDWIDTH MEASUREMENT.....................................................................41 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT...................................................41 4.3.2TEST INSTRUMENTS...........................................................................................41 4.3.3TEST PROCEDURE..............................................................................................42 4.3.4TEST SETUP........................................................................................................42 Report No.: RF950831H043Report Format Version 2.0.4 4.3.5EUT OPERATING CONDITIONS...........................................................................42 4.3.6TEST RESULTS –DSSS........................................................................................43 4.3.7TEST RESULTS-OFDM.........................................................................................46 4.4MAXIMUM PEAK OUTPUT POWER.....................................................................49 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................49 4.4.2TEST INSTRUMENTS...........................................................................................49 4.4.3TEST PROCEDURES...........................................................................................50 4.4.4TEST SETUP........................................................................................................50 4.4.5EUT OPERATING CONDITIONS...........................................................................50 4.4.6TEST RESULTS – DSSS.......................................................................................51 4.4.7TEST RESULTS –OFDM.......................................................................................52 4.5POWER SPECTRAL DENSITY MEASUREMENT.................................................53 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...............................53 4.5.2TEST INSTRUMENTS...........................................................................................53 4.5.3TEST PROCEDURE..............................................................................................54 4.5.4TEST SETUP.............................................................................…
Text truncated - open the document above for the full version.
Report No.: RF950831H0468Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST ( Mode 1) Report No.: RF950831H0469Report Format Version 2.0.4 Report No.: RF950831H0470Report Format Version 2.0.4 CONDUCTED EMISSION TEST ( Mode 2) Report No.: RF950831H0471Report Format Version 2.0.4 Report No.: RF950831H0472Report Format Version 2.0.4 RADIATED EMISSION TEST ( MODE 1) Report No.: RF950831H0473Report Format Version 2.0.4 Report No.: RF950831H0474Report Format Version 2.0.4 RADIATED EMISSION TEST ( MODE 2) Report No.: RF950831H0475Report Format Version 2.0.4
81-1 Luliaoken, 9th Lin, Wulung Tsuen Chiunglin · Hsinchu · Taiwan
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 139.00 mW |
