RRK2005090049-1IEEE 802.11a/b/g MiniPCI Card

Installation Guide For WMP-D16 IEEE 802.11b/g MiniPCI Card DGT 警語 : 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自 變更頻率、加大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象 時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法 規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用 電波輻射性電機設備之干擾。 本模組於取得認證後將依規定於模組本體標示審驗合格標籤，並要求平台上標示 「本產品內含射頻模組：ID編號」 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. We declare this product is limited in CH1-CH11 for 2.4G band by specific firmware controlled by the manufacturer and is not user changeable. This device is intended only for OEM integrators under the following condition- 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. And OEM shall not supply any tool or info to the end-user regarding to change the domain selection. As long as 3 conditions above are met, further transmitter test will not be required.However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example: Access point, Wireless Router, Notebook, etc.). The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: RRK2005090049-1”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. We declare this product is limited in CH1-CH11 for 2.4G band by specific firmware controlled by the manufacturer and is not user changeable. If the end product integrating this module is going to be operated in 5.15 ~ 5.25GHz frequency range, the following warning statement must be included in the user manual. The 5.15 ~ 5.25GHz frequency band in US/Canada is restricted to indoor use only. Industry Canada Statement Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device This device has been designed to operate with an antenna having a maximum gain of 4.5 dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more than required for successful communication. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 本產品將來在台灣販售時僅能使用2.4GHz頻段 Test Utility Installation: 1. Unzip “ART_V52_build58.zip” to “C:\”. 2.…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RRK2005090049-1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------ Leeming Li / Manager Alpha Networks Inc. Tel: 886-3-563-6666 ext.6613 Fax: 886-3-566-5091 E-mail: [email protected]

POWER OF ATTORNEY To whom it may concern: We, the undersigned Alpha Networks Inc. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! ------------------------------------------ Leeming Li / Manager Alpha Networks Inc. Tel: 886-3-563-6666 ext.6613 Fax: 886-3-566-5091 E-mail: [email protected]

FCC ID: RRK2005090049-1 Report No. RF950518H03 Modular Approval Request Letter Advance Data Technology July 17, 2006 Dear Application Examiner, Alpha Networks Inc.’s IEEE 802.11a/b/g MiniPCI Card, FCC ID: RRK2005090049-1, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5414A. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The MiniPCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AR5414A. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RRK2005090049-1 Report No. RF950518H03 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

Confirmation of Equivalence We, Atheros Communications, Inc., confirm that the following chips have identical regulatory characteristics. Transition from AR5414 to AR5413 has no impact to prior regulatory approvals. The AR5413 is a reduced functionality version of the AR5414 chip. Chip Version Functions 5414 802.11b/g MAC/Baseband/Radio with Turbo G feature 5413 802.11b/g MAC/Baseband/Radio (Turbo G feature removed) Regards, Michael Green / Manager, Global Product Compliance Atheros Communications Inc.

Page 1 CONSTRUCTION PHOTOS OF EUT Model: WMP-D16 (with 2.4G antennas) Model: WMP-D16 (with 5G antenna) 950518H03 950518H03 Page 2 Model: WMP-D16 Page 3 Model: WMP-D18 (with 2.4G antennas) Model: WMP-D18 (with 5G antenna) 950518H03 950518H03 Page 4 Model: WMP-D18

FCC ID：RRK2005090049-1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. FCC LABEL

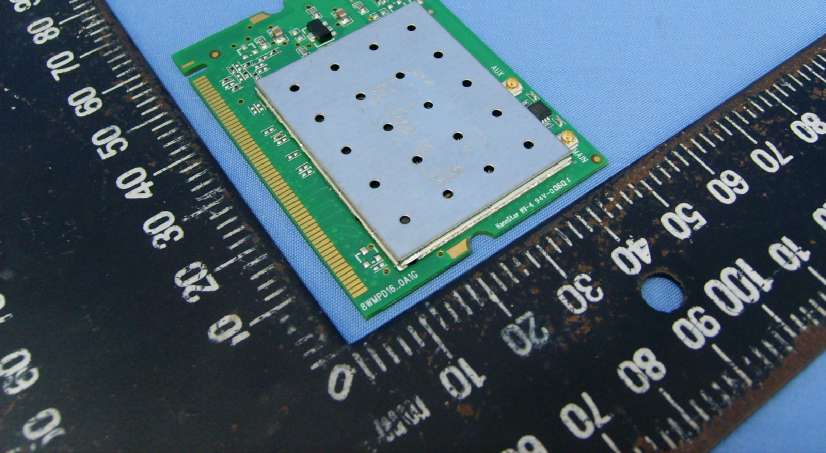

Page 5 Model: WMP-D16 Page 6 Page 7 Model: WMP-D18 Page 8 Page 9 2.4G antenna 1 Page 10 Page 11 2.4G antenna 2 Page 12 5G antenna 1 Page 13 Page 14

FCC ID: RRK2005090049-1 Report No. RF950518H03 Technical Description This device is a Dual mode IEEE 802.11a/b/g MiniPCI Card operates in both the 5GHz and 2.4GHz bands with DSSS and OFDM technique. The transmitter rate could be 1/2/5.5/6/9/11/12/18/24/ 36/48/54Mbps. The transmitter of the EUT is powered from host equipment. The antenna are as following: For 2.4GHz No.Model No.Gain (dBi)Antenna TypeConnector 1WSS0012Dipole RP-SMA(M) 2WPB002-34.5PCBMHF Note: Antenna 1 is connected with Main port of EUT Antenna 2 is connected with AUX port of EUT For 5GHz No.Model No.Gain (dBi) Cable Loss (dB) Net Gain (dB) Antenna TypeConnector 1SAA04-22008051.83.2Dipole RP-N plug Note: Antenna 1 is connected with Main port of EUT Under normal use condition, the user has to keep at least 20 cm separation distance between radiator and the body of the user. For more detailed instruction, please refer to the user’s manual. FCC ID: RRK2005090049-1 Report No. RF950518H03 FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: RF950518H031Report Format Version 2.0.4 FCC TEST REPORT (15.247) REPORT NO.: RF950518H03 MODEL NO.: WMP-D16, WMP-D18 RECEIVED: May 18, 2006 TESTED: July 01 to 08, 2006 ISSUED: July 17, 2006 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Partk, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 139 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950518H032Report Format Version 2.0.4 Table of Contents 1.CERTIFICATION....................................................................................................5 2.SUMMARY OF TEST RESULTS............................................................................6 3.GENERAL INFORMATION.....................................................................................8 3.1GENERAL DESCRIPTION OF EUT.......................................................................8 3.2DESCRIPTION OF TEST MODES.......................................................................10 3.2.1TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.......................11 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................13 3.4DESCRIPTION OF SUPPORT UNITS..................................................................14 3.5CONFIGURATION OF SYSTEM UNDER TEST...................................................14 4.TEST TYPES AND RESULTS (802.11B & G, 2400 ~ 2483.5MHZ BAND).............15 4.1CONDUCTED EMISSION MEASUREMENT........................................................15 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................15 4.1.2TEST INSTRUMENTS..........................................................................................15 4.1.3TEST PROCEDURES..........................................................................................16 4.1.4DEVIATION FROM TEST STANDARD.................................................................16 4.1.5TEST SETUP..................................................................................................17 4.1.6EUT OPERATING CONDITIONS.........................................................................17 4.1.7TEST RESULTS..................................................................................................18 4.2RADIATED EMISSION MEASUREMENT.............................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................20 4.2.2TEST INSTRUMENTS..........................................................................................21 4.2.3TEST PROCEDURES..........................................................................................22 4.2.4DEVIATION FROM TEST STANDARD.................................................................22 4.2.5TEST SETUP..................................................................................................23 4.2.6EUT OPERATING CONDITIONS.........................................................................23 4.2.7TEST RESULTS (ANTENNA 1)............................................................................24 4.2.8TEST RESULTS (ANTENNA 2)............................................................................44 4.36DB BANDWIDTH MEASUREMENT...................................................................64 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT.................................................64 4.3.2TEST INSTRUMENTS..........................................................................................64 4.3.3TEST PROCEDURE.............................................................................................65 4.3.4DEVIATION FROM TEST STANDARD.................................................................65 4.3.5TEST SETUP..................................................................................................65 4.3.6EUT OPERATING CONDITIONS.........................................................................65 4.3.7TEST RESULTS..................................................................................................66 4.4MAXIMUM PEAK OUTPUT POWER....................................................................71 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................71 4.4.2INSTRUMENTS..................................................................................................71 4.4.3TEST PROCEDURES..........................................................................................72 4.4.4DEVIATION FROM TEST STANDARD.................................................................72 Report No.: RF950518H033Report Format Version 2.0.4 4.4.5TEST SETUP..................................................................................................72 4.4.6EUT OPERATING CONDITIONS.........................................................................72 4.4.7TEST RESULTS (ANTENNA 1)............................................................................73 4.4.8TEST RESULTS (ANTENNA 2)............................................................................75 4.5POWER SPECTRAL DENSITY MEASUREMENT................................................77 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................77 4.5.2TEST INSTRUMENTS..........................................................................................77 4.5.3TEST PROCEDURE..........................................…

Text truncated - open the document above for the full version.

Report No.: RF950518H0371Report Format Version 2.0.4 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2006 Agilent SIGNAL GENERATORE8257CMY43320668Dec. 07, 2006 TEKTRONIX OSCILLOSCOPE TDS380B016335 July. 04, 2007 NARDA DETECTOR4503AFSCM99899NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF950518H0372Report Format Version 2.0.4 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the response of the detector. 2.Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3.Adjusted the power to have the same reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 EUT or S.G OSCILLOSCOPE DETECTOR Report No.: RF950518H0373Report Format Version 2.0.4 4.4.7 TEST RESULTS (ANTENNA 1) 802.11b DSSS modulation MODULATION TYPE CCKTRANSFER RATE11Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 22deg. C, 64%RH, 973hPa TESTED BY Wen Yu Antenna (Gain : 2 dBi) +Cable loss (1.07dB) CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 69.183 18.40 30 PASS 6 2437 40.738 16.10 30 PASS 11 2462 50.119 17.00 30 PASS Report No.: RF950518H0374Report Format Version 2.0.4 802.11g OFDM modulation MODULATION TYPE BPSKTRANSFER RATE6Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 22deg. C, 64%RH, 973hPa TESTED BY Wen Yu Antenna (Gain : 2.0 dBi) CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 74.131 18.70 30 PASS 6 2437 109.648 20.40 30 PASS 11 2462 61.660 17.90 30 PASS 802.11g Turbo OFDM modulation INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 22deg. C, 64%RH, 973hPa TESTED BY Wen Yu Antenna (Gain : 2.0 dBi) CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 6243787.09619.4030PASS Report No.: RF950518H0375Report Format Version 2.0.4 4.4.8 TEST RESULTS (ANTENNA 2) 802.11b DSSS modulation MODULATION TYPE CCKTRANSFER RATE11Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 22deg. C, 64%RH, 973hPa TESTED BY Wen Yu Antenna (Gain : 4.5 dBi) CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 69.183 18.40 30 PASS 6 2437 40.738 16.10 30 PASS 11 2462 50.119 17.00 30 PASS Report No.: RF950518H0376Report Format Version 2.0.4 802.11g OFDM modulation MODULATION TYPE BPSKTRANSFER RATE6Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 22deg. C, 64%RH, 973hPa TESTED BY Wen Yu Antenna (Gain : 4.5 dBi) CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 74.131 18.70 30 PASS 6 2437 109.648 20.40 30 PASS 11 2462 61.660 17.90 30 PASS 802.11g Turbo OFDM modulation INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 22deg. C, 64%RH, 973hPa TESTED BY Wen Yu Antenna (Gain : 4.5 dBi) CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 6243787.09619.4030PASS Report No.: RF950518H0377Report Format Version 2.0.4 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2006 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF950518H0378Report Format Version 2.0.4 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time = span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3kHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITION Same as Item 4.3.6 SPECTRUM ANALYZER EUT Report No.: RF950518H0379Report Format Version 2.0.4 4.5.7 TEST RESULTS 802.11b DSSS modulation MODULATION TYPE CCKTRANSFER RATE11Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 22deg. C, 64%RH, 973hPa TESTED BY Sky Liao Antenna 1 (Gain : 3 dBi) +Cable loss (1.2dB) CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-7.708PASS 62437-9.378PASS 112462-7.278PASS CH1 Report No.: RF950518H0380Report Format Version 2.0.4 CH6 CH11 Report No.: RF950518H0381Report Format Version 2.0.4 802.11g OFDM modulation MODULATION TYPE BPSKTRANSFER RATE6Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 22deg. C, 64%RH, 973hPa TESTED BYSky Liao Antenna 1 (Gain : 3 dBi) +Cable loss (1.2dB) CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-9.298PASS 62437-7.748PASS 112462-11.018PASS CH1 Report No.: RF950518H0382Report Format Version 2.0.4 CH6 CH11 Report No.: RF950518H0383Report Format Version 2.0.4 802.11g Turbo OFDM modulation INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL COND…

Text truncated - open the document above for the full version.

Report No.: RF950518H03132Report Format Version 2.0.4 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (2.4G) 950518H03 950518H03 Report No.: RF950518H03133Report Format Version 2.0.4 CONDUCTED EMISSION TEST (5G) 950518H03 950518H03 Report No.: RF950518H03134Report Format Version 2.0.4 RADIATED EMISSION TEST (2.4G) Report No.: RF950518H03135Report Format Version 2.0.4 Report No.: RF950518H03136Report Format Version 2.0.4 RADIATED EMISSION TEST (5G) 950518H03 950518H03 Report No.: RF950518H03137Report Format Version 2.0.4
