ALPHA: Wireless Card Installation Manual GLM-200 Version 0.1 0-Introduction The Ralink RT2561+ WLAN NIC is a complete wireless high speed Network Interface Card (NIC) utilizing the Ralink RT2561+ chip set. It conforms to the IEEE 802.11g protocol and operates in the 2.45 GHz ISM frequency bands. It provides a complete reference design evaluation platform of hardware and software to system providers or integrators requiring wireless data communications capability and is ideal for integration into computer platforms. • Fully compliant with the IEEE 802.11g WLAN standards • FCC Certified Under Part 15 (pending) to Operate in the 2.45 Bands • Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbps OFDM, 11 and 5.5 Mbps CCK and legacy 2 and 1 Mbps data rates • Driver Supports Microsoft Windows ® 98/SE, ME, XP and 2000 (SR1) 1-GLM-200 Installation procedure 1.1 Installing the miniPCI card into the host PC Notebook a-open miniPCI slot cover of host PC Notebook housing b-insert miniPCI card into miniPCI slot c-connect the host PC notebook antennas to the miniPCI card antenna connectors (Hirose type UFL connector) d-close miniPCI slot cover of host PC Notebook housing 1.2 Installing the software drivers a-Start windows b-When windows detects new hardware and asks for drivers, point to directory where the Ralink driver is located (for example floppy drive, cdrom , harddisk) to install. c-after drivers are installed, restart windows d-the Ralink WLAN icon will appear in system tray on the bottom right of the screen (see yellow arrow in fig. 01) fig, 01: Ralink WLAN icon Preliminary GLM-200 installation manual FCC ID: RRK20070821-1 Page 4 of 10 e-double click the Ralink WLAN icon to open the WLAN settings, the following window will appear (see fig.02) fig.02: Ralink WLAN Settings window f-click on configuration tab and select which type of network is required (access point or Peer-to-peer mode), see fig. 03. Preliminary GLM-200 installation manual FCC ID: RRK20070821-1 Page 5 of 10 g-select what TX rate is required (default setting is fully automatic) see fig. 04. fig.04: WLAN TX rate Setting window h-select what encryption type is required, 64 or 128 bit WEP (default setting is disabled) see fig. 05. fig.05: WLAN encrption rate Settings window Preliminary GLM-200 installation manual FCC ID: 20070821-1 Page 6 of 10 i-click on the status tab to see the connection status (fig.06). fig.06: WLAN networks status j-click on the about tab to see the software drivers versions and MAC address (fig.07). fig.07: WLAN driver and MAC addres information Preliminary GLM-200 installation manual 1.3 Wireless LAN installation guide lines and Authorization for use Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by Ralink may void the user’s authority to operate the equipment. Ralink is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Ralink and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. The use of Wireless LAN devices may be restricted in some situations or environments for example: * On board of airplanes, or * In an explosive environment, or * In case the interference risk to other devices or services is perceived or identified as harmful. In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please first verify authorization to use these devices prior to operating the equipment. 2-Regulatory information 2.1 FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals 2.2 FCC Guidelines for Human Exposure Warning: In order to comply with RF exposure limits established in the ANSI C95.1 standards, the user is advised to maintain a distance of at least 1 inch (20 cm) from the antenna of this device while it is in use. 2.3 FCC Electronic Emission Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation. Preliminary GLM-200 installation manual FCC ID: RRK20070821-1 Page 8 of 10 2.4 FCC Radio Frequency Interference statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the user will be required to correct the interference at his own expense. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipme…

Text truncated - open the document above for the full version.

Confidentiality Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: Alpha Networks Inc. FCC ID: RRK20070821-1 To whom it may concern, Request is hereby submitted by Alpha Networks Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: Schematics Detailed Block diagrams Detailed Operational/Functional Description Rationale for request for confidentiality: Alpha Networks Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Leeming Li/Senior Manager Alpha Networks Inc.

FCC ID: RRK20070821-1 Date: Sep. 06, 2007 Modular Approval Request Letter Dear Sir, There’s a wireless card that would like to have your authorization as a modular approval. The specific product as below, wireless card, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice DA 00-1407 by cross-reference list below. Company : Alhpa Networks Inc. Model Name : wireless card Model Number : GLM-200 FCC ID : RRK20070821-1 Requirement of Public Notice DA00-1407 Reference to GLM-200 1. The modular transmitter must have its own RF shielding. The module has its own RF shielding. Please see external photo.pdf 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data inputs, it is integrated in chip R2561+RT2527. Please see diagram.pdf 3. The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the GLM-200. Please see circuit.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The GLM-200 meets the FCC antenna requirements. It has a unique connector. Please see external photo.pdf 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The was tested in a stand-alone configuration via a PCMCIA extender. Please see conducted set-up photo.pdf and spurious set-up photo.pdf 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The label position of GLM-200 is clearly indicated. Please see the label.pdf 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. TheGLM-200is compliant with all applicable FCC rules. Detail instructions are given in the Users Manual. Please see Installation guide.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). TheGLM-200 comply with applicable RF exposure requirements. Please see RF safety evaluation. pdf Yours sincerely, Kevin Chen Sr.Engineer Intertek Testing Service Taiwan Ltd.

Lettery of Agency "I, an officer of Alpha Networks Inc. do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Leeming Li Signature Printed Title Senior Manager

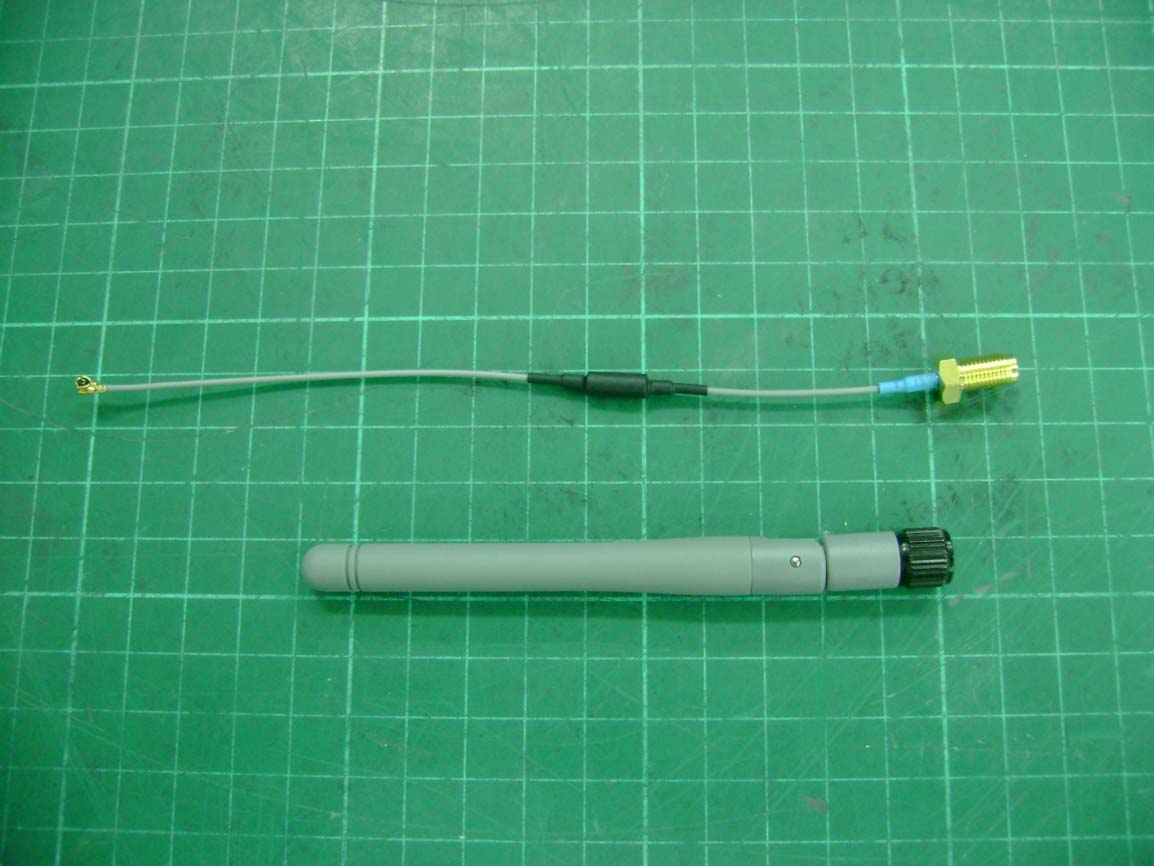

Photo 1: External photo of EUT GLM-200 Photo 2: External photo of Antenna Photo 3: External photo of Antenna

FCC ID Label Location 30 mm 15 mm

Photo 1: Internal photo of EUT GLM-200 Photo 2: Internal photo of EUT GLM-200

FCC ID. : RRK20070821-1 Report No.: EME-070714 Page 1 of 5 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-070714 Model No. : GLM-200 Issued Date : Sep. 06, 2007 Applicant : Alpha Networks Inc. No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 5 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jimmie Liu FCC ID. : RRK20070821-1 Report No.: EME-070714 Page 2 of 5 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 4. Test results .................................................................................................................... 5 FCC ID. : RRK20070821-1 Report No.: EME-070714 Page 3 of 5 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 wireless Card-Model: GLM-200 FCC ID: RRK20070821-1 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Pass FCC ID. : RRK20070821-1 Report No.: EME-070714 Page 4 of 5 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : RRK20070821-1 Report No.: EME-070714 Page 5 of 5 3. RF Exposure calculations From FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4*π*20 2 = 0.00995 (mW/cm 2 ) 4. Test results Test Mode: 802.11b mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 1.58 92.68 0.02922336 1.0 6 (middle) 2437 1.58 82.41 0.02598544 1.0 11 (highest) 2462 1.58 89.95 0.02836156 1.0 Test Mode: 802.11g Normal mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 1.58 146.22 0.04610310 1.0 6 (middle) 2437 1.58 137.09 0.04322452 1.0 11 (highest) 2462 1.58 143.88 0.04536596 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

FCC ID. : RRK20070821-1 Report No.: EME-070714 Page 1 of 65 EMC TEST REPORT Report No. : EME-070714 Model No. : GLM-200 Issued Date : Sep. 06, 2007 Applicant : Alpha Networks Inc. No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 65 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Jimmie Liu Project Engineer Reviewed By Kevin Chen FCC ID. : RRK20070821-1 Report No.: EME-070714 Page 2 of 65 Table of Contents Summary of Tests ..............................................................................................................4 1. General information ......................................................................................................5 1.1 Identification of the EUT ........................................................................................5 1.2 Additional information about the EUT....................................................................5 1.3 Antenna description.................................................................................................6 1.4 Peripherals equipment .............................................................................................6 2. Test specifications .........................................................................................................7 2.1 Test standard............................................................................................................7 2.2 Operation mode .......................................................................................................7 2.3 Test equipment ........................................................................................................8 3. Minimum 6dB Bandwidth test ......................................................................................9 3.1 Operating environment............................................................................................9 3.2 Test setup & procedure ............................................................................................9 3.3 Measured data of Minimum 6dB Bandwidth test results ........................................9 4. Maximum Output Power test ......................................................................................16 4.1 Operating environment..........................................................................................16 4.2 Test setup & procedure ..........................................................................................16 4.3 Measured data of Maximum Output Power test results ........................................16 5. RF Antenna Conducted Spurious test..........................................................................17 5.1 Operating environment..........................................................................................17 5.2 Test setup & procedure ..........................................................................................17 5.3 Measured data of the highest RF Antenna Conducted Spurious test result ..........17 6. Radiated Emission test ................................................................................................36 6.1 Operating environment..........................................................................................36 6.2 Test setup & procedure ..........................................................................................36 6.3 Emission limits ......................................................................................................37 6.4 Radiated spurious emission test data.....................................................................38 6.4.1 Measurement results: frequencies equal to or less than 1 GHz..........................38 6.4.2 Measurement results: frequency above 1GHz ...................................................39 7. Power Spectrum Density test ......................................................................................45 7.1 Operating environment..........................................................................................45 7.2 Test setup & procedure ..........................................................................................45 FCC ID. : RRK20070821-1 Report No.: EME-070714 Page 3 of 65 7.3 Measured data of Power Spectrum Density test results ........................................45 8. Emission on the band edge..........................................................................................52 8.1 Operating environment..........................................................................................52 8.2 Test setup & procedure ..........................................................................................52 8.3 Test Result .............................................................................................................53 8.3.1 Conducted Method .............................................................................................54 9. Power Line Conducted Emission test §FCC 15.207 ...................................................62 9.1 Operating environment..........................................................................................62 9.2 Test setup & procedure ..........................................................................................62 9.3 Emission limit .......................................................................................................63 9.4 Uncertainty of Conducted Emission .....................................................................63 9.5 Power Line Conducted Emission test data .......................................................…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test set-up photo GLM-200 Photo 2: Conducted Emission Test set-up photo GLM-200

Photo 1: Radiated Emission Test set-up photo GLM-200 Photo 2: Radiated Emission Test set-up photo GLM-200
