Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
ALPHA Proprietary and Confidential Information Product User Manual For Wireless Mini-PCI (Ralink Solution) Model Number: WMP-N07-5365A1 Alpha Networks Proprietary and Confidential Information ii Revision History Rev. Date Author Reason for Changes 1.0 Nov 23, 2006 Roy Tsai • New released Alpha Networks Proprietary and Confidential Information iii Contents 1.0 SCOPE............................................................................................................................................. 5 1.1 DOCUMENT.................................................................................................................................... 5 1.2 PRODUCT FEATURES....................................................................................................................... 5 2.0 REQUIREMENTS.......................................................................................................................... 5 2.1 FUNCTIONAL BLOCK DIAGRAM........................................................................................................ 5 2.2 GENERAL REQUIREMENTS............................................................................................................... 6 2.2.1 IEEE 802.11b Section ............................................................................................................ 6 2.2.2 IEEE 802.11g Section ............................................................................................................ 6 2.2.3 High Throughput Section (HT Mode) .................................................................................... 7 2.2.4 General Section ...................................................................................................................... 7 2.3 SOFTWARE REQUIREMENTS............................................................................................................. 8 2.3.1 Information............................................................................................................................. 8 2.3.2 Configuration ......................................................................................................................... 8 2.3.3 Security................................................................................................................................... 8 2.4 MECHANICAL REQUIREMENTS......................................................................................................... 9 2.5 COMPATIBILITY REQUIREMENTS...................................................................................................... 9 2.6 REQUIREMENTS OF RELIABILITY, MAINTAINABILITY AND QUALITY.................................................... 9 2.7 ENVIRONMENTAL REQUIREMENTS.................................................................................................... 9 Alpha Networks Proprietary and Confidential Information 5 1.0 Scope 1.1 Document This document is to specify the product requirements for Wireless Mini-PCI. This Mini-PCI Card is based on Ralink RT2800 chipset that complied with 802.11n draft 1.0 standard from 2.4~2.5GHz, and it can be used to provide up to 11Mbps for IEEE 802.11b and 54Mbps for 2.4GHz IEEE 802.11g to connect your wireless LAN. With seamless roaming, fully interoperability and advanced security with WEP standard, Wireless Mini-PCI offers absolute interoperability with different vendors’ 802.11b/g MIMO Access Points through the wireless LAN. 1.2 Product Features y Compatible with IEEE 802.11b high rate standard to provide wireless 11Mbps data rate y Compatible with IEEE 802.11g higher speed standard to provide wireless 54Mbps data rate y Operation at 2.4 ~ 2.5GHz frequency band to meet worldwide regulations y Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54 for 802.11g y Dynamic date rate scaling at 1, 2, 5.5, and 11Mbps for IEEE 802.11b y Compatible with IEEE 802.11n draft 1.0 higher speed standard in High Throughput mode from MCS-0 to MCS-15. The HT data rate refers to Appendix A. y Maximum reliability, throughput and connectivity with automatic data rate switching y Supports wireless data encryption with 64/128/152-bit WEP for security y Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication y Supports WPA and AES enhanced security y Supports VLAN tagging y Friendly user configuration and utilities y Drivers support Windows 98SE, ME, 2K, and XP y Supports Mini-PCI Type IIIB form factor 2.0 Requirements The following sections identify the detailed requirements of the Wireless Mini-PCI. 2.1 Functional Block Diagram N/A Alpha Networks Proprietary and Confidential Information 3 2.2 General Requirements 2.2.1 IEEE 802.11b Section # Feature Detailed Description 2.2.1.1 Standard y IEEE 802.11b 2.2.1.2 Radio and Modulation Schemes y DQPSK, DBPSK, DSSS, and CCK 2.2.1.3 Operating Frequency y 2400 ~ 2497MHz ISM band 2.2.1.4 Channel Numbers y 11 channels for United States 13 channels for Europe Countries 13 channels for Japan 2.2.1.5 Data Rate y 11, 5.5, 2, and 1Mbps 2.2.1.6 Media Access Protocol y CSMA/CA with ACK 2.2.1.7 Transmitter Output Power y 23.02dBm 2.2.1.8 Receiver Sensitivity y Typical –84dBm for 11Mbps @ 8% PER y Typical –90dBm for 2Mbps @ 8% PER 2.2.2 IEEE 802.11g Section # Feature Detailed Description 2.2.2.1 Standard y IEEE 802.11g 2.2.2.2 Radio and Modulation Schemes y BPSK, QPSK, 16QAM, 64QAM, and OFDM 2.2.2.3 Operating Frequency y 2400 ~ 2483.5MHz ISM band 2.2.2.4 Channel Numbers y 11 channels for United States 13 channels for Europe Countries 13 channels for Japan 2.2.2.5 Data Rate y 6,9,12,18,24,36,48,54Mbps 2.2.2.6 Media Access Protocol y CSMA/CA with ACK 2.2.2.7 Transmitter Output Power y 23.02dBm 2.2.2.8 Receiver Sensitivity y Typical Sensitivity at Which Frame (1000-byte PDUs) Error Rate = 10% y –86dBm at 6Mbps y –86dBm at 9Mbps y –84dBm at 12Mbps y –82dBm at 18Mbps y –78dBm at 24Mbps y –75dBm at 36Mbps y –71dBm at 48Mbps y –70dBm at 54Mbps 2.2.3 High Throug…
Text truncated - open the document above for the full version.
General Declaration We, Alpha Networks Inc. declares that device does not have “Ad Hoc on non-US frequencies” while applying for the follow product. FCC ID: RRK20105635A1 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] 2010/5/14
Date: May 05,2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize MR.Alex chiu / Director of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by MR.Alex chiu / Director of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Kelly Tsai Senior Manager [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.
Applicant/Grantee Alpha Networks Inc. / RRK FCC ID: RRK20105635A1 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The radio portion of this module has been shielded, please see exhibition External Photo. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has buffered data inputs, it is integrated in chip RT2860 & RT2820 Y 3 The modular transmitter must have its own power supply regulation. The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 3.3 and 1.2V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is RT8010PQW Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. Y 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. That is label show “Contains FCC ID: RRK20105635A1”in the end product. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. Y and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, o r power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules i…
Text truncated - open the document above for the full version.
Mar. 12, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID:RRK20105635A1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Kelly Tsai / Senior Manager Company Name: Alpha Networks Inc. Address: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-5636666 FAX: 886-3-5665091 Email: [email protected]
1 Lucy Tsai From: [email protected] Sent: Wednesday, May 19, 2010 1:04 AM To: Lucy Tsai Cc: [email protected]; [email protected]; [email protected] Subject: 回信: RE: Alpha Networks Inc., FCC ID: RRK20105635A1, Assessment NO.: AN10T0375, Notice#1-->Updated(990519) Attachments: WMP-N07-5635A1_User Manual(990519).pdf Dear Lucy: Please see my belowing reply and find the updated user's manual(990519).TKS. 寄件人: <[email protected]> 收件人: <[email protected]> 副本抄送: <[email protected]> 日期: 2010/05/10 上午 10:04 主旨: Alpha Networks Inc., FCC ID: RRK20105635A1, Assessment NO.: AN10T0375, Notice#1 Hi, Daphne, Please address following issues. Q#1: Please update the user manual to include 15.19 statements. <Daphne>Please find the updated user's manual. 2 Q#2: User manual indicated this RF module has support AP mode and Ad-hoc function. Please provide an attestation letter to state only 1-11 channels are available when placing to USA, other channels will be disabled by software. Ans:Please find the ad-hoc statement letter(990517). Q#3: The operational description and test report indicates this is a 2x2 802.11bgn device which does not agree with block diagram and schematics. Please address. Moreover, please clarify if this device has support CDD mode. Please include the information to the operational description. By the way, current information does not subject to permanent confidentiality since most information can be grabbed from the user manual. Ans: This EUT does not support the CDD mode, and per customer's explain, the EUT design is 2X3,but they using software controlled as 2X2 function. 2. For OpDesc.,please ignore this confidentiality request. Best Regards, Lucy Tsai/UL CCS The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. ______________________________________________________________ This e-mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886-2-2299-9720) for any problem with this transmission. Thank you for your attention. ______________________________________________________________ This e-mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886-2-2299-9720) for any problem with this transmission. Thank you for your attention.
Compliance Certification Services Inc. Report No.T100125301 Page 1 of 7 External Photo
Label Format “Contains Transmitter Module FCC ID:RRK20105635A1” or “Contains FCC ID: RRK20105635A1” & “IC:4216A-WMPN075635”

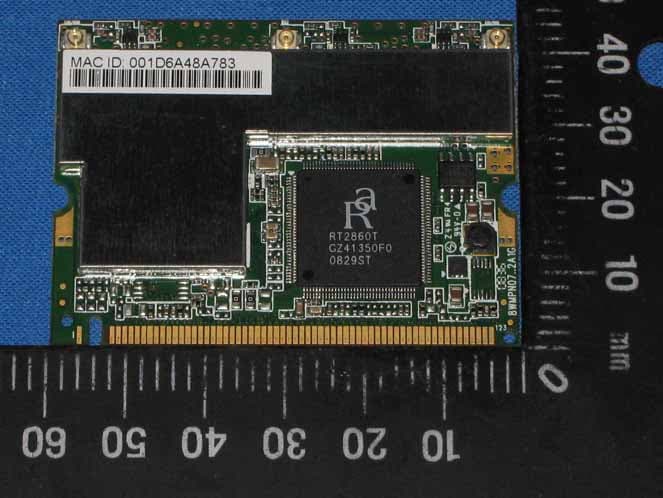

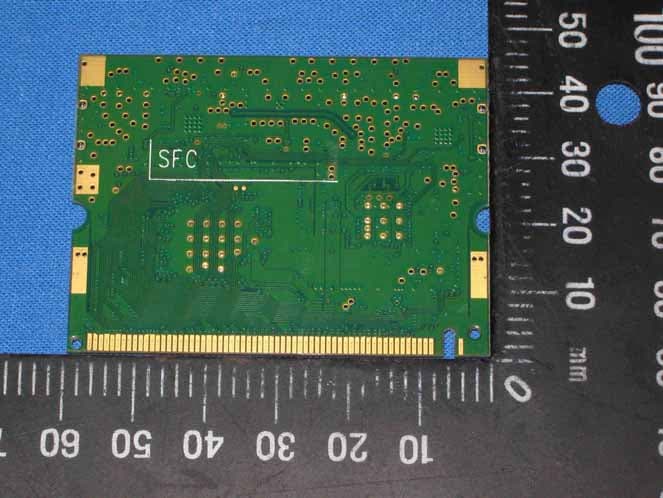

Compliance Certification Services Inc. Report No.T100125301 Page 2 of 7 Internal Photo Compliance Certification Services Inc. Report No.T100125301 Page 3 of 7 Compliance Certification Services Inc. Report No.T100125301 Page 4 of 7 Compliance Certification Services Inc. Report No.T100125301 Page 5 of 7 Compliance Certification Services Inc. Report No.T100125301 Page 6 of 7 Antenna Photo Compliance Certification Services Inc. Report No.T100125301 Page 7 of 7
Description of Operation The EUT is a Wireless Mini-PCI with IEEE 802.11b/g and IEEE802.11n . And this device provided of transmitting speed: 802.11b: 11, 5.5, 2, 1Mbps ; 802.11g : 54, 48 ,36, 24, 18, 12, 9, 6Mbps ; 802.11n: 130, 117 ,104, 78, 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps for HT20MHz ; 802.11n: 270, 243 ,216, 162, 135, 121.5, 108, 81, 54, 40.5, 27, 13.5Mbps for HT40MHz the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK. The device adapts DSSS and OFDM modulation. And the antennas were PCB Antennas, It has two transmitter chains and three receive chains (2x2 configurations). It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. The other instruction, please have a look at the user’s manual.
Item Page 1.1 2.2 3.3 4.4~15 5.16~21 6.22~30 7.31~35 8.36~39 9.40 10.41 ............... ... ᑌቹ .................. ᑌᛀ᧭ಖᙕ। .................. .................. ګቹ .................. .................. .................. Connectorᛀ᧭/UL .................. Contents Description .................................... । .................. .................. .................. ྒྷᇢܫ .................. Cable/UL .................................... CPN!Mjtu .................. PCBޗᔆࢤ/UL .................. .................. ऐᠨ૿હᓄޗᔆࢤ .................. Specification 1. Electrical Properties :(With Housing) 1.1 Frequency Range.............. 1.2 Impedance .................... 1.3 VSWR ........................ 1.4 Return Loss................... 1.5 Radiation ...................... 1.6 Gain(peak).........................1.9dBi (excluding cable loss ) 1.7 Cable Loss........................ 0.3dB Max. 1.8 Polarization........................Linear ; Vertical 1.9 Admitted Power.............. 1.10 Cable...........................RG-178 Cable 1.11 Connector...........................I-PEX MHF 2. Physical Properties : 2.1 Operating Temp. .................. -10к ~ +60к 2.2 Storage Temp. ..................... -10к ~ +70к RF PCB Antenna Assembly Omni-directional 1W 2.4GHz ~ 2.5GHz 50ȍ Nominal 1.92:1 Max. -10 dB Max. 1 2 3 ! Qbhf!2!pg!:! Antenna Design For Wireless Camera V3.2 Document Number 1 st Released Date 06/30/09 Last Released Date 01/21/10 Author Andy Chen Review by Romeo Chou ! Qbhf!3!pg!:! Revised History Date Version Revised Record 06/30/09 1.00 z Passive test 07/21/09 2.0 z Passive test(old edition) 07/21/09 2.1 z Passive test(new edition) 07/23/09 2.2 z Passive test(new edition) 11/05/09 3.0 z Passive test(final edition) 12/15/09 3.1 z Add cable length 10mm 01/21/10 3.2 z Antenna free space test z z z z z z z ! Qbhf!4!pg!:! Specification Rough description 2 antennas for a Wireless Camera. Isolation between antennas must be under 20dB minus. Item Initial Specification Final Specification Dimensions ANT1 27.2(L)*13.7(W)*0.6(H)mm ANT2 27.2(L)*13.7(W)*0.6(H)mm Impedance 50͈ Test environment With housing Spectrum 802.11n Freq. Range 2.4~2.5GHz Antenna type PCB Gain1.9 dBi VSWR 1.92Ǻ1 Radiation Omni Polarization Linear HPBW / H None HPBW / E None Rad. efficiency >60% Connector type I-PEX Cable type RG-178 Cable length None Isolation 20dB ! Qbhf!5!pg!:! 1 Antenna Introduction! ! Qbhf!6!pg!:! 2 S-parameter test results! 2.1 S11 test results! 2.1.1 ANT! ! Qbhf!7!pg!:! 3 Gain & Patterns test results! 3.1 Measurement setting! ! ! ! !YZ!Z[!Y[! 1±!Sjhiu!Vq!Vq! :1±!Cbdl!Cbdl!Sjhiu! 291±!Mfgu!Epxo!Epxo! 381±!Gspou!Gspou!Mfgu! ! Qbhf!8!pg!:! ! ʳӰʳӽʳ ˧̂̇˴˿ʳ˴́˺˿˸ʳ˄ˊˈ±ʳˆˉ˃±ʳ ̨̂̊ʳ̀˴́̌ʳ˴́˺˿˸ʳ̆˶˴́ʳ̂́˸ʳ̃̂˼́̇ˈ±ʳˈ±ʳ ˧̂̇˴˿ʳ̆˶˴́ʳ̃̂˼́̇ʳˆˉʳˊˆʳ ! ! Qbhf!9!pg!:! 3.2 2D patterns 3.2.1 ANT 2.4~2.5GHz X-Z Plane (E-total) Y-Z Plane (E-total) ! Qbhf!:!pg!:! X-Y Plane (E-total) 4 Summary 4.1 Return Loss ANT(dB) 2.4GHz-5.2 2.45GHz-5.1 2.5GHz-6.1 ! 1.1 3D total Peak Gain & Efficiency Frequency ANT Peak Gain (dBi) Efficiency (%) 2.4GHz0.5 36 2.45GHz-0.2 38 2.5GHz1.9 51
Compliance Certification Services Inc. FCC IDRRK20105635A1 Report No.T100125301-RP1 Page 1 of 127 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For Wireless Mini-PCI Model : WMP-N07-5635A1 Trade Name : Alpha Issued for Alpha Networks Inc. No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Tainan Laboratory No. 8, Jiu Cheng Ling, Jiaokeng Village, Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: +886-6-580-2201 FAX: +886-6-580-2202 http://www.ccsrf.com E-Mail : [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. FCC IDRRK20105635A1 Report No.T100125301-RP1 Page 2 of 127 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 03/11/2010 Initial Issue All Page 127 Winnie Chen 01 05/11/2010 Update 6dB BANDWIDTH Page 13 ~ 25 Winnie Chen Compliance Certification Services Inc. FCC IDRRK20105635A1 Report No.T100125301-RP1 Page 3 of 127 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ....................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 6 5. FACILITIES AND ACCREDITATION ........................................................................... 7 5.1 FACILITIES ............................................................................................................ 7 5.2 EQUIPMENT .......................................................................................................... 7 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.................................................... 8 6. CALIBRATION AND UNCERTAINTY.......................................................................... 9 6.1 MEASURING INSTRUMENT CALIBRATION ........................................................ 9 6.2 MEASUREMENT UNCERTAINTY ......................................................................... 9 7. SETUP OF EQUIPMENT UNDER TEST...................................................................... 10-11 8. FCC PART 15.247 REQUIREMENTS.......................................................................... 12 8.1 6dB BANDWIDTH .................................................................................................. 12-25 8.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 26-40 8.3 AVERAGE POWER ............................................................................................... 41-43 8.4 POWER SPECTRAL DENSITY............................................................................. 44-63 8.5 CONDUCTED SPURIOUS EMISSION .................................................................. 64-80 8.6 RADIATED EMISSION........................................................................................... 81-113 8.7 CONDUCTED EMISSION ...................................................................................... 114-118 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE..................................................... 119-120 APPENDIX II SETUP PHOTOS .......................................................................................121-127 Compliance Certification Services Inc. FCC IDRRK20105635A1 Report No.T100125301-RP1 Page 4 of 127 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST REPORT CERTIFICATION Applicant Alpha Networks Inc. Address No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Equipment Under Test Wireless Mini-PCI Model WMP-N07-5635A1 Trade Name Alpha Tested Date January 25, 2010 ~ March 10, 2010 ; May 10, 2010 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Re…
Text truncated - open the document above for the full version.
