RRK2012060056-1Wireless AC Module

Alpha Networks Inc.
Wireless AC Module - FCC ID RRK2012060056-1 - Alpha Networks Inc.
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Feb 06, 2013
Application Purpose
Original Equipment
Date of Application
Feb 06, 2013
Equipment Note
Wireless AC Module
Frequency Range
5180.00000000 - 5240.00000000
Company
Alpha Networks Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

β†—

Attestation Statements

β†—

Cover Letter(s)

β†—
β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—
β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Manual WMC-AC01 Wireless AC Module Revision: 1.0 ii Contents 1.0 SCOPE ........................................................................................................................................................................... 3 1.1 DOCUMENT ................................................................................................................................................................. 3 1.2 PRODUCT FEATURES .................................................................................................................................................. 3 2.0 REQUIREMENTS ....................................................................................................................................................... 3 2.1 FUNCTIONAL BLOCK DIAGRAM ................................................................................................................................ 3 2.2 GENERAL REQUIREMENTS ........................................................................................................................................ 4 2.2.1 IEEE 802.11a Section .......................................................................................................................................... 5 2.2.2 IEEE 802.11n Section. ............................................................................................................................... .........5 2.2.3 IEEE 802.11ac Section.................................................................................................................. .7 2.2.4 General Section ................................................................................................................................................... 7 2.3 SOFTWARE REQUIREMENTS ...................................................................................................................................... 7 2.3.1 Security ................................................................................................................................................................ 8 2.4 MECHANICAL REQUIREMENTS ................................................................................................................................. 8 2.5 COMPATIBILITY REQUIREMENTS ............................................................................................................................. 8 2.6 REQUIREMENTS OF RELIABILITY, MAINTAINABILITY AND QUALITY ..................................................................... 8 2.7 ENVIRONMENTAL REQUIREMENTS ........................................................................................................................... 8 3 1.0 Scope 1.1 Document This document is to specify the product requirements for 802.11ac PCI Express. This PCI Express card is based on BCM chip that complied with IEEE 802.11ac from 5GHz, and it is also backward compatible to comply with IEEE 802.11a and IEEE 802.11n standard. 1.2 Product Features ο‚Ÿ Compatible with IEEE 802.11a high rate standard to provide wireless 54Mbps data rate ο‚Ÿ Compatible with IEEE 802.11n draft standard to provide wireless 300Mbps data rate ο‚Ÿ Compatible with IEEE 802.11ac draft standard to provide wireless 1300Mbps data rate ο‚Ÿ Operation at 5.15~5.85GHz frequency band to meet worldwide regulations ο‚Ÿ Supports WEP, 802.1x, WPA and WPA2 enhanced security ο‚Ÿ Friendly user configuration and diagnostic utilities ο‚Ÿ Support Linux driver. ο‚Ÿ Supports PCIe interface . 2.0 Requirements The following sections identify the detailed requirements of the 802.11ac PCI Express. 2.1 Functional Block Diagram : BCM-4360 (PCI-e) 4 2.2 General Requirements 2.2.1 IEEE 802.11a Section Feature Detailed Description 2.2.1.1 Standard ο‚Ÿ IEEE 802.11a 2.2.1.2 Radio and Modulation Schemes ο‚Ÿ BPSK, QPSK, 16QAM, 64QAM, with OFDM 2.2.1.3 Operating Frequency ο‚Ÿ 5150MHz~5250MHz,5725MHz~5850MHz 2.2.1.4 Channel Numbers ο‚Ÿ Ch36~CH64/CH149~CH165 2.2.1.5 Data Rate ο‚Ÿ 54, 48, 36, 24, 18, 12, 9, and 6 Mbps 2.2.1.6 Media Access Protocol ο‚Ÿ CSMA/CA with ACK 2.2.1.7 Transmitter Output Power ο‚Ÿ Frequency 5180~5240MHz ο‚Ÿ Typical RF Output Power at each RF chain, Data Rate and at room Temp. 25degree C ( tolerance Β± 2dB ) ο‚Ÿ 8 dBm (+/-2dB) at 6 to 9 Mbps ο‚Ÿ 8 dBm (+/-2dB) at12~24 Mbps ο‚Ÿ 8 dBm (+/-2dB) at 36~54 Mbps ο‚Ÿ Frequency 5745~5825MHz ο‚Ÿ Typical RF Output Power at each RF chain, Data Rate and at room Temp. 25degree C ( tolerance Β± 2dB ) ο‚Ÿ 20 dBm (+/-2dB) at 6 to 9 Mbps ο‚Ÿ 20 dBm (+/-2dB) at12~24 Mbps ο‚Ÿ 18 dBm (+/-2dB) at 36~54 Mbps Note: The maximum RF output power setting is different by channel and individual country regulations. 2.2.1.8 Effective Isotropic Radiated Power ο‚Ÿ EIRP17.5dbm@ CH36~CH64 ο‚Ÿ EIRP29.5dbm@ CH149~CH165 2.2.1.9 Receiver Sensitivity ο‚Ÿ Error Rate = 10% at room temperature. –82dBm at 6Mbps –81dBm at 9Mbps –79dBm at 12Mbps –77dBm at 18Mbps –74dBm at 24Mbps –70dBm at 36Mbps –66dBm at 48Mbps –65dBm at 54Mbps 2.2.2 IEEE 802.11n Section Feature Detailed Description 2.2.2.1 Standard ο‚Ÿ IEEE 802.11n 2.2.2.2 Radio and Modulation Schemes ο‚Ÿ BPSK, QPSK, 16QAM, 64QAM with OFDM 2.2.2.3 Operating Frequency ο‚Ÿ 5150MHz~5250MHz,5725MHz~5850MHz 2.2.2.4 Channel Numbers ο‚Ÿ Ch36~CH48 , CH149~CH165 for IEEE 802.11a/n 2.2.2.5 Data Rate ο‚Ÿ 6.5~300 Mbps 2.2.2.6 Media Access Protocol ο‚Ÿ CSMA/CA with ACK 5 Feature Detailed Description 2.2.2.7 Transmitter Output Power N mode HT20 (5180MHz~5240MHz) ο‚Ÿ Typical RF Output Power at each RF chain, Data Rate and at room Temp. 25degree C ( tolerance Β± 2dB ) ο‚Ÿ Typical 10dBm (+/-2dB) at MCS0 to MCS23 N mode HT40 (5180MHz~5240MHz) ο‚Ÿ Typical 12dBm (+/-2dB) at MCS0 to MCS23 N mode HT20 (5745MHz~58250MHz) ο‚Ÿ Typical 20dBm (+/-2dB) at MCS0/1 and MCS8/9 and MCS16/17 ο‚Ÿ Typical 20dBm (+/-2dB) at MCS2~ MCS4 and MCS10~MCS12 and MCS18~MCS20 ο‚Ÿ Typical 18dBm (+/-2dB) at MCS5~MCS7 and MCS 13~MCS15 and MCS21~MCS23 N mode HT40 (5745MHz~58250MHz) ο‚Ÿ Typical 20dBm (+/-2dB) at MCS0/1 and MCS8/9 and MCS16/17 ο‚Ÿ Typical 20dBm (+/-2dB) at MCS2~ MCS4 and MCS10~MCS12 and MCS18~MCS20 ο‚Ÿβ€¦

Text truncated - open the document above for the full version.

Attestation Statements

Federal Communications Commission Authorization and Evaluation Division Declaration for no non-US channel operation We, Alpha Networks Inc. declare that the device does not support any non-US channels in all the operational mode(s), like Ad-Hoc...etc, for the following product. FCC ID: RRK2012060056-1 Sincerely yours, ------------------------------------------ Kelly Tsai / Director Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 1/21/2013

Cover Letter(s)

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RRK2012060056-1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics/Block Diagram/ Operating description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------ Kelly Tsai / Director Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 1/21/2013

Cover Letter(s)

Power of Attorney To whom it may concern: We, the undersigned Alpha Networks Inc. hereby authorize BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15 approval and any communication needed with the national authority. Any and all acts carried out by BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan on our behalf shall have the same effects as acts of our own. FCC ID: RRK2012060056-1 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Kelly Tsai / Director Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886-3-5665091 E-mail: [email protected] 2013/1/22

Cover Letter(s)

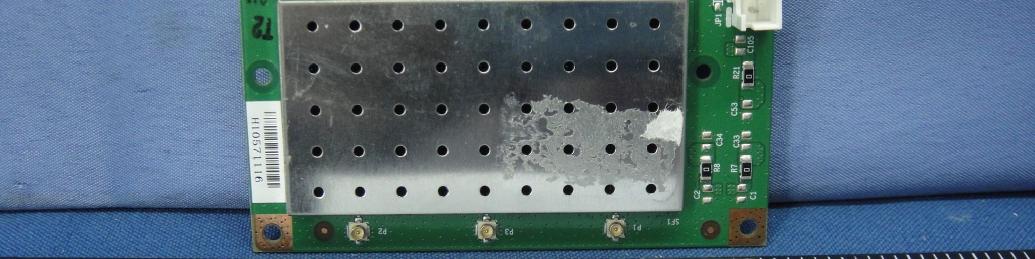

FCC ID: RRK2012060056-1 Report No.: RF121205E03 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch February 7, 2013 Dear Application Examiner, Alpha Networks Inc., It’s a Wireless AC Module, FCC ID: RRK2012060056-1 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. β€œThe modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. β€œThe modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM 4360. 3. β€œThe modular transmitter must have its own power supply regulation.” The part number of this regulator is BCM 4360. 4. β€œThe modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. β€œThe modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. β€œThe modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RRK2012060056-1 Report No.: RF121205E03 7. β€œThe modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. β€œThe modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

External Photos

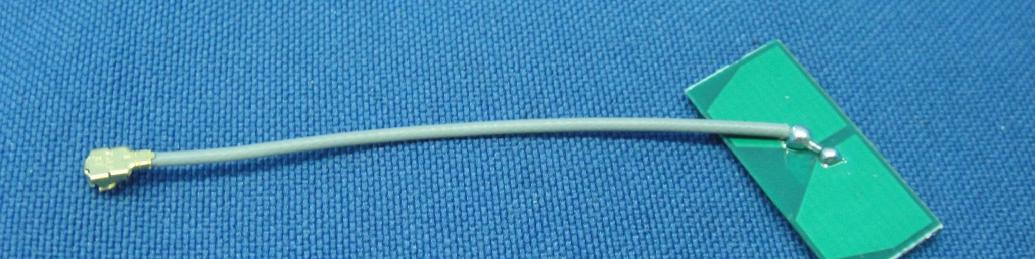

Reference No.: 121205E03 Page 1 CONSTRUCTION PHOTOS OF EUT With Antenna (Brand: WHA YU, Model: SSR-30247) Reference No.: 121205E03 Page 2 Reference No.: 121205E03 Page 4 Reference No.: 121205E03 Page 5 Reference No.: 121205E03 Page 6 Antenna (Brand: WHA YU, Model: C037-511225-A) Antenna (Brand: WHA YU, Model: C037-511226-A)

ID Label/Location Info

LABEL DRAWING The label will be permanently affixed at a conspicuous location on the device. Label Location

Internal Photos

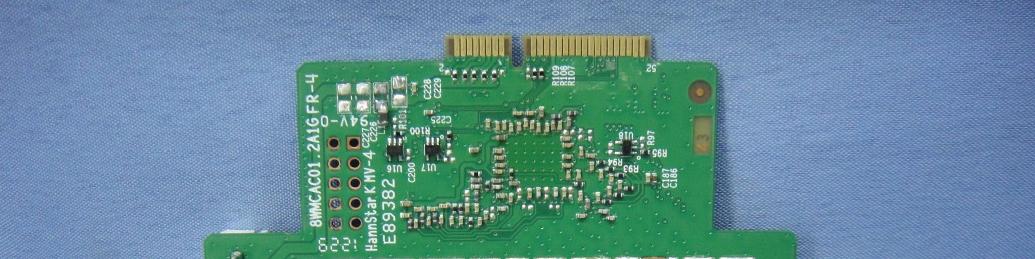

Reference No.: 121205E03 Page 3

RF Exposure Info

Report No.: SA121205E03 1 of 6 Report Format Version 5.0.0 Reference No.: RF EXPOSURE REPORT REPORT NO.: SA121205E03 MODEL NO.: WMC-AC01 FCC ID: RRK2012060056-1 RECEIVED: Dec. 05, 2012 TESTED: Jan. 29, 2013 ISSUED: Feb. 06, 2013 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA121205E03 2 of 6 Report Format Version 5.0.0 Reference No.: TABLE OF CONTENTS RELEASE CONTROL RECORD .................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA121205E03 3 of 6 Report Format Version 5.0.0 Reference No.: RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA121205E03 Original release Feb. 06, 2013 Report No.: SA121205E03 4 of 6 Report Format Version 5.0.0 Reference No.: 1. CERTIFICATION PRODUCT: Wireless AC Module BRAND NAME: Alpha MODEL NO.: WMC-AC01 TEST SAMPLE: R&D SAMPLE APPLICANT: Alpha Networks Inc. TESTED DATE: Jan. 29, 2013 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: WMC-AC01) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Feb. 06, 2013 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Feb. 06, 2013 ( May Chen, Deputy Manager ) Report No.: SA121205E03 5 of 6 Report Format Version 5.0.0 Reference No.: 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA121205E03 6 of 6 Report Format Version 5.0.0 Reference No.: 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(5GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 780.691 3.82 20 0.37429 1 For 15.407(5GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180 ~ 5240 47.868 3.82 20 0.02295 1 --- END ---

Test Report

Report No.: RF121205E03 1 of 61 Report Format Version 5.1.0 Cancels and replaces the report No.: IC120322E03 dated Apr. 10, 2012 FCC TEST REPORT (15.247) REPORT NO.: RF121205E03 MODEL NO.: WMC-AC01 FCC ID: RRK2012060056-1 RECEIVED: Dec. 05, 2012 TESTED: Jan. 13 to 29, 2013 ISSUED: Feb. 06, 2013 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF121205E03 2 of 61 Report Format Version 5.1.0 Cancels and replaces the report No.: IC120322E03 dated Apr. 10, 2012 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION .................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................ 6 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 8 3.2 DESCRIPTION OF TEST MODES ....................................................................... 11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 15 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 16 3.5 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 17 4. TEST TYPES AND RESULTS .............................................................................. 19 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 19 4.1.2 TEST INSTRUMENTS .......................................................................................... 19 4.1.3 TEST PROCEDURES .......................................................................................... 20 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 20 4.1.5 TEST SETUP ....................................................................................................... 20 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 21 4.1.7 TEST RESULTS ................................................................................................... 22 4.2 RADIATED AND BANDEDGE EMISSION MEASUREMENT ................................ 24 4.2.1 LIMITS OF RADIATED AND BANDEDGE EMISSION MEASUREMENT .............. 24 4.2.2 TEST INSTRUMENTS .......................................................................................... 25 4.2.3 TEST PROCEDURES .......................................................................................... 26 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 26 4.2.5 TEST SETUP ....................................................................................................... 27 4.2.6 EUT OPERATING CONDITIONS ......................................................................... 27 4.2.7 TEST RESULTS ................................................................................................... 28 4.3 6dB BANDWIDTH MEASUREMENT .................................................................... 38 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 38 4.3.2 TEST INSTRUMENTS .......................................................................................... 38 4.3.3 TEST PROCEDURE ............................................................................................. 38 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 38 4.3.5 TEST SETUP .......................................................…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF121205E03-1 1 of 55 Report Format Version 5.1.0 Cancels and replaces the report No.: IC120210E05-1 dated Apr. 10, 2012 FCC TEST REPORT (15.407) REPORT NO.: RF121205E03-1 MODEL NO.: WMC-AC01 FCC ID: RRK2012060056-1 RECEIVED: Dec. 05, 2012 TESTED: Jan. 13 to 29, 2013 ISSUED: Feb. 06, 2013 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF121205E03-1 2 of 55 Report Format Version 5.1.0 Cancels and replaces the report No.: IC120210E05-1 dated Apr. 10, 2012 Table of Contents RELEASE CONTROL RECORD..............................................................................4 1. CERTIFICATION ...........................................................................................5 2. SUMMARY OF TEST RESULTS ...................................................................6 2.1 MEASUREMENT UNCERTAINTY ................................................................7 3. GENERAL INFORMATION ...........................................................................8 3.1 GENERAL DESCRIPTION OF EUT ..............................................................8 3.2 DESCRIPTION OF TEST MODES .............................................................. 11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................14 3.4 DUTY CYCLE OF TEST SIGNAL................................................................15 3.5 DESCRIPTION OF SUPPORT UNITS ........................................................16 3.6 CONFIGURATION OF SYSTEM UNDER TEST .........................................17 4. TEST TYPES AND RESULTS .....................................................................19 4.1 CONDUCTED EMISSION MEASUREMENT ..............................................19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................19 4.1.2 TEST INSTRUMENTS ................................................................................19 4.1.3 TEST PROCEDURES .................................................................................20 4.1.4 DEVIATION FROM TEST STANDARD .......................................................20 4.1.5 TEST SETUP ..............................................................................................20 4.1.6 EUT OPERATING CONDITIONS ................................................................21 4.1.7 TEST RESULTS ..........................................................................................22 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ......................24 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ...24 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS24 4.2.3 TEST INSTRUMENTS ................................................................................25 4.2.4 TEST PROCEDURES .................................................................................26 4.2.5 DEVIATION FROM TEST STANDARD .......................................................26 4.2.6 TEST SETUP ..............................................................................................27 4.2.7 EUT OPERATING CONDITION ..................................................................27 4.2.8 TEST RESULTS ..........................................................................................28 4.3 TRANSMIT POWER MEASUREMENT .......................................................38 4.3.1 LIMITS OF TRANSMIT POWER MEASUREMENT ....................................38 4.3.2 TEST INSTRUMENTS ................................................................................39 4.3.3 TEST PROCEDURE ...................................................................................40 4.3.4 DEVIATION FROM TEST STANDARD .......................................................40 4.3.5 TEST SETUP ..............................................................................................41 4.3.6 EUT OPERATING CONDITIONS ................................................................41 4.3.7 TEST RESULTS ..........................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 120927E07 1 of 3 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120927E07 2 of 3 RADIATED EMISSION TEST Report No.: 120927E07 3 of 3

Contact Information

Applicant

Kelly Tsai(Director)
[email protected]886-3-5636666Fax: 886-3-5665091

Test Firm

Bureau Veritas CPS (H.K.) Ltd., Taoyuan BranchRichard Chen
[email protected]+886-3-2600884Fax: +886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
115E5.18 GHz - 5.24 GHz48.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power listed is the maximum combined conducted output power. Single Modular Approval for mobile RF Exposure condition. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Approval is limited to OEM installation only. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
