RRKWMPN09HB1Wireless Mini PCI Adapter

User Manual For WMP-N09H 無線網路卡 Wireless Mini PCI Adapter Version: 1.1 2011/1/13 This document contains confidential proprietary information and is the property of Alpha Networks Corporation. The contents of this document may not be disclosed to unauthorized persons without the written consent of Alpha Networks Corporation. Contents TEST OPERATION MANUAL............................................................................................................ 4 Test Utility Installation:.................................................................................................................... 4 Configuration: .................................................................................................................................. 5 1.0 SCOPE............................................................................................................................................... 6 1.1 DOCUMENT...................................................................................................................................... 6 1.2 PRODUCT FEATURES........................................................................................................................ 6 2.0 REQUIREMENTS ........................................................................................................................... 6 2.1 GENERAL REQUIREMENTS............................................................................................................... 7 2.1.1 General Section ....................................................................................................................... 7 2.2 REQUIREMENTS OF RELIABILITY, MAINTAINABILITY AND QUALITY............................................... 7 2.3 ENVIRONMENTAL REQUIREMENTS.................................................................................................. 7 END PRODUCT LABELING......................................................................................................................... 9 MANUAL INFORMATION TO THE END USER........................................................................................... 9 Test Operation Manual Test Utility Installation: 1. Unzip “ART_V0_5_b25ALL.zip” to “C:\”. 2. The utility must run on Win2000 or WinXP. Hardware Installation: Before insert the card, please execute the below instruction at first !! 1. Win2000 OS : Enter in the directory : C:\ v0_5_b25ALL\art_driver\bin\2000 Execute the uninst_new_drv_2k.bat: Execute the inst_new_drv_2k.bat : WinXP OS : Enter in the directory : C:\ v0_5_b25ALL\art_driver\bin\xp Execute the uninst_new_drv_xp.bat: Execute the inst_new_drv_xp.bat 2. Insert the card, then install the driver , the driver is located at Win2000 OS : C:\ v0_5_b25ALL\art_driver\bin\2000 WinXP OS : C:\ v0_5_b25ALL\art_driver\bin\xp Configuration: 1. Enter the DOS command mode , then change the directory to : C:\ v0_5_b25ALL\art_driver\bin\xp 2. Input the instruction: art \id=2082 Then press enter . ART TEST MODE: 1. Once utility is executed, a menu with test options will appear. To run a test, press the character key that is assigned to the test option. For example, press “c” to run the continuous transmit test, or press “r ” to run the continuous receive test. For example: press “o” to change 11g or 11b test mode, Press “c” to continuous transmit mode . 2. Continuous Transmit Options. a. Before the Continuous Transmit test, need to press “e” first The command will load the calibrate data to the EEROM, then the card can transmit the target power b. The channel frequency, data rate and output power could be changed in continuous transmit options. Press “c” to increase the output power , 11g Power (data rate 6Mbps) is 17dBm, 11b Power is 17dBm , Press ESC to return to the main Test Options menu when finished. 3. Continuous Receive Options Continuous receive options will put the radio into receive mode to allow for radio measurements. Press ESC to return to the main Test Options menu when finished. 1.0 Scope 1.1 Document This document is to specify the product requirements for 802.11n Mini PCI. This mPCI is based on Atheros chip that complied with IEEE 802.11n from 2.4~2.5GHz, and it is also backward compatible to comply with IEEE 802.11g and IEEE 802.11b standard to connect your exist 802.11 b/g wireless LAN device. 1.2 Product Features F Compatible with IEEE 802.11g high rate standard to provide wireless 54Mbps data rate F Compatible with IEEE 802.11b high rate standard to provide wireless 11Mbps data rate F Compatible with IEEE 802.11n draft standard to provide wireless 300Mbps data rate F Operation at 2.4 ~ 2.5GHz frequency band to meet worldwide regulations F Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54Mbps for IEEE 802.11g F Dynamic date rate scaling at 1, 2, 5.5, and 11Mbps for IEEE 802.11b F Dynamic date rate of IEEE 802.11n scaling from MCS – 0 to MCS –15 as shown in Appendix I F Supports WEP, 802.1x, WPA and WPA2 enhanced security F Friendly user configuration and diagnostic utilities F Support Linux driver. F Supports Mini-PCI Type IIIA form factor 2.0 Requirements The following sections identify the detailed requirements of the 802.11 b/g/n 2.1 General Requirements 2.1.1 General Section # Feature Detailed Description 2.1.1.1 Antenna Type y Two UFL antenna connectors s 2.1.1.2 Operating Voltage y 3.3VDC +/- 10% 2.1.14 Form Factor and Interface y Mini-PCI type III A form factor 2.2 Requirements of Reliability, Maintainability and Quality # Feature Detailed Description 2.2.1 MTBF y Mean Time Between Failure > 30,000 hours 2.22 Maintainability y There is no scheduled preventive maintenance required 2.2.3 Quality y The product quality is followed-up by Alpha Networks factory quality control system 2.3 Environmental Requirements # Feature Detailed Description 2.3.1 Operating Temperature Conditions y The product is capable of continuous reliable operation when operating in ambient temperature of 0 °C to +40°C. 2.3.2 Non-Operating Te…

Text truncated - open the document above for the full version.

General Declaration We, the undersigned, attest that this device does not support “Ad Hoc on non-US frequencies”. FCC ID: RRKWMPN09HB1 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] 2010/8/12

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RRKWMPN09HB1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] 2010/8/12

Power of Attorney To whom it may concern: We, the undersigned Alpha Networks Inc. hereby authorize BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approvals and any communication needed with the national authority. Any and all acts carried out by BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan on our behalf shall have the same effects as acts of our own. FCC ID: RRKWMPN09HB1 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] 2010/8/12

FCC ID: RRKWMPN09HB1 Report No.: RF990805E03 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch January 18, 2011 Dear Application Examiner, Alpha Networks Inc., It’s a Wireless Mini PCI Adapter, FCC ID: RRKWMPN09HB1 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9223. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is AR9223. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RRKWMPN09HB1 Report No.: RF990805E03 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

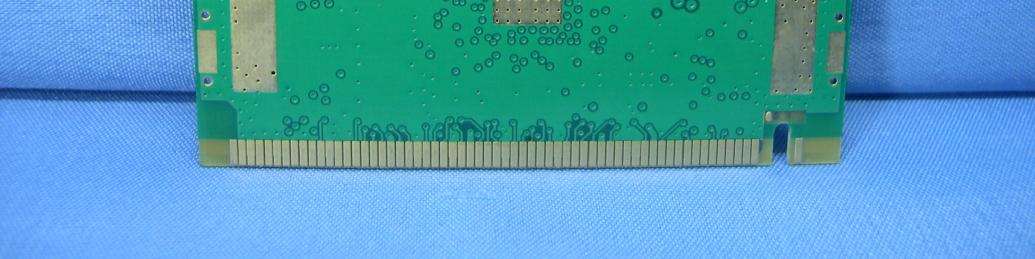

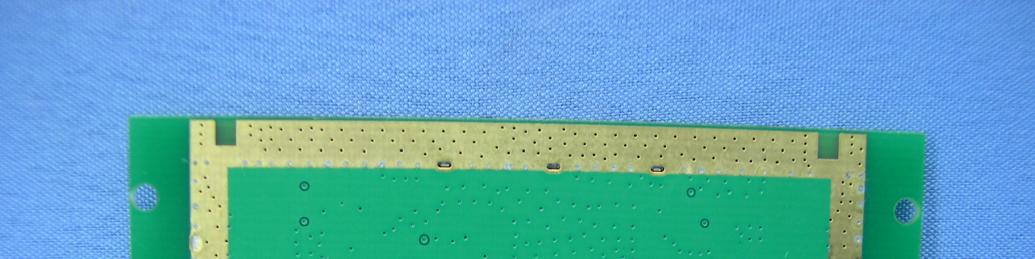

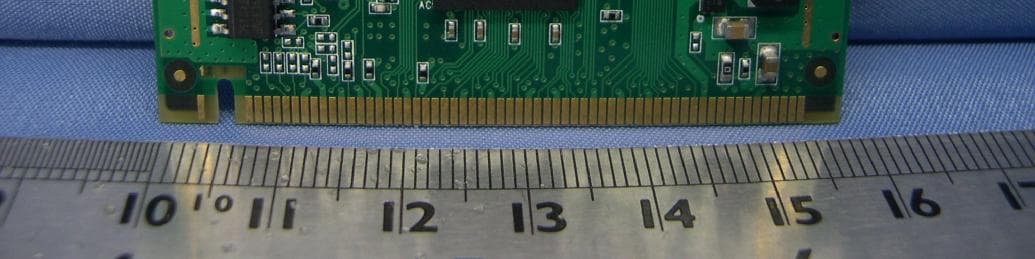

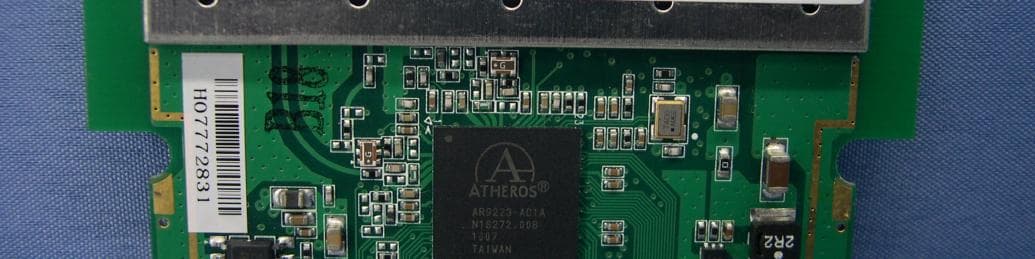

Page 1 CONSTRUCTION PHOTOS OF EUT Model: WMP-N09H Page 2

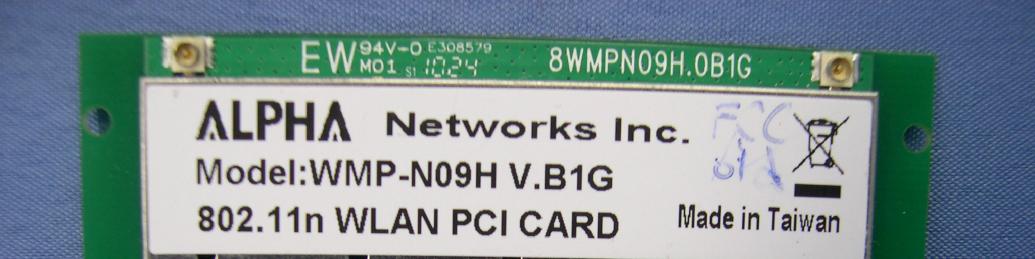

FCC IDΚ RRKWMPN09HB1 Label location The label will be permanently affixed at a conspicuous location on the device. Label drawing IC: 4833A- WMPN09HB1 IC: 4833A- WMPN09HB1 FCC ID: RRKWMPN09HB1 IC: 4833A-WMPN09HB1 FCC ID: RRKWMPN09HB1 IC: 4833A-WMPN09HB1

Page 3 Model: WMP-N09H Page 4

FCC ID: RRKWMPN09HB1 Report No.: RF990805E03 Operational Description This device is a Wireless LAN Mini PCI Module, which operates in 2.4GHz; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The antenna is Dipole antenna with RP-N plug antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA990226H01A Report Format Version 3.0.1 Reference No.: 990805E03 1 RF EXPOSURE REPORT REPORT NO.: SA990226H01A MODEL NO.: WMP-N09H FCC ID: RRKWMPN09HB1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan. Report No.: SA990226H01A Report Format Version 3.0.1 Reference No.: 990805E03 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA990226H01A Report Format Version 3.0.1 Reference No.: 990805E03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device Report No.: SA990226H01A Report Format Version 3.0.1 Reference No.: 990805E03 4 6. TEST RESULTS 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: Chain Manufacture Model name Gain (dBi) Type Connector Chain (0) Grand-Tek C1318-5100011- A (OA-24-04-13) 3.1dBi (Included cable loss) Dipole RP-N plug Chain (1) Grand-Tek C1318-5100011- A (OA-24-04-13) 2.5dBi (Included cable loss) Dipole RP-N plug 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 133.7 0.102 1.0 6 2437 399.2 0.303 1.0 11 2462 185.1 0.141 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 423.0 0.321 1.0 6 2437 834.6 0.634 1.0 11 2462 453.2 0.344 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 403.7 0.164 1.0 6 2437 825.6 0.335 1.0 11 2462 297.1 0.121 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 235.5 0.096 1.0 4 2437 455.4 0.185 1.0 7 2452 153.6 0.062 1.0 --- END --

Report No.: RF990226H01A 1 Report Format Version 3.0.1 Reference No.: 990805E03 FCC TEST REPORT REPORT NO.: RF990226H01A MODEL NO.: WMP-N09H FCC ID: RRKWMPN09HB1 RECEIVED: Aug. 05, 2010 TESTED: Sep. 07 to 16, 2010 ISSUED: Dec. 27, 2010 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 75 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990226H01A 2 Report Format Version 3.0.1 Reference No.: 990805E03 Table of Contents 1. CERTIFICATION....................................................................................................4 2. SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY..........................................................................6 3. GENERAL INFORMATION.....................................................................................7 3.1 GENERAL DESCRIPTION OF EUT.......................................................................7 3.2 DESCRIPTION OF TEST MODES.........................................................................8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..........................9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................12 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................13 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................13 4. TEST TYPES AND RESULTS..............................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT........................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................14 4.1.2 TEST INSTRUMENTS..........................................................................................14 4.1.3 TEST PROCEDURES..........................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD.................................................................15 4.1.5 TEST SETUP.......................................................................................................16 4.1.6 EUT OPERATING CONDITIONS.........................................................................16 4.1.7 TEST RESULTS...................................................................................................17 4.2 RADIATED EMISSION MEASUREMENT.............................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................19 4.2.2 TEST INSTRUMENTS..........................................................................................20 4.2.3 TEST PROCEDURES..........................................................................................21 4.2.4 DEVIATION FROM TEST STANDARD.................................................................21 4.2.5 TEST SETUP.......................................................................................................22 4.2.6 EUT OPERATING CONDITIONS.........................................................................22 4.2.7 TEST RESULTS...................................................................................................23 4.3 6dB BANDWIDTH MEASUREMENT....................................................................52 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................52 4.3.2 TEST INSTRUMENTS..........................................................................................52 4.3.3 TEST PROCEDURE.............................................................................................52 4.3.4 DEVIATION FROM TEST STANDARD.................................................................52 4.3.5 TEST SETUP.......................................................................................................52 4.3.6 EUT OPERATING CONDITIONS.........................................................................52 4.3.7 TEST RESULTS...................................................................................................53 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................57 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................57 4.4.2 INSTRUMENTS....................................................................................................57 4.4.3 TEST PROCEDURES..........................................................................................57 4.4.4 DEVIATION FROM TEST STANDARD.................................................................57 Report No.: RF990226H01A 3 Report Format Version 3.0.1 Reference No.: 990805E03 4.4.5 TEST SETUP.......................................................................................................57 4.4.6 EUT OPERATING CONDITIONS.........................................................................57 4.4.7 TEST RESULTS...................................................................................................58 4.5 POWER SPECTRAL DENSITY MEASUREMENT................................................60 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.............................60 4.5.2 TEST INSTRUMENTS..........................................................................................6…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST 3
